Function characteristics:

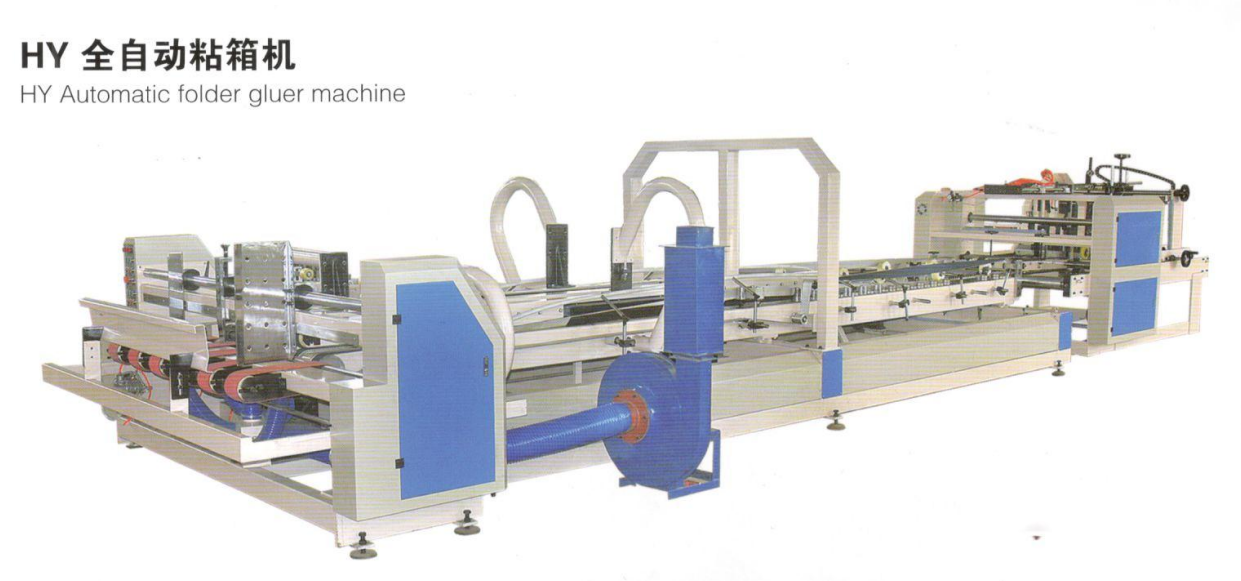

*Automatic folder gluer machine consiste of three sections: vacuum feeding section,gluing & floding section , counter & stacker section.

* Adopt good quality inverter motor, inverter control the speed, PLC and touch screen control, easy operation and running stable. The maximum speed is 130meters/min, average speed 100meters/min. Energy conservation and High Speed, Saving Labor Cost.

一．Feeding unit:

*Vacuum suction feeding make bending paperboard feeding easily.

*High quality electromagnetic clutch make the feeding unit control separately, easy operation and reliable.

Stainless steel glue wheel adopted, long life saving glue cost electric glue adjusting device, simple structure and reliable, easy washing, stainless glue wheel, paste glue evenly and save glue.

二．Counter & Stacker section

*Stacking and counting are simple and reliable.

*Digital control ,operation easily and reliable. No-stop input data and automatic counting and output precisely.

*With rectification function, output adopt pneumatic type, action precise and quick.

三、Glue & Folding section:

*Adopt imported high quality belt to transfer paperboard with long using life.

*Paperboard and creasing line correction device, creasing wheel adjsutable, it is suitable paperboard thickness 2-8mm.

*Second creasing struction can impress again the paperboard which was not creased well.
