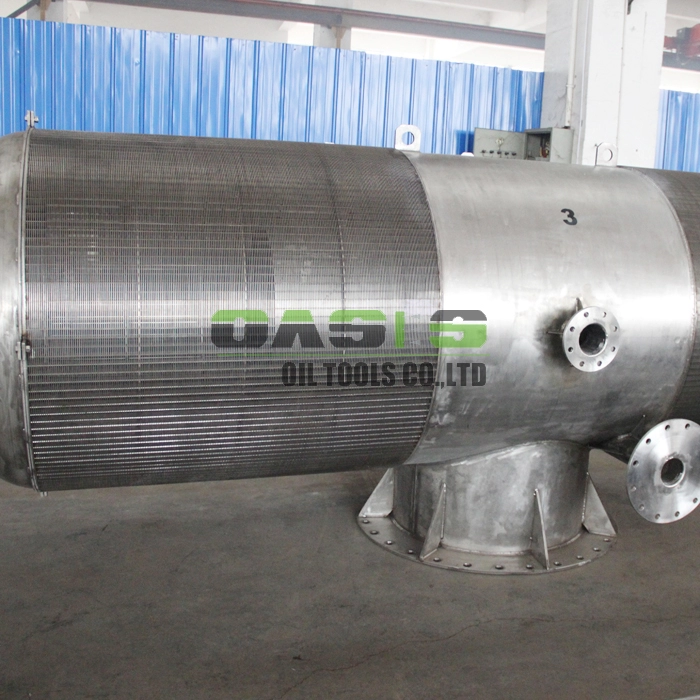

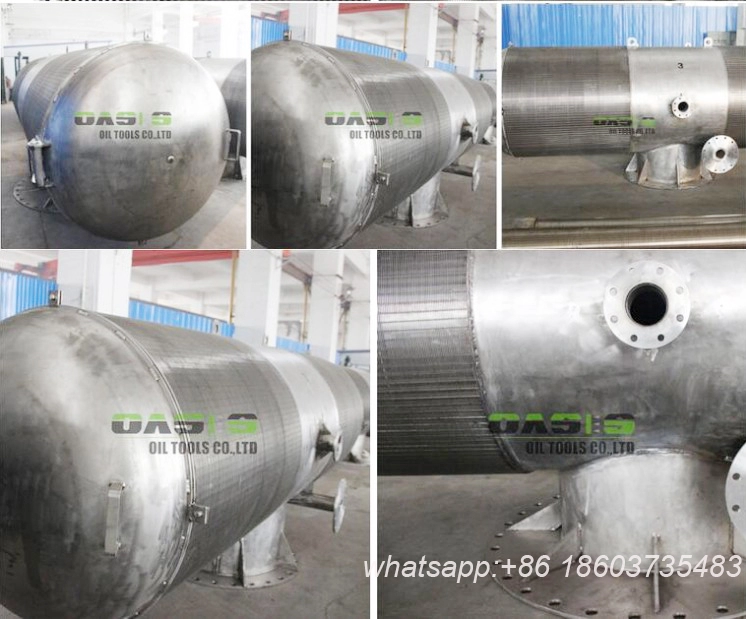

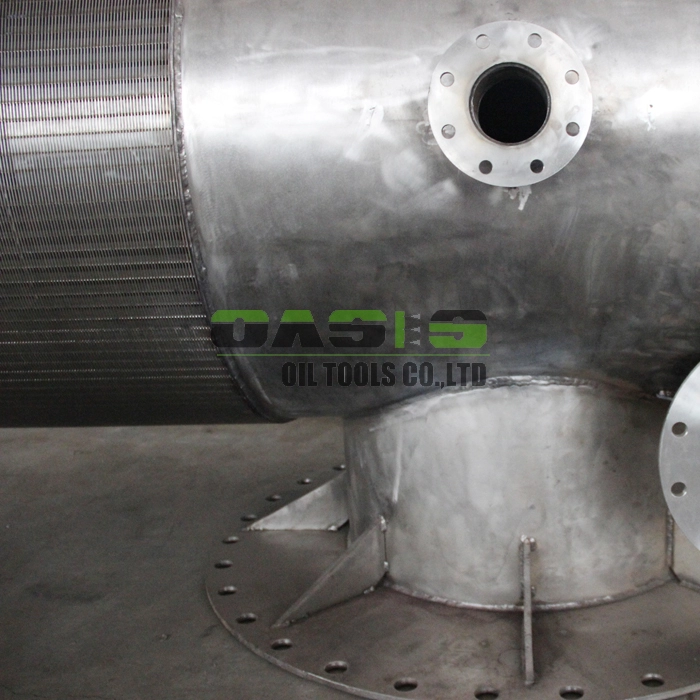

SUBMERGED TEE TYPE STAINLESS STEEL WEDGE WIRE PASSIVE WATER INTAKE SCREENS
Passive water intake screens are constructed of non-plugging V-shaped wires, reinforced support rods and airburst pipes&flanges. It is used for withdrawing water from rivers, lakes, reservoirs and sea, with slow and uniform flow rate on screen surface. Water passes through the water intake screen while debris and aquatic life remain in the water for specific design with a low slot speed. The material can be super duplex stainless steel, normal stainless steel or copper-nickel and surface can be anticorrosive coated.
ADVANTAGES OF WE OASIS PASSIVE WATER INTAKE SCREENS
The large open area and low velocities result in a very low head loss.
Good welded structure
Different materials such as duplex stainless steel, cu-ni alloys are available to limit corrosion risk
Perfect quality for A long lifetime to save the project costs
Lower initial screen system costs
Reliable water delivery
T SHAPE PASSIVE INTAKE SCREEN SUGGESTED DESIGN SPECIFICATIONS
Size | Flow Velocity Capacity(m3/h) | Screen Diameter(mm) | Appro. Overall Length(mm) | Outlet Diameter |
OA-PAS24 | 560 | 600 | 1920 | DN450 |
OA-PAS36 | 1300 | 915 | 2830 | DN750 |
OA-PAS48 | 2200 | 1220 | 4050 | DN900 |
OA-PAS54 | 2560 | 1380 | 4500 | DN950 |
OA-PAS60 | 3600 | 1520 | 5060 | DN1050 |
OA-PAS72 | 5100 | 1830 | 6035 | DN1200 |
OA-PAS84 | 7050 | 2130 | 6980 | DN1500 |
OA-PAS96 | 9300 | 2435 | 8050 | DN1800 |
Note: This form flow capacity is based on 2mm slot and just for reference, we can design to your actual requirements.
TECHNICAL DETAILS of Tee Type Stainless Steel Wedge Wire Passive Water Intake Screens:
Slot (mm) Standards : 0,25 0,50 0,75 1,00 1,50 2,00 3,00. Customized slots
Materials of Construction:
AISI 304 and 316 ,316L grade Stainless Steel, Duplex stainless steel
Screen lengths (mts)
Standard lengths : 2,90 m or 3 m or 5,80 m or 6 m (for others, please contact us).
Productivity 25000 M per Month
Lead time: Within 30 days after receiving your advance payment
Wire size | Wire Width | Wire Height | Relief Angle | Typical Support Rods |
30V | .030" | .06" | 10 | .125" round |
45V | .045" | .09" | 10 | .125" round |
63V | .063" | .10" | 13 | .156" round |
70U | .070" | .17" | 7 | .075" x 1" bar |
90V | .090" | .14" | 13 | .25" round or .075" bar |
125V | .125" | .18" | 13 | .38" round |
Note: The technical specification of passive water intake screens can be changed according to customers' requirements.

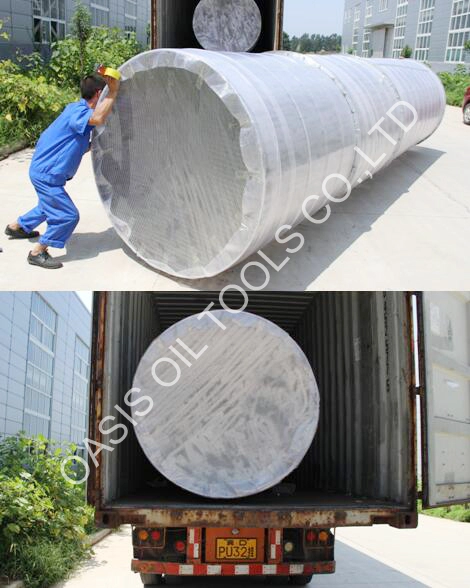

Package of Tee and Drum Wedge Wire Passive Water Intake Screens:
1. Passive water intake screens are packaged with bubble and woven bags and then in wooden cases(fumigation certificate).
2. With bubble bags and then loaded into container at factory to avoid damage during transportation.
ISO9001:2008 Certificates:
We OASIS factory has approved ISO 9001:2008 quality management system since the year 2012.
We OASIS are also the audited supplier of made-in-china and approved by SGS.
Our machines have patent certificates to supply customer designed products or OEM service.
Please contact we OASIS for more information if you are interested in our Tee Type Stainless Steel Wedge Wire Passive Water Intake Screens.
