Product Parameters:

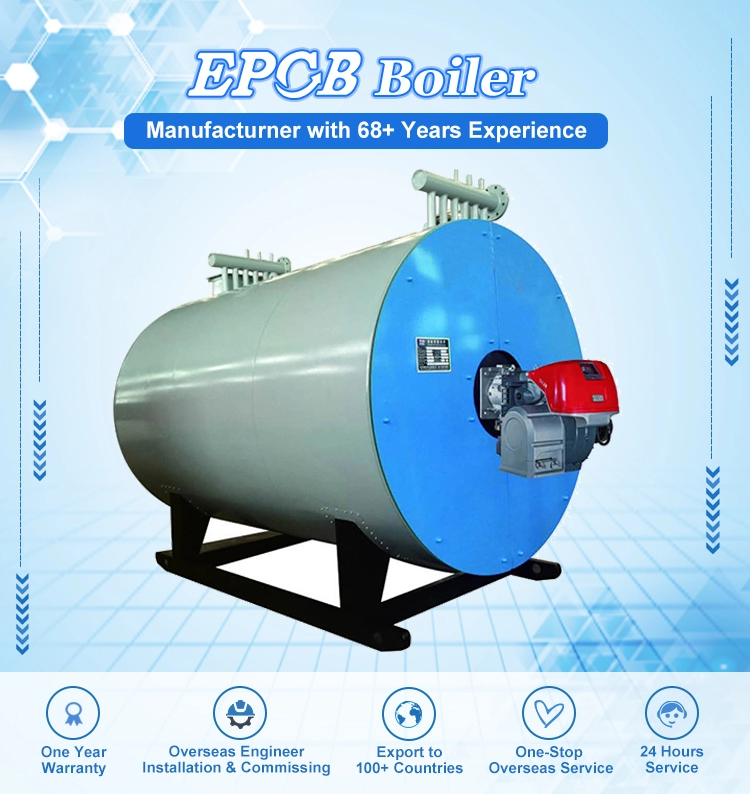

| Item | EPCB Fully Automatic Industrial Natural Gas Fired Thermal/Hot Oil Boiler | ||||||||||
| Rated thermal power | kw | 1200 | 1500 | 1800 | 2900 | 3500 | 4700 | 5900 | 7000 | 8200 | 9400 |
| ×104(Kcal/h) | 100 | 130 | 150 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | |
| Boiler thermal efficiency % | 92 | 92 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | |
| Design pressure Mpa | Diesel, Heavy oil, Natural gas, LPG, Coke oven gas | ||||||||||
| Max. working temperature ℃ | 320 | >=400 | |||||||||
| Medium circulation flow m3/h | 100 | 100 | 160 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | |
| Medium volume m3 | 0.8 | 1.2 | 2.1 | 3.5 | 7.8 | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | |
| Main pipe diameter DN | 125 | 125 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | |
| Installation capacity kw | 37.5 | 49.5 | 57.5 | 75 | 75 | 98.5 | 121.5 | 148.5 | 155 | 195 | |
| Fuel type | Diesel, Heavy oil, Natural gas, LPG, Coke oven gas | ||||||||||
| Fuel consump-tion | Diesel kg/h | 102.12 | 127.65 | 151.54 | 244.15 | 294.66 | 395.68 | 496.71 | 598.32 | 640.34 | 791.37 |
| Natural gas Nm3/h | 124.88 | 156.11 | 185.31 | 298.56 | 360.33 | 483.87 | 607.41 | 720.66 | 844.20 | 967.74 | |
| Boiler size | Vertical type m (Diameter×Height) | 2.2×3.5 | 2.2×4 | 2.4×4.4 | 2.8×6.5 | 3.2×6.7 | 3.2×7 | 3.3×7.5 | 3.5×8.2 | 3.62×9.2 | 3.7×9.6 |
| Horizontal type m (Diameter×Length) | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.8×6.3 | 2.92×6 | 3.23×6.7 | 3.26×7.45 | 3.26×7.9 | 3.62×9 | 3.6×9.48 | |
| Circulating oil pump | Model WRY | 100-65-240 | 100-65-257 | 125-80-250 | 125-100-250 | 125-100-250 | 125-100-257 | 125-100260 | 150-125-270 | 125-100-250 | 125-100-257 |
| Flow m3/h | 100 | 100 | 160 | 200 | 200 | 260 | 300 | 340 | 200×2 | 260×2 | |
| Head m | 70 | 80 | 60 | 60 | 60 | 70 | 70 | 76 | 60 | 70 | |
| Power kw | 30 | 37 | 45 | 55 | 55 | 75 | 90 | 110 | 55×2 | 75×2 | |

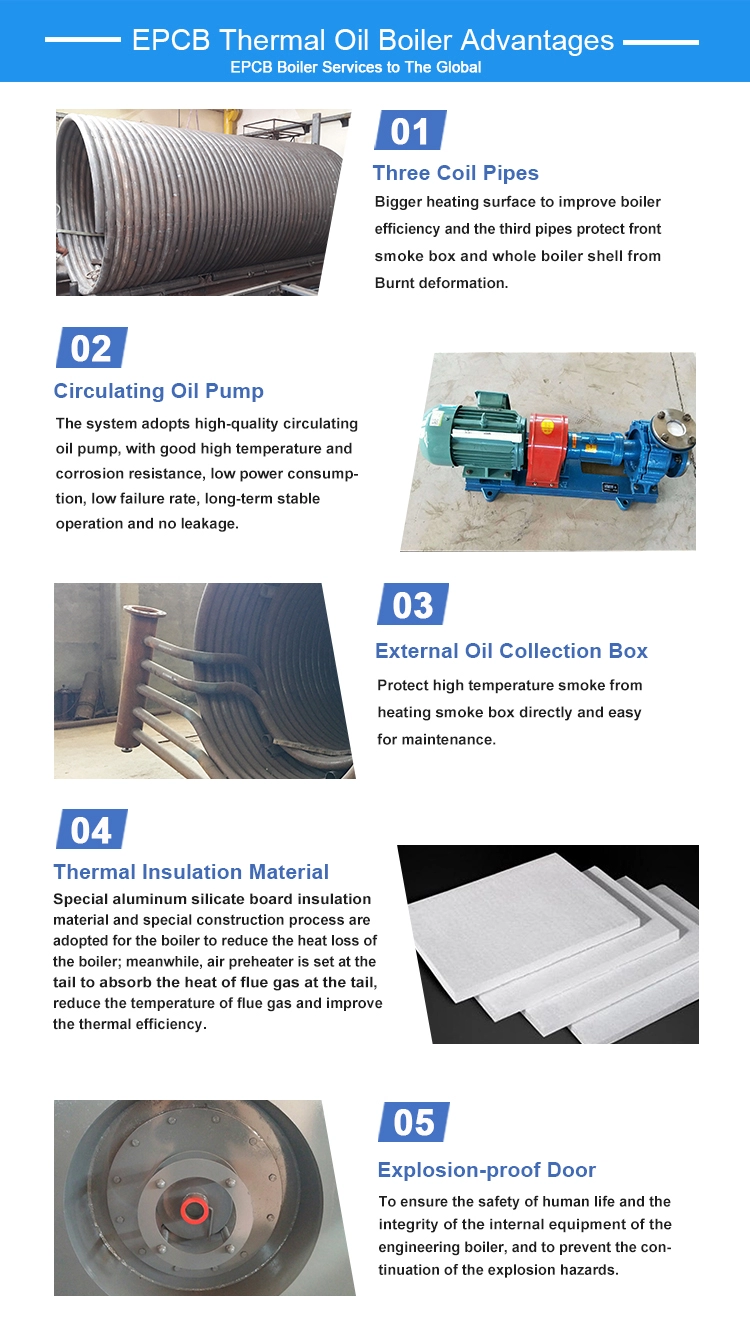

1. Good sealing, large and flexible space, improving the service life of the burner.
2. The boiler adopts a three-layer close coil pipe structure, with three-pass flue gas and higher heat conversion efficiency.
3. The boiler has a compact structure, small floor area, good raw materials, stable, safe and reliable boiler.
3. The air preheater can effectively improve the thermal efficiency of the boiler to more than 95%.
4. Multiple interlocking protection systems make the boiler run more safely.
5. High-temperature control accuracy and good combustion effect.
6. PLC automatic control function can save human resources and extend the service life of the equipment.
Thermal Oil Boiler Design Structure:
1. The fourth-generation optimization design is adopted to effectively eliminate the slagging phenomenon of conventional furnace type on the market.
2. Professional design and EPCB professional production process can ensure better physical and chemical properties of materials in production, safe and long-term use.
3. Each production process has professional quality inspection and spot check.
4. 100% full X-ray inspection for pressure welds.
5. EPCB professional hydraulic test, certified by quality assurance engineer, inspected by an authoritative third-party testing organization
6. For products sent to foreign countries, add two times of quality inspection for products sent to foreign countries: inspection before shipment and inspection after sealing.

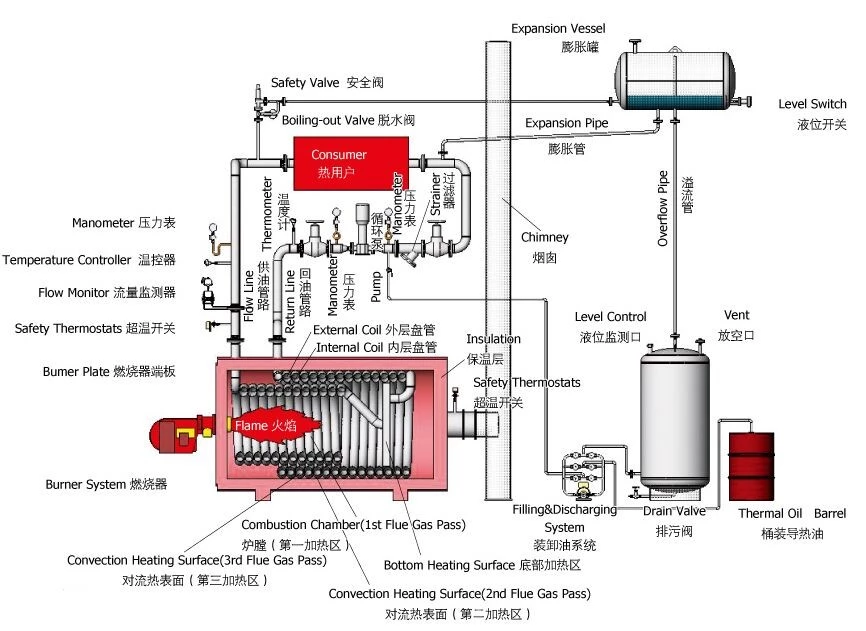

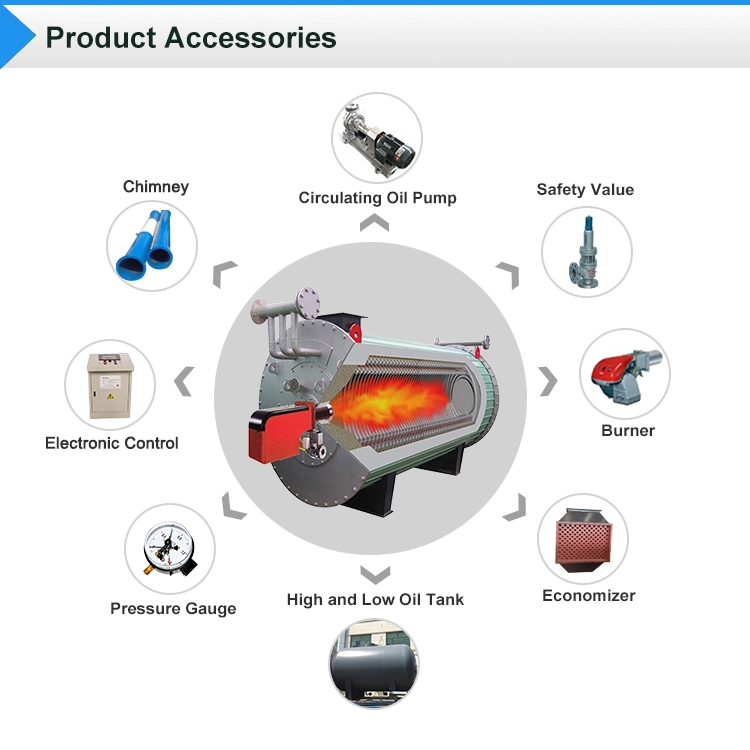

Natural Gas Fired Thermal/Hot Oil Boiler Auxiliaries:

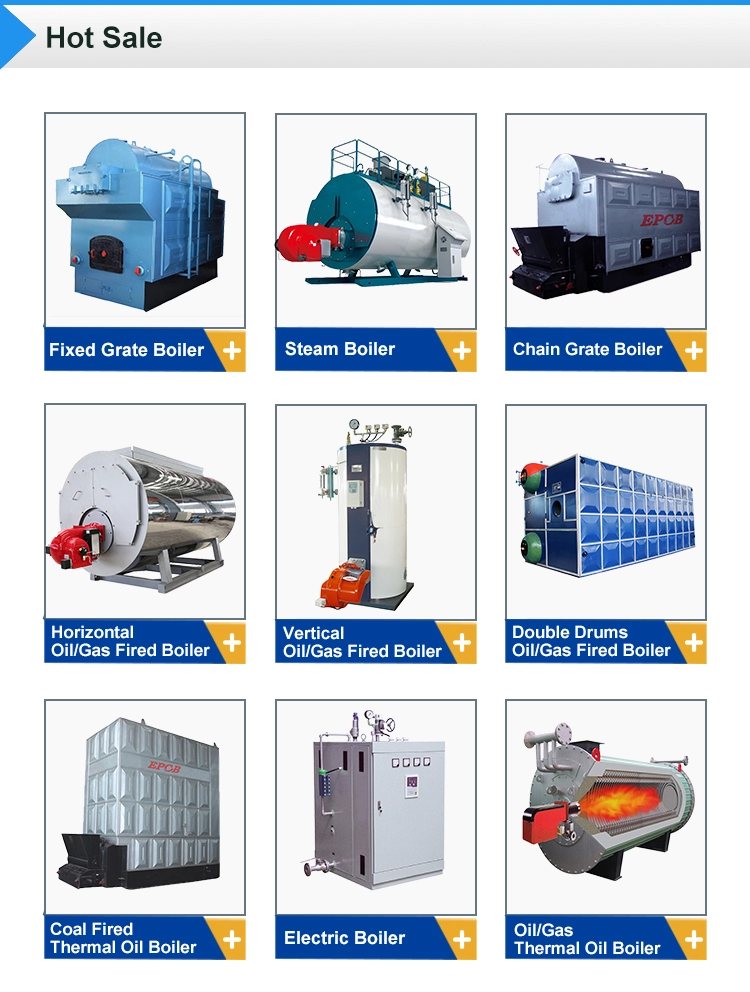

Our Main Product scope:
1.Fire tube series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-21MW)
2.Water tube series Horizontal Oil/gas fired boiler (4- 35T/H )
3.Vertical fire tube series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4.Large drum chain grate new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. Double drum chain grate series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. Electric boiler boiler ( 10--50 T/H)
7.Oil/Gas fired thermal oil boiler
8.Coal fired thermal oil boiler heater
9. High/low pressure of various fuels,CFB Circulating Fluidized Bed boiler ( 35T--400T )
FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacturer. our factory is in Qingdao, the capital of China's industrial brands, and we have our own factory with 120,000m2 area.
Q: Do I get guarantee of products?
A: Yes, every product is a product that has experienced the third generation and the third generation of our company's product production, 96 quality inspection processes and years of experience.
Q: Do you have any Certificate?
A: Yes. each of our boilers has China national standard certificate, there is also CE ASME EAC or as, we can cooperate to make local boiler certification according to the local needs of users, such as Australian certification, Indian certification, British certification, etc.
Q: How can I pay you?
A: T/T, LC,D/P are all available.
Q: What about the production?
A: Produce time is 10~45days for <6Ton boiler, 25~60 days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, based on decades of long-term user data experience, we can provide vulnerable parts for 2, 4 and 6 years in different schemes, and provide long-term supply at a reasonable price.
Q: What about the maintenance?
A: We have a list of professional maintenance methods. After purchasing the equipment, we can operate step by step according to the maintenance instructions provided by us for your customers.
