CR400 Corner rounding machine
The case of right corners is conveyed into the working area though the feeding table conveyor belt, then pressed and formed into round corners by the air cylinders, and finally sent out the working area to be stacked on the collecting table. It's used to round corners of book cover, especially for kids reading book
Features:
1. Transparent machine body, able to clearly note the working procedures
2. Operate through panel control system, which is easy and quick to get started
3. Equipped with protective cover, which ensures safety of operator
4. Efficient in production, and generally equipped to the casemaker

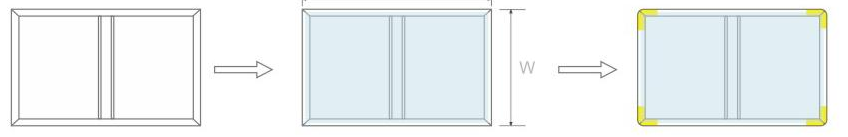

Production Flow:
Main Technical Parameters:
| Case size(L×W) | Min. 94*143mm Max. 400*700mm |
| Case thickness(T) | 1-4mm |
| Corner radius | R4-R15 |
| Speed | ≤45pcs/min |
| Air supply | 10L/Min 0.6Mpa |
| Power | 0.18kw 380V 3P |
| Machine dimension | 3450×1400×1950mm |
| Machine weight | 1000kg |
Remark: The production capacity is 45pcs/min, but the speed of the machine depends on the size and quality of the case.
