Heating Steam BoilerElectric Steam BoilerSteam Boiler
Product Description:

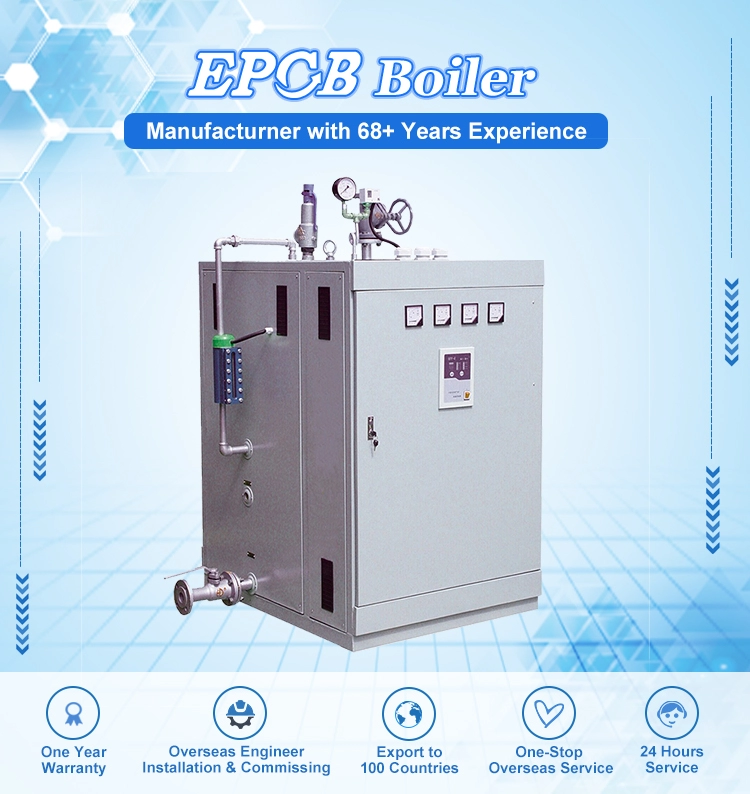

Electric steam boiler is new type equipment, which can transfer power to steam,has the characteristics of flexible installation and high efficiency . People would feel frightened when they talked about electrical boiler before. They afraid of electric leakage and even worried the potential safety problem existed .EPCB boiler can completely eliminate your doubts completely because of the use of high-power, fully insulated heating structure, and the design of multi-level leakage protection function module, due to the use of long-life heating tube, long service life, the use of more than 30000 / hour heating tube.
| Item\Type | Automatic Electric Steam Boiler | |||||||||
| Rated heat capacity kw | 36 | 75 | 144 | 216 | 360 | 720 | 1080 | 1440 | 1440 | |
| Rated steam capacity t/h | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | 2 | |
| Rated working pressure MPa | 0.4 | 0.4/0.7 | 0.4/0.7 | 0.7 | 0.7 | 0.7/1.0 | 1 | 1 | 1.25 | |
| Power x class number Kw x n | 12x3 | 15x5 | 24x6 | 24x9 | 24x15 | 24x30 | 33x32 | 24x60 | 24x60 | |
| Saturated steam temperature °C | 154 | 154/170 | 154 | 154/170 | 170 | 184 | 184 | 184 | 184 | |
| Designed thermal efficiency (%) | ≥98 | |||||||||
| Rated operational voltage | ~ 380 V | |||||||||
| Mode of connection | three-phase three-wire system | |||||||||
| Steam caliber DN | 20 | 25 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | |
| Inlet diameter DN | 20 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Safe vavle diameter DN | 25 | 40 | 40 | 40 | 40 | 2x40 | 2x40 | 2x40 | 2x40 | |
| Blowdown valve diameter DN | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| Boiler Weight Kg | 160 | 220 | 420 | 500 | 1980 | 2200 /2320 | 2600 | 4000 | 4000 | |
| Outlook size | Length mm | 700 | 890 | 1180 | 1220 | 2450 | 2450 | 2800 | 2940 | 2920 |
| Width mm | 470 | 700 | 960 | 980 | 1700 | 1800 | 2000 | 2200 | 2150 | |
| Height mm | 1250 | 1310 | 1470 | 1520 | 1700 | 2000 | 2050 | 2520 | 2500 | |

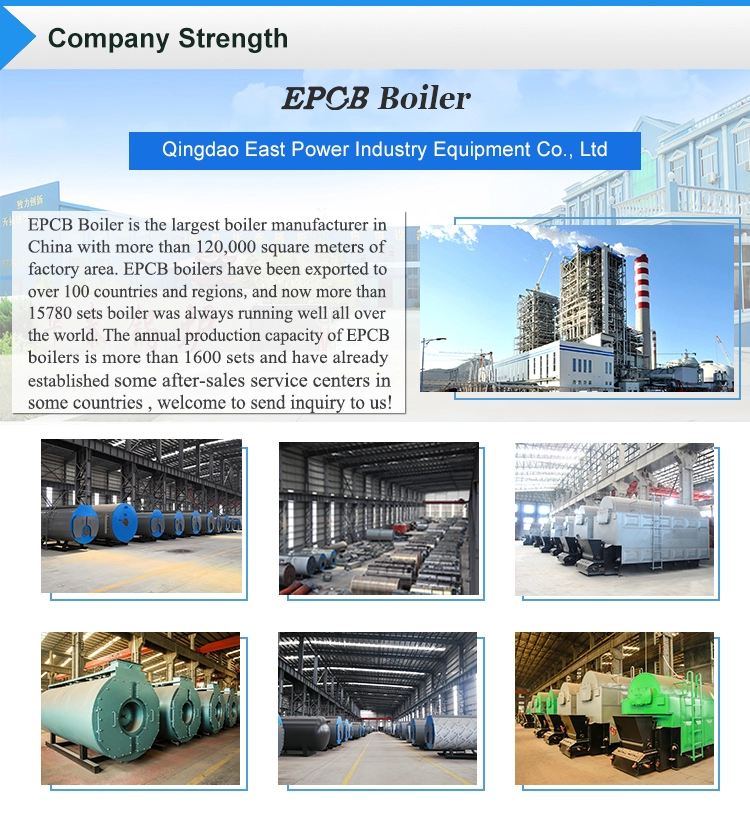

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
After-sales Services:
1. Assist clients to prepare for the first construction, and also can arrange engineer on-site instruction of installation and commissioning
2. Install and debug the equipment;
3. Train the first-line operators, application of theoretical learning + product cognitive learning + examination + practical repeated operation learning + phased procuratorial learning effect
4. Examine the equipment, adopt a patrol inspection system, telephone and video guidance system.
Factory assurance:
1. One year quality assurance system
2. Provide professional and high-quality parts according to the factory price
3. It can be designed and produced according to the user's voltage frequency
4. 100% tested before delivery
5. Skid-mounted complete system available 180-- 3000 kw
6. Complete system fixed on Skid rack available 180-- 3000 kw
7. Engineer on-site instruction of installation and commissioning available, and remote guidance and video services.
Why do you choose EPCB Boiler?
1. Hundreds of years of boiler industry experience, more than 60 years of steam boiler production experience, specializing in industrial steam boiler, because the long-term focus, all professional.

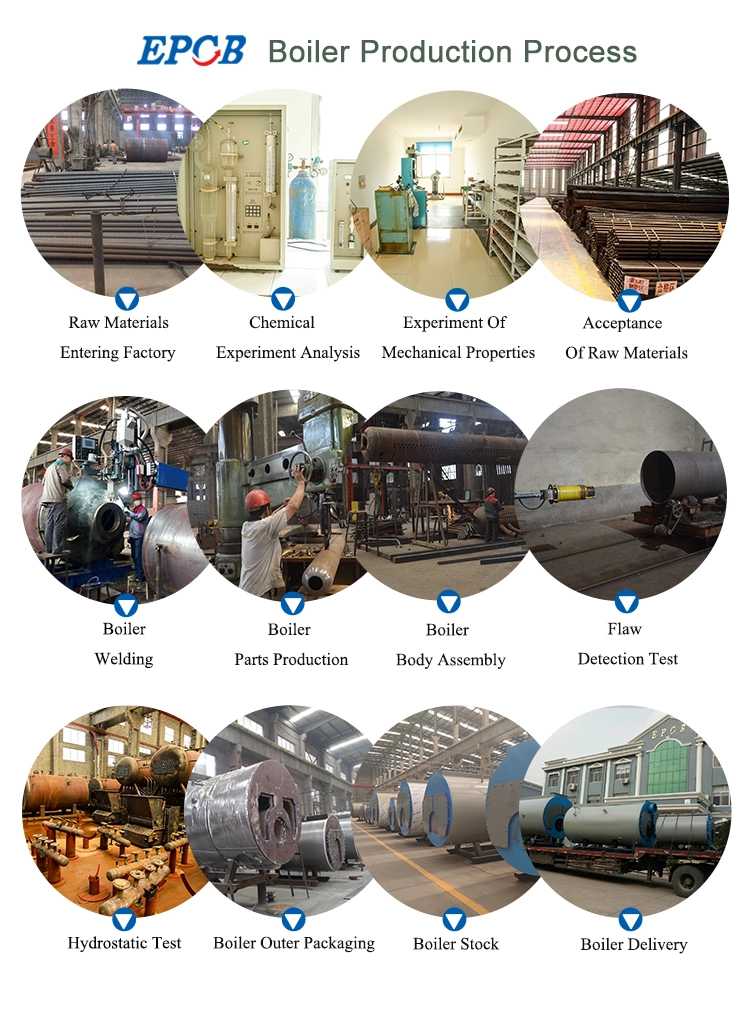

2.We have strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit.
3. Each boiler system part is from first class brand all over the world or China, ensure the high quality.
4.We can provide the best after-sales service, set up service centers or service stations in many countries, and send our engineers to your factory to give you complete installation and commissioning guidance.
More parts and details of our boilers.

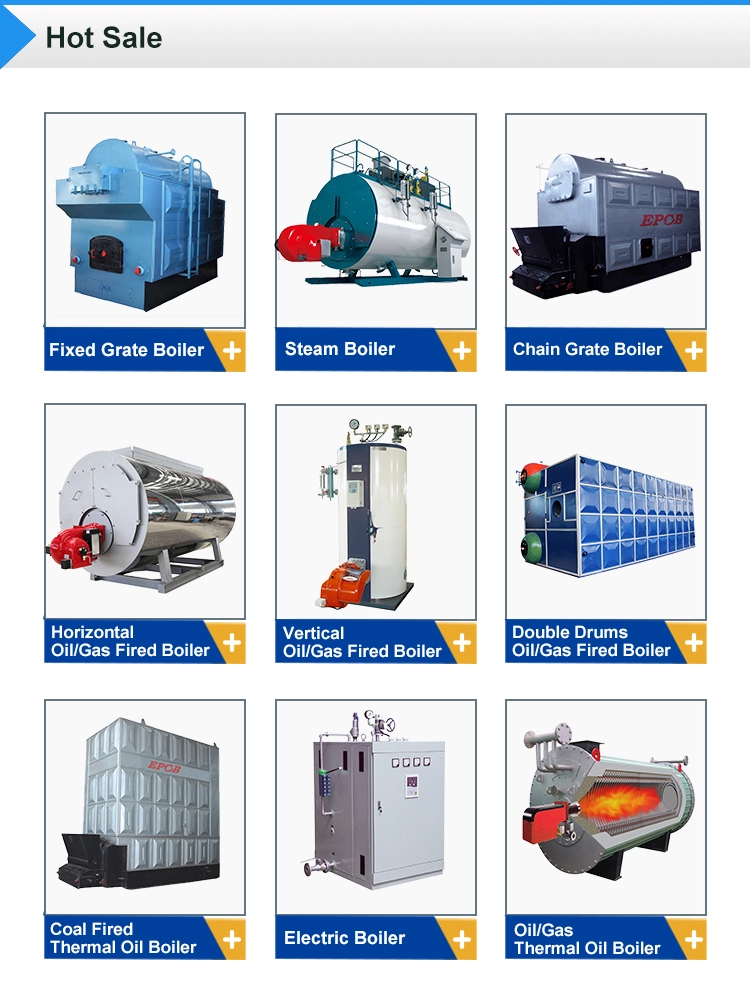

Our Main Product scope:
1.Fire tube series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-21MW)
2.Water tube series Horizontal Oil/gas fired boiler (4- 35T/H )
3.Vertical fire tube series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4.Large drum chain grate new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. Double drum chain grate series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. Electric boiler boiler ( 10--50 T/H)
7.Oil/Gas fired thermal oil boiler
8.Coal fired thermal oil boiler heater
9. High/low pressure of various fuels,CFB Circulating Fluidized Bed boiler ( 35T--400T )
Boiler Aplication:
Steam boiler can be used for product manufacturing process in textile factory, printing and dying, papermaking, hotel, hospital, Refinery, rubber industrial, plastic industrial , chemical, pharmaceutical, power plant, food plan, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in the factories, departments and so on.
Q: Are you manufacturer?
A: Yes, we are manufacturer since 1993 and located in Pingdu Qingdao,China.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. We can provide ISO, ASME, CE, EAC, SGS etc.
Q: How to buy it?
A: Place order online or send email to us. Just tell us your requirements, we will offer you satisfied boiler and service.
Q: What about the delivery?
A: FOB, CIF, CNF, DDP, DDU by sea are available for us. Our shipping agent can supply the cheapest and fastest delivery.
Q: How can I pay you?
A: T/T, LC,D/P are all available.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, such as chain grate bars, electric equipments in control panel box etc.
Q: What about the maintenance?
A: We will offer you the timely maintenance after installation of the boiler.
