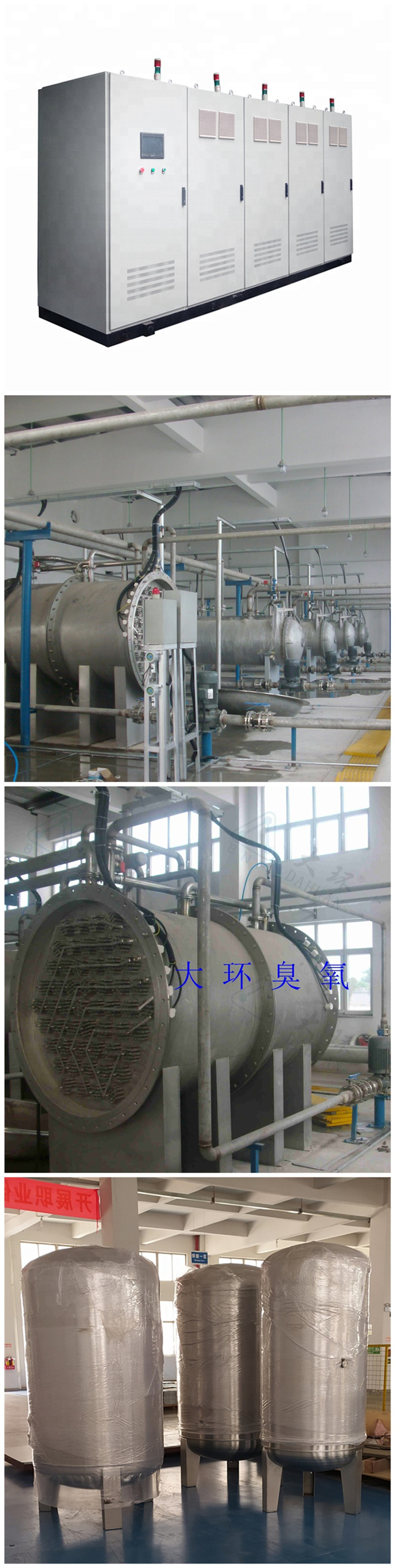

SOZ-YW-G large series ozone generators utilize automatic control system, HMI control, Chinese-English LCD display, and real-time moni toring of system status and operation parameters. The automatic control system can be designed and configured according to the site require ment, and the PLC operation system is from Siemens. Each of the ozone module unit is equipped with independent high voltage fuse, ensurin g the normal, reliable, effective working of the discharge chamber. The discharge chamber can be dismantled for cleaning, replacement, and the maintenance cost is low. The external electrode is made of 316L stainless steel which makes the product reliable and long operation hou rs. The ozone module units have several arrangement modes, and the cooling water ensures no accumulation of heat which is good for the st able ozone production. The product has long service life, saving the customer a lot of maintenance cost. The product has high ozone concent ration, compact design and is extremely durable! The start/shutdown of the equipment can be controlled locally and remotely. The display scr een shows the working, standby or alarm status of the equipment. The equipment can be shutdown automatically in case of ozone leakage. Th e residual ozone can be destructed automatically. The cooling water system and air source can be controlled as request, and the ozone produ ction will be regulated automatically. To ensure the normal working of the discharge chamber composed of several group of discharge electro des, the high voltage fuse will be blown within the setting time limit when there is breakdown failure of the discharge electrode, which ensures the reliability and safety of the system.

Features

1.Low temperature rise, suitable for continuous operation

2.Integrated single loop water cooling system for high efficiency cooling

3.Ozone output concentration adjustable, and alarm when there is no ozone,

backflow water or overheated

4.Touch screen control system, intelligent design makes the operation simple (optional for

lower configuration non intelligent control system with lower price)

5.Advanced IGBT power supply unit

Application

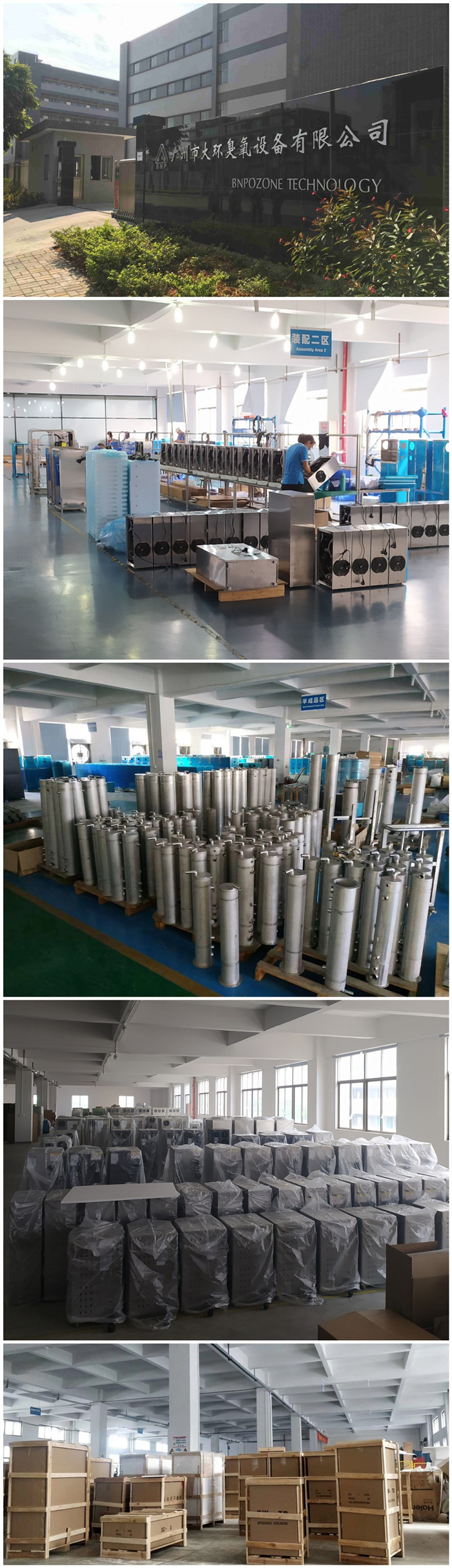

Factory details
