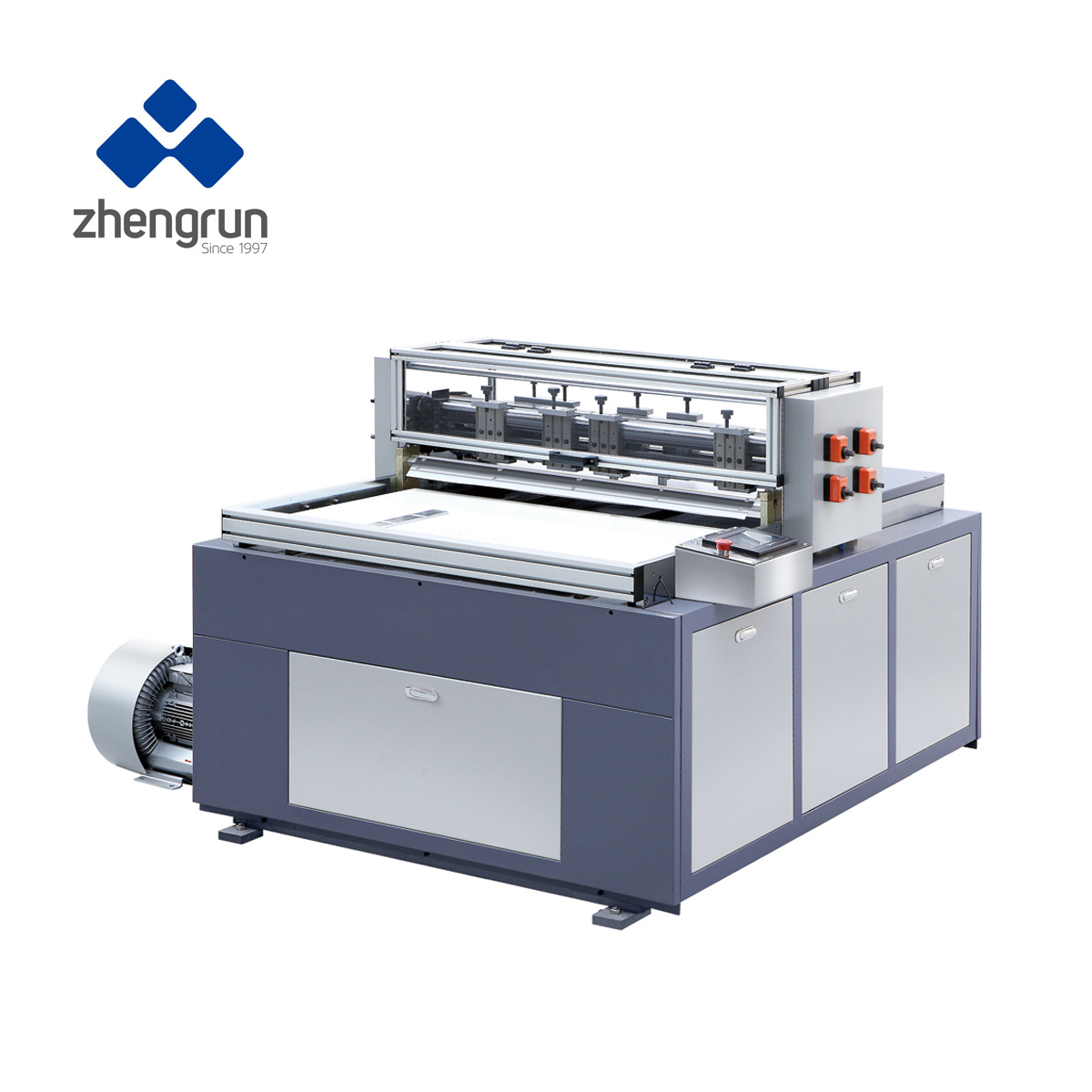

Zhengrun Good Price GM1000P-12 Cardboard V Grooving Machine Manual
PLC Programmed / Touch Screen / International electronic components;
Reliable and stable / PLC programmed / Quality-trustworthy;
High precision / High speed / No Dust / No blur
Professional grooving machine
USE:
Groove Machine: Cutting few pieces of grooves on the paper board or mdf board, for bending or folding purpose of gift boxes, hardcovers or other packages.
Features:
1. It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI, which helps the operator easily remove them.
2. The cardboard feeder is controlled by linear guide line and servo motor, positioning accurately and swiftly.
3. Equipped with high quality vacuum pump for board feeding, which keeps the cardboard grooving accurately without any movement.
4. Supply with high quality durable knife and knife grinder, easy to operate and bring best grooving effect.
5. Wide use: Can be used in grooving the paperboard, corrugated board, cardboard, MDF and other paper packaging materials etc.
Main Technical Parameter:
| Model no | AGM1000P2-8 | AGM1000P2-12 | GM1000P-12 |
| Feeder | 2 auto feeders | 2 auto feeders | Manual feeding |
| Width of paper board | 120-950mm | 120-950mm | 50-1000mm |
| Length of paper board | 60-450mm | 60-450mm | 50-600mm |
| Grooves gap | 0-900mm | 0-900mm | 0-950mm |
| Shape of groove | V shape (50-150degree), U square shape, L shape for edge trimming | ||
| Thickness of paper board | 0.3-3mm | 0.3-3mm | 0.4-4mm |
| Number of grooves at one time | 8 pieces | 12 pieces | 12 pieces |
| Knife seats | 8 knife seats | 12 knife seats | 12 knife seats |
| Flatbed running speed | 35 times/min | 35 times/min | 15-20 times/min |
| Motor power | 5.2KW/380V 3Phase | 3.7KW/380V 3Phase | 4.5KW/380V 3Phase |
| Machine Weight | 2000kg | 1800kg | 1800kg |
| Machine Dimension | L1800xW1500xH1400mm | L1800xW1500xH1400mm | L1800xW1300xH1200mm |
Remark:
1. Customizable for special sizes.
2. The speed depends on the size, thickness, quality of board;
3. Machinery need external air and electric supply.
