Product Category
Manufacturing & Processing Machinery > Corrugated carton packing machine
Trademark
Huali
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:Corrugated cardboard carton box printing slotting die cutting machine corrugated cardboard folder gluer machine corrugated cardboard stitching machine corrugated cardboard printing slotting folder gluer inline machine corrugated cardboard production line
ID:20110733412
Category: Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1.00 Set(s)

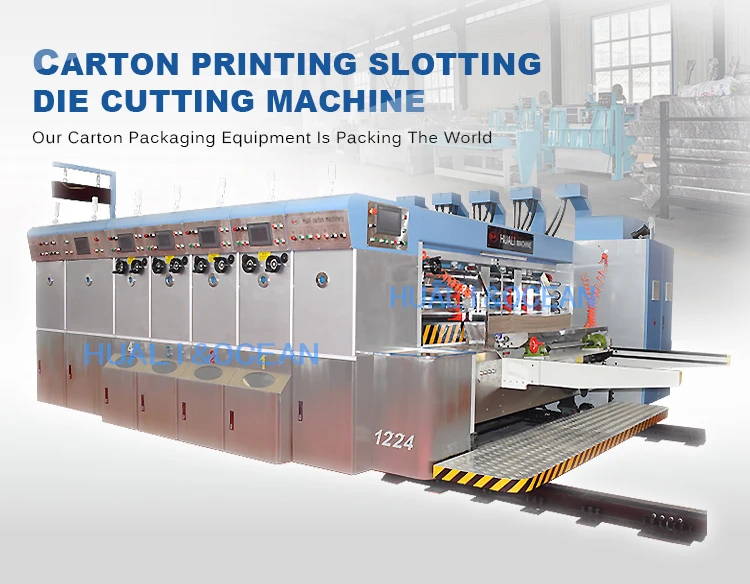

Carton Printing Slotting Die-Cutting Machinecarton print machine carton print slot machinecarton box print machine carton box print slot machinebox print slot die cut machinecorrugated box print machineprinting slotting machineprinting die cutting machinecorrugated box print machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers

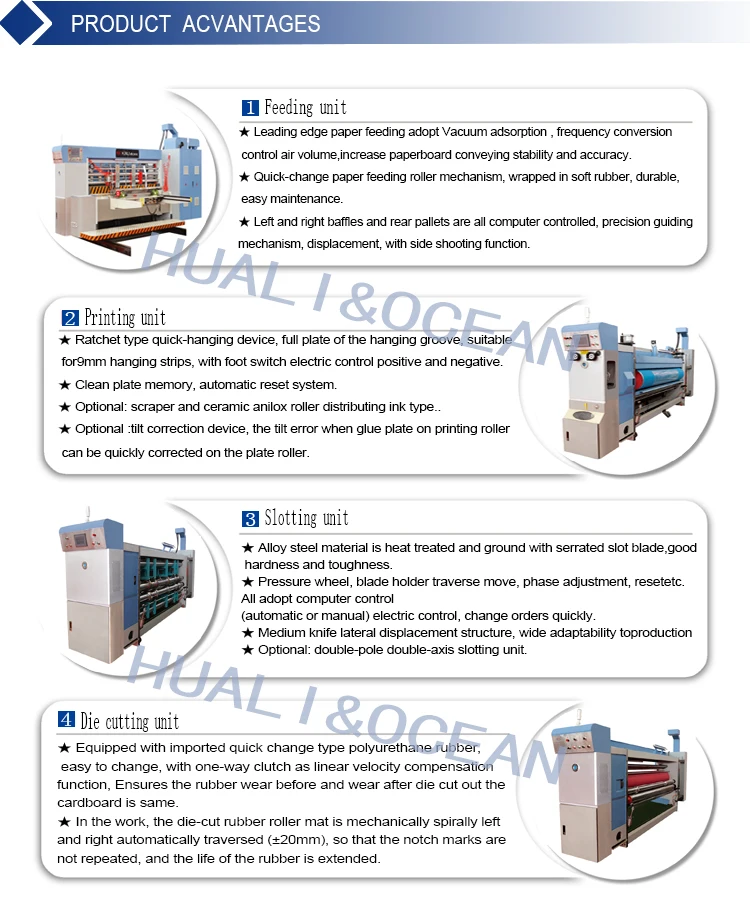

Machine Advantage
1.lead edge paper feeding.This type automatic carton box making machine adopt lead edge automatic paperboard feeding , high speed
and save labor, the speed can up to 180pcs/min
2.set up carton size in computer conveniently.
3.When you want to produce the past order, call the data from the database,every position will recovery immediately.Thats why we
call " smart set up", 10 times faster than others.
4.Cover different corrugated thickness 2mm-10mm.5.Fully cover different flutes A C B E F cardboard.
6.Can pruduce fruit box , pizza box , standard box , special shape box.
7.Slotting and die cutting in one unit, can make standard box and special shape carton both.
8 Many choice for you, if you are a newer in carton producing industry, we can give you our professional suggestion according to
your budget.
9. You need tell us the max cardboard box you want to make , how many color, slotting or die cutting you need or both.
| automatic carton making machine | 920 | 1224 | 1426 | 1628 |
| Max speed (pcs/min) | 300 | 250 | 180 | 160 |
| Feeding precision(mm) | ±1 | |||
| Min sheet size(mm) | 300*600 | 420*600 | 450*600 | 450*600 |
| Max sheet size(mm) | 860*2100 | 1150*2500 | 1350*2700 | 1500*2900 |
| Skip sheet size|(mm) | 1200*2100 | 1500*2500 | 1800*2700 | 2000*2900 |
| Max printing area(mm) | 900*2000 | 1200*2400 | 1400*2600 | 1600*2800 |
| Printing precision(mm) | ±0.5 | |||
| Plate thickness(mm) | 7.2 | |||
positive knife Min slotting distance negative knife | 130*130*130*130 | 140*140*140*140 | 150*150*150*150 | |
| 230*65*230*65 | 230*70*230*70 | 240*75*240*75 | ||
| Max slot depth | 230 | 300 | 360 | 400 |
| increase the blade, increase the slot depth | ||||
| Slotting precision(mm) | ±1 | |||
| Max die cutting size(mm) | 2000 | 2400 | 2600 | 2800 |
| Die cutting precision(mm) | ±1 | |||

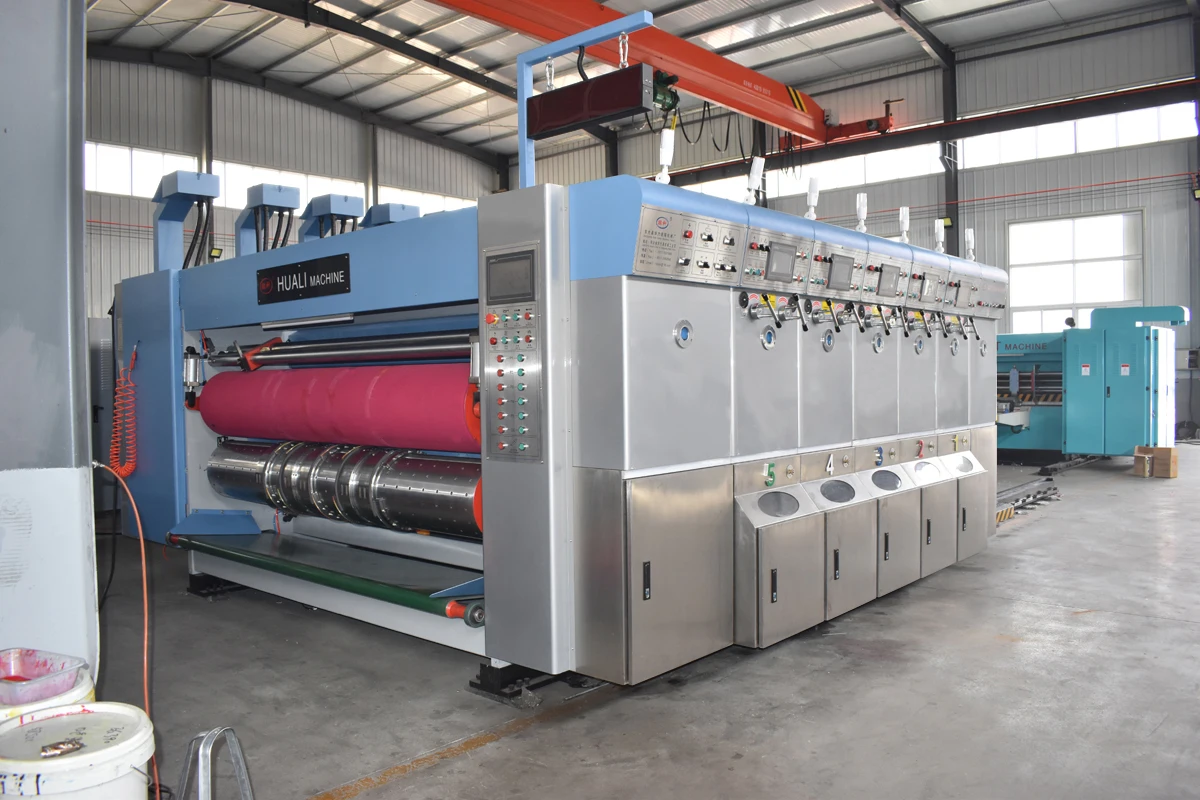

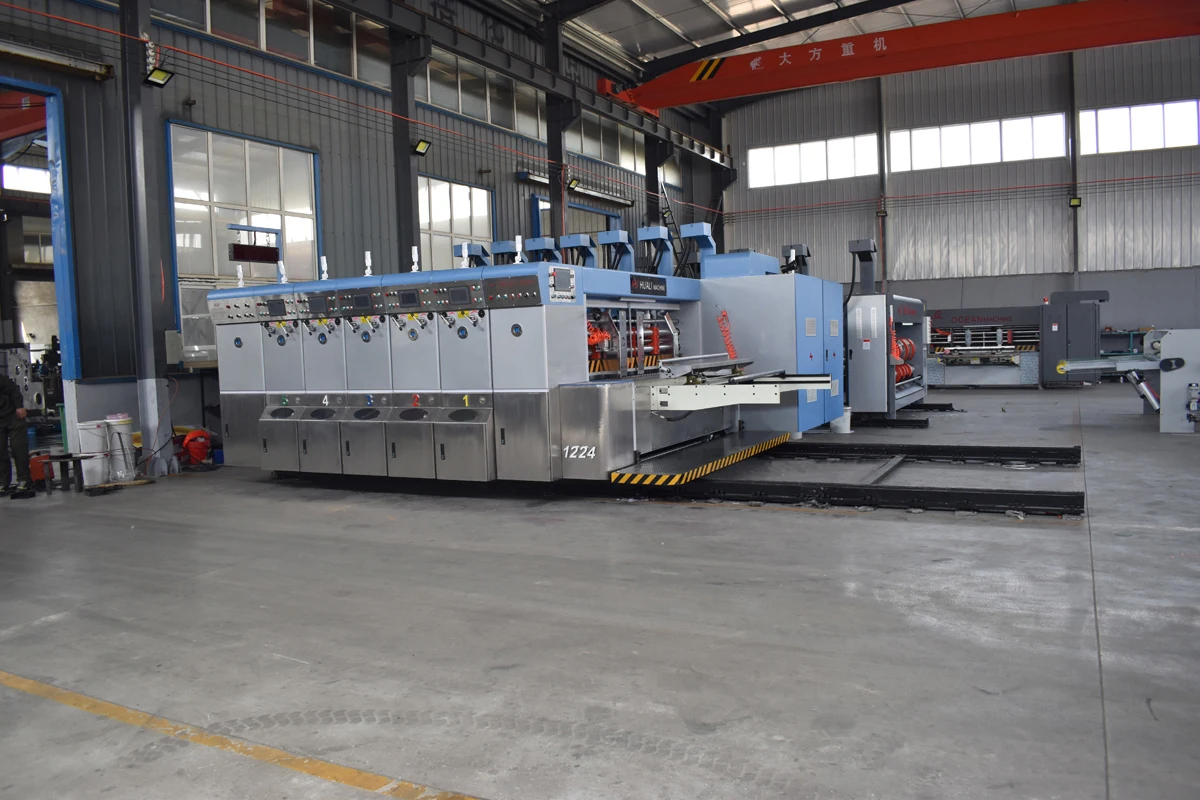

Machine picture
Our Company is the professional manufacture for the carton box machinery , now we already export more than 40 counties , like : USA ,Mexico ,Poladn, Spain, Russia ,South korea ,Malaysia ,India,egypt ,Kenya and so on . we always stick to the "good quiality , high credibility " business purpose , adhering to the " pioneering spirit , realistic and innovative ,strick management, keep improving " the enterprise spirit ,establish a "people - oriented " managenment philosophy and the " customer first " business strategy . Our company produces complete product specification ,elegant appearance, complete machine type, to meet the needs of different customers.Our product has a reputation for timely delivery, good service to win the user's high praise.ln the future, we will take the market-oriented, science and technology development as main power , sincerely to cooperate with the users, constantly to updated products, continuously improve product quality, perfect after-sales service, sincerely return society.
Business Type:Manufacturer
Online Supplier
