Shaftless Mill Roll Stand hydraulic mill roll standmill roll stand automatic machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers

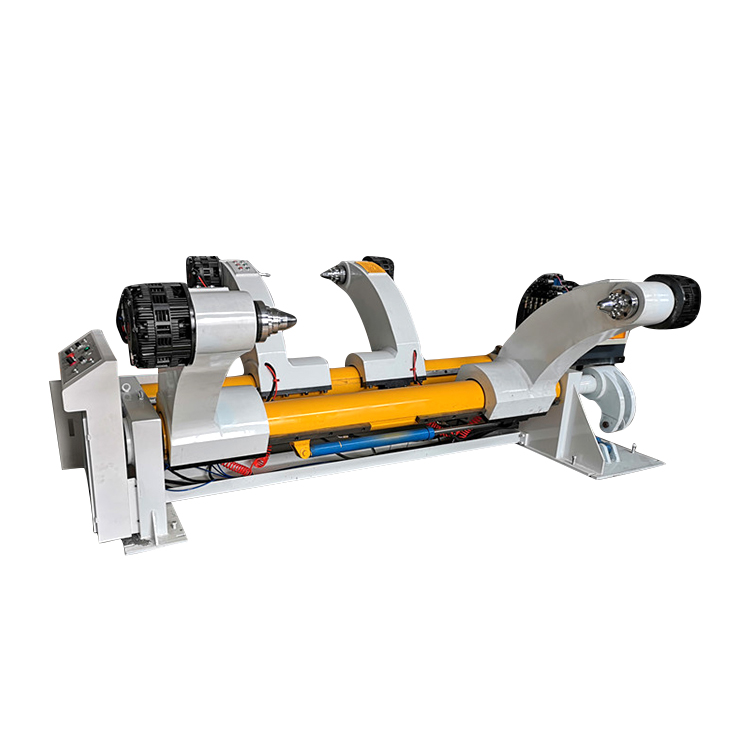

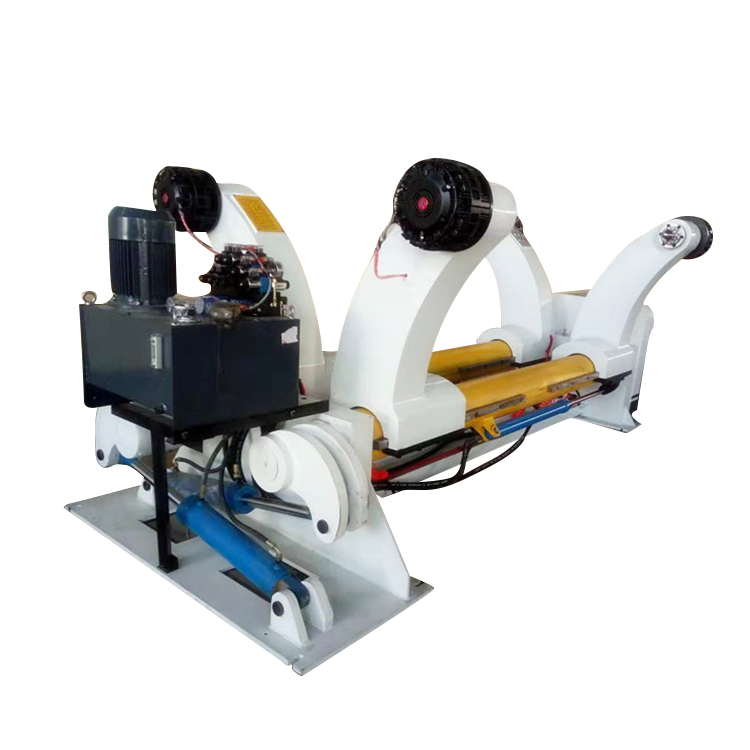

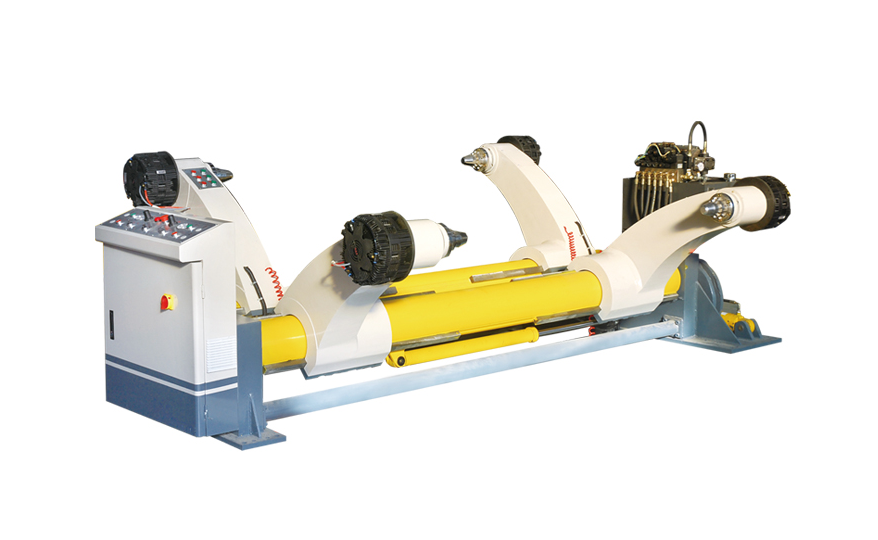

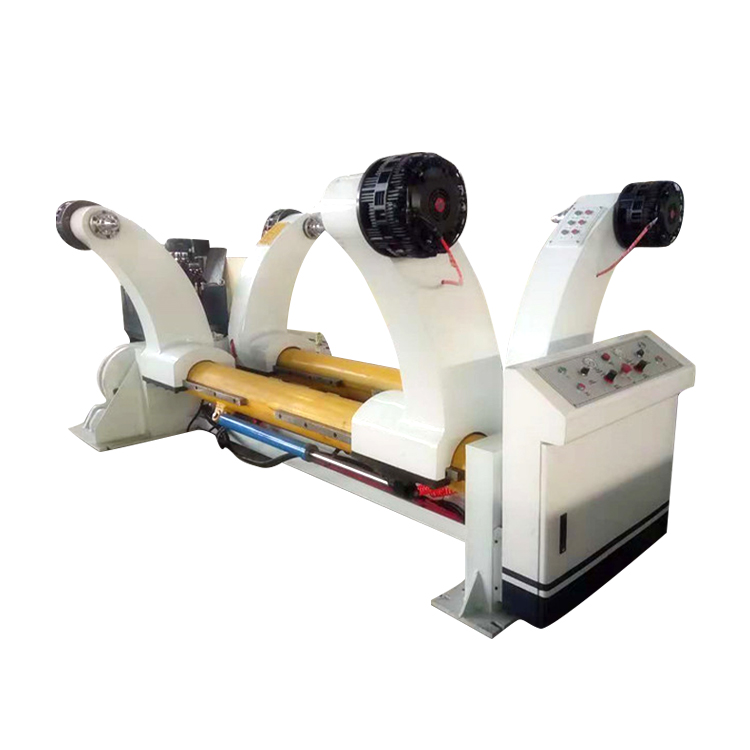

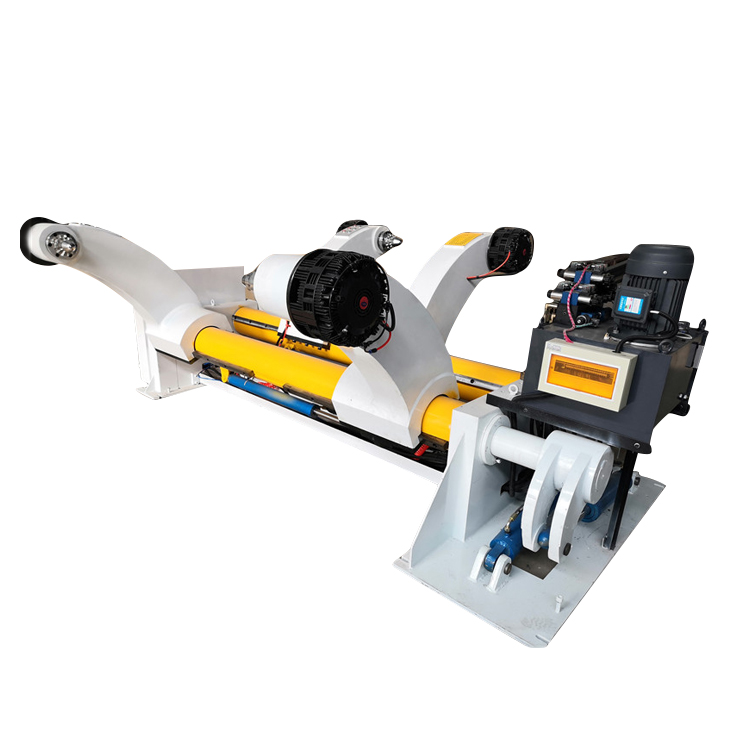

ZJ Series Hydraulic Shaftless Mill Roll Stand
Features:
*Double rotary shafts structure with symmetrical four arms.Can load two mills at same time.
Hydraulic control for the clamping,releasing,lifting and web guiding.
*Imported ltalian brake with multiply touching points.Geared clamping head to reduce the waste of the paperboard.
*Manual tension control or multiply points brake is used.Geared clamping head to reduce the waste of the paperboard.
| Model | ZJ-V6 | ZJ--V5B |
| paper width(mm | 1200-2800 | 1200-2200 |
| Max.loading mill dia,(mm) | 1500 | 1500 |
| Dia.of main shaft(mm) | 270 | 242 |
| Max.loading mill weight | 5t | 3t |
Name | Shaftless mill roll stand | Color | Option |
Driven Type | Electric | Usage | Corrugated Board making |
Voltage | 380V | Origin | HeBei,Shan Dong |
Feature | High speed/No noise | Package | Carton package |
structural feature | 1.adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation 2.left and right and others,the lifting of the paper adopts hydraulic drive.brake adjustable adopts multipoint braking system. 3. every stand matched two sets paper car , and they can paper on the both sides at the same time. |
technical parameters | the range of clamping paper:MAX1800mm MIN1000mm clamping diameters:MAX1500mm MIN350mm main shaft diameter of paper holder:240mm gas source work pressure(Mpa):0.4---0.8Mpa |
Hydraulic system parameters | Work pressure(Mpa):16---18Mpa lifting hydraulic cylinder:100×440mm Clamping hydraulic cylinder:63×1300m hydraulic station motor power:3KW --440V -- 50Hz solenoid valve voltage:220V 50 Hz |
