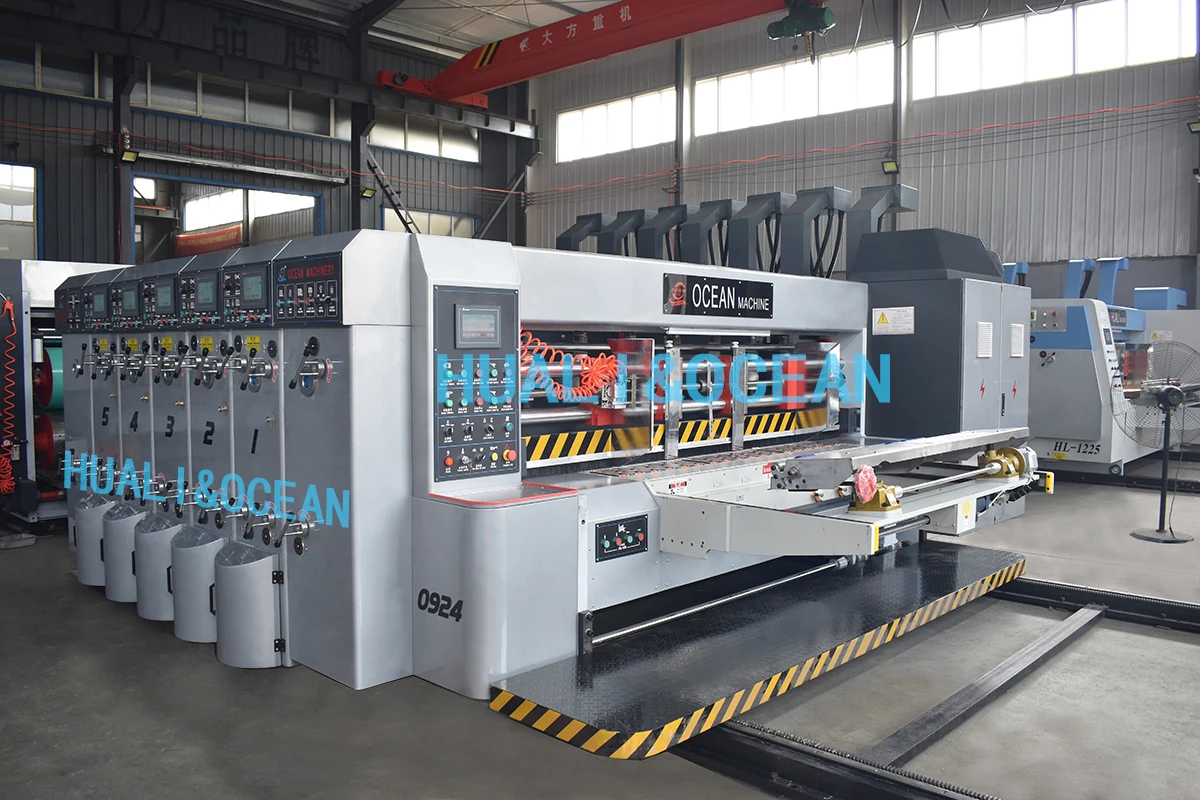

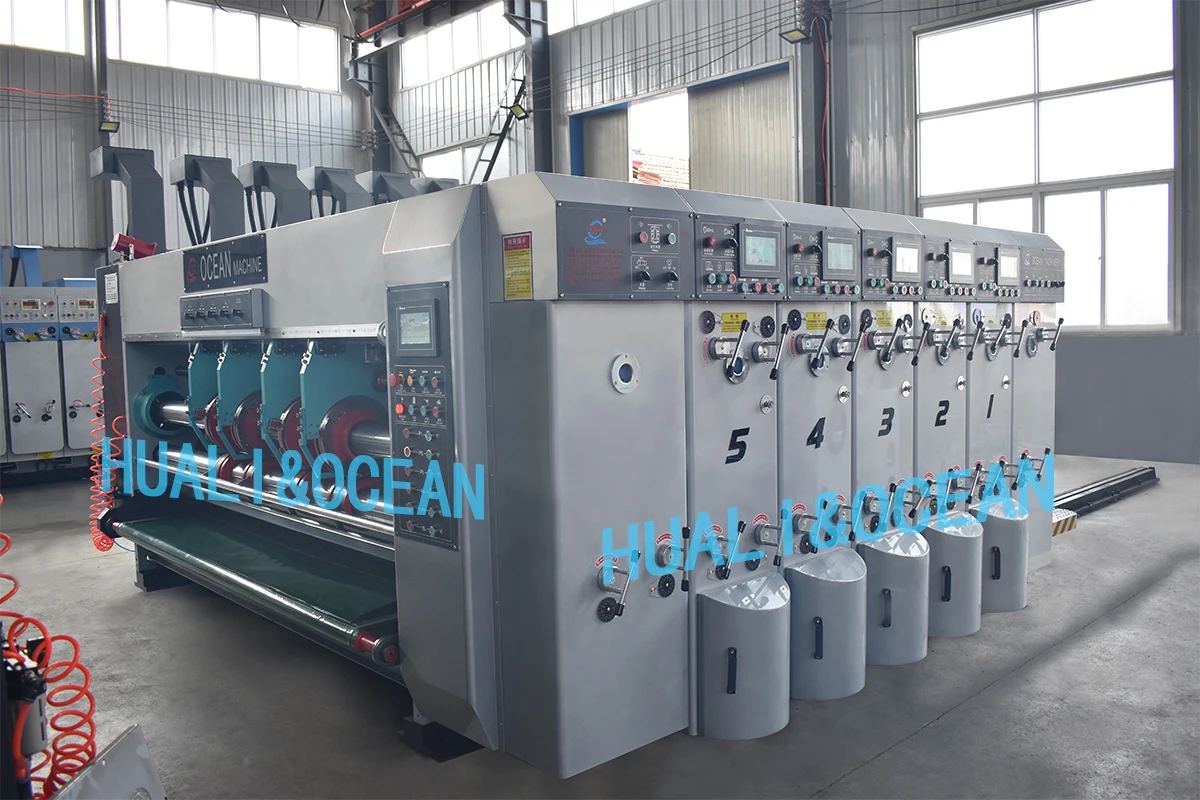

Carton Printing Slotting Die-Cutting Machinecarton printing machine printing slotting machinecarton box printing machinebox printing slotting machinecarton box printer machine box printer die cutter machineprinter slotter machineprinter die cutter machinebox printer machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers

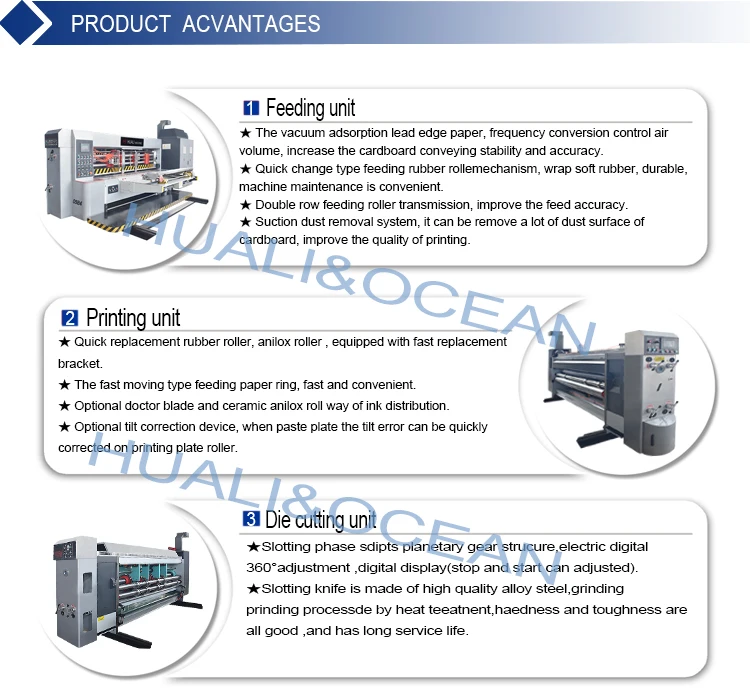

1.The whole machine is adopted international famous brand appliances “Siemens, Schneider”.The quality is stable and reliable.
2.The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.
3.The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.
4.Machine transmission parts (shaft, gear joint) is adopted free key connection (LOCK-ALX),clears the connection gap.It is suitable for long-term high speed running with high torque.
5.The machine drive bearing ,important driving parts adopt three big domestic famous brand:Hava los,simple maintenance,long service life.
6.The engine lubrication system is adopted automatic spray type lubrication, equipped with auto oil level balance system.
7.It adopts Working gap adjustment, self-locking type worm wheel and worm gear device , quick performance and convenient adjustment.
8.The main motor is adopted frequency conversion control.It makes start, running more steadily and saves more energy.
9.Rotary die-cutting department and rotary slotting department is optional for you .
1 | Color group | to be configured according to user’s needs | ||
2 | Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm) | ||
3 | Width of machine inside | 2600mm | 2800mm | 3000mm |
4 | max.paper size | 1200×2400mm | 1400 ×2600mm | 1600×2800mm |
5 | Max.printing size | 1200×2300mm | 1400 ×2500mm | 1600×2600mm |
6 | Skip feeding paper | 1400×2400mm | 1600 ×2600 | 1800×2800 |
7 | positive knife Min.paper size negative knife | 350×720mm 350×740mm | 400 ×720mm 400 ×740mm | 450 ×720mm 450 ×740mm |
8 | Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
9 | Design speed(piece/min) | 180pcs/min | 150pcs/min | 150pcs/min |
10 | Economic speed(piece/min) | 80-160pcs/min | 80-130pcs/min | 80-100pcs/min |
11 | Tinted precision | 4 color ±0.5mm | 4 color ±0.5mm | 4 color ±0.5mm |
12 | Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
13 | Max.slotting depth | 7×300mm | 7×350mm | 7×400mm |
|
| increase the blade, increase the slot depth | ||
14 | positive knife Min. Slot distance negative knife
| 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 280×80×280×80mm | 170×170×170×170mm 260×90×280×80mm |
15 | Max.die-cutting size | 1200×2300mmmm | 1400×2500mm | 1600×2700mm |
16 | Printing plate diameter(contain plate thickness) | 405mm | 480mm | 530mm |
;
Our HUALI machine exported to more;50 countries,such as;The;United States,Australia,South Korea,Malaysia,Philippines,Thailand,Indonesia,Cambodia,Vietnam,Bangladesh,SriLanka,India,
Nepal,Uzbekistan,Tajikistan,Pakistan,Saudi,Arabia,Belarus,Kenya,Turkey,Russia,Kuwait,
Ukraine,Bulgaria,Egypt,Latvia,Jordan,Lithuania,Romania,Serbia,Algeria,Nigeria,Slovenia,Angola,Germany,Poland,Spain,Slovakia,Portugal,Chile,Paraguay,Bolivia,Canada,Colombia,Mexico,
Albania,Czech ,Morocco, British,Kazakhstan,Haiti;,Georgia;and so on,and got a good reputation.
