The corrugated production line is mainly composed of mill roll stand, single-roller pre-heater, single facer, overbridge, multi-roller pre-heater, pasting machine, double facer, slitting machine, NC cut off, stacking machine and glue kitchen as well as auto splicer, coating machine, production & management system, condensate water recycling system and waste baler as optional.
Workflow: Paper roll shall be fed from mill roll stand to single-roller pre-heater for pre-heating and humidity adjusting, to single facer for further heating, fluting and gluing to be single-corrugated sheet, then to overbridge for orderly transmitting through pulling, to multi-roller pre-heater for again heating, to pasting machine for gluing, to double facer for bottom paper combination to be corrugated sheet, to slitting machine and NC cut off for slitting and cutting as needed and lastly to stacking machine for stacking and collecting.
Technical Parameters:
Layer | 3, 5, 7, 3+2, 5+2, 7+2 |
Work Width(mm) | 1200 - 2800 |
Design Speed(m/min) | 80, 100, 150, 200, 220, 250, 300 |
Flute | A, C, BC, B, E, F, G, N |
Flute(UV) | Flute Height(mm) | Flute Qty./300mm |
A | 4.6 - 4.9 | 34 ± 2 |
C | 3.6 - 3.9 | 38 ± 2 or 40 ± 2 |
BC | 3.0 - 3.4 | 44 ± 2 |
B | 2.6 - 2.9 | 50 ± 2 |
E | 1.1 - 1.5 | 92 ± 2 |
1.5 - 1.8 | 88 ± 2 | |
F | 0.7 - 0.9 | 124 ± 4 |
G | 0.5 – 0.65 | 166 ± 6 |
N | 0.4 – 0.46 | 188 ± 10 |

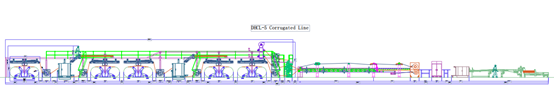

Layout for reference:
