chain feeding printer slotter

ID:20110933740

Category: Manufacturing & Processing Machinery Corrugated carton packing machine

FOB Price:US$ 15000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

chain feeding printer slotter

Payment Method:

T/TWestern Union

Product Category

Manufacturing & Processing Machinery > Corrugated carton packing machine

Trademark

zhuoya

Product Package

plastic films , container

Specification

1200*2400mm

Place of Origin

dongguang

Port

tianjin port

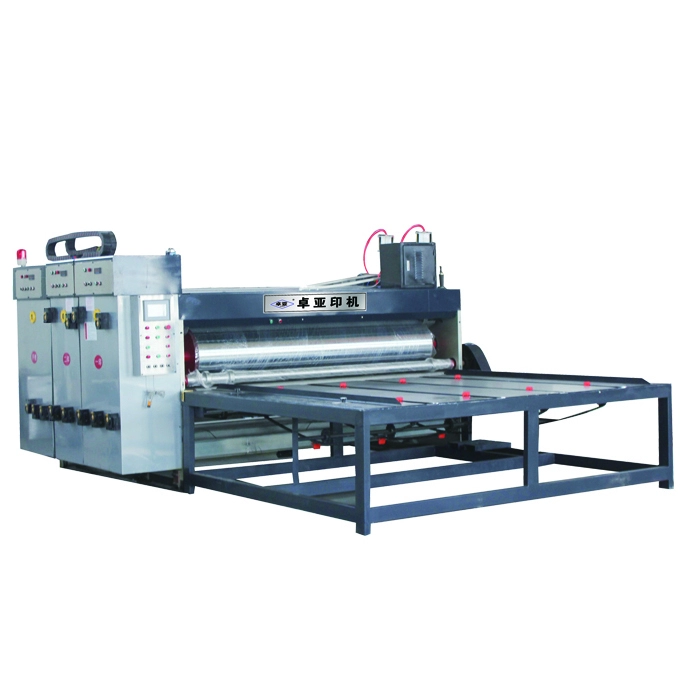

Semi automatic 2 colors carton printing slotting machine

FUNCTION AND Characteristics :

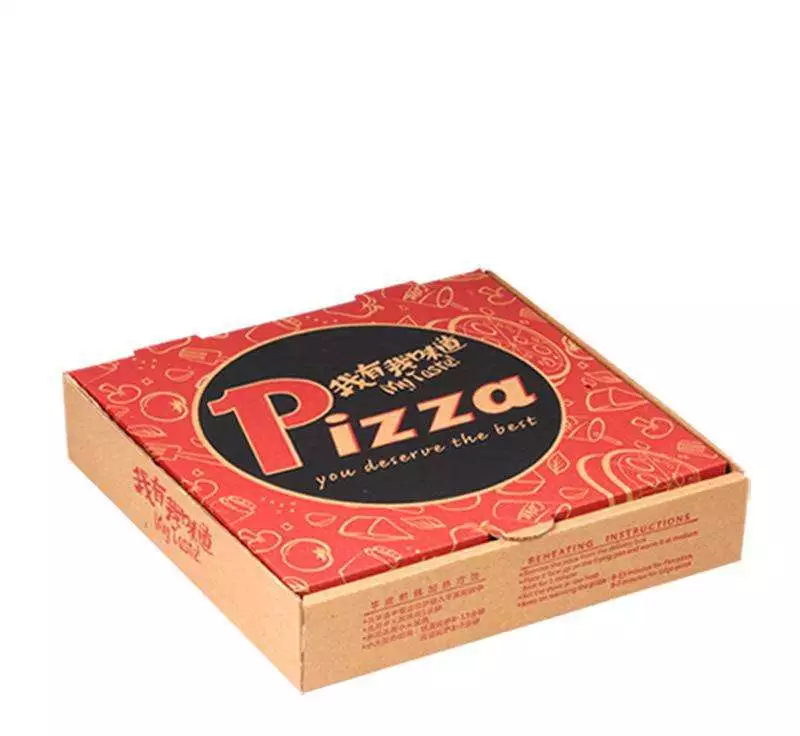

1) Paper-feeding : Chain ,paper pushing feeding pizza box printing machine ;
2) Open and close of the unit adopts electrical walking and pneumatic locking ( with overload protection function) .
3) Paper-feeding roller : The upper axle adopts grinning paper-feeding wheel while the lower axle adopts steel grinding roller.The surface hard chromium-plating guarantees the smooth feeding of the paperboard and does not damage the corrugated board carton printing machine .
4) Printing roller : You can adopt the advance , convenient and practical hanging plate with hooked slots ( Optional) . Loading and unloading the printing plate can be independently controller by the pedal switch .The phase adjusting adopts non-stop-working ,360 degree electrical and numerical adjustment .Input the data as per the error .
Automatically adjusting .
5) Ink circulating system
1. a) The anilox roller adopts the steel material 200 wire or the 220 wire combined anilox roller;
2. b) The rubber roller is made of the natural oil proof , acid proof and alkali proof rubber .
3. c) Pneumatic diaphragm pump inking , automatic circulating , Automatic cleaning after adding water .
4. d) Stop working to distribute ink ,Stop working and the work of the ink circulating system for a short time .Cleaning-free to guarantee the quality of the printed things and make the inking color showing no difference .
5. e) Pneumatic control of the anilox and rubber rollers of the ink circulating system .Quick lifting can print more tiny script ,fine pattern or color process ,it can make the printed matters clear , full and round .

6) Slotting part ( Optional )
1. a) The slotting part can electrically adjust the phase in 360 degree ;
2. b) Hand adjust the height of the carton ,Four knives are synchronous .
3. c) Long and wide adjusting , Loading and unloading the knife disk . Upper and lower creasing . Paper-kicking knife .Creasing shaft .The pointer of the scale can be hand and combinedly moved to save time .
4. d) Pneumatic and combined control of the whole machine which has the function of counting, alarming and operating at the back of the carton printing machine .

Product Paramenters

Model	Roller diameter(mm)	Paper passing width(mm)	Effective printing area(mm)	Total weight of machines(kgs)	Motor power(kw)
AP-2000	400	1900	1700*1300	7000	5.5
AP-2200	400	2100	1900*1300	7500	5.5
AP-2500	400	2400	2200*1300	8500	7.5
AP-2000	480	1900	1700*1470	8000	7.5
AP-2200	480	2100	1900*1470	8500	7.5
AP-2500	480	2400	2200*1470	9000	7.5
AP-2800	480	2700	2500*1470	9500	7.5
AP-3000	480	2900	2700*1470	10000	7.5
AP-2500	530	2400	2200*1600	10000	7.5
AP-2800	530	2700	2500*1600	11000	7.5
AP-3000	530	2900	2700*1600	12000	7.5
