creasing die cutting machine
T/TWestern Union

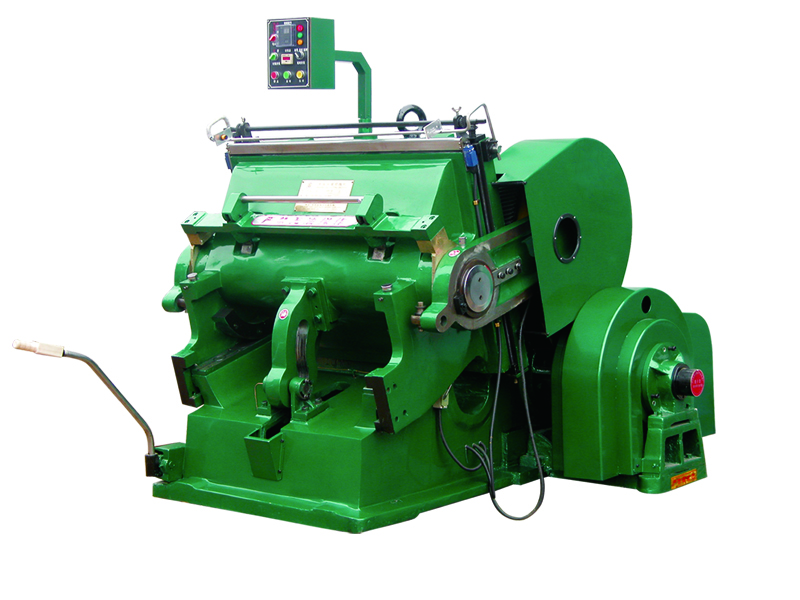

ML CREASING DIE CUTTING MACHINE
Creasing and die cutting machine
Die cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather in general, applicable to printing, packing, decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.
1) Equip with four insurance parts and four functions. The insurance part
including gantry insurance, triangle insurance, hand shank insurance and
automatic light-operated insurance to makes the machine safety and reliable.
2)The brake clutch adopts electric suction plate brake clutch to keep the
braking sensitive and reliable.
3) Adjustable template makes the plate loading, unloading more easily.
4) Centralized oil supplying is available .
5) Three functions including single piece pressing cutting, continuous pressing cutting and time delay cutting , so when you use the machine, the time delay can be adjusted .
Model | Inner chase size | Speed | Max.embossing length | Motor power | Machine weight | Overall dimensions |
ML-750 | 750*520mm | 28±2 | <15mm | 2.2kw | 2000kg | 1260*1350*1280mm |
ML-930 | 930*670mm | 23±2 | <25mm | 3.0 kw | 3000kg | 1670*1670*1630mm |
ML-1100 | 1100*800mm | 20±2 | <32mm | 4.0 kw | 4500kg | 2030*1870*1800mm |
ML-1200 | 1200*820mm | 15±2 | <35mm | 5.5 kw | 4800kg | 1920*2140*1920mm |
ML-1300 | 1300*920mm | 15±2 | <45mm | 5.5 kw | 6000kg | 2000*2140*2000mm |
ML-1400 | 1400*1000mm | 15±2 | <45mm | 7.5 kw | 6800kg | 2010*2400*1930mm |
ML-1500 | 1500*1050mm | 14±2 | <45mm | 7.5 kw | 7500kg | 2010*2400*1930mm |
ML-1600 | 1600*1250mm | 16±2 | <50mm | 11 kw | 11000kg | 2170*2560*2230mm |
ML-1800 | 1800*1300mm | 16±2 | <62mm | 15 kw | 13500kg | 2240*2800*2130mm |
If you are interested in our products welcome to click to “contact us” |
Q:Are you a manufacturer ,or trading company ?
A:We are professional manufacturer of the carton machinery.
Q:How many manufacturer experience do you have ?
A:More than 20 years .
Q: How about the after-sale service ?
A:The machine warranty time is usually one year . In this one year, if the machine parts are broken ,we can send you new one for free .
