Business Type: Manufacturer
Main Products:自动插格机Partition Assembler
ID:20110933848
Category: Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1.00 Piece(s)
partitionpartition assemblerpartition inserting machinepartition assembler machine
T/T
序号Item | 名称 Parts name | 数量 Qty | 备注 Remarks |
1 | 自动插格机 Automatic inserting machine | 1台/1unit | 格板输出方式：双工位；格板组合形式：十字交叉 Inserting : double-position; Sheets Composing: Decussation |
2 | 输纸部 Sheet Delivery | 1台/ 1 unit | |
3 | 气动系统 Pneumatic System | 1套/ 1 set | 气源客户自备 customer prepare air pump |
4 | 电器系统 Electric System | 1套/ 1 set | PLC、人机界面、伺服控制 PLC、human machine interface 、 Servo control |
*纵、横向同时给纸进行十字交叉插格
* Lengthways and horizontal sheets do decussation inserting.
*适合各种纸箱隔板、格挡的自动化插编
* Automatic inserting each kinds clapboard and block
*取代传统手工操作模式，双工位出纸
* Instead of manual， two sets per time.
型号 Model | 外形尺寸（长×宽×高 m 含输纸机） Dimension(L x W x H m include sheet delivery ) | 功率 (kw) Total power |
CGJ450-3L | 7.3×2.0×1.9 | 6.8 |
CGJ450-3L参数表

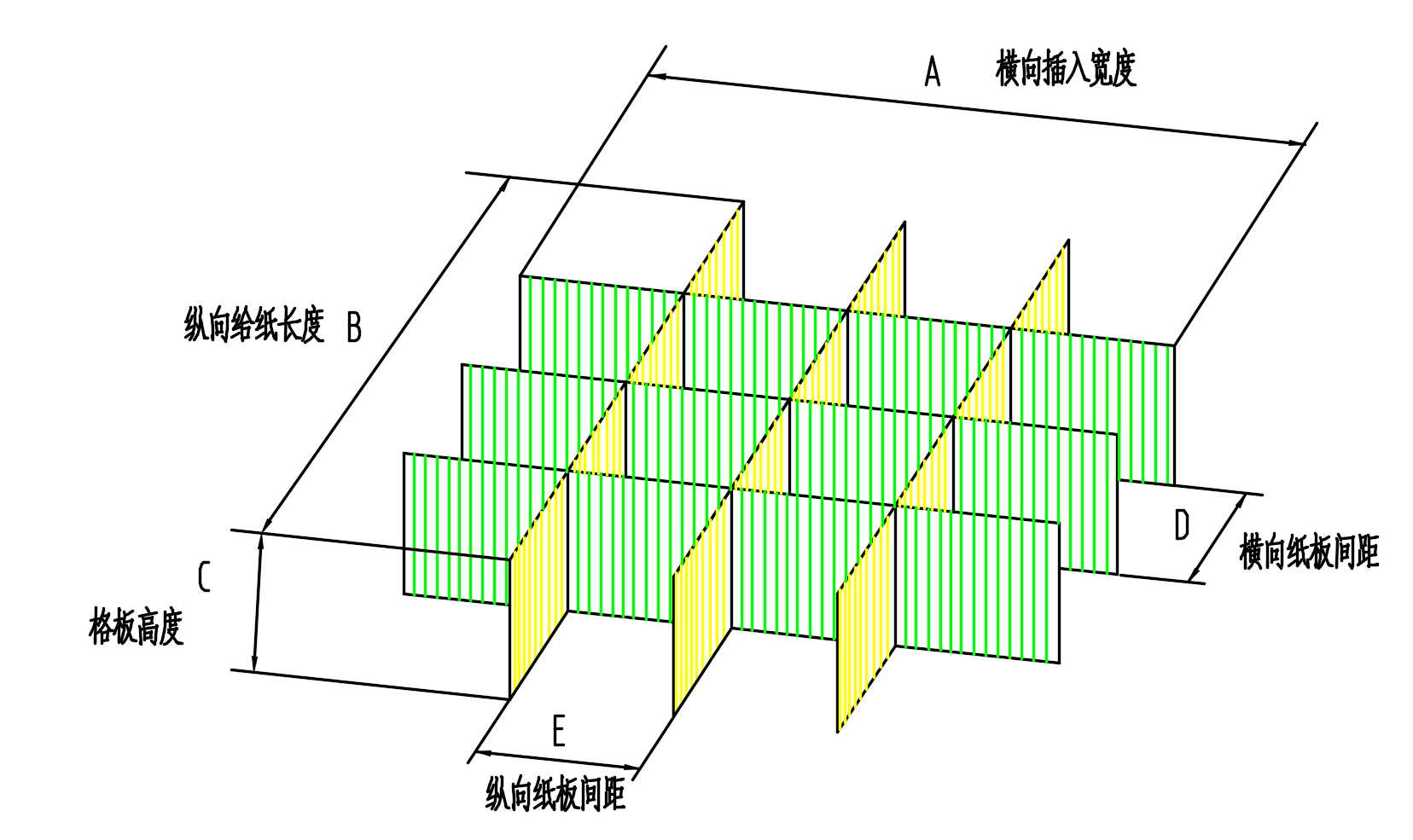

名 称/Name | 单位/Unit | 数据/Data |
横向插入宽度/ Horizontal inserting width: A | mm | 120~900 |
纵向给纸长度/ Lengthways sheets length: B | mm | 210~450 |
格板高度/Clapboard Height: C | mm | 80~300 |
横向纸板间距/ Horizontal clapboard distance: D | mm | 20~400 |
纵向纸板间距/Lengthways clapboard distance:E | mm | 45-850 |
纵向格板数量/ Lengthways sheets No. | 片 | 1-6 |
横向格板数量/ Horizontal clapboard No. | 片 | 1-21 |
纸板插口宽度/ Carton inserting mouth width：F | mm | ＞纸板厚度 ＞board thickness |
纸板厚度 /Carton thickness:G | mm | 1.5~8mm |
※ 特殊规格可依照客户要求定制
※ Remark: Special size need confirm before confirm the order
※ 因本厂对机器升级所造成的参数变动,恕不另行通知
※ Due to upgrade, the changes in the parameters of the machine without notice.
※ 此文件所有技术参数及数据，解释权归属东光县光阳纸箱机械厂所有
※ The file show all the technical parameters and data, the right to interpret shall vest in manufacturer of Dongguang County Guangyang Carton Machinery Factory
东光县光阳纸箱机械厂 Dongguang Contry Guangyang Carton Machinery
河北省东光县包装工业园B区Packing Industrial B， Dongguang County, Hebei Province， China
电话 ：国内13603179189 国际+86 18633735013
传真 ：0317-7899318
www.gyzxjx.cn
