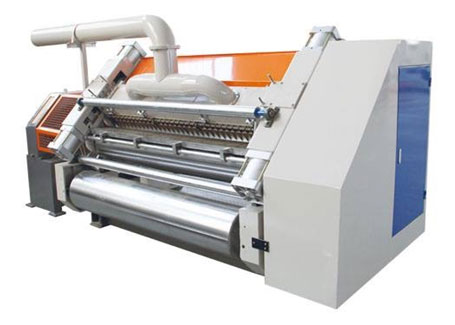

280S Fingerless Type Single Facer Corrugator Machine

Purpose and Characteristics:

◆ Design Speed: 80m/min

◆ Effective width: 1400mm-2200mm

◆ Corrugated roller:φ280mm

◆ Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.

◆ Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

◆ Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.

Bearing of corrugated and pressure roller adopt high temperature lubricate grease.

◆ Glue parts auto supply glue circularly.

◆ The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°,the surface be grinded.

◆ The glue part surface are treated by special mesh snicked and chromeplated.

◆ Motorized or manual glue width dividing to match the paper width.

◆ Glue part can be running independently or non-independently while stopped. Adopt main motor frequency conversion control. (optional)
