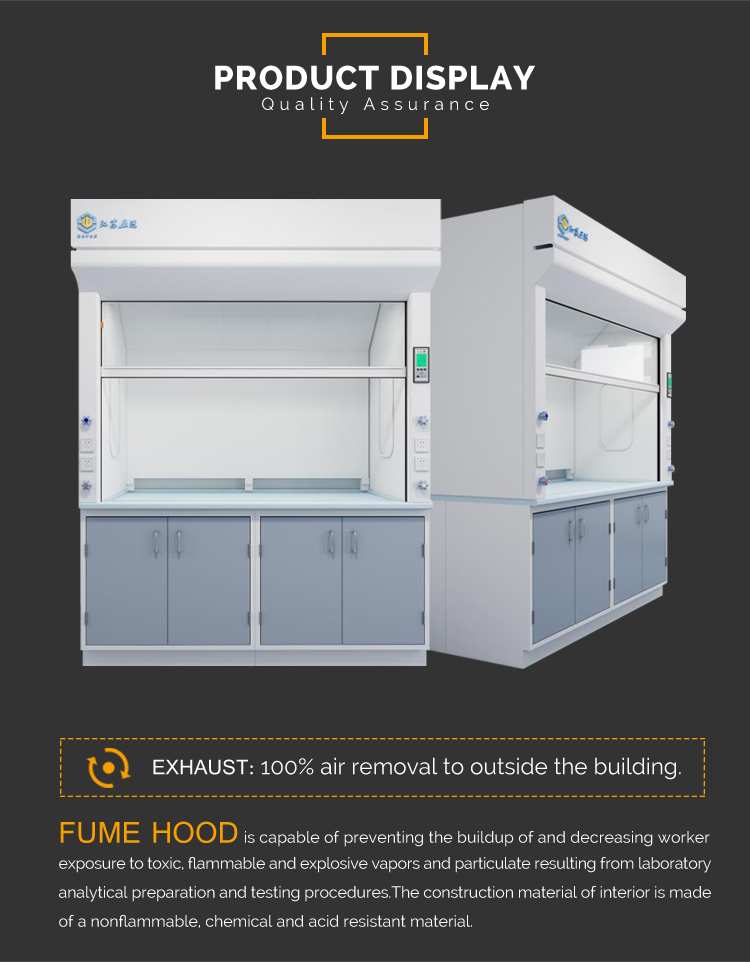

Chemistry laboratory fume hoodFume hood Floor MountedFume Hood-Desktop fume hood Chemistry Lab Room FurnitureFull steel fume hood
L/CT/TWestern UnionOthers
External Size(W*D*H) | 1200 x 880 x 2350 mm | 1500 x 880 x 2350 mm | 1800 x 880 x 2350 mm | |
Internal Size(W*D*H) | 950 x 700 x 1150 mm | 1250 x 700 x 1150 mm | 1550 x 700 x 1150 mm | |
Work Surface Height | 850 mm | 850 mm | 850 mm | |
Exhaust air volume | 700-1300m3/h | 900-1700m3/h | 1300-2100m3/h | |
Air Velocity | 0.3 -- 0.6 m/s | |||
Noise | ≤65dB(A) | |||
Sash | 6mm tempered glass | |||
Power Supply | AC110/220V, 50/60Hz(optional) | |||
Material | Main Body | 1.0mm, 1.2mm thickness cold-rolled steel with epoxy resin powder coating. | ||
Inner liner Panel | 5mm thickness compact panel, acid and alkali resistance, temperature resistance and anti-moisure. (Ceramic/ glass fiber/ stainless steel/ PP/ etc optional ) | |||
Worktop | Standard configuration for the epoxy resin worktop(with the edge of the water) (Phenolic resin, ceramic, stainless steel/ etcoptional) | |||

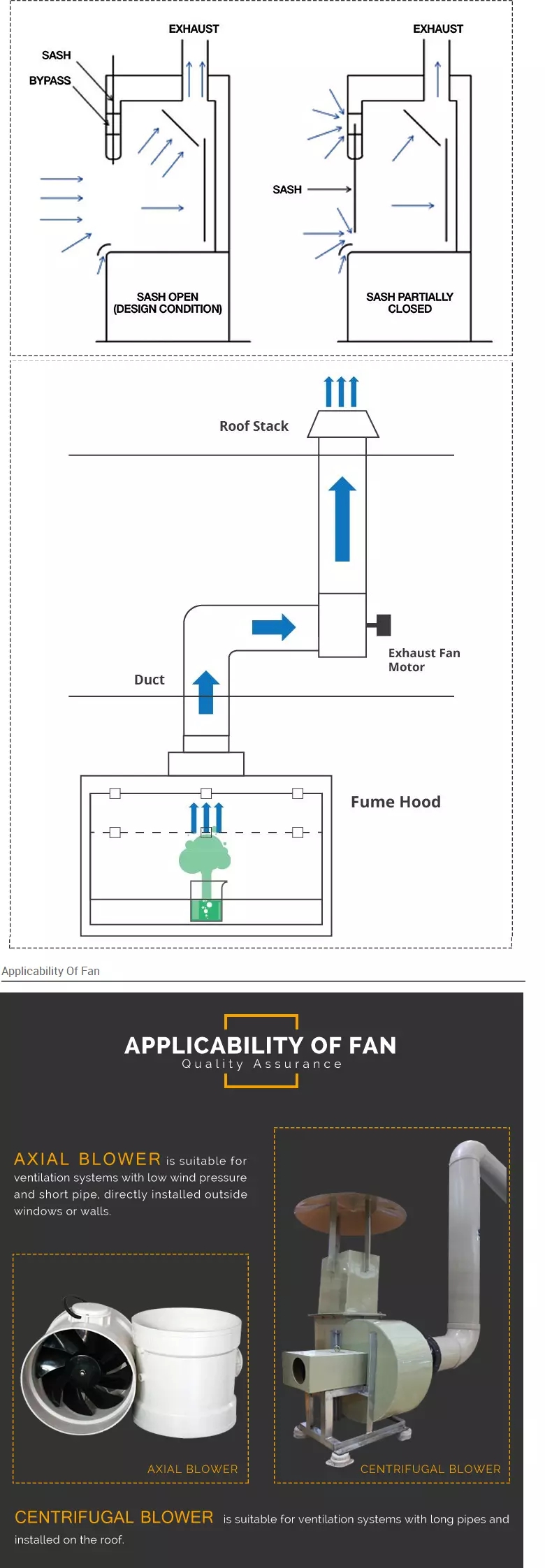

Exhaust System | Duct | PVC duct system according to your piping layout | ||
Blower | Centrifugal blower | |||

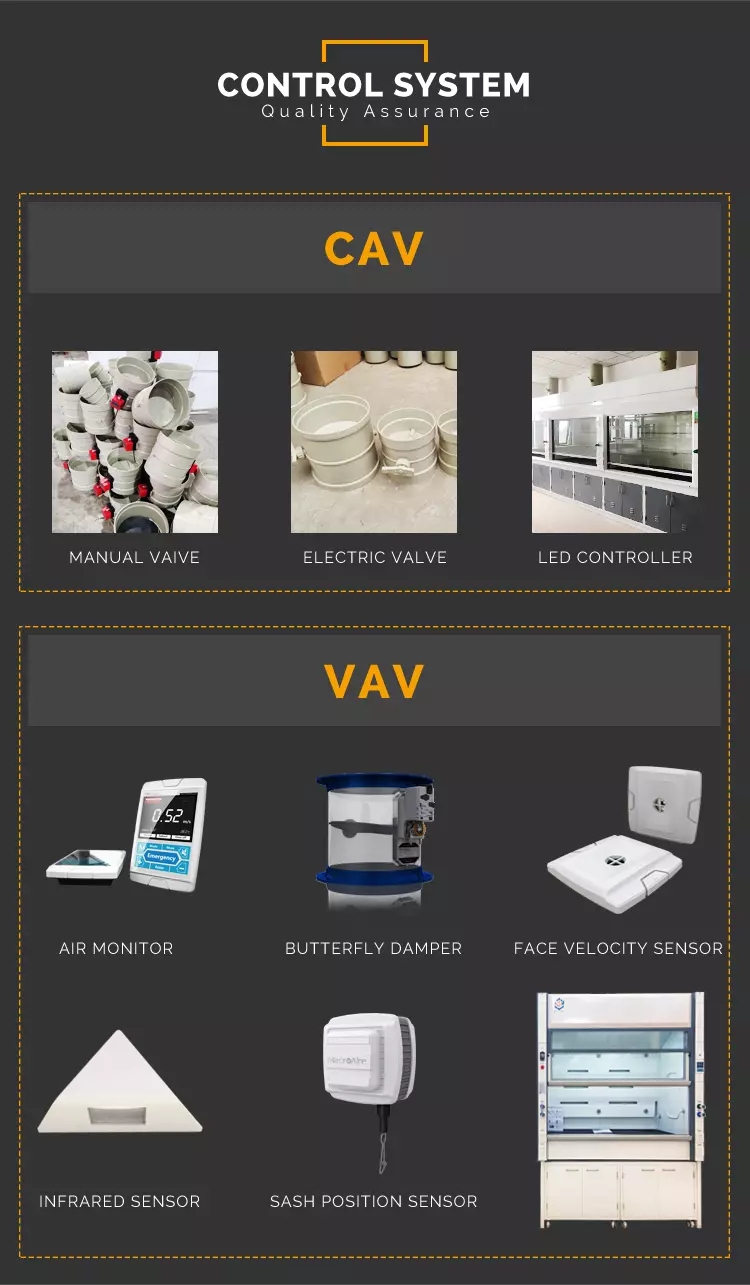

System | CAV/VAV system optional | |||

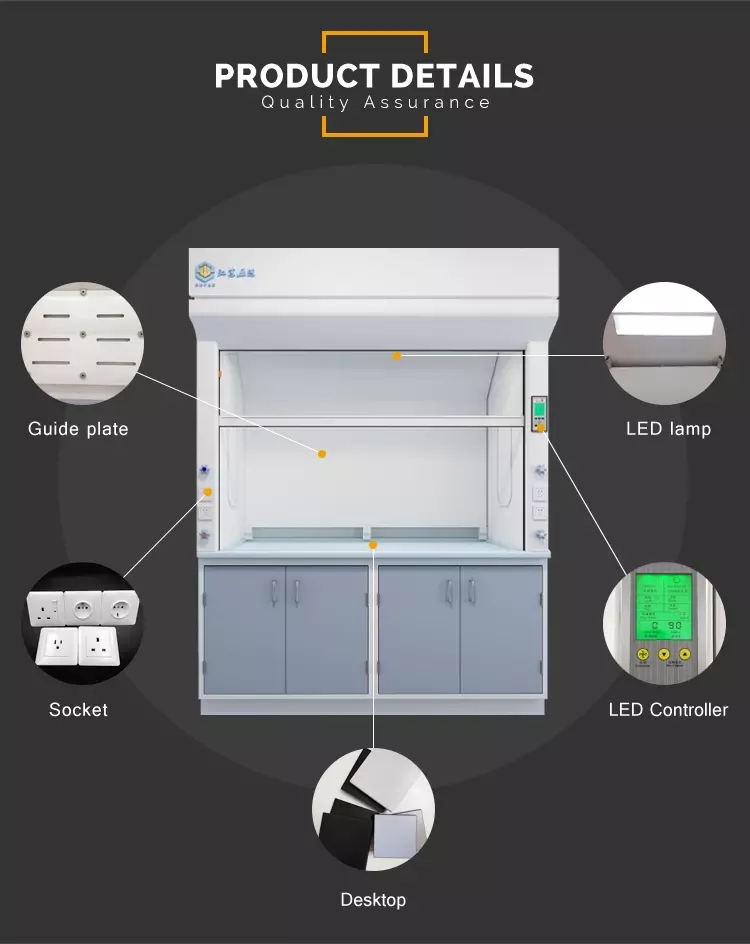

Accessory | Water tap, removate water valve, gas tap, removate gas tap, PP cup sink opptional | |||
LED lamp*1 | ||||
LCD control panel | ||||
Sockets | ||||
Net Weight | 300kgs | 400kgs | 500kgs | |
