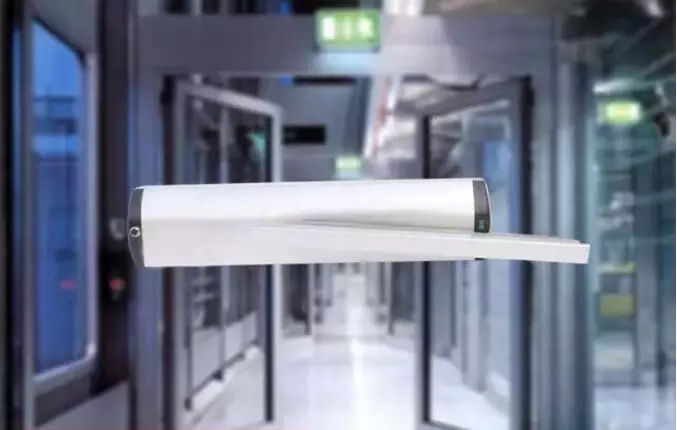

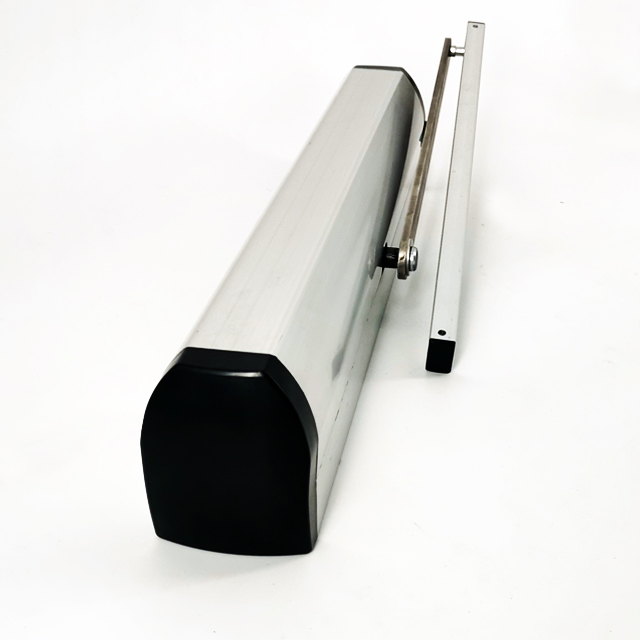

Indoor 24VDC Arm swing door opener

Name: Indoor 24VDC Arm swing door opener
Brand: BISEN SMART ACCESS CO.,LTD
SKU: 20110934056

ID:20110934056

Category: Security, Fire & Safety Safety Supplies

FOB Price:US$ 299.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Auto swing door Swing gate opener

Payment Method:

L/CT/T

Product Category

Security, Fire & Safety > Safety Supplies

Trademark

BISEN

Product Package

standard export carton or wooden case

Specification

53X16X18 cm

Place of Origin

CHINA

Port

SHANGHAI

Technical Specifications

Supply power:	220VAC±10%,50/60Hz
Power consumption:	40W(max)
Drive unit:	24V DC Motor
Open angle:	80°-100°
Opening time(speed):	15-99Sec.(adjustable)
Closing time(speed):	15-99Sec.(adjustable)
Hold-open time:	1-99Sec.(adjustable)

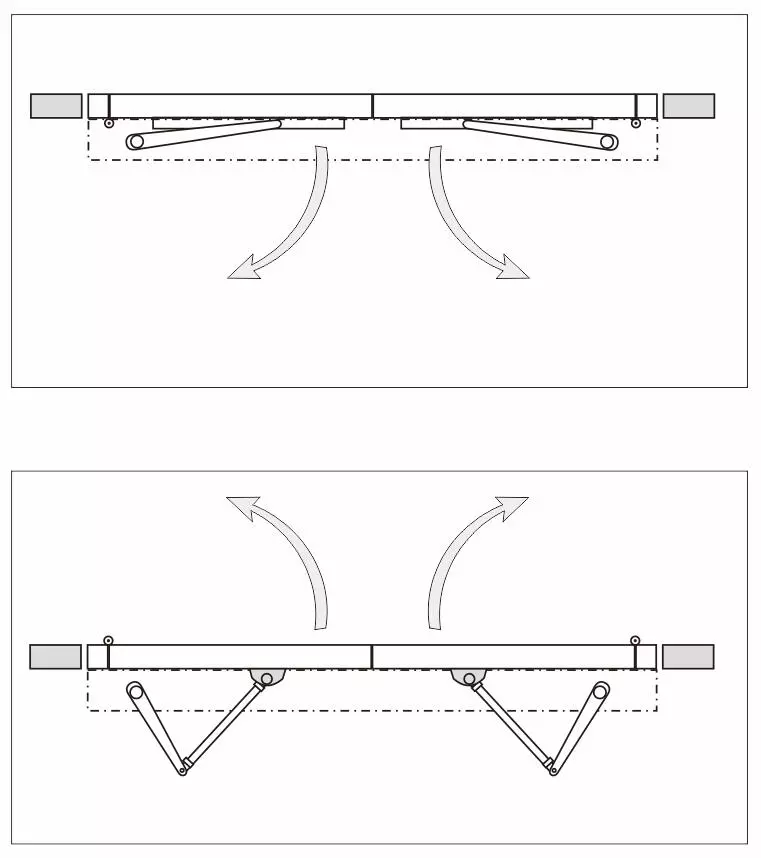

Drive arm:	pull arm(inward open)/ push arm(outward open)
Environment temperature:	-20°C-50℃
Relative humidity:	≤85%

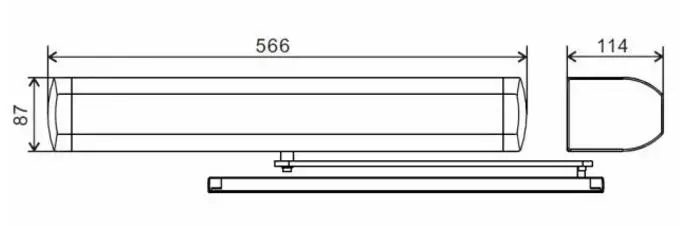

Dimensions

Features

Advanced software
1. Push & open function(can be turn off if needed, such as windy environment).
2.Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.

Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle(0°-180°) adjustable

Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)

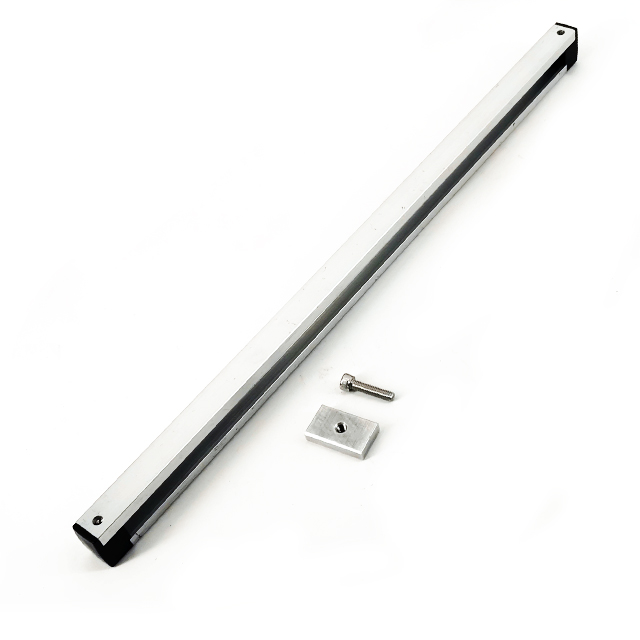

5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.

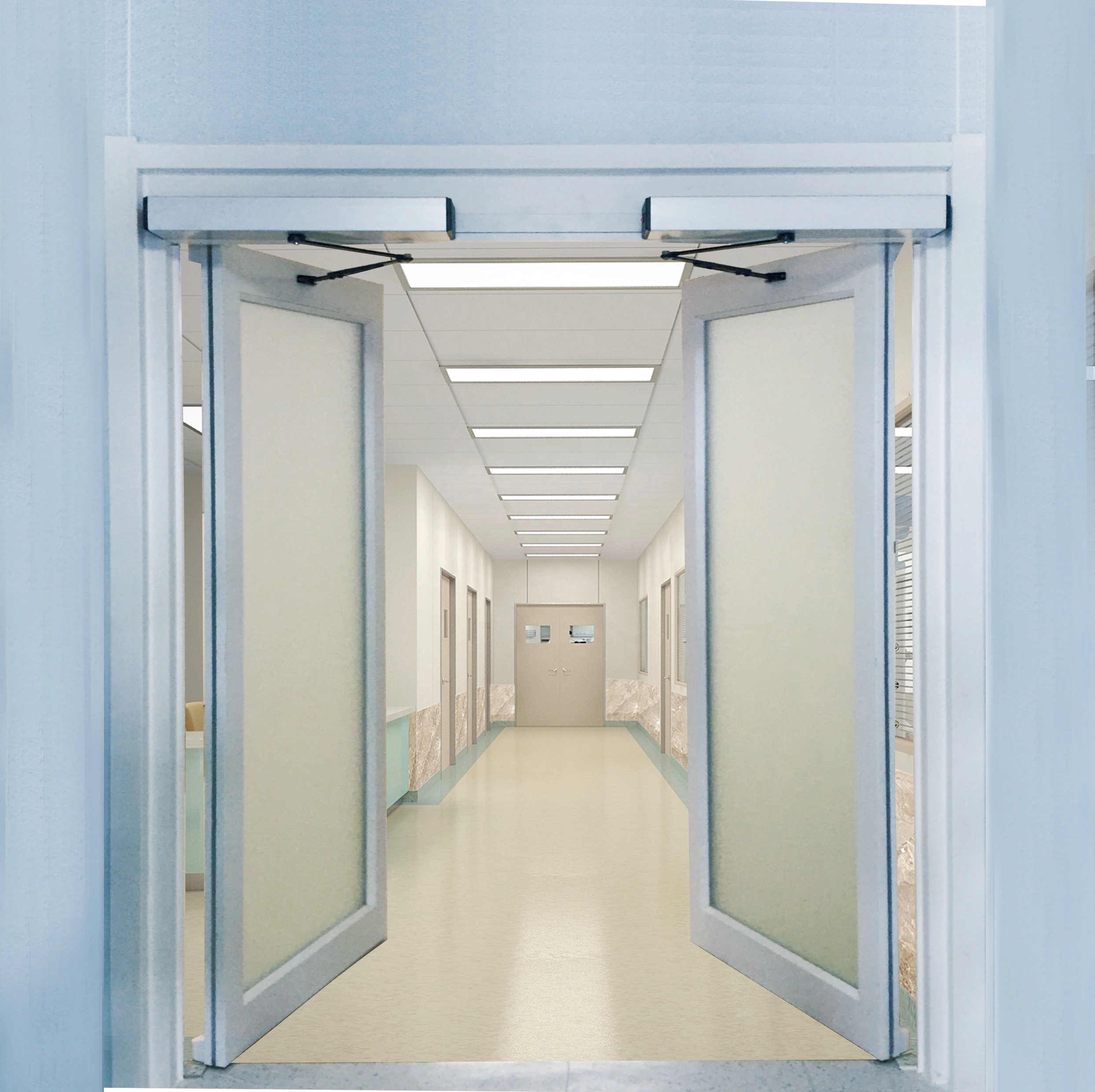

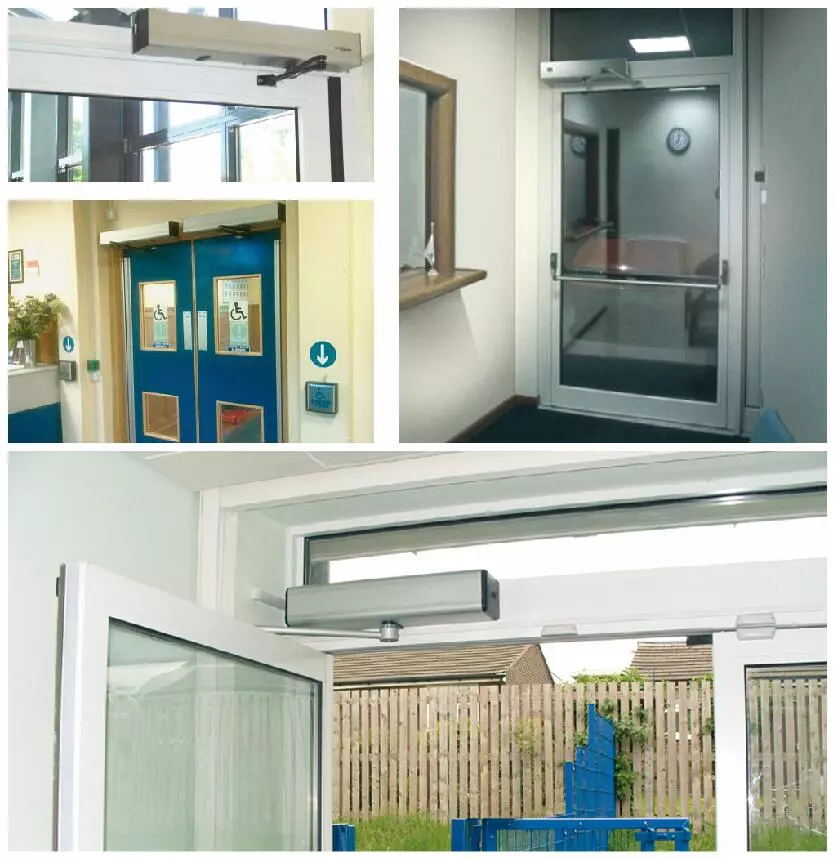

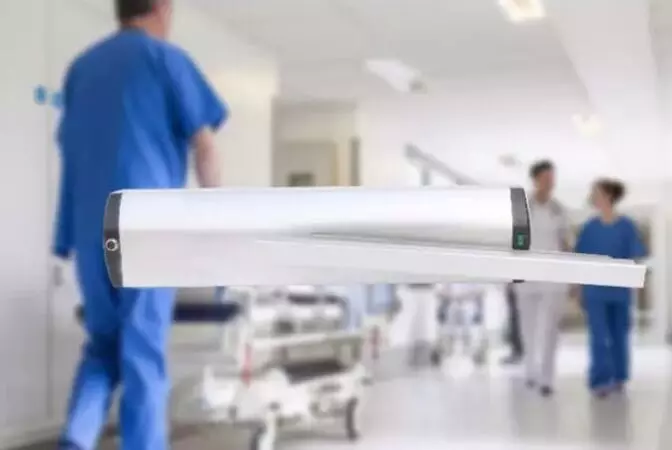

7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.

Company Profile

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.

We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.

Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.

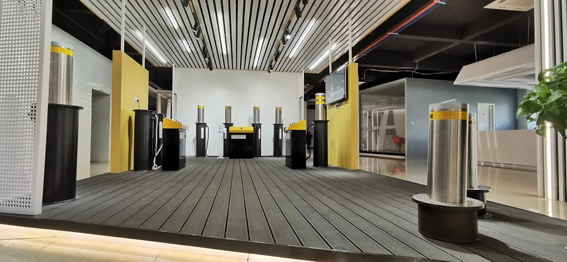

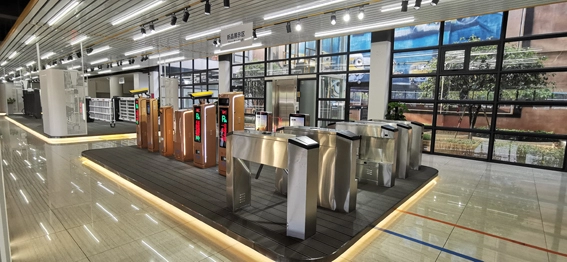

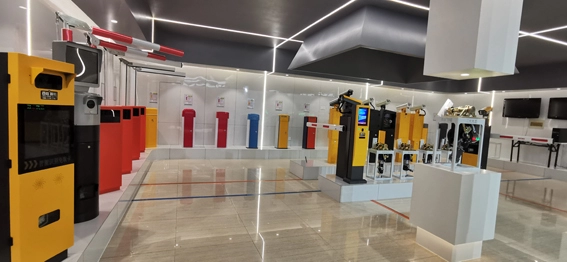

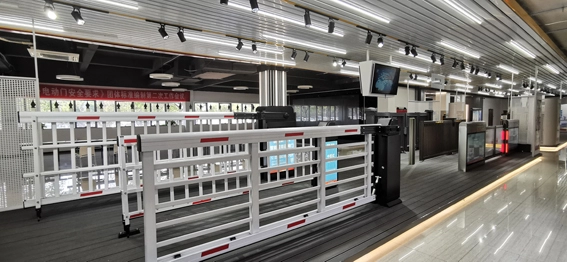

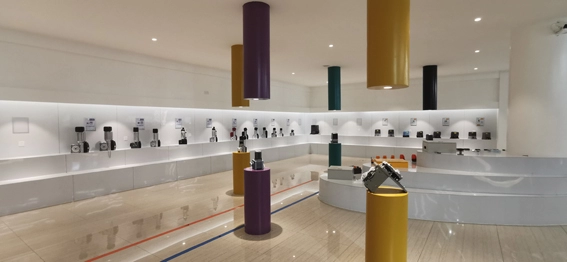

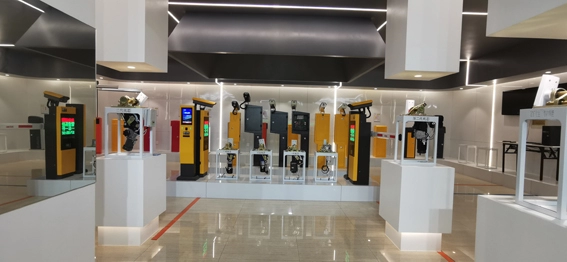

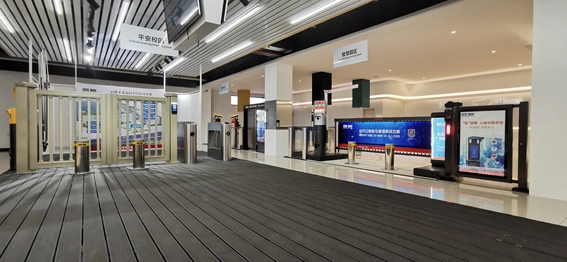

Exhibition

Certifications

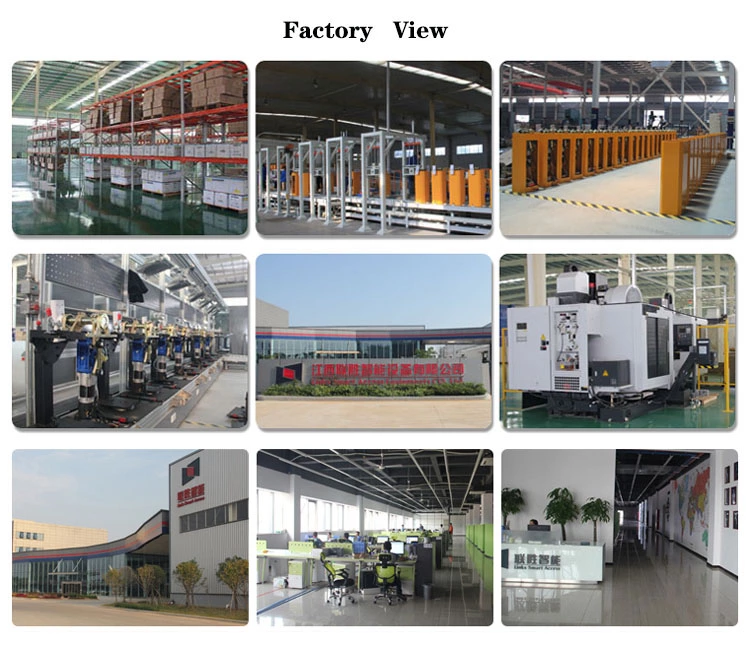

Manufacturing Technique

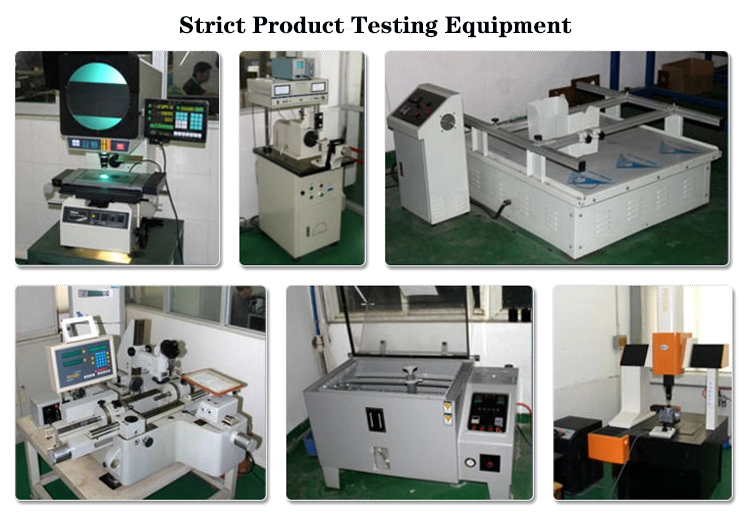

Testing Equipment

Our Services

1.ODM,OEM Customised for special requirements.

2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training

FAQ

Q: Are you trading company or manufacturer ?
A: We are a manufacurer

Q: How long is your delivery time?
A: Depens upon the quantity.

Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.

If you have another question, pls feel free to contact us as.
