Factory Reasonable Price Vertical Type Water Tube Diesel Fired Steam Output Small Boiler

ID:20110934064

Category: Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 6800.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Vertical Type BoilerWater Tube BoilerDiesel Fired BoilerSteam BoilerSmall Boiler

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > General Industrial Equipment

Trademark

EPCB Boiler

Product Package

The boiler main unit and the large auxiliary equipment are naked, and small auxiliary equipment and auxiliary are packed in wooden boxes.

Specification

LHS0.15-0.7-Q(Y); LHS0.15-0.4/0.7-Q(Y);LHS0.2-0.4/0.7-Q(Y); LHS0.5-0.4/0.7-Q(Y); LHS1.0-0.7/1.0-Q(Y)

Place of Origin

Qingdao, Shandong, China.

Port

Qingdao Port; Shanghai Port; Tianjin Port

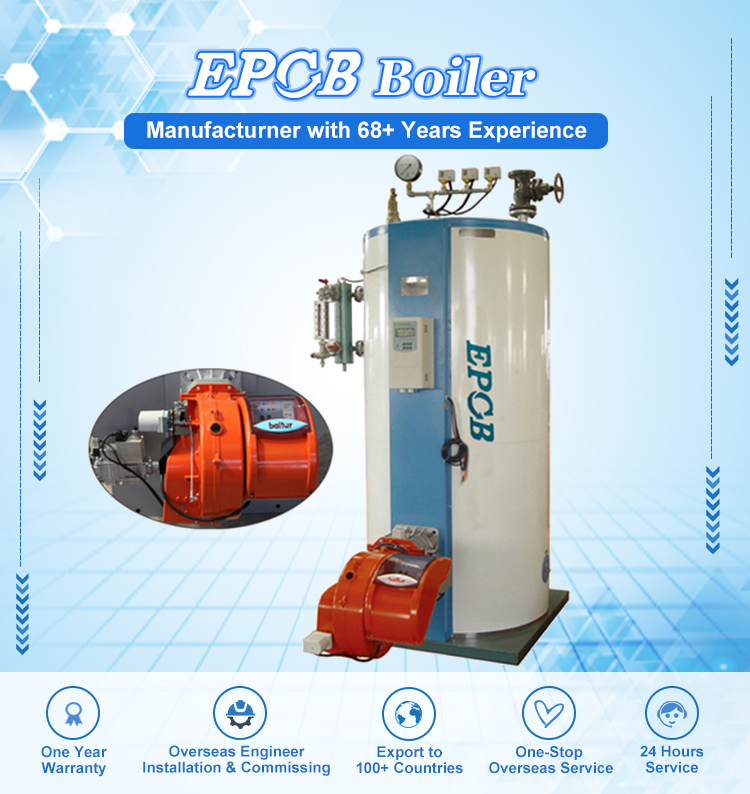

Vertical Oil Fired Boiler.jpg

Product Features:

1. Vertical oil/gas fired fire tube steam boiler.
2. Flow interrupters are set in the fire tube to slow down the rate of the mist flow and increase the heat efficiency.
3. The mist flows in the fire tube, compares with the LSS vertical flow through boiler, the LHS boilers have a large water capacity and have wide adoptability to the load.
4. An openable ash clean door is set at the bottom of the boiler. The top cover of the boiler can be opened for easy cleaning ash and prolong the endurance of the boiler.
5. China controller is employed for the boiler for making the safety is available, and lower the running cost to a great extent.

Product Parameters：

Item\Model		Vertical Type Water Tube Diesel Fired Steam Output Small Boiler
Rated steam capacity t/h		0.1	0.2	0.3	0.5	0.8	1.0	1.5	2.0
Rated working pressure MPa		0.4/0.7	0.4/0.7	0.4/0.7	0.4/0.7/1.0	0.7/1.0	0.7/1.0	1.0	1.0/1.25
Saturated steam temperature ℃		152/170	152/170	152/170	152/170	170/184	170/184	184	184/194
Design efficiency %		>=92
Heated area m2		2.85/3.53	5.2/5.67	8.8	11.34	18.4	23.1	26.05	29.38
Boiler water capacity m3		0.45	0.454	0.931	1.086	1.37	2.76	2.27	2.27
Feed water diameter		DN25	DN25	DN25	DN25	DN40	DN40	DN40	DN40
Main steam tube diameter		DN25	DN40	DN40	DN50	DN65	DN65	DN65	DN80
Safety valve diameter		DN40	DN40	DN40	DN40	2xDN40	2xDN40	2xDN40	2xDN40
Blowdown tube diameter		DN40	DN40	DN40	DN40	DN40	DN40	DN40	DN40
Fuel consumption	Diesel kg/h	5.4	10.8	16.3	27.1	43.4	54.2	81.3	108.4
	Natural gas Nm3/h	6.5	13.0	19.5	32.4	51.9	64.9	97.3	129.7
	LPG Nm3/h	2.4	4.8	7.2	11.9	19.1	23.8	35.8	47.7
Boiler size	L mm	1000	1000	1200	1300	1550	1750	1800	2100
	W mm	950	1000	1150	1200	1520	1700	1800	1950
	H mm	1900	1960	2200	2600	2650	3050	3100	3200
Transportation weight (kg)		450/730	650/735	990/1100	1500/1800	2400	2600/2850	4100	5400/5600
