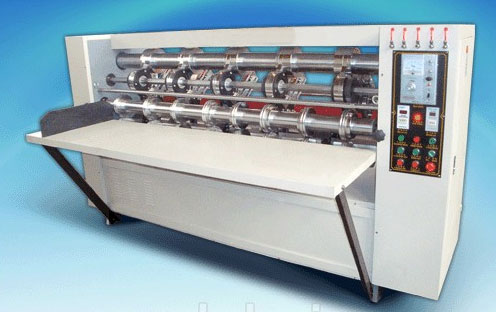

BFY-Thin blade Slitter Scorercarton box making machine cutting creasing machine?
L/CT/TD/PWestern UnionPaypalMoney Gram
Features:
◎ Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
◎ Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
◎ Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
◎ Electric control lift-down and correct error, easy to operate, suit for different requirements.
◎ Adopt China famous brand or imported electric element, dependable performance.
Technical parameters:
| Model | 2000 | 2300 | 2500 | |
| Machine dimension(mm) | 2600*750*1400 | 2900*750*1400 | 3100*750*1400 | |
| Power | 3.0kw | 4.0kw | 4.0kw | |
| Max slitting width | Inverse blade | 1900mm | 2200mm | 2300mm |
| Positive blade | 1800mm | 2100mm | 2200mm | |
| Min slitting width | Inverse blade | 305mm | 305mm | 305mm |
| Positive blade | 140mm | 140mm | 140mm | |
| Min slitting length | 435mm | 435mm | 435mm | |
| Min scoring width | Positive scoring | 30mm | 30mm | 30mm |
| Inverse scoring | 80mm | 80mm | 80mm | |
| Scoring height | 0-10mm | 0-10mm | 0-10mm | |
| Blade(mm) | φ200*122*1.2 | φ200*122*1.2 | φ200*122*1.2 | |
| Blade & Scoring Composed Type | Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring | |||
