Laminar Air Flow CabinetClean benchvertical laminar air flowHorizontal Laminar Air Flow Ultraclean BenchExclusive Clean Bench
L/CT/TWestern UnionOthers

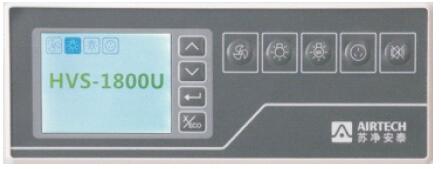

1.Friendly Control Panel ◆ Color HD LED display, soft button control. ◆ Showing time, air velocity, temperature and HEPA filter life on screen in real time. ◆ Operator can make an appointment for fan and UV light. |  |

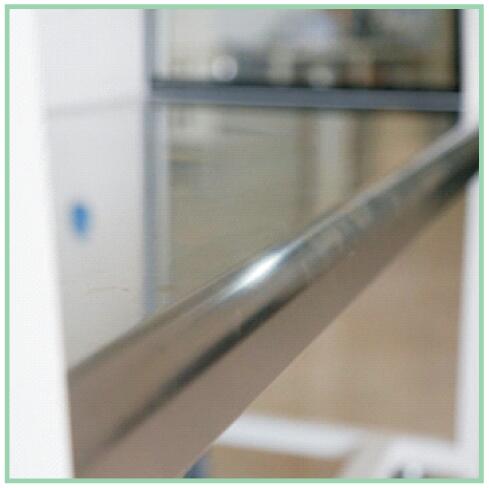

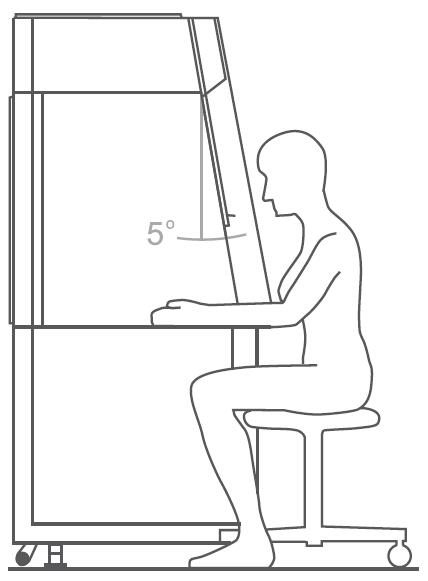

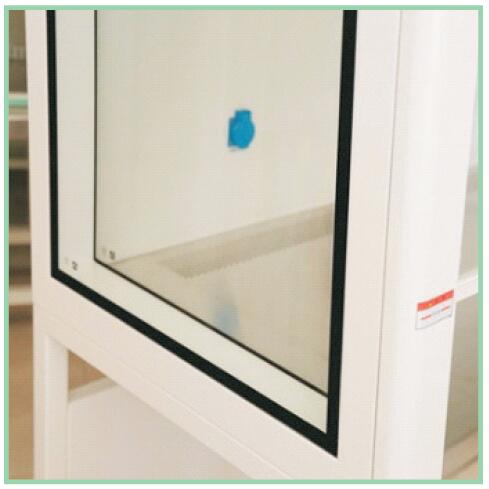

  | 2.Humanized design ◆ 5°sloped front, nice shape, relieving the sense of repression. ◆ Double layer side window, wide vision, convenient to observe. ◆ Integrative stainless steel working table design, easy to clean. ◆ Circular-Arc armrest, reducing fatigue. ◆ Detached Support，easy to assemble and carry. |
3.Safe and Reliable, Energy-Efficient ◆ It will test by itself when turning on. ◆ ECO mode can reduce energy consumption. ◆ Alarm system for fan , temperature，HEPA filter life. ◆ Light, UV light and front window are interlocked. ◆ The clean air cover all the working area. ◆ The anti UV glass is safe and reliable. |
|
◆ The velocity of air flow is uniform（Patent: 201020511001.X）, ensuring air flow pattern reliable ◆ Front window adopts hanging lifting system which imported from Japan. （Patent:97235425.5） |
| Model/Item | 1000 | 1300 | 1600 | 1800 |
| Cleanliness | ISO CLASS 5 | |||
| Air velocity | 0.26~0.38 m/s (55.1~70.9fpm)(adjustable) | |||
| Noise | ≤65 dB(A) | |||
| Illumination | ≥650 Lx | |||
| Power supply | AC220V, 1φ, 50Hz | |||
| Consumption※ | 300 w | 600 w | 600 w | 600 w |
| Weight | 170 kg | 205 kg | 230 kg | 250 kg |
| 1000 x 650 x 720 mm | 1300 x 650 x 720 mm | 1600 x 650 x 720 mm | 1800 x 650 x 720 mm | |
| Work Dimension | (39.4'' x 25.6'' x 28.3'') | (51.2'' x 25.6'' x 28.3'') | (63.0'' x 25.6'' x 28.3'') | (70.9'' x 25.6'' x 28.3'') |
| (W1XD1XH1) | ||||
| 1180 x 745 x 1920 mm | 1480 x 745 x 1920 mm | 1780 x 745 x 1920 mm | 1980 x 745 x 1920 mm | |
| Overall Dimension | (46.5'' x 29.3'' x 75.6'') | (58.3'' x 29.3'' x 75.6'') | (70.1'' x 29.3'' x 75.6'') | (78.0'' x 29.3'' x 75.6'') |
| (WXDXH) | ||||
| 960 x 530 x 69 mm x1 set | 1260 x 530 x 69 mm x1 set | 1560 x 530 x 69 mmx1 set | 1760 x 530 x 69 mm x1 set | |
| Size & No. | (37.8''x20.9''x2.7''x1 set) | (49.6'' x 20.9'' x 2.7'' x1 set) | (61.4'' x 20.9'' x 2.7'' x1 set) | (69.3'' x 20.9'' x 2.7'' x1 set) |
| HEPA Filter | ||||
| Light | LED 15w x 1 pc | LED 24.5w x 1 pc | LED 31w x 1 pc | LED 36w x 1 pc |
| UV Light (optional) | 18w x 1 pc | 30w x 1 pc | 36w x 1 pc | 36w x 1 pc |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory | |||
| Optional: working area all ss304 | ||||
| Mode of Operation | single people/single side | double people/single side | ||
