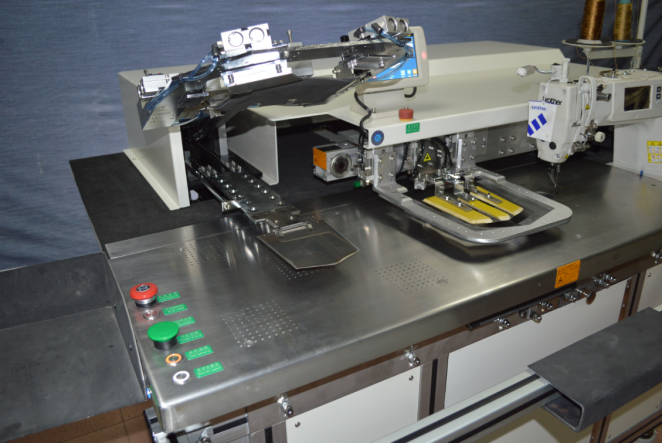

Garment Kangaroo Pocket Automatic Folding & Stitching Machine

1、全自动免烫功能介绍Automatic free ironing function

A、免烫功能口袋不会产生高温，从而让口袋和原身布料无色差，使产品更加完美

With free ironing function, there will be no high temperature for the pocket, so that there will be no color difference between the Pocket and original fabric, which make the products more perfect

B、免烫装置的模板可根据裤袋的形状进行任意调节

Iron-free device template can be adjusted according to the shape of the Pocket

C、自动折袋，最先进的折袋折边技术和袋口二次反角技术（专利号：ZL2015 2 0224862.2）

Automatic folding: the most advanced folding technology & the second reverseangle technology for pocket (patent no: ZL2015 2 0224862.2).

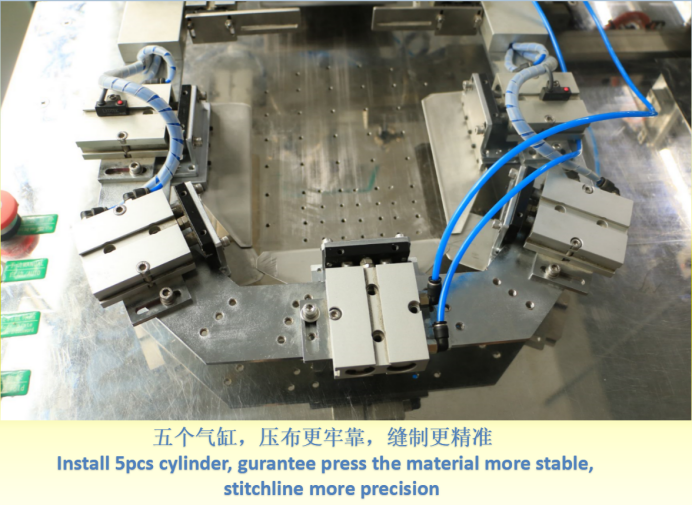

2、压框装置Pressure frame devices

A、在自动接料缝制过程中，内压框根据缝制要求可变大变小，使产品更加精准的定位。内压框自动伸缩装置专利技术（专利号：ZL 2015 2 0238582.7）

During automatic sewing process, inside pressure frame can be adjusted bigger or smaller according to variouse sewing requirements, in order to make the product have more precise position.

3、大豪系统Dahao system

A、通用大豪系统，任意自编式花样系统可缝制出不同缝制线迹，使在缝纫过程中更加得心应手。

DAHAO softare suit for normal garment factory usage,and different sewing stitches is made from different self-pattern system, making sewing process become more user-friendly.

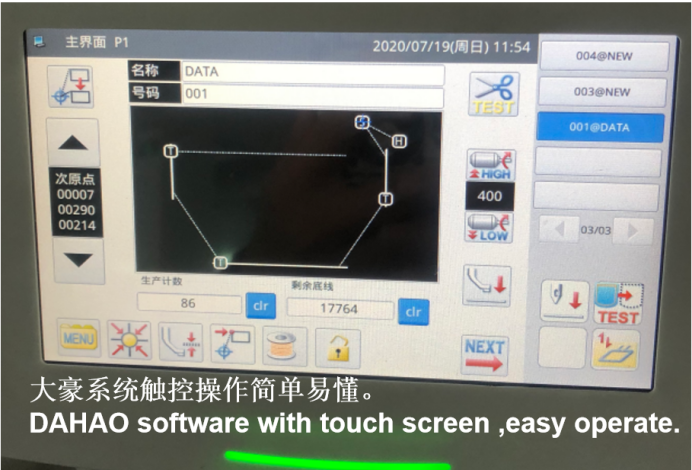

B、独立触摸屏操作面板、全面伺服控制，使我们对操控与调试更加方便、简洁

Independent touch screen operating panel and comprehensive servo control enables us to control and adjust in more convenient and simple way

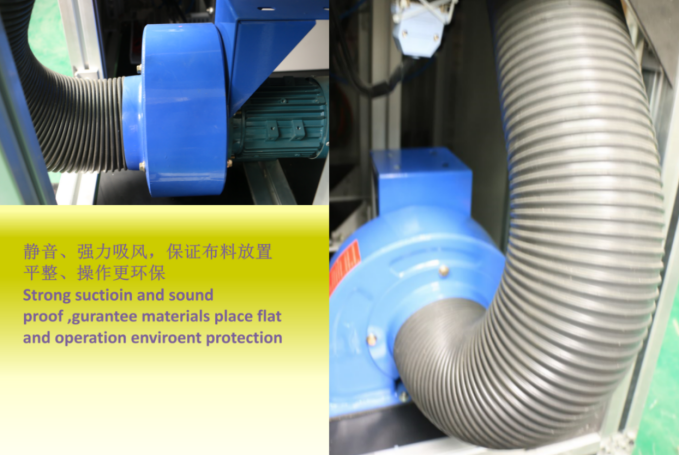

4、稳定布料吸风装置Stable cloth absorption device

A、吸风装置对布料有平稳固定作用，防止布料在缝制过程中移动与走偏

Absorption device is steady and fixed for fabrics, preventing the movement of cloth in the process

of sewing

B、吸风装置的运用，使缝制品经吸附后更加平整匀称，便于高效缝制

The application of absorption devices make sewing more smooth and well balanced ,which helps to sew in high efficiency way

5、自动梭心仓门Automatic bobbin door

为提高产品产量和维护人性化设计，在更换梭心、调整旋梭及剪线刀位增加了自动开仓门设计。从而使设备更加智能化In order to increase the output and maintain humanized design, added automatic door-opening design together with replacing the bobbin, adjusting the hook and threads trimming make the device

 more intelligent.

6、自动收料装置（选装装置）Automatic receiving device (optional device)

A、为了使自动收料更加全理，精心设计的自动滚料式收料装置，克服了以往短布料无法自动收料的弊端，我们拥有自动滚料装置专利技术（ZL 2015 2 0238572.3）

In order to make automatic receiving more reasonable, carefully designed automatic rolled receiving device has overcomed the shortcomings that short cloth could not be automatic received

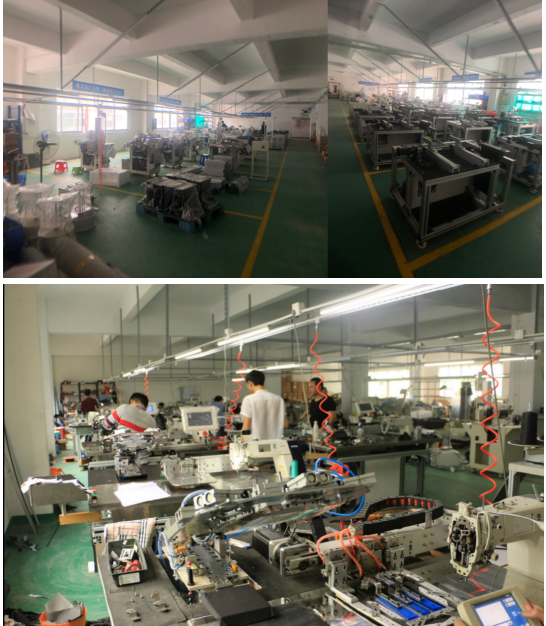

生产车间展示Manufacturer show：.

With automatic feeding device patent

特性Features：

1、自动免烫折袋、自动接料、自动缝纫、自动收料、自动同步中压脚、自动剪线、自动套结

  Automatic iron free folding, automatic feeding, automatic sewing, Automatic presser lift foot, automatic thread trimmer, automatic knot

2、断线自动停止、自动计数、花样自动储存、自动夹线、自动松线、自动线芯仓门、自动内压框伸缩、自动吸风装置

  Auto stop, auto counting, patterns auto saving, auto clipping, auto loose, auto core door, auto inner pressure frame elastic, and automatic air absorption device

3，夹具换装简单，针对厚料附可调式夹具来适应机型。

Adjustable inner clamp system meet for heavy material pockets, easy to change the pattern save time,increase productivity.

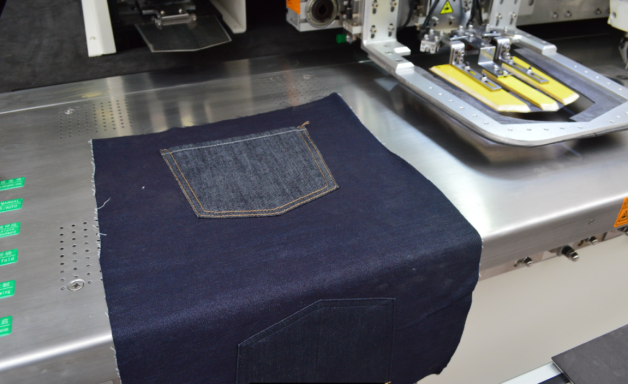

应用展示Product show:

适用于各种不同面料和口袋形状，如：卫衣口袋 运动夹克口袋、等

Automatic pocket patch machine could work for different thickness fabric on different pocket such as: Sweater belly pocket,Sports jacet pockets,etc.

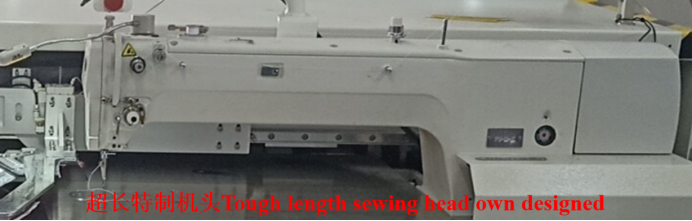

袋鼠袋专用贴袋，采用特殊定制缝纫机头，全球最大缝制范围 450*550mm,每小时生产120-150个，质量稳定，效率第一。

Kangaroo pocket patch pro,Sewing area 450*550 as No 1 in the world. Productivity 120-150pcs/h, Stable operation and Top efficiency.

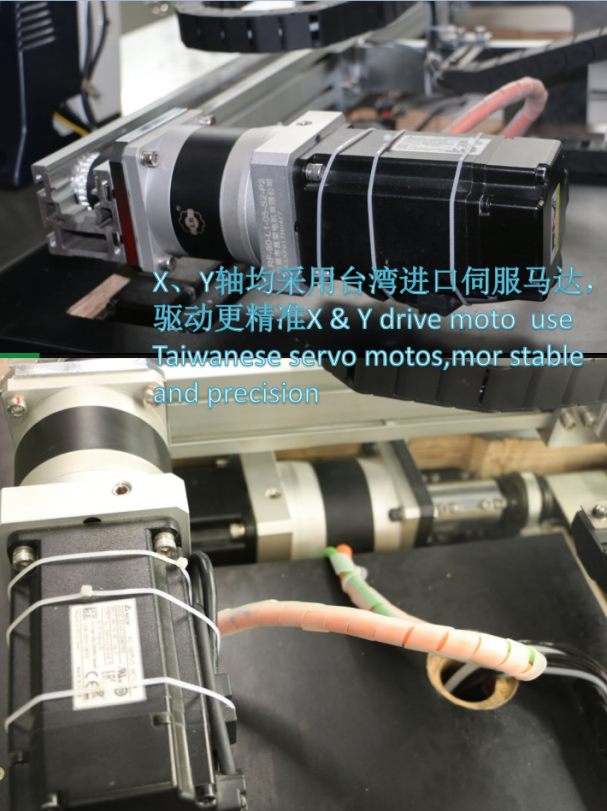

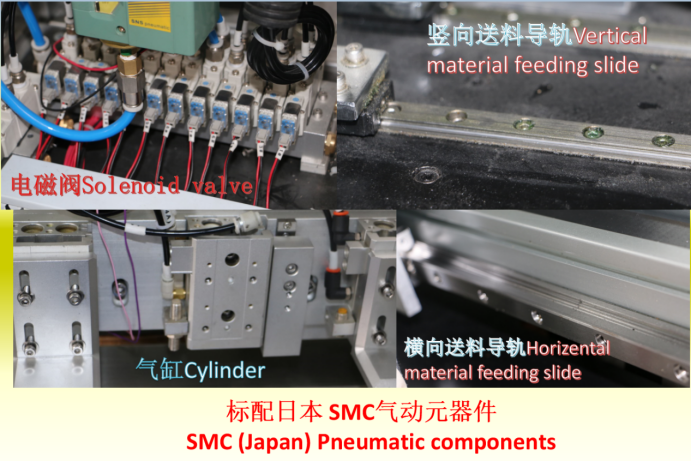

主要部件展示Parts images:
