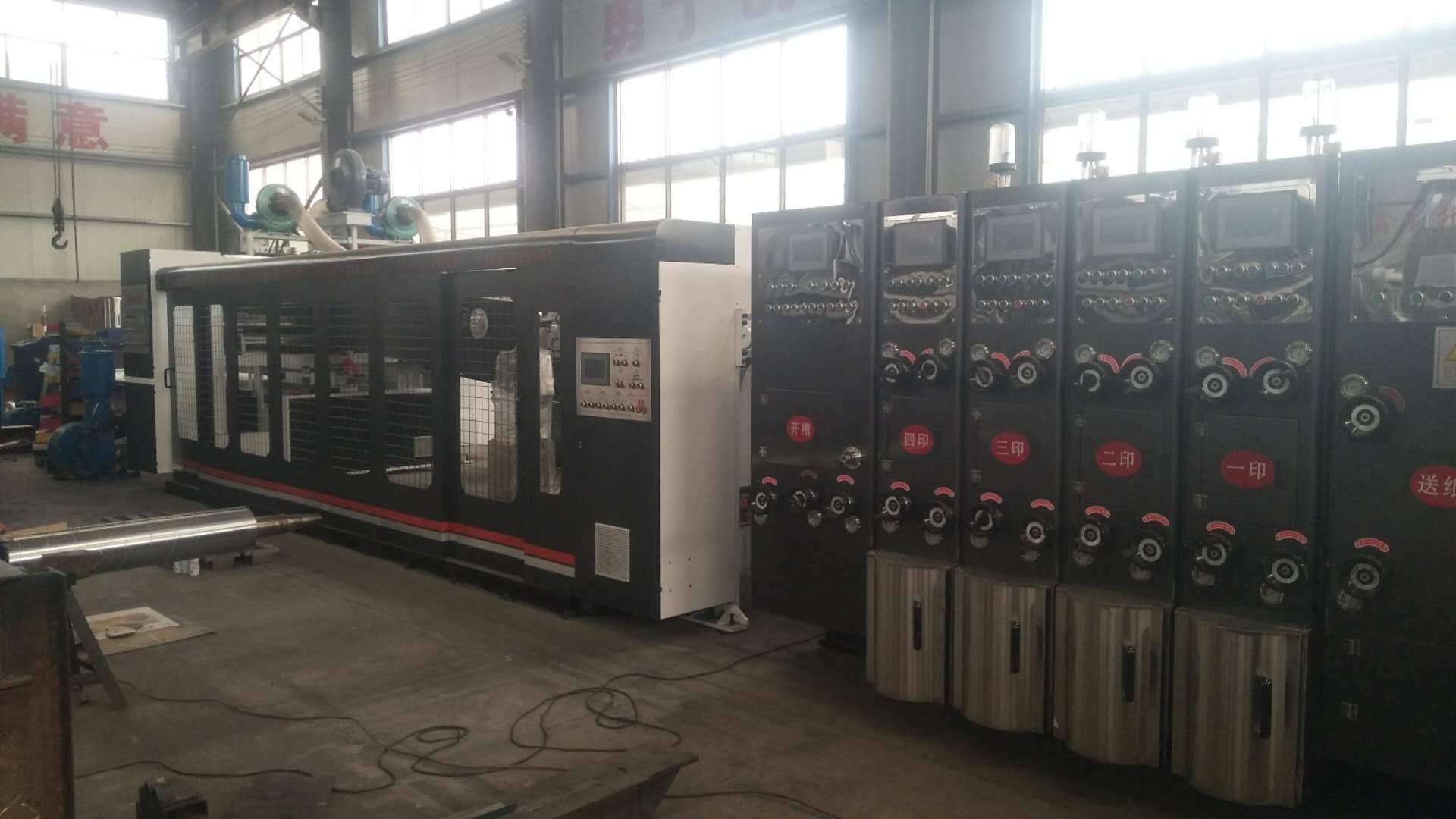

High speed flexo printer computerized slotter die-cutter folder gluer inline

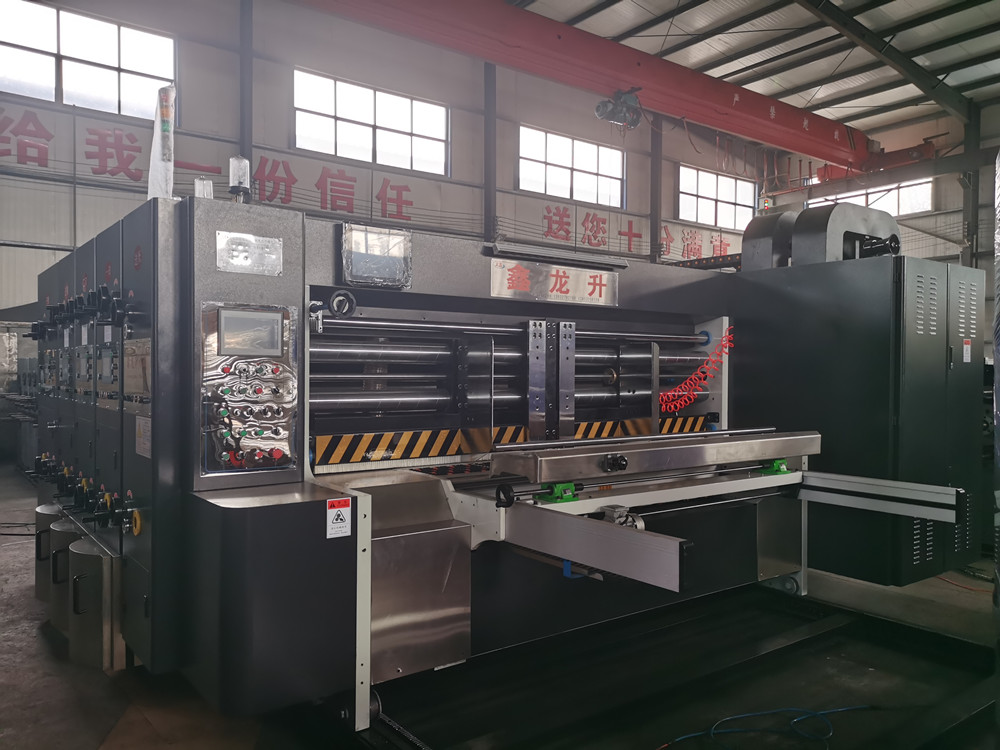

High speed printing machine

1.Human-machine interface, all touch screen operation. Can save common orders, and can change order faster, the operation is more convenient.

2.All electronic components adopt international famous brand.

3.All drive rollers are made of high quality steel, hard chrome plated and ground.

4.The wallboard is made of high-quality cast iron, which is processed by CNC machining center after stress-relieve treatment.

5.The machine is equipped with alarm bell, which is continuously ringing warning when unit moving to ensure the safety of operators.

6.Each unit is equipped with an emergency stop switch, which can stop the movement of each unit internally and ensure the safety of internal operators.

7.Spray-type lubrication double-pump automatic circulation system maintains oil level balance and is equipped with oiling display device.

8.The computer control system can store up to 999 orders. (The main control computer is on the operation side of slotting unit)

9.The operation side adopt double cover, which can effectively reduce the mechanical noise. Equipped with bipolar worm gear box, this gap adjustment mechanism can make the printing accuracy and the paper feeding gap adjustment more accurate and fast.

10. The transmission gear adopts the spray type lubrication automatic circulation system, the oil level balancer keeps the oil level balance of each unit, and is equipped with the oil supply display device.

11.Main motor, paper feeder fan and phase motors all adopt variable frequency motor, frequency converter control, energy saving and stable start.

 Folder gluer inline

* The average speed is 8000-12000 pcs/hour, speed fast, which greatly improves the production efficiency.

* Automatic gluing, automatic folding, automatic correction, automatic counting, automatic stacking, only two people can complete the whole process.

* The folding arm adopts elastic pressure wheel and suction belt to convey, and the conveying is accurate. The two folding arms adopt man-machine correction, electric adjustment, and with pre-creasing, shaping and correction devices, which can eliminate the scissors problem, and reduce the waste rate.

* Has the differential correction and adjustment function,which eliminate scissors problem.

* Shaping and ejector part: automatic flapping,paper receiving,stacking,pushing out are all precisely controlled by the servo system, and the circulation speed is fast. It can move left and right according to the folding size of paperboard.

* The paper receiving button is installed in the gluing part and the pre-creasing part. When the paper feeding button is pressed, the slotting unit stops feeding paper to avoid the waste of cardboard.

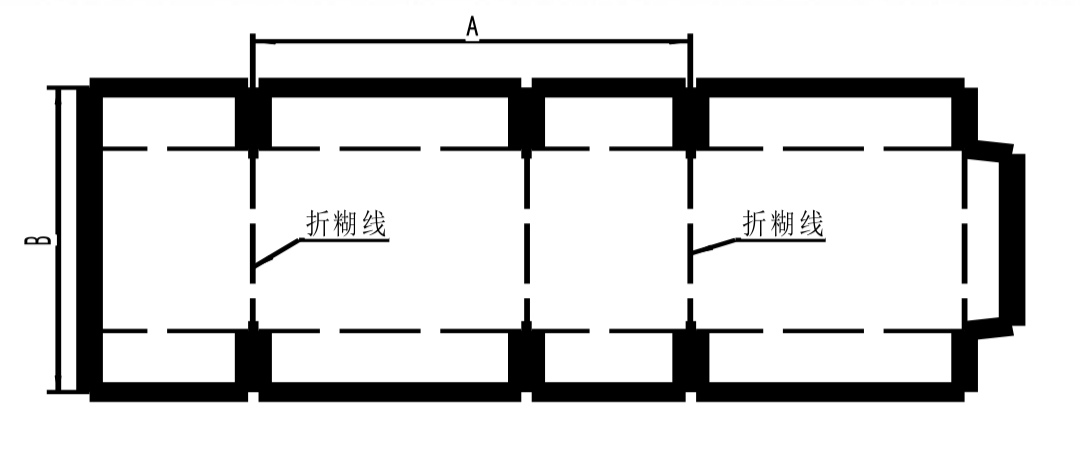

* The folding arm can automatically track the transverse movement of the middle cutter in the slotting unit, which is convenient to adjust, and can make the carton size to be minimum.
