Construction & Decoration Building Structural Material
MOQ:1000.00 Piece(s)

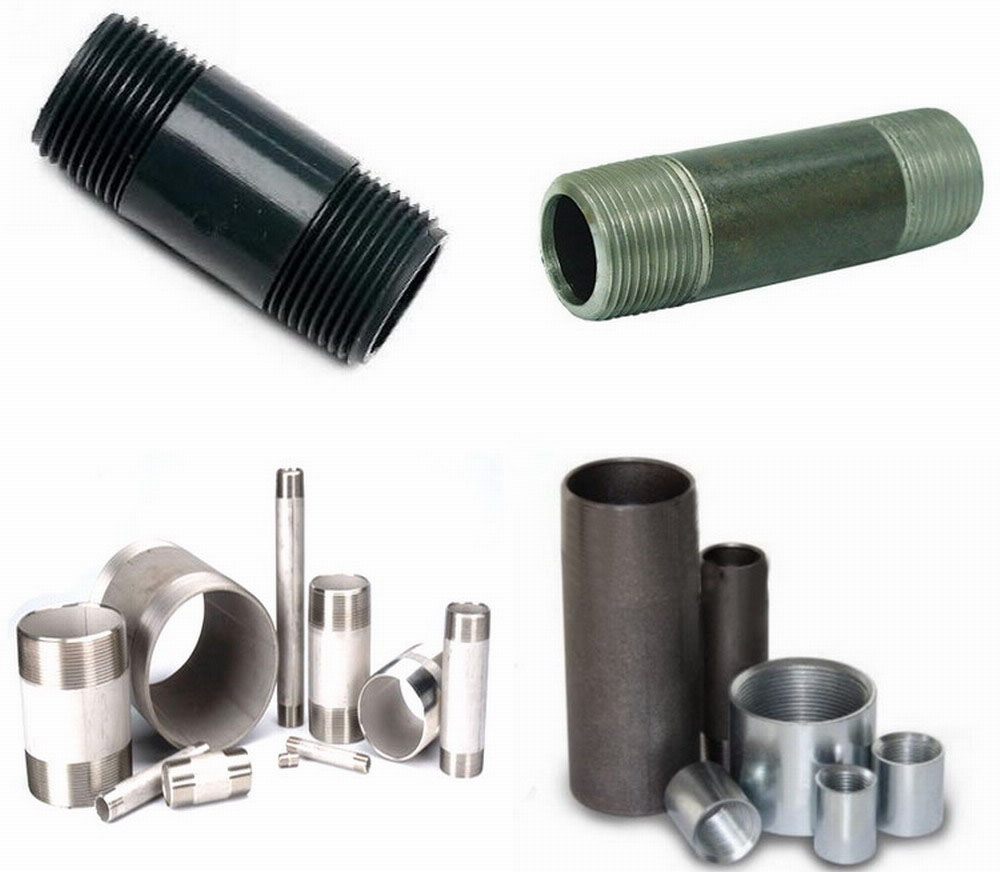

Carbon steel Nipple
T/TD/P
| Material | Carbon steel nipple |
| O.D. | 1/8”-6” |
| Length | 3/4”-24”; 19mm-500mm; Or as per customer’s request |
| Thickness | SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C |
| Surface | Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black |
| Threads | DIN, BS, NPT |

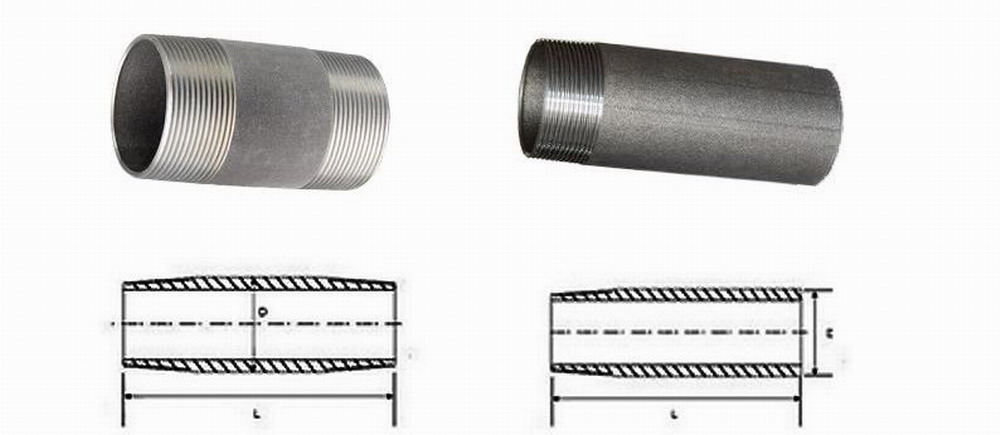

| Type | Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc |
| Usage | Convey Water, Oil, Gas, Steam and so on |
| Mechanical Properties | Tensile Strength ≥ 320N/mm2 |
| Yield Strength≥ 195N/mm2 | |
| Elongation ≥20% | |
| Hydraulic Test | Working Pressure: Max 1.5MPa |
| Test Pressure: Max 2.5MPa | |
| Temperature | -20 ~ 120 °c |
| NIPPLES BS1387 NIPPLES(Steel Pipe Standard BS1387 Thread Standard BS21) | ||||||||||||||
| Nominal diameter in inch | inch | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" |
| Nominal diameter in mm | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Close Taper Nipple in mm | mm | 27 | 28 | 37 | 39 | 46 | 51 | 51 | 60 | 69 | 75 | 87 | 96 | 96 |
| Barrel Nipple in mm | mm | 38 | 38 | 51 | 54 | 60 | 70 | 70 | 79 | 89 | 102 | 114 | 124 | 127 |
| Series of Length(mm) | 100 | x | x | x | x | x | ||||||||
| 150 | x | x | x | x | x | x | x | x | x | |||||
| 200 | x | x | x | x | x | x | x | x | x | x | ||||
| 250 | x | x | x | x | x | x | x | x | x | x | x | |||
| 300 | x | x | x | x | x | x | ||||||||
| 400 | x | x | ||||||||||||
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax.
If you have another question, please feel free to contact us as below.
