Business Type: Wholesaler
Main Products:steel pipeflangepipe fittingsvalvesstainless steel sheetsbuilding materialhollow section
ID:20111034577
Category: Construction & Decoration Hardware
MOQ:1000.00 Piece(s)

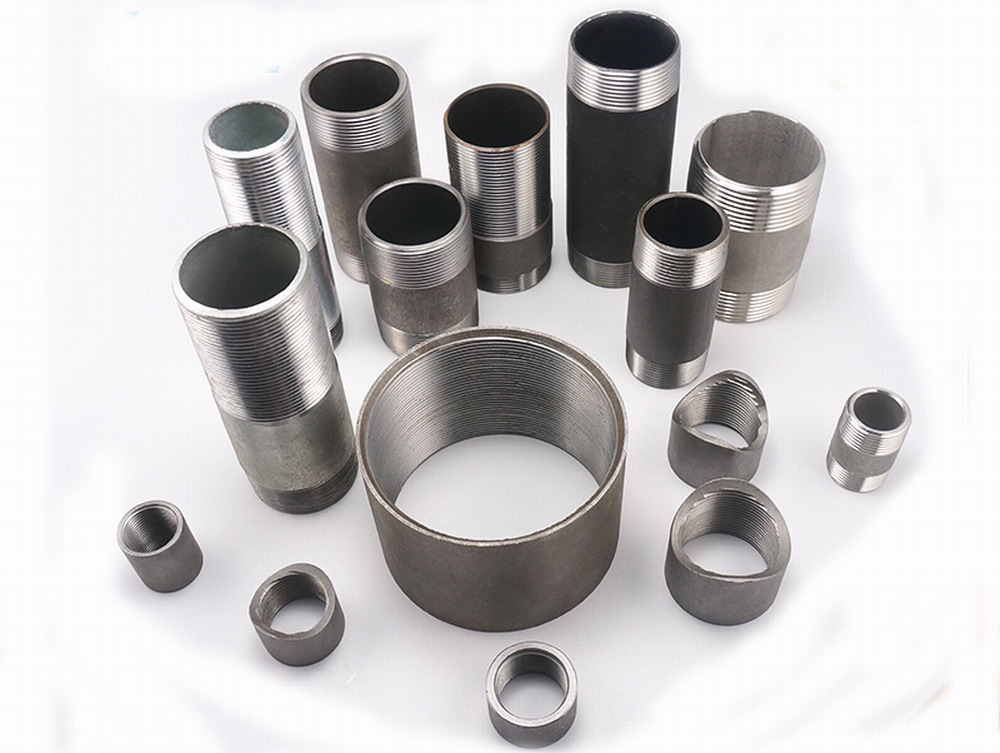

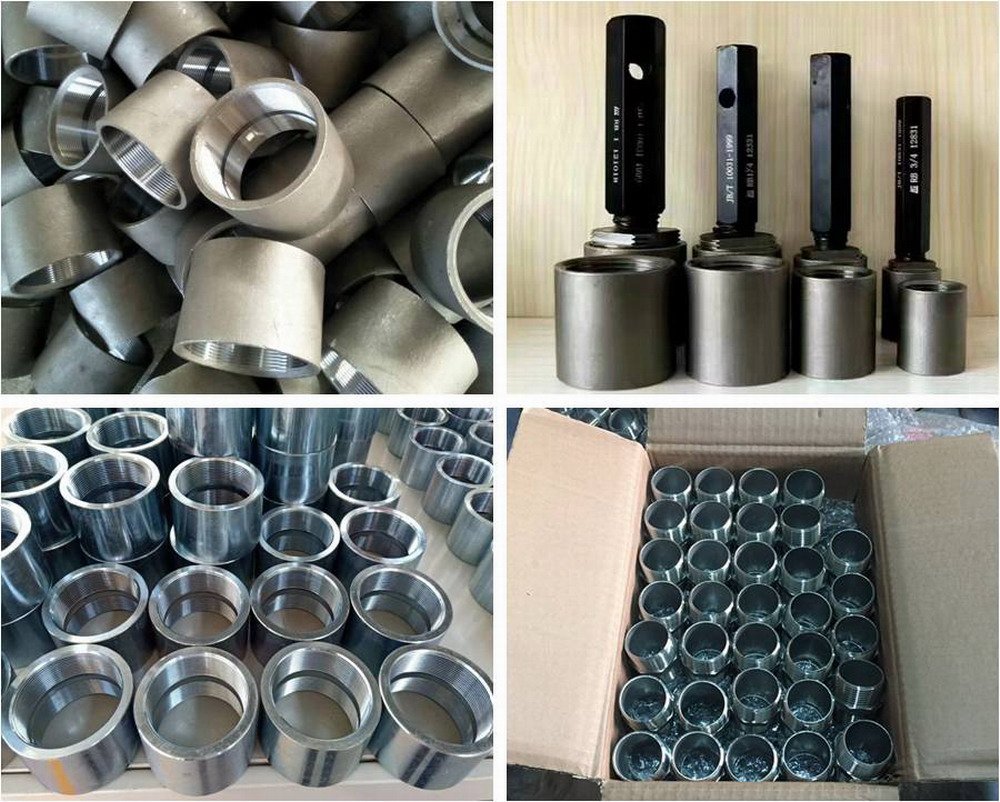

Carbon Steel CouplingCarbon Steel Socket
T/TD/P
| Specification | Full socket, Half socket |
| Surface | Hot dipped galvanized,Cold galvanized, Black |
| Size | 1/8"---6" |
| Grade | Heavy series, Standard series, Medium series, Light series |
| Connection | Female |
| Shape | Equal |
| Packing | Bags,Cartons,Pallets or as Buyer's request |
| Certificate | ISO9001 |
| Application | Steam, air, gas and oil pipes or for many other fluids |
| O.D. | 1/8"-6" |
| Length | 3/4"-24"; 19mm-500mm; Or as per customer's request |
| Thickness | SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C |
| Surface | Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black |
| Threads | DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1) |
| Dimension | BS EN10241, ASTM A733, DIN2982 |
| Type | Full length,half length,Saddle/plain end,or according to special request |
| Mechanical Properties | Tensile Strength ≥ 320N/mm2 |
| Yield Strength≥ 195N/mm2 | |
| Elongation ≥20% | |
| Hydraulic Test | Working Pressure: Max 1.5MPa |
| Test Pressure: Max 2.5MPa | |
| Temperature: | -20 ~ 120 °c |
| EN 10241:2000 Socket Medium Type | ||||||||||||||
| Nominal diameter in inch | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" |
| Nominal diameter in mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Diameter in mm | 14 | 18,5 | 21,3 | 26,6 | 31,8 | 39,5 | 48,3 | 54.8 | 66,2 | 82 | 95 | 121,4 | 146,3 | 173,3 |
| Length in mm | 17 | 25 | 26 | 34 | 36 | 43 | 48 | 48 | 56 | 65 | 71 | 83 | 92 | 92 |
| Socket EN 10241:2000 Socket Heavy Type | ||||||||||||||
| Nominal diameter in inch | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1"1/4 | 1"1/2 | 2" | 2"1/2 | 3" | 4" | 5" | 6" | |
| Nominal diameter in mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Diameter in mm | 18,5 | 22 | 27 | 32.5 | 39,5 | 49 | 56 | 68 | 84 | 98 | 124 | 151 | 178 | |
| Length in mm | 27 | 28 | 37 | 39 | 46 | 51 | 51 | 60 | 69 | 75 | 87 | 96 | 96 | |
| NOTE:Thread Standard BS21 Socket thread refers internal parallel thread | ||||||||||||||
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax.
If you have another question, please feel free to contact us as below.
