Business Type: Wholesaler
Main Products:Interphone
ID:20111034662
Electronics and Communications Portable Audio & Video & Accessories
MOQ:49.00 Piece(s)
walkie talkietwo way radio
L/CT/TPaypal
Selling Units:
Single item
Single package size:
15X20X30 cm
Single gross weight:
1.000 kg
Package Type:

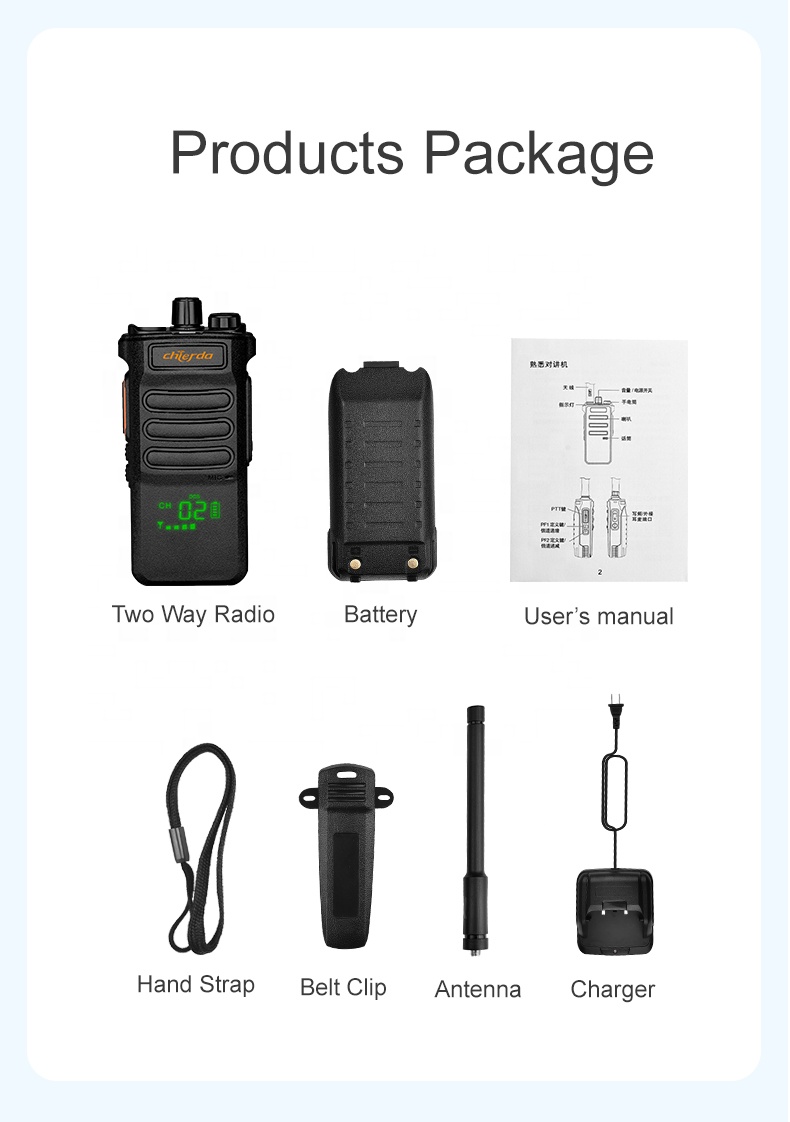

Box Included:
1* Radio
1* Antenna
1* Li-ion Battery
1* Charger
1* Belt Clip
1* Hand Strap
1* User Manual
Picture Example:
Lead Time :
| Quantity(Pieces) | 1 - 10 | 11 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 3 | 5 | 10 | To be negotiated |

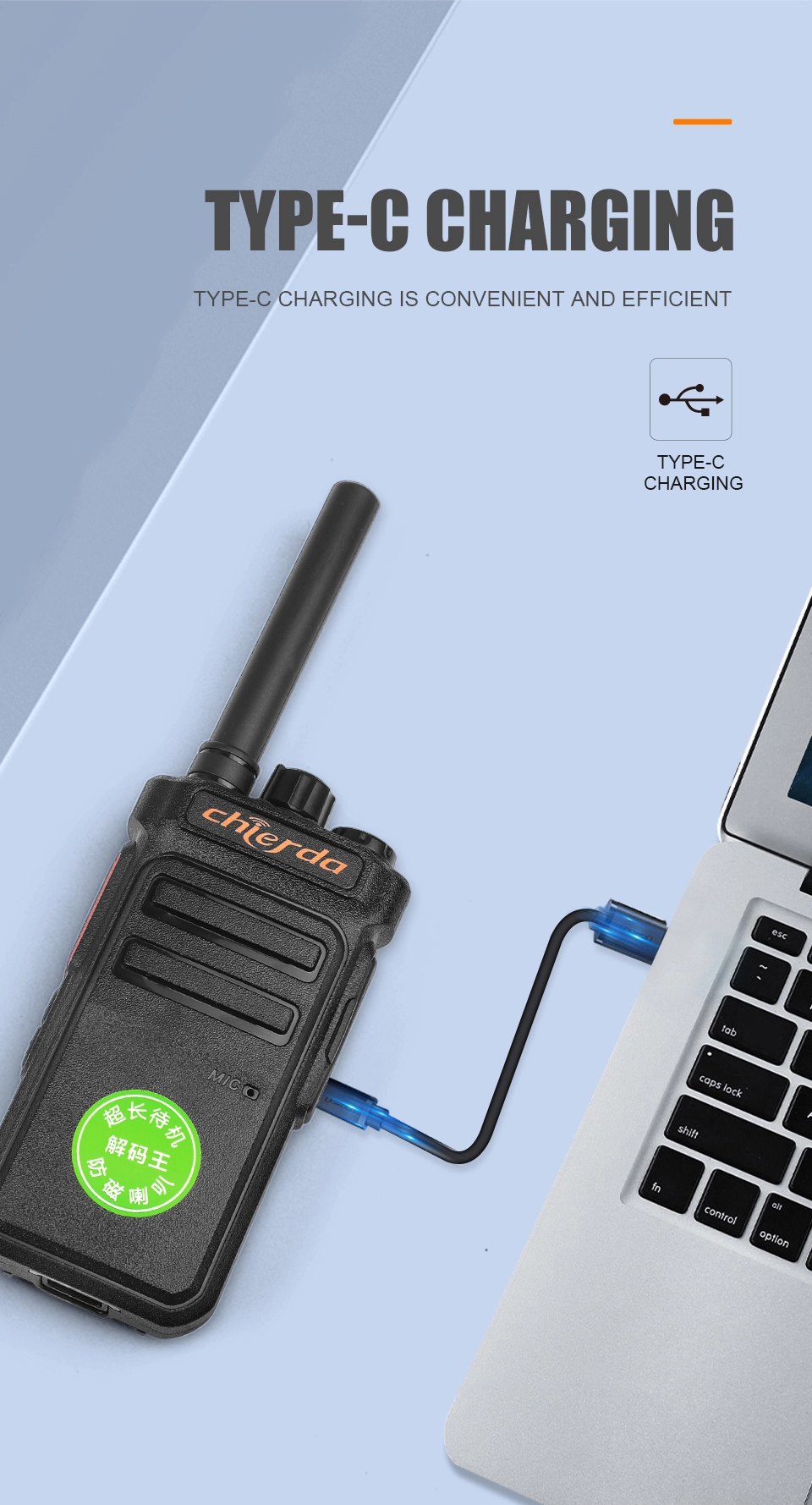

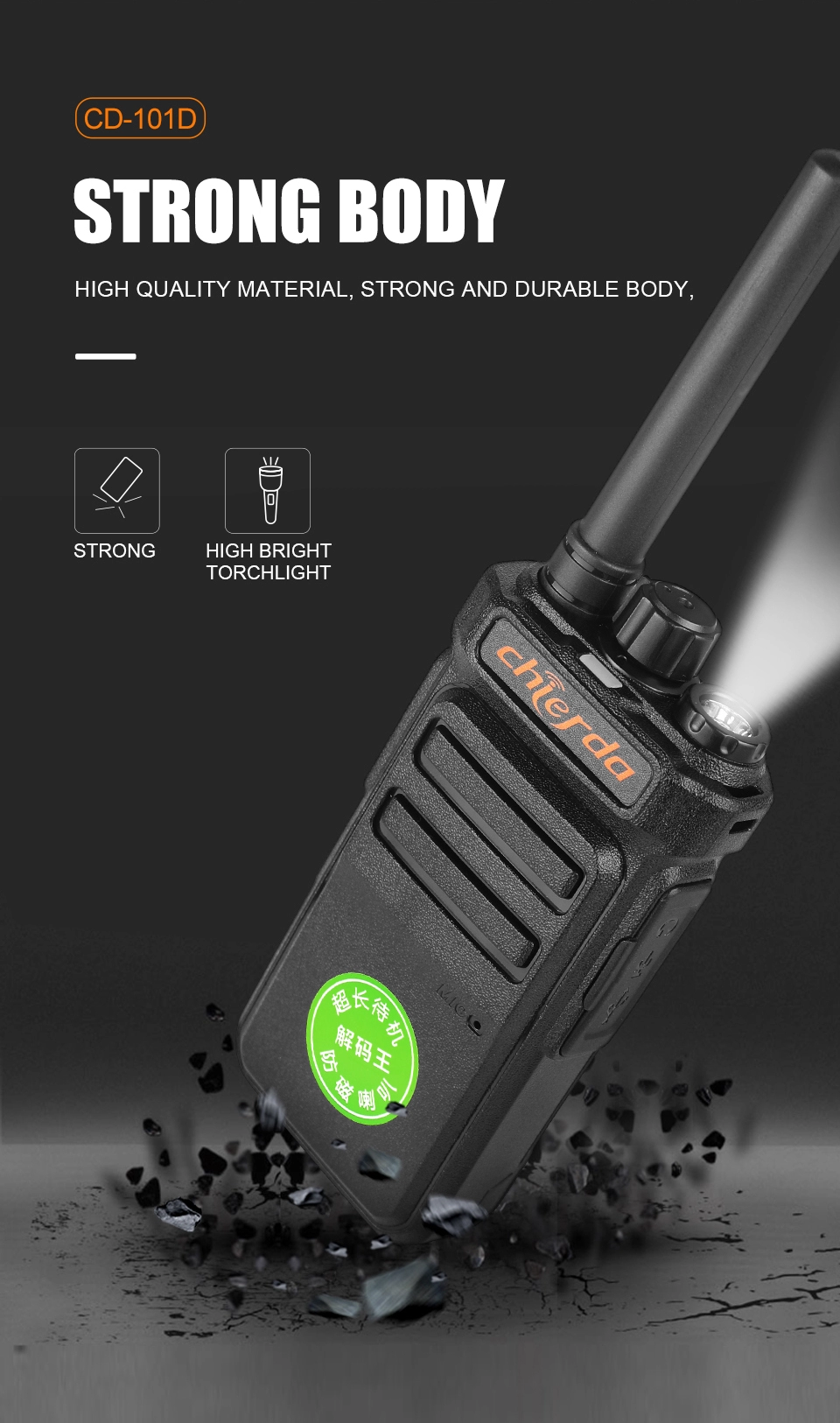

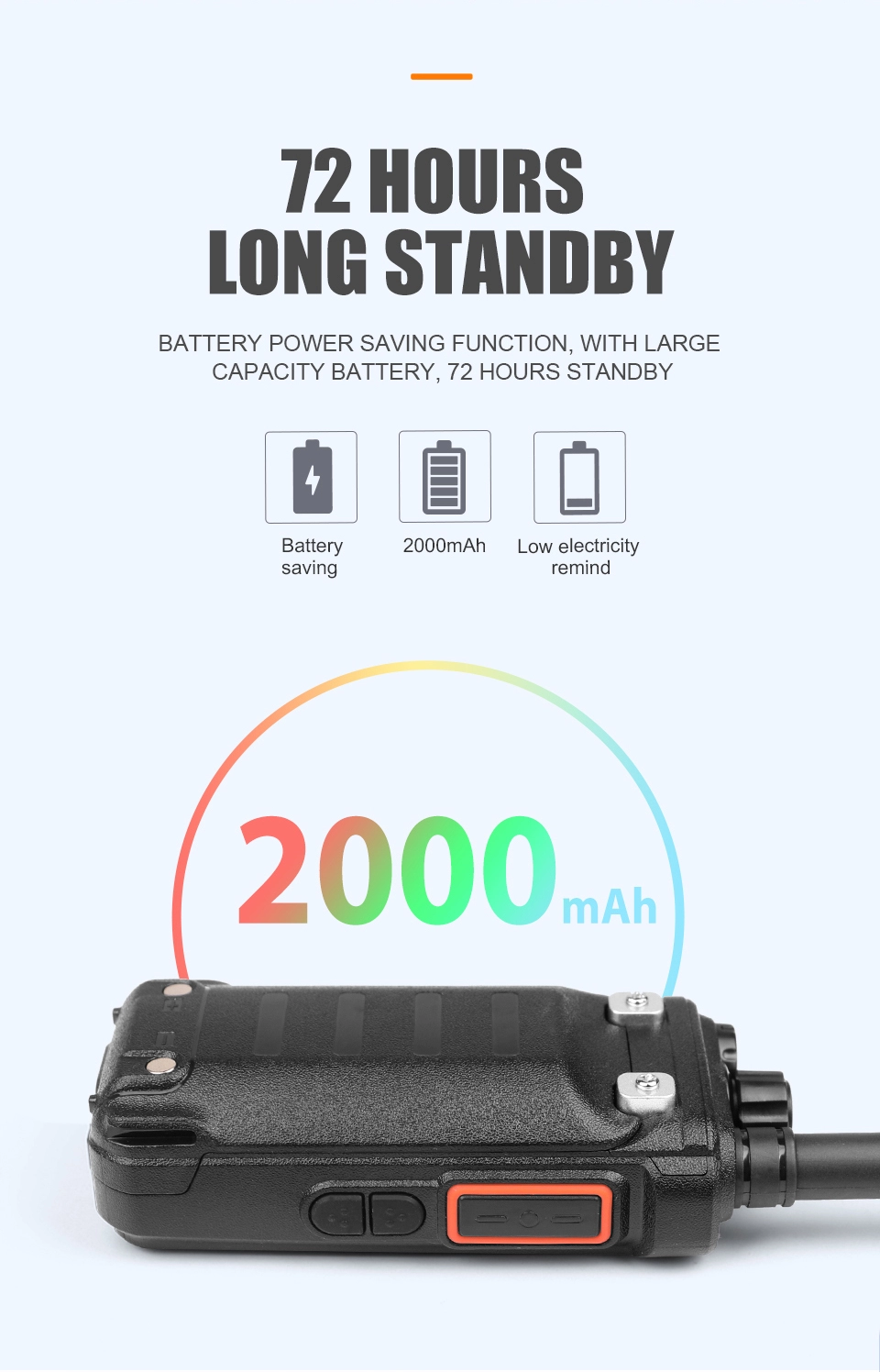

VHF/UHF 2W walkie talkie typec charger two way radio Long standby
| Product name | Higher Capacity Battery 10W Save Function Ip67 Waterproof Dustproof FCC CE Approved Walkie-talkie | ||
| Frequency | UHF/VHF | Inter-modulation | ≥ 60dB |
| High Output Power | 12 W(VHF) | Output power | 10 W(UHF) |
| Antenna Impedance | 50Ω | Modulation Mode | 16KφF3E/11KφF3E |
| Channel No | 16 CH | Current | ≤2.5A |
| Battery Capacity | 3600 Mah | Remanent Radiation | ≤7uW |
| Operating Voltage | 7.4V DC | Remanent Modulation | ≤ -35dB |
| Size (without antenna) | 150*65*39mm | Modulation Distortion | ≤5%(300-3000Hz) |
| Working Temperature | -20°C ~+55°C | Maximum Frequency Deviation | ≤5KHz/≤2.5KHz |
| Frequency Stability | ±2.5ppm | CTCSS Frequency Deviation | 0.75KHz/0.35KHz ± 50Hz |
| Audio Frequency Power | ≥ 500mW | RF Sensitivity | ≤0.25uV/≤0.3uV |
| Audio Distoftion | ≤ 5% | Modulation Receiver Bandwidth | ±7KHz |
| Spurious rejection | ≥ 55dB | Silent Sensitivity | ≤ 0.2uV / ≤ 0.25uV |
| Selectivity | ≥ 65dB | ||
| Advantage |
| ||
Q. Why sometimes your partner's voice is intermittent?
A. Please note that you are within normal communication range, If you want use radio in distance range, please change other antenna with a bigger output power.
If still same problem, please send the radio back to your authorized dealer repair.
Q. Can't turn on talky and even it is switch on, it often shuts off automatically?
A. Please check the battery contacts on the walkie talkie. If it is broken or twisted, please return the radio to your authorized dealer for maintenance during warranty.
Q. Can't transmit or receiver signal with other members?
A. First, please verify that the channel frequency and the CTCSS you are used the same as those of your group members. Please make sure that you and your partners are all within the radio coverage, If the channel frequency and the CTCSS are the same.
Q. Why sometimes received voice from other groups?
A. Two way solutions.You can change another channel or change another channel frequency by PC software.
Q. Which is better – VHF or UHF?
A. Depends on the terrain. The UHF signal is attenuated or absorbed by foliage, rough terrain and trees, VHF does better outdoors. The VHF has difficulties penetrating steel and concrete, UHF does better in and around buildings. If you use the radios in both environments, we prefer using UHF band.
