Model: RB5340 wireless microphone system

ID:20111034839

Electronics and Communications Home Audio,Video & Accessories

FOB Price:US$ 134.330 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

wireless microphonemicrophone wirelessmicrophone professionalbuy wireless microphoneuhf wireless microphonekaraoke microphonewireless microphone uhfmicrophone system wirelessmicrophone systemwireless microphone system

Payment Method:

L/CT/T

Product Category

Electronics and Communications > Home Audio,Video & Accessories

Trademark

Liwmik

Product Package

Printed cartons suitable for long distance transportation

Specification

Carton size: W545mm*D405mm*H375mm (5 set of products in each carton)

Place of Origin

China

Port

Zhuhai in Guangdong, China

Contact: Mr. Davis Lu-CMO (Chief Marketing Officer)

TEL: 0086-756-3292387 FAX: 0086-756-3292370

Email: 3@liwmik.com

Mob: 0086-189 2692 8039

WeChat No.: Lu13928091976

Int'l Marketing Dept: 4@liwmik.com，5@liwmik.com

NOTE:

1. FOB (Zhuhai,Shenzhen, HK) or CIF prices are available based on your specific needs.

2. Colorful plastic anti-slip rings & anti-falling pads matched to handhelds (as shown by the photo)

are to be sent to buyers free of charge.

3.Liwmik various colorful metal handheld-microphones are available as shown by the photo.

4.The buyers who buy our K, R, U series of microphone system products will be sent our handheld wired microphones (free of charge) by “1 pc sent for every 10 sets bought” ratio. As our stockpile of the free gifts is limited, the “Rewarding Customers” activity will end when the free gifts run out.

PARAMETERS OF THE SYSTEM:

Description of the product:

Wireless microphone system w/ one receiver + two handheld microphones (green grey) (1 match 2)

Matching quantity between receiver and transmitter: each receiver can match 2 transmitters (1 match 2)

Range of frequency：640MHz-690MHz/740MHz-790MHz

Method of modulation：Broadband FM

Adjustable range：50MHz

Quantity of channels：200

Channel spacing：250KHz

Frequency stability：±0.005%

Dynamic range：100dB

Max. drift of frequency：±45KHz

Audio response：80Hz-18KHz(±3dB)

Integrated signal-to-noise ratio：>105dB

Integrated distortion：≤0.5%

Working temperature：-10°C--+40°

PARAMETERS OF THE RECEIVER：

Mode of receiver：Double frequency conversion superheterodyne

IF frequency：1st IF：110MHz，2nd IF 10.7MHz

Wireless interface：BNC/50Ω

Sensitivity：12 dBμV (80dBS/N)

Adjustable range of sensitivity：12-32 dBμV

Spurious suppression：≥75dB

Max. output level：+10 dBV

Power supply: 12V/1000mA, AC/DC Adapter in line with international standards:

(Input:AC100-240V,50/60Hz

Output:safety voltage DC12V, 1000mA.

Safety certificates such as CE, UL, etc. & plugs suitable to different nations are available)

PARAMETERS OF THE TRANSMITTER：

Type of the transmitters：Either handheld microphone or hang-on transmitter is optional.

For the latter, either lavalier or headset microphone is optional.

Mode of antenna：Handheld microphone with a built-in helical antenna. Hang-on transmitter uses a 1/4 wavelength whip antenna.

Output power: high power 10mW；low power 3mW

Spurious suppression：-60dB

Power supply: two AA batteries

Utility time: more than 10 /15 hours at 10/3mW respectively

※ FEATURES OF THE PRODUCTS

1.UHF (Ultra High Frequency) range and advanced DPF (Digital Pilot Frequency) technique

are adopted with less disturbances and more reliable transmission of signals than
traditional VHF (Very High Frequency) range.
2.The DPLL (Digital Phase Lock Loop) multi-channel frequency composing technique can provide as much as 200 channels by 250KHz spacings within 50MHz frequency bandwidth facilitating dozens sets of the product being used at the same time to avoid easily
various disturbances.
3. Advanced AIFS (Automatic Infrared Frequency-Synchronizing) technique is adopted.
Even frequencies of the transmitter and the receiver are adjusted to be untuned, just
pressing on the “SET” button will allow the transmitter to track frequency of the receiver
and adjust their frequencies to be the same automatically. Easy to use.
4.Unique high/low power switching function allows either fluent using of the product in
places like mass rallies (high-power transmission) , or saving power of batteries when

it is used in school classes or KTV (Karaoke Television) rooms (low-power transmission).

5.Unique "receiver’s sensitivity-adjusting function" allows its sensitivity to be adjusted according to actual needs to increase either the capacity to resist disturbance or

the receivable distance.

6.Max. working distance between the transmitter and the receiver can reach 200 meter.

7.Function of ASF (Automatic Searching non-interference Frequency) points.Easy and quick. 8.Pressing the two SET buttons simultaneously can lock the frequency and avoid

misoperation in working.

9.Coded lock allows presetting and limiting total times of the product to be turned on.

10.Electronic volume control: 0-39 stages adjustable with 2dBm adjusted by each stage.

11.The interface between USB and earphone using serial communication can control the

songs-selecting-device and the central control unit, and can follow up pictures in videoing.
12.“One button to install” function can build-in 100 group of installing frequency points

to facilitate dozens sets of the product to be used to set their frequency points

simultaneously.
13.There are 4 preset equilibrium modes: (1) straight flat, (2) bass increased,
(3) high pitch cut, (4) bass increased and high pitch cut.
14.The total-view LCD display screens show clearly from any angle working status
of the transmitter and the receiver.
15.High quality , high density shielded cables with 6.35 interface for audio frequency
allow signals to be transmitted to the preamplifier or mixer without loss. Thus higher
fidelity of sound-transmission can be ensured.
16. Gold-plated copper AF interfaces of receiver and the matched 6.35 AF cables can
ensure perfect transmittion of audio frequency signals.
17.Wide audio response frequency range of the product covers the frequency range of
sound waves that can be heard by human ears. Whether it is deep bass, melodious mediant ,
or loud and clear treble, all voice can be perfectly transmitted and reproduced to ensure
the Hi-Fi sound effect.
18. Advanced CPU and exclusive designed software are used to make the whole system
run accurately, efficiently and professionally.
19.All the receiver panels are carefully designed, reasonably arranged and easy to operate.
20.The handheld transmitter has advanced functions of automatic mute, falling mute, automatic power-off after 10 minutes without use.
21. Automatic "Low Battery" warnings are built-in the handheld transmitters to provide convenience to users.
22.Steel case of the receiver, adopting standard 1U case design and spraying painted wearproof water-wave finishing, looks very nice and is strong, durable to use.
23.Years of experience, professional design, quality materials and components, plus meticulous manufacturing process, create together the excellent product w/ high quality, outstanding performance and pretty appearance.

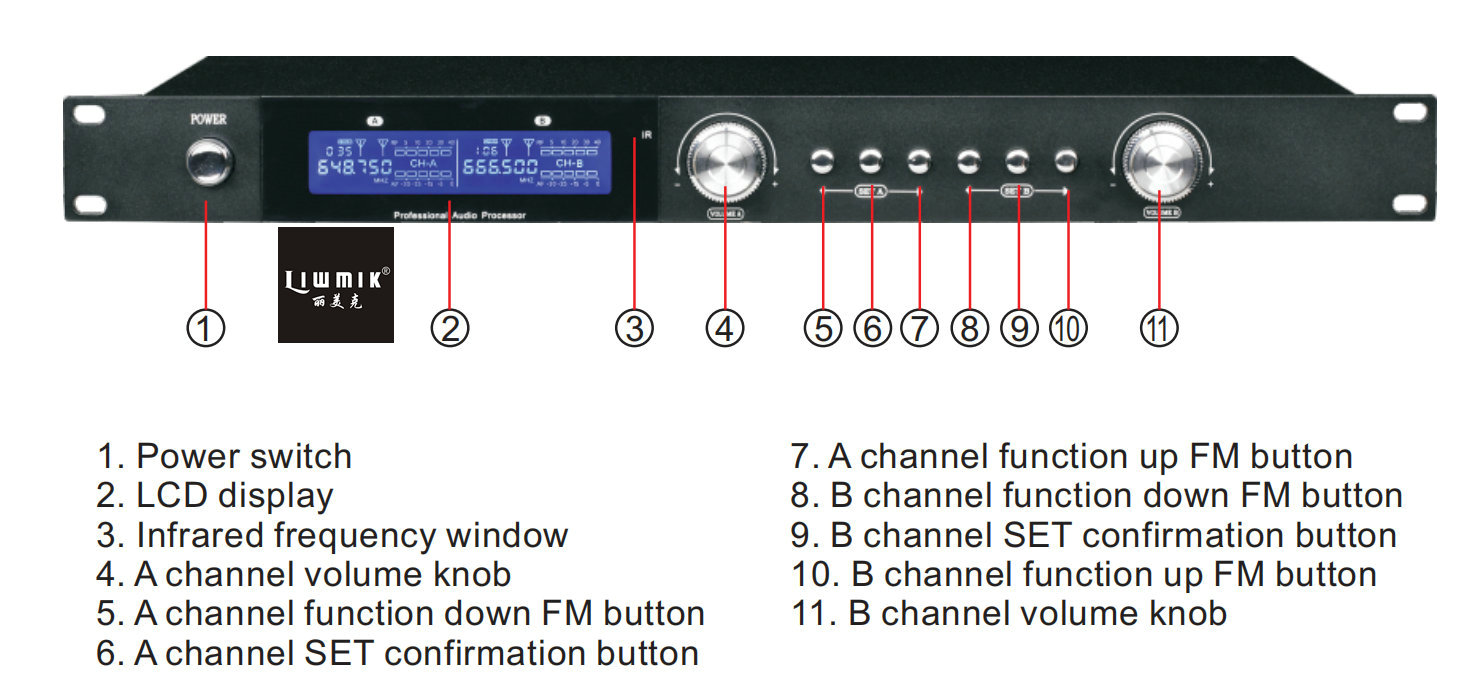

RDS5100 front panel.jpg

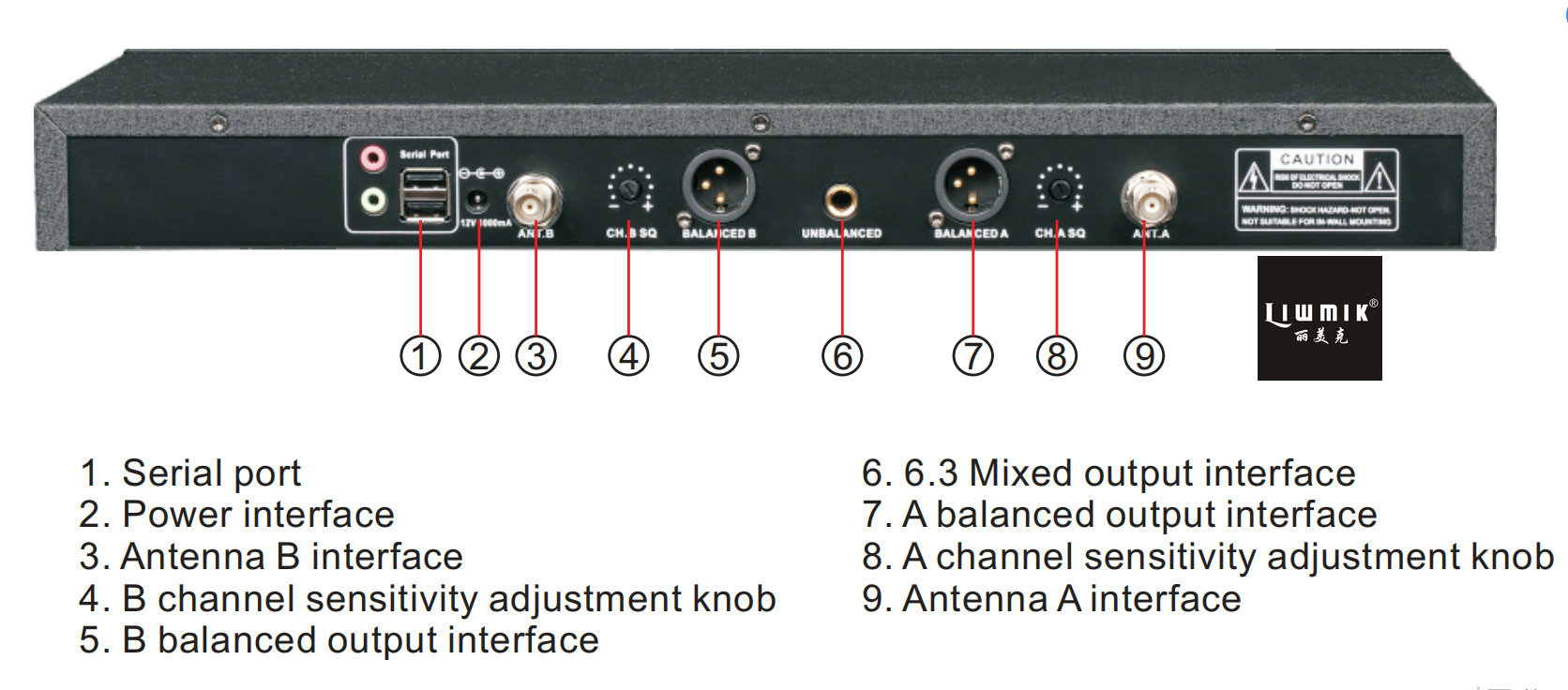

RDS5100 back panel.jpg

Values of Gaoge.jpg
