Security, Fire & Safety security system
MOQ:1.00 Set(s)

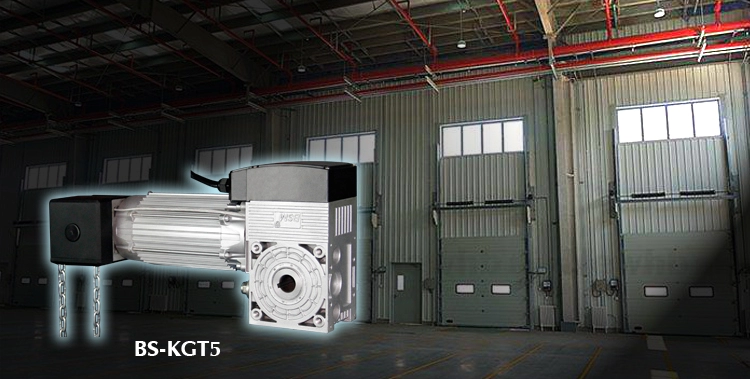

automatic roll up door motorsdoor opener
L/CT/T
Model | KGT5.75-ZM KGT5.75-Z | KGT5.75S-ZM KGT5.75-S-Z | KGT5.100S-ZM KGT5.100-S-Z |
Power supply | 220V | 380V | |
Motor power | 550W | 550W | 750W |
Capacitor | 18uF | ||
Thermal protection | 120℃ | ||
Max output torque | 75 N.m | 100 N.m | |
Output rotational speed | 23 r/min | ||
≤5m | |||
Output aperture | Φ25.4mm or Φ31.8mm | ||
Max square metre | 16m2 | 18m2 | 22m2 |

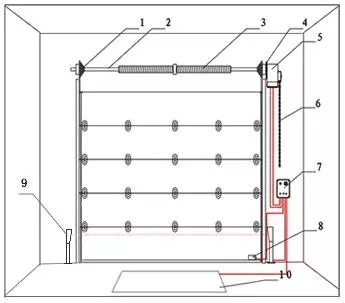

1.Steel wire tray
2.Spring axostyle
3. Spring
4. Mounting plate
5. Motor
6. Chain
7. Control box
8. Air Wave Switch(Optional)
9. Photocell(Optional)
10. loop Detector(Op

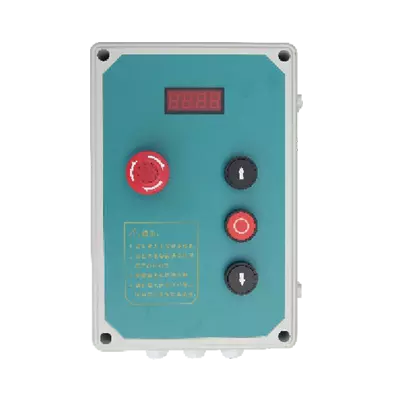

Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz

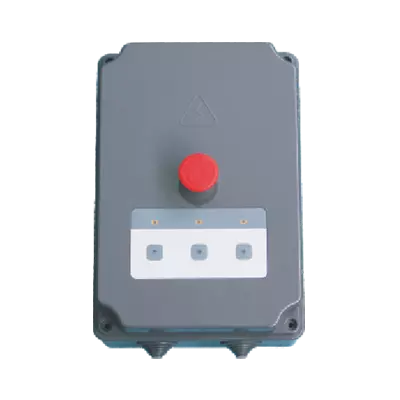

Power supply:AC380V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz

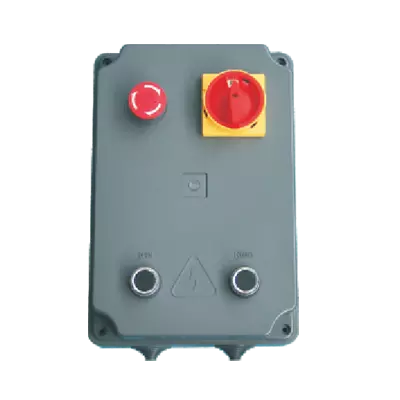

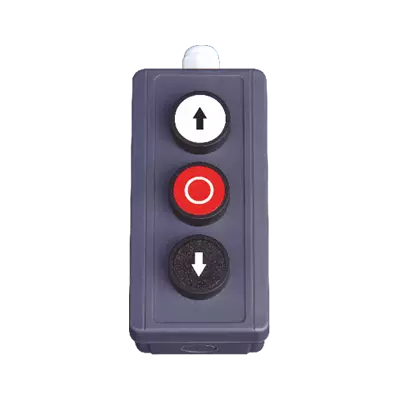

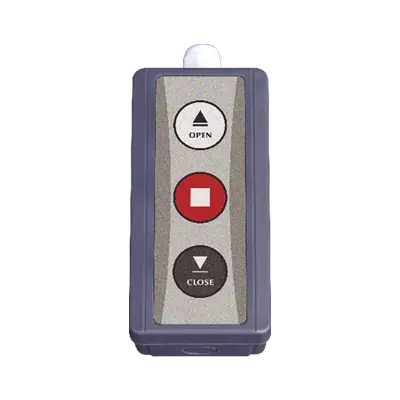

Voltage:5V---250V
Current:0---5A
Butoon:three
Size:131×68×51mm
Protection class:IP40
Environment temperature: -20℃~50℃
Voltage:5V---24V
Current:0---5A
Butoon:three
Size:131×68×51mm
Protection class:IP40
Environment temperature: -20℃~50℃
Number | Trouble | Possible cause | Troubles shooting |
1 | Motor can’t turn on | 1. No power supply 2. Fuse is broken 3. Capacity is broken down 4. Overload protect 5. Overheating protect 6. Micro switch is inoperative | 1. Check power supply 2. Change fuse 3. Change capacitor 4. Check if any barrier on the rack 5. Restart after 20 minutes 6. Pull the hand chain |
2 | Open( close) but can’t close ( open) | Whether L1\com\L2 wires are connected wrong | Connect correctly according to wiring diagram |
3 | Cannot limit position | Limit switch is damaged | Change the limit switch |
4 | Release device cannot work | 1. The gears are jammed 2. The spring in gear reducer is damaged | 1. Turn the gear double direction 2. Change a new spring |
5 | Push “open” but the door is down | Whether L1\L2 wires are connect wrong | Connect according to wiring diagram |
6 | Motor can turn but operator not work | 1.Spring in gear reducer 2. Whether gears are released | 1. Change or adjust stress of spring 2. Check the position of handle |

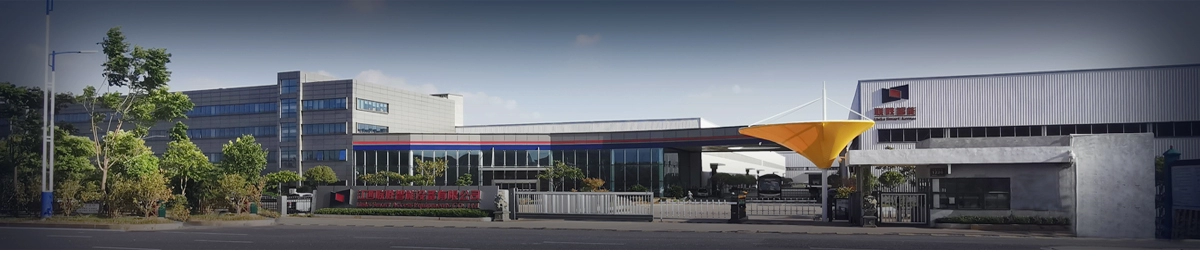

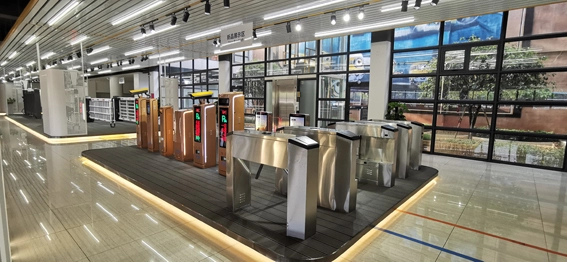

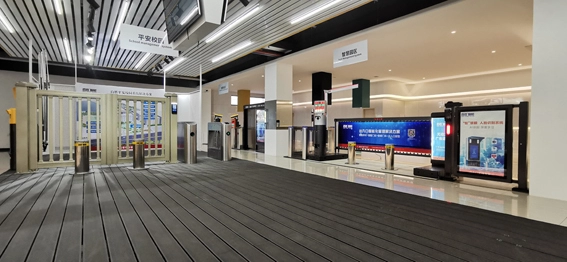

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
