Business Type: Manufacturer
Main Products:Thin blade slitter scorerNC Cutter off machineStacker machine Carton Printing Slotting Die-Cutting MachineIndustrial Packaging LineGluing MachinesStitching machineStrapping MachineSpare parts
ID:20111135494
Category: Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1.00 Piece(s)

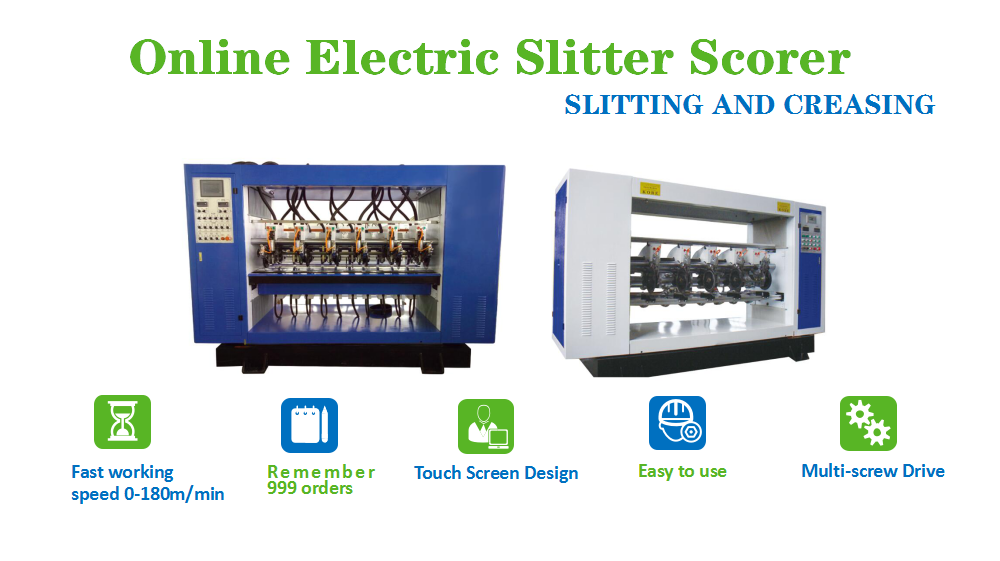

slitter scoreronline slitting creasingcarton cuttingblades and scorers
L/CT/T
1.The working distance between electric adjusting tool and pressing line, pneumatic lifting tool, pneumatic lifting line, automatic locking.
2.Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening.
3.Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
4.Motorized body left-right rectification 200mm.
5.Keep track of the speed of corrugated production line automatically.
Model | 1800 | 2200 | 2500 |
Efficient width | 1850mm | 2250mm | 2550mm |
Min. slitting width | 120mm | ||
Min. creasing width | 120mm | ||
Blade model | Φ260*158*1.3mm | ||
Creasing roller model | （up）φ162mm (down)φ162mm | ||
Correction range | ±100mm | ||
QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
Power | 8kw | 10kw | 11kw |
Depth of creasing | 0-12mm | ||
Design speed(m/min) | 120/150/180 m/min | ||
Types of scorer | Five-point press /three-point press/ convex-to-flat press/ multi-press | ||
Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .
Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to
Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Turkey,Spain and so on.
Wish we unite in a concerted effort for the beautiful future!
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in South of Dongguang county, Cangzhou city,Hebei province,China.Warmly welcome to visit our company.
2. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
