ZW32-12G Vaccuum circuit breaker

ID:20111135761

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 700.000 / Piece(s)

MOQ:500.00 Piece(s)

Product Keywords:

LOAD BREAK SWITCHVaccuum circuit breakerSF6 Load Break SwitchVacuum Load Break SwitchIndoor Vacuum Load BreakSF6 gas Switch

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney Gram

Product Category

Electrical & Power Energy > Electrical Switches & Supplies

Trademark

SASUN

Product Package

Paper Carton

Specification

45 X 46 X 28

Place of Origin

CHINA

Port

YIWU

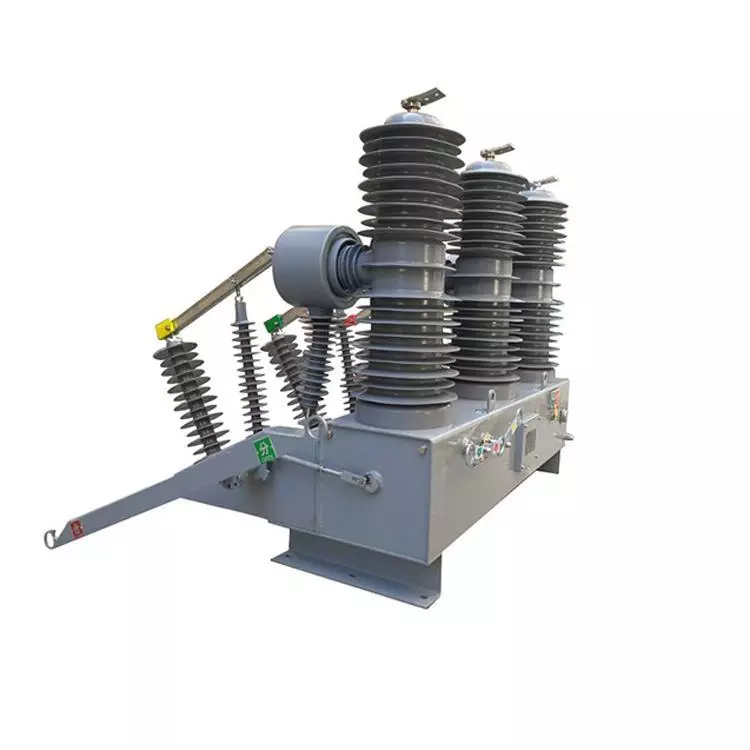

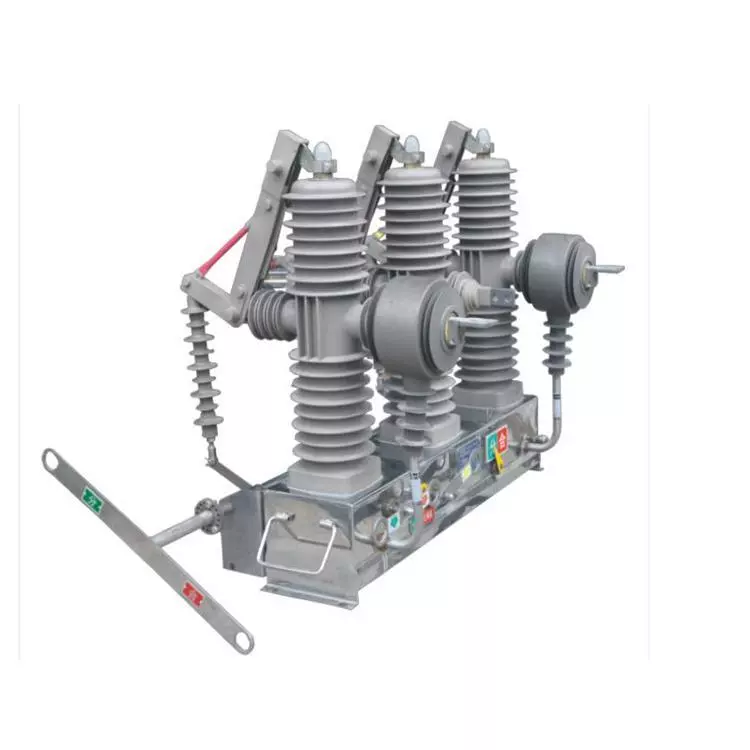

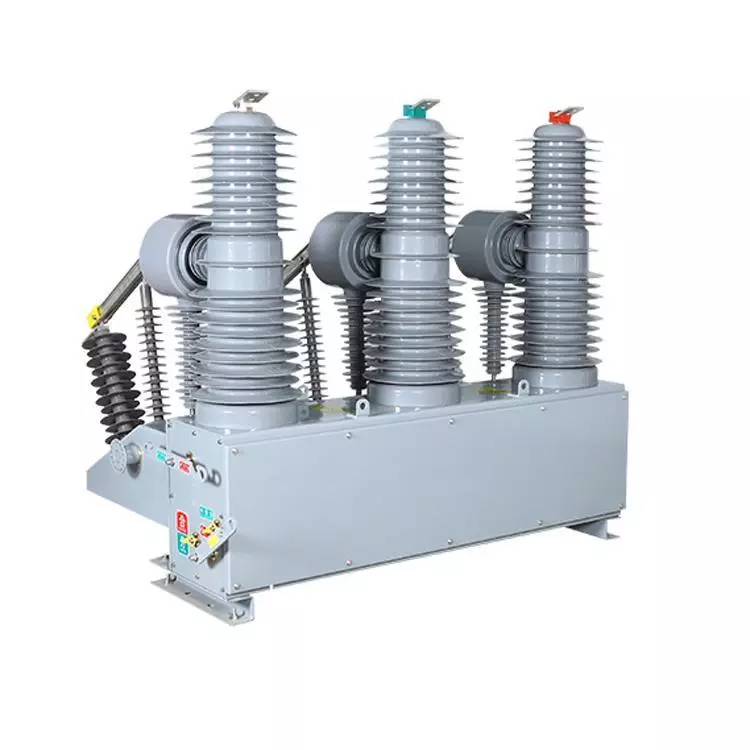

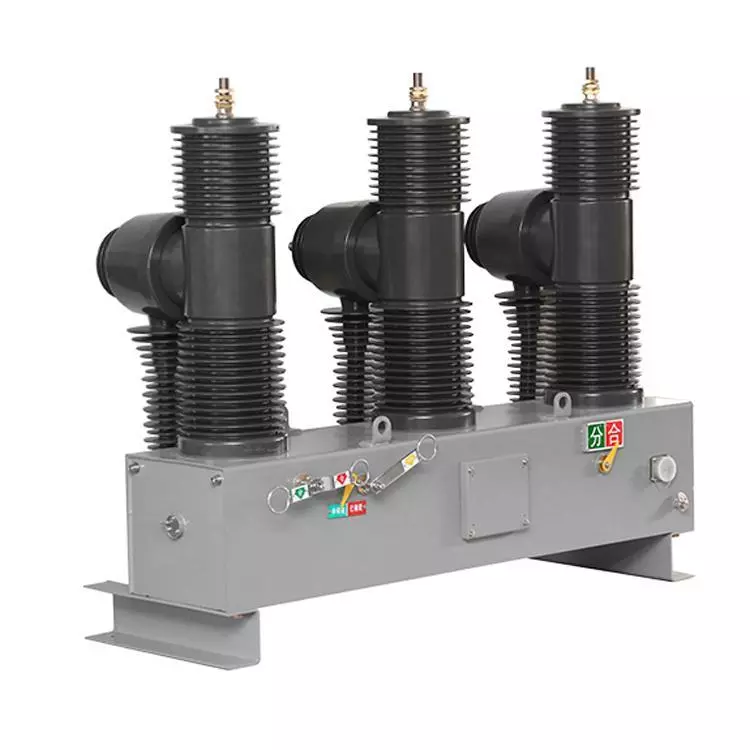

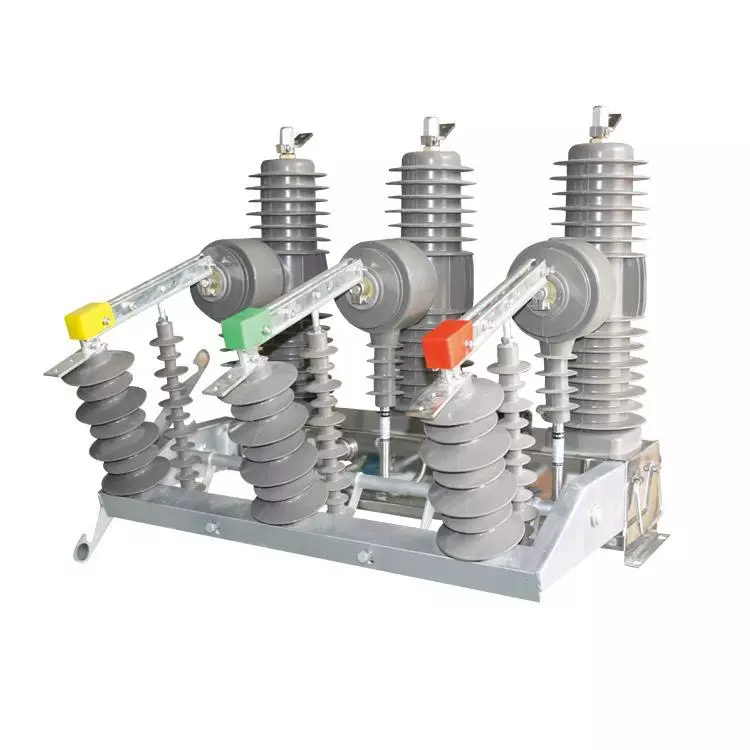

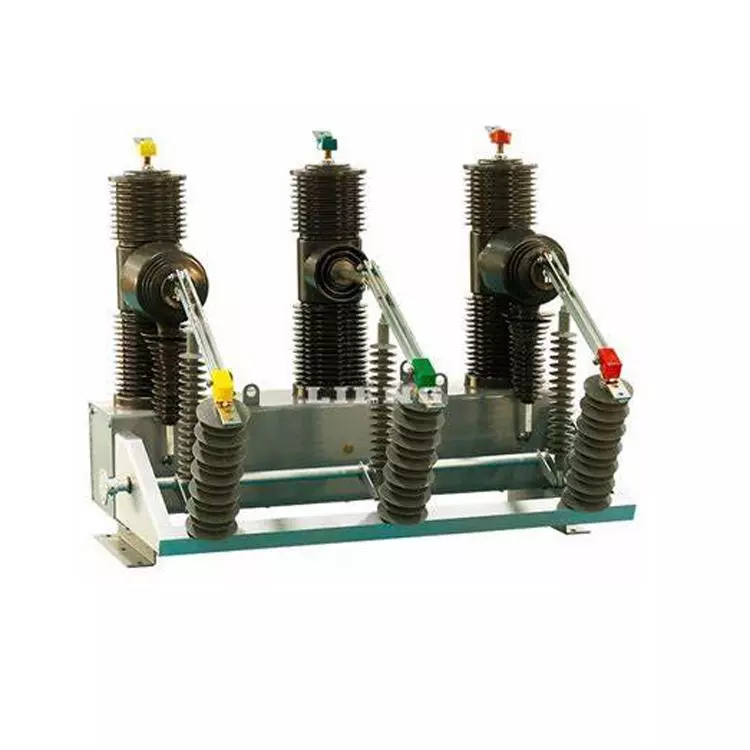

ZW32 outdoor vacuum circuit breaker is for the rated voltage 12KV / 24KV, three-phase AC 50HZ outdoor distribution equipment.
Mainly used for breaking and closing the load current, overload current and short circuit current in the power system. It apply
For substations and industrial mining enterprises in the power distribution system for protection and control purposes, and rural
power grid frequent operation places.
The circuit breaker with small size, light weight, anti-condensation, maintenance-free features, can adapt to harsh climatic
conditions and polluted environment.

Main technical parameters
No.	Items	Unit	Parameters
1	Rated voltage	kV	24
2	Rated current	A	630/1250
3	Rated frequency	Hz	50/60
4	Rated short circuit breaking current	kA	20
5	Rated short-circuit closing current (peak)	kA	50
6	Rated dynamic stability current (peak)	kA	50
7	4s Short-time withstand current	kA	20
8	Rated short circuit current switching times	Times	30
9	Mechanical life	Times	10000
10	1min Power-frequency withstand voltage （Pole-to-pole、pole-to- ground/Isolating fracture）	kV	65/79
11	Lightning impulse withstand voltage peak （Pole-to-pole、pole-to- ground/Isolating fracture）	kV	125/145
12	Weight	Kg	140
