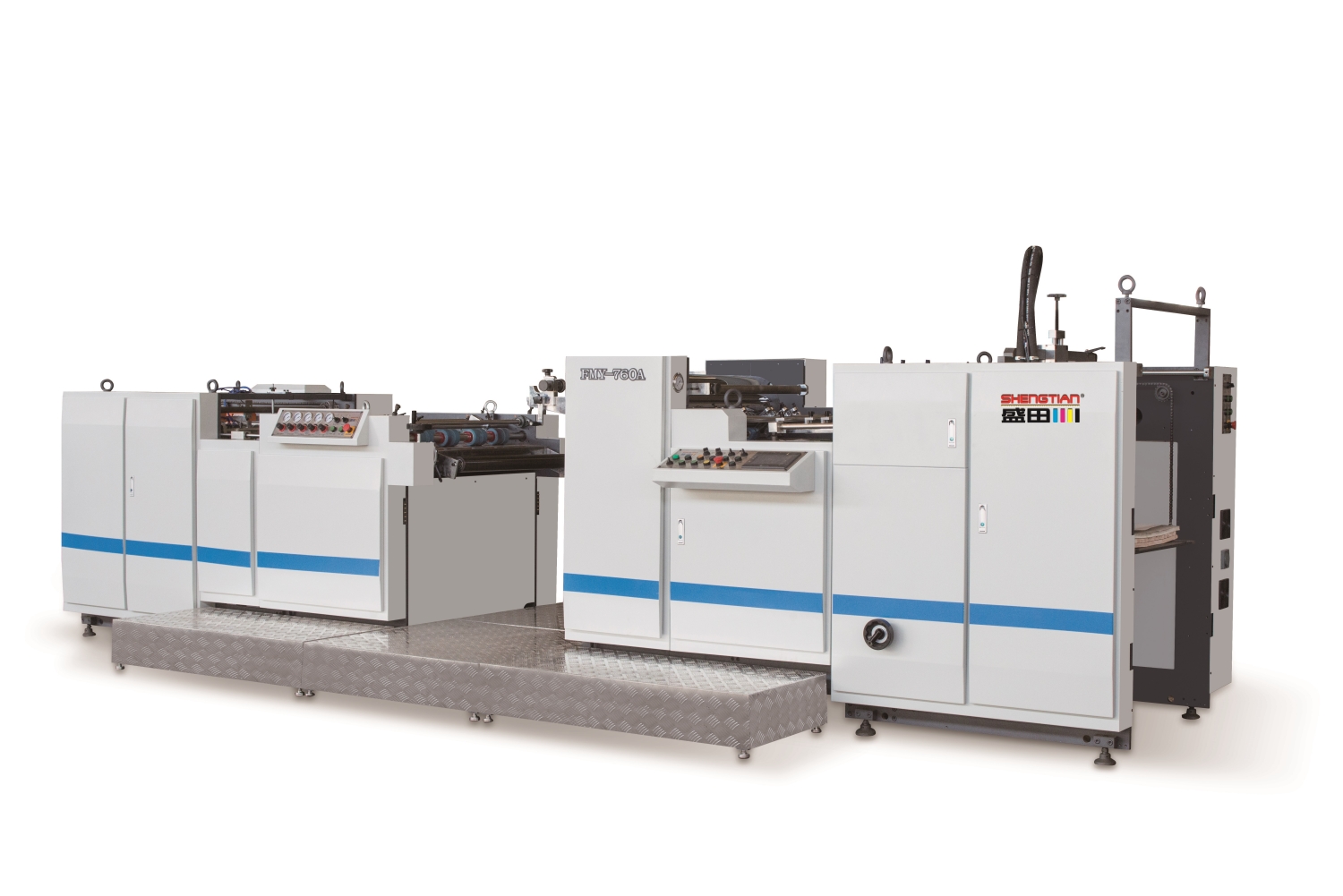

FMY Series
Automatic Thermal Film Laminator
Specifications:
| Model | FMY540E | FMY760E | FMY1100ES | FMY1100E |
| Max. Sheet Size | 540×760 | 760×760 | 1100×800 | 1100×960 |
| Min. Sheet Size | 300×250 | 300×250 | 300×300 | 300×250 |
| Max. Machine Speed | 60 | 109 | 109 | 109 |
| Sheet Weight | 128-450 | 128-450 | 128-450 | 128-450 |
| Installed Power | 21 | 38 | 38 | 38 |
| Power Consumption | 13 | 15 | 16 | 16 |
| Air Source Pressure | 0.6 | 0.6 | 0.6 | 0.6 |
| Overall Dimension | 4170×1520×1860 | 7220×2735×2100 | 7965×2130×2010 | 7920×2050×2010 |
| Total Weight | 3400 | 4100 | 5200 | 5000 |
Performances:
01. The machine adopts circling oil or (circling water) heating system. The high quality steel roller coordinated with precise processing techniques makes the roller fast in temperature rising and higher heat efficiency under high speed running, which also can make a fast melting of the pre-coated glue and ensure a firm and bright film to paper lamination as well as reach energy saving and high efficiency effect.
03. The rubber roller adopts high quality rubber with the feature of high temperature and wear resistance. The gas liquid pressurization system can provide automatic pressure supply, constant pressure keeping and pressure unloading according to the need of the machine, which can extend the life span of the rubber roller.
04. Automatic feeding system is equipped with a high-speed feeder for smooth paper feeding, the maximum speed can be more than 10000sheets/hour. High speed separator is equipped with paper curl elimination device to ensure the separation with no curling. It adopts special separation mode with fast speed, high sensitivity and good stability.
05. Auto-sheeting platform at delivery part can rise up and down automatically with sheet counting function.
06. The machine adopts whole wall structure processed by CNC lathe. All the rollers are balance tested. All above these together with the tight assembling technique, high quality materials can make the machine run stable and durable at high speed.
07. All the electric parts are all well-known brands in domestic and abroad with high reliability and trouble free. Practice and precise servo motor and its system plus side-lay puller and touch screen makes the adjustment and operation easy with good precision (±2 mm).

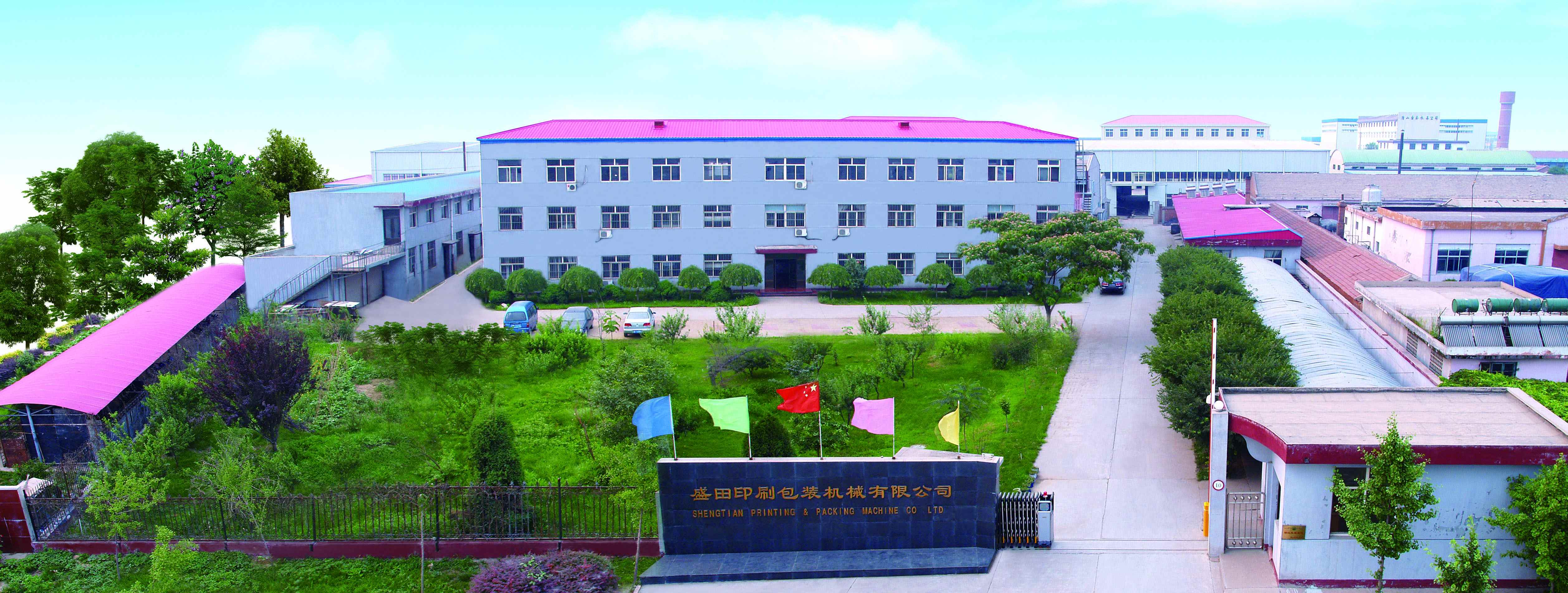

Company Introduction:
Yutian Shengtian Printing and Packing Machinery Co., Ltd. was founded in 1996, which is a colligated enterprise including design, manufacture and sales. It is a technological enterprise, and professionally produces flute laminator, film laminator and die-cutter of three series more than 20 types.
The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians. The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system. It passed ISO9001:2015 International Quality Management System Certification in January, 2012 and CE in 2006.
Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, multi-types and good service. The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc.
While holding shengtian's hand, we are friends forever.
