SGF Series

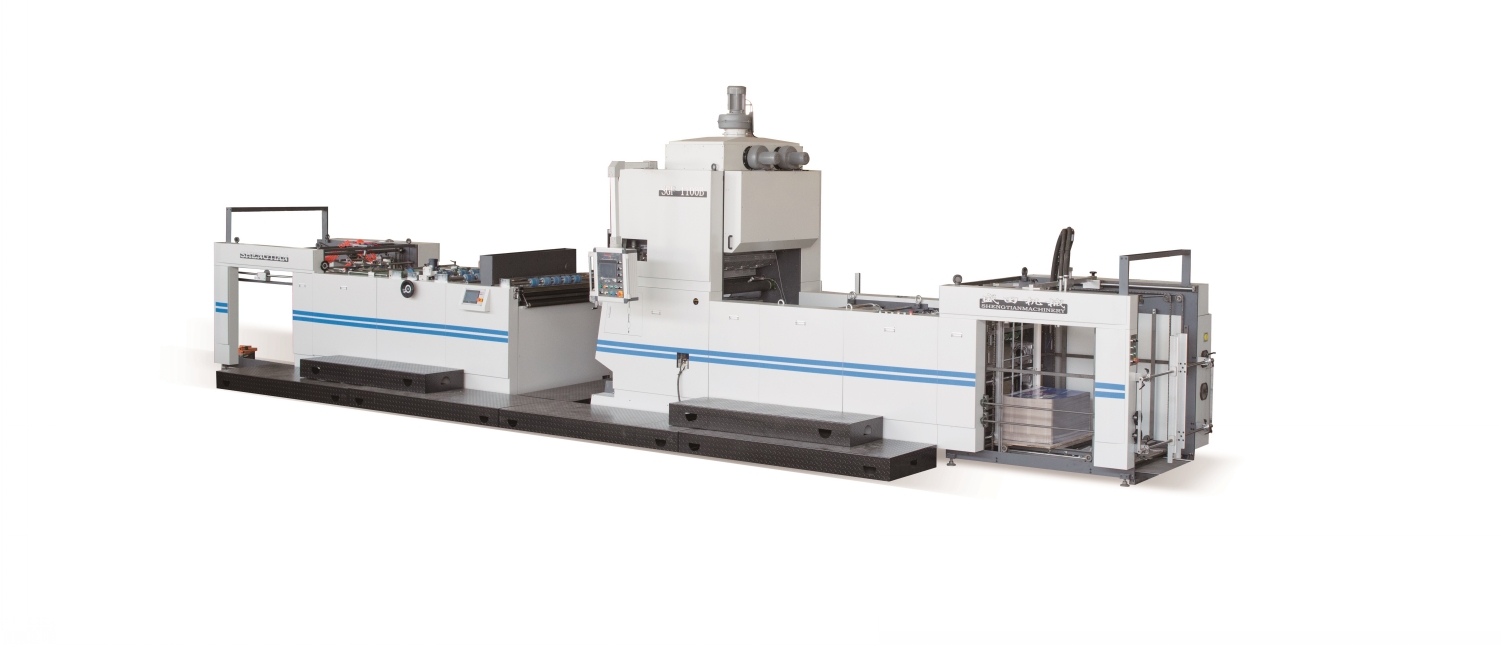

Drying Type Water Based and Thermal Film Laminator
Specifications:
| Model | SGF110CS | SGF1100CL | SGF1300C |
| Max. Sheet Size | 1100×960 | 1100×1450 | 1300×1650 |
| Min. Sheet Size | 350×350 | 350×350 | 350×350 |
| Max. Machine Speed | 89.5 | 89.5 | 86 |
Lamination Speed for Water-based Glue | 9-70 | 9-70 | 9-70 |
Lamination Speed for Thermal Film | 9-89 | 9-89 | 9-89 |
| Sheet Weight | 128-450 | 128-450 | 128-450 |
| Installed Power | 98 | 100.5 | 104.5 |
| Power Consumption | 40 | 42 | 42 |
| Overall Dimension | 10500×2300×2800 | 15000×2300×2800 | 16700×2570×2800 |
| Total Weight | 7800 | 9000 | 12000 |
Performances:
01. High quality steel roller with specially designed inner part for water heating and circulation together with heating recycling system and precise processing techniques can make the roller fast in temperature rising and higher heat efficiency under high speed running.
02. The rubber roller adopts high quality rubber with the feature of good elasticity, high temperature and wear resistance. The gas liquid pressurization system can provide automatic pressure supply, pressure keeping and pressure unloading according to the need of the machine. When there is a power break down, the rubber roller can automatically separate with the thermal roller to protect it and extend the life span of the rubber roller as well as ensuring a firm and bright film to paper lamination.
03. In gluing part, it adopts ceramic anilox roller and doctor blade mode. The doctor blade is specially designed and made, which can make the glue coat less and even to save glue consumption. Coordinated with the pneumatic auto glue system, the gluing part can ensure a continuous production.
04. High speed feeder with subpiling or prepiling system makes the machine change the paper pile without stopping the machine, which can greatly enhance the production efficiency.
05. Practice and precise servo motor coordinated with side-lay puller and touch screen, which can make the adjustment and operation easy with good precision (±2mm).
06. The separation part adopts special mode and equipped with paper curl elimination device to ensure a good separation -no double sheet and no curling.
07. Auto-sheeting platform at delivery part can rise up and down automatically with sheet counting function.
08. This machine can also be used for precoated film with fast lamination speed and good quality of lamination.

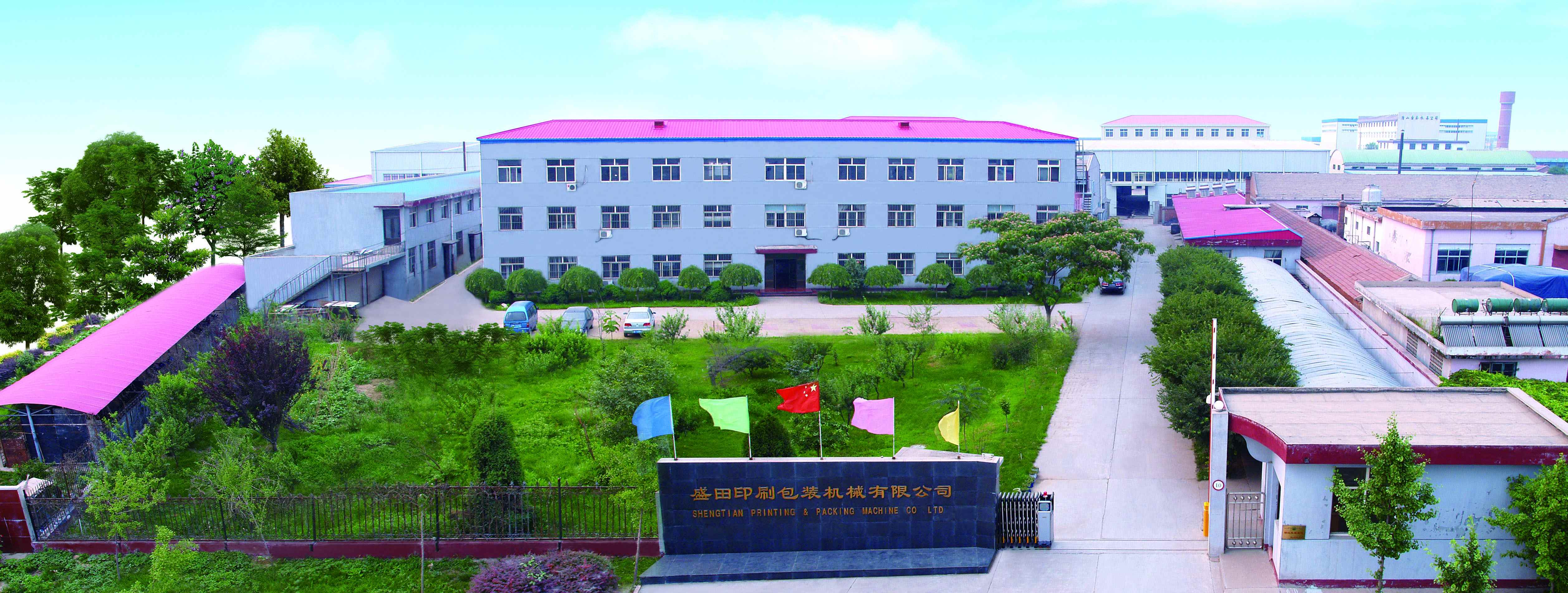

Company Introduction:
Yutian Shengtian Printing and Packing Machinery Co., Ltd. was founded in 1996, which is a colligated enterprise including design, manufacture and sales. It is a technological enterprise, and professionally produces flute laminator, film laminator and die-cutter of three series more than 20 types.
The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians. The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system. It passed ISO9001:2015 International Quality Management System Certification in January, 2012 and CE in 2006.
Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, multi-types and good service. The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc.
While holding shengtian's hand, we are friends forever.
Contact with Us:
Add: Changsheng Street,the Development Zone, Yutian County, Hebei Province, China
Fax: 0315-5059168/5059166
International Business:+86 18830582799/15230913283
Website: http://yw.tsshengtian.com/
