Business Type: Manufacturer
Main Products:Traffic BarrierAutomatic Door Operators
ID:20111136157
Category: Security, Fire & Safety security system
MOQ:1.00 Set(s)
Industrial door openerGate Operators
L/CT/T
Model | BS-KGT7a.100S-ZM |
Power supply | 380V |
Motor power | 750W |
Thermal protection | -20℃~+50℃ |
Max output torque | 100N·m |
Max lift height | 7M |
Output aperture | 22r/min |
Max square metre | <28m2 |

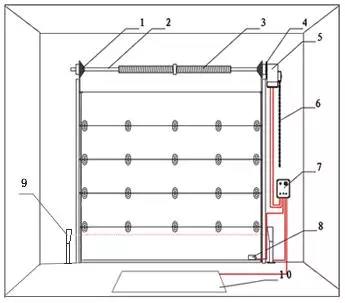

1.Steel wire tray
2.Spring axostyle
3. Spring
4. Mounting plate
5. Motor
6. Chain
7. Control box
8. Air Wave Switch(Optional)
9. Photocell(Optional)
10. loop Detector(Op

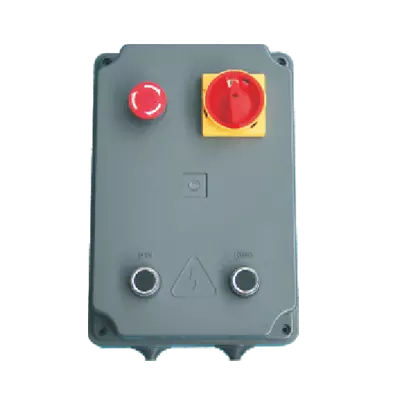

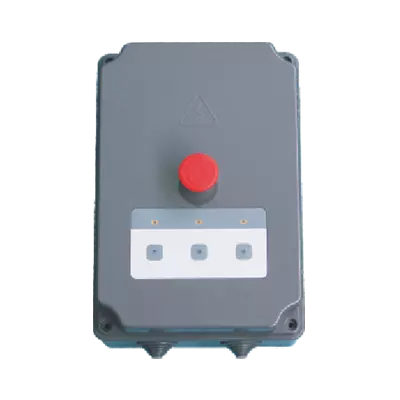

Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz

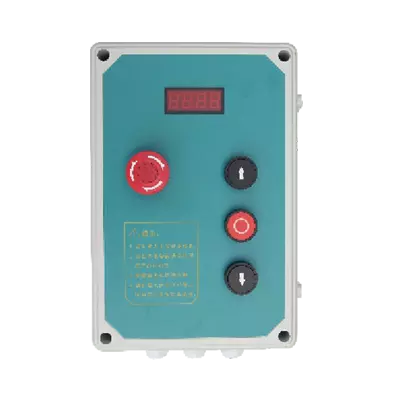

Power supply:AC380V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz

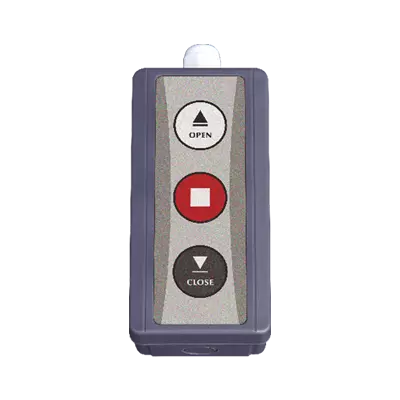

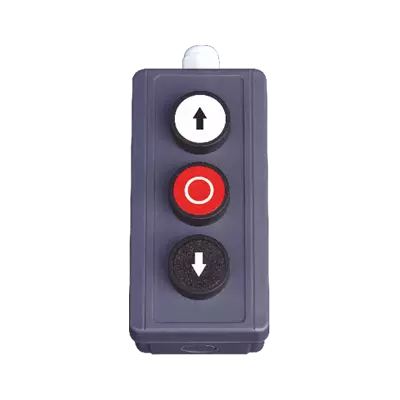

Voltage:5V---250V
Current:0---5A
Butoon:three
Size:131×68×51mm
Protection class:IP40
Environment temperature: -20℃~50℃
Voltage:5V---24V
Current:0---5A
Butoon:three
Size:131×68×51mm
Protection class:IP40
Environment temperature: -20℃~50℃
Number | Trouble | Possible cause | Troubles shooting |
1 | Motor can’t turn on | 1. No power supply 2. Fuse is broken 3. Capacity is broken down 4. Overload protect 5. Overheating protect 6. Micro switch is inoperative | 1. Check power supply 2. Change fuse 3. Change capacitor 4. Check if any barrier on the rack 5. Restart after 20 minutes 6. Pull the hand chain |
2 | Open( close) but can’t close ( open) | Whether L1\com\L2 wires are connected wrong | Connect correctly according to wiring diagram |
3 | Cannot limit position | Limit switch is damaged | Change the limit switch |
4 | Release device cannot work | 1. The gears are jammed 2. The spring in gear reducer is damaged | 1. Turn the gear double direction 2. Change a new spring |
5 | Push “open” but the door is down | Whether L1\L2 wires are connect wrong | Connect according to wiring diagram |
6 | Motor can turn but operator not work | 1.Spring in gear reducer 2. Whether gears are released | 1. Change or adjust stress of spring 2. Check the position of handle |

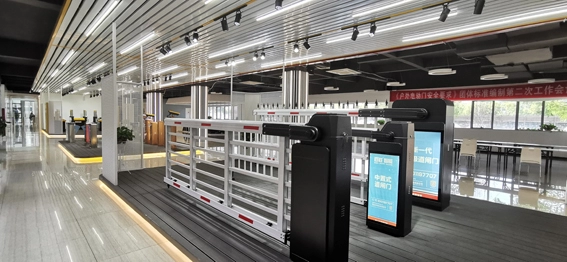

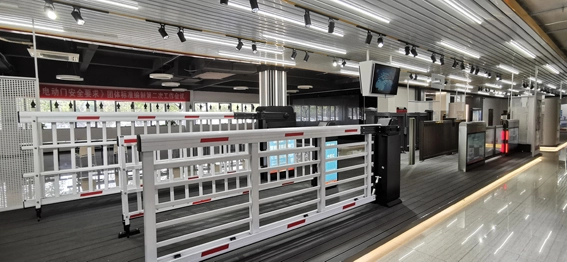

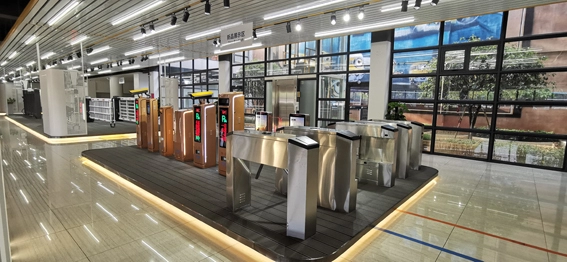

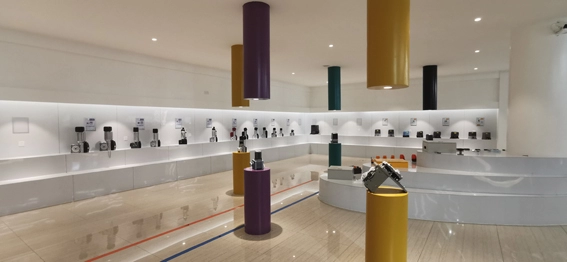

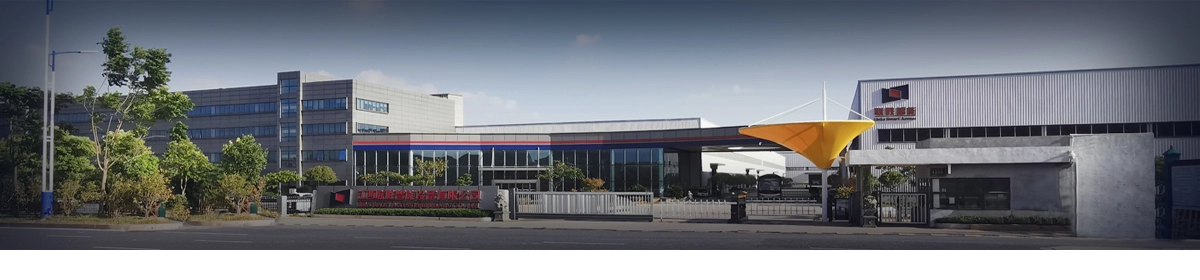

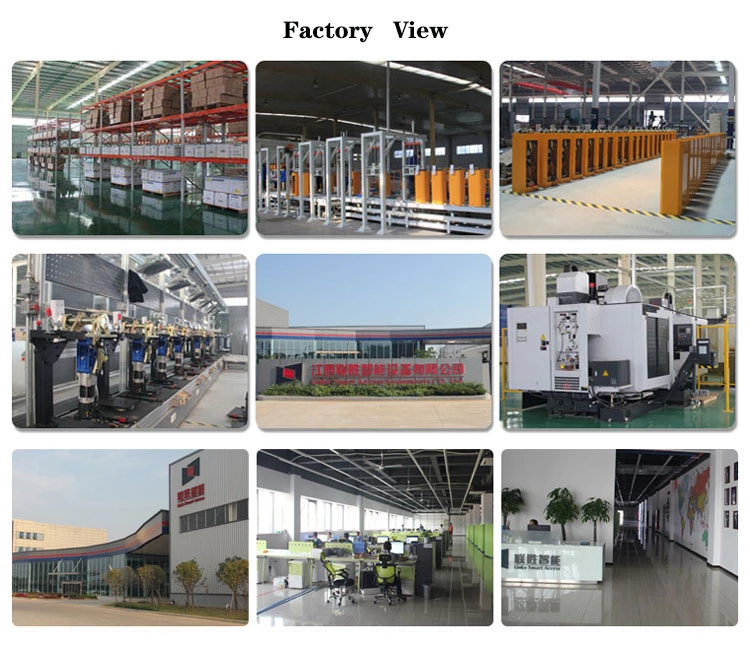

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
