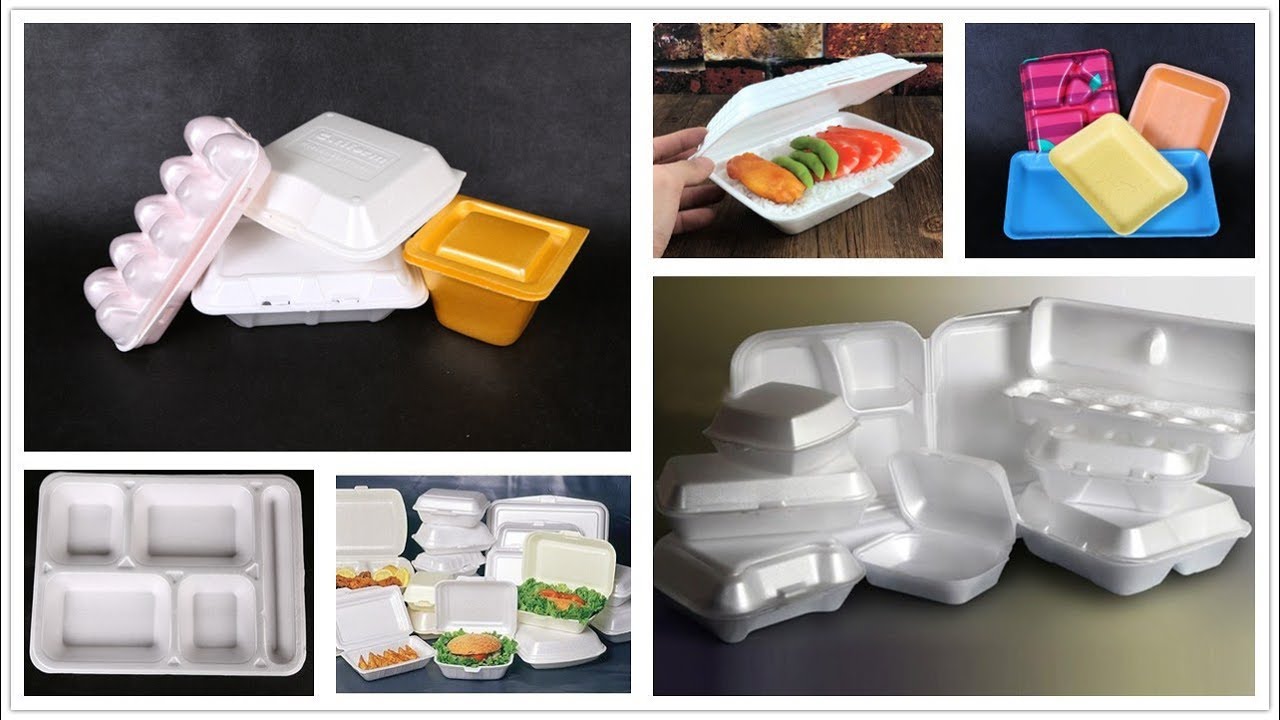

Fully Automatic PS Foam Box /   Tray Production Line

PS Foam Sheet Extrusion Line

This   machine uses ps granules to make ps foam sheet roll

Machine   working video share link:

https://drive.google.com/file/d/1ESaGTAbFPiv0gfwibl_5pidqM7MqUBMy/view?usp=sharing

Technics flow

1.material mixing

2.material go into extruder   1 (foam agent)

3.net exchanger   (filtering)

4.material go into   extruder 2

5.sheet extruded from   mold head

6.cooling and shaping

7.hauling off

8.winding

9. finished products

10. packing

parameter of the   machine

Item

Unit

ESHY-105/120

capacity

Kg/h

200-240

thickness

mm

1-4

width

mm

640-1080

foaming   rate

        10-22

cooling   method

        Wind &water cooling

cutting   method

        Single

weight

        9T

Butagas   pressure

Mpa

0.9-1.2

installation   power

kw

200

Installation   size

m

30x6x3

PS Fully-auto Vacuum Forming Machine（double robot arms）

Forming   ,cutting ,stacking the same time,finished products come out automatically and   packed by manual. This machine could replace vacuum forming machine and   cutting machine and more automatically.

Machine   working video share link:

https://drive.google.com/file/d/1JV9rcyZYfC831tM8gtT_ddh8rS11WZFF/view?usp=sharing

Technics flow

1. unwinding ps foam sheet

2. machine preheating

3. sheet into the vacuum   forming machine

4. heating

5. forming

6. cutting

7. Stacking(robot arms)

8. scrap crushing

9. finished products

10.packing

Type:

ESHY-1100/1250

Item

unit

ESHY-1100/1250

forming area

mm

1100x1250

cutting height

mm

160

production efficiency

s/Die

3-4

Installation size

m

21x6x3

Installation power

Kw

160
