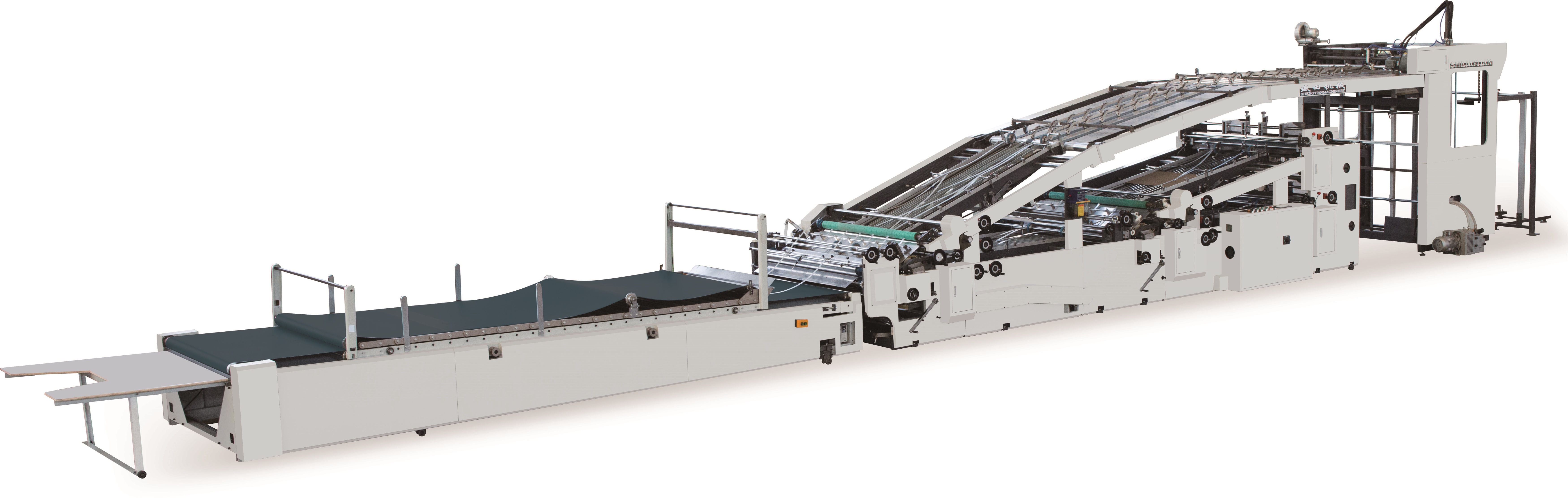

STMT-W Series
Automatic Multi-ply Flute Laminator
Specifications:
| Model | STMT1450W | STMT1450WL |
| Max. Sheet Size | 1450×1100 | 1450×1400 |
| Min. Sheet Size | 450×450 | 450×450 |
| Sheet Weight | 180-800 | 180-800 |
| Min Weight for Top Paper | ≤ 8 | ≤ 8 |
| Max Weight for Bottom Paper | ≤ 10 | ≤ 10 |
| Min Weight for Bottom Paper | ≥ 250 | ≥ 250 |
| Max. Machine Speed | 6000 | 6000 |
| Lamination Precision | ±1.5 | ±1.5 |
| Total Power | 19.7 | 21.2 |
| Overall Dimension | 18560×2500×2600 | 19970×2500×2600 |
| Total Weight | 12100 | 12800 |
Performances:
01. The feeding unit enables top paper move into delivery roller smoothly. The movement of top paper mainly depends on the belt with the top pressure wheels to ensure paper feeding successfully.
02. The side lay positioning system for top paper ensures the transfer accuracy before lamination.
03. The bottom paper feeding unit mainly depends on suction belt to make the corrugated paper go into bottom paper positioning unit smoothly.
04. In bottom paper positioning unit, when the pusher push paper ahead, it also assures the bottom paper feeding accuracy.
05. The gluing system supplies glue on the bottom paper to ensure the lamination of top paper and bottom paper.
06. The conveyor unit presses the top paper and bottom paper after gluing to get a good lamination.
Company Introduction:

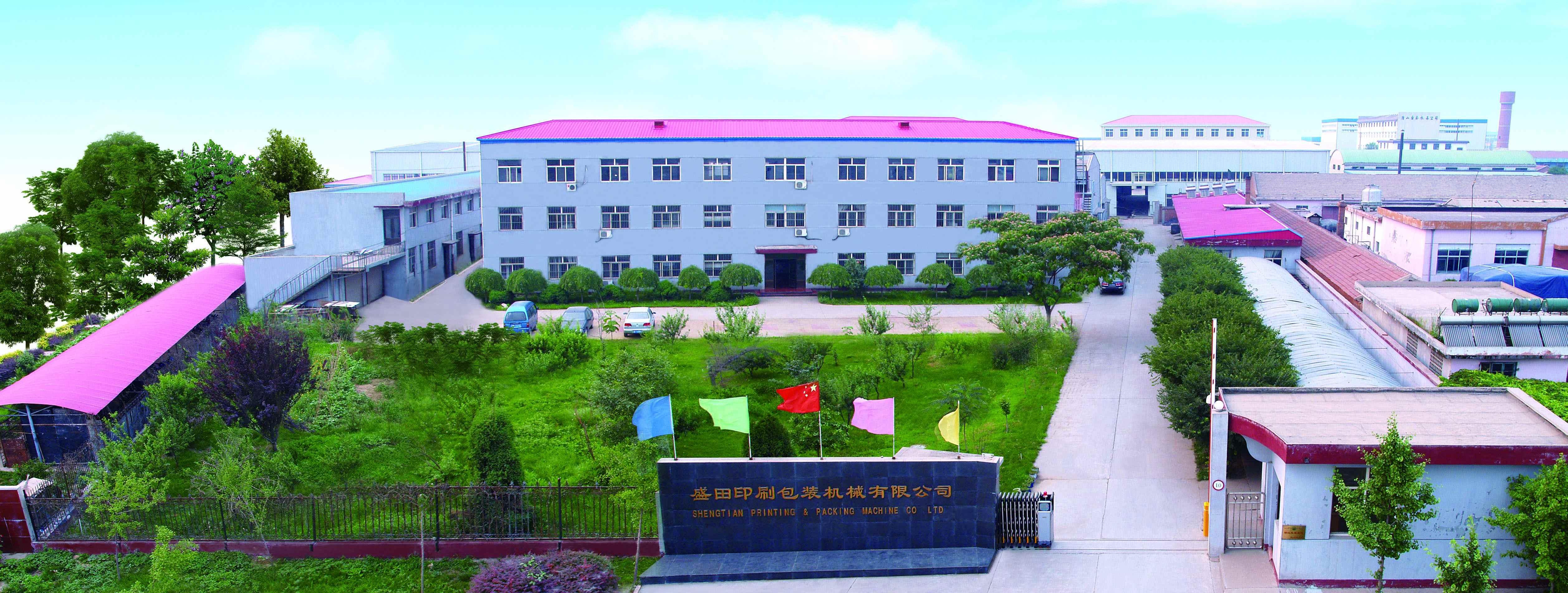

Yutian Shengtian Printing and Packing Machinery Co., Ltd. was founded in 1996, which is a colligated enterprise including design, manufacture and sales. It is a technological enterprise, and professionally produces flute laminator, film laminator and die-cutter of three series more than 20 types.
The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians. The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system. It passed ISO9001:2015 International Quality Management System Certification in January, 2012 and CE in 2006.
Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, multi-types and good service. The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc.
While holding shengtian's hand, we are friends forever.
