PARAMETERS OF THE SYSTEM:

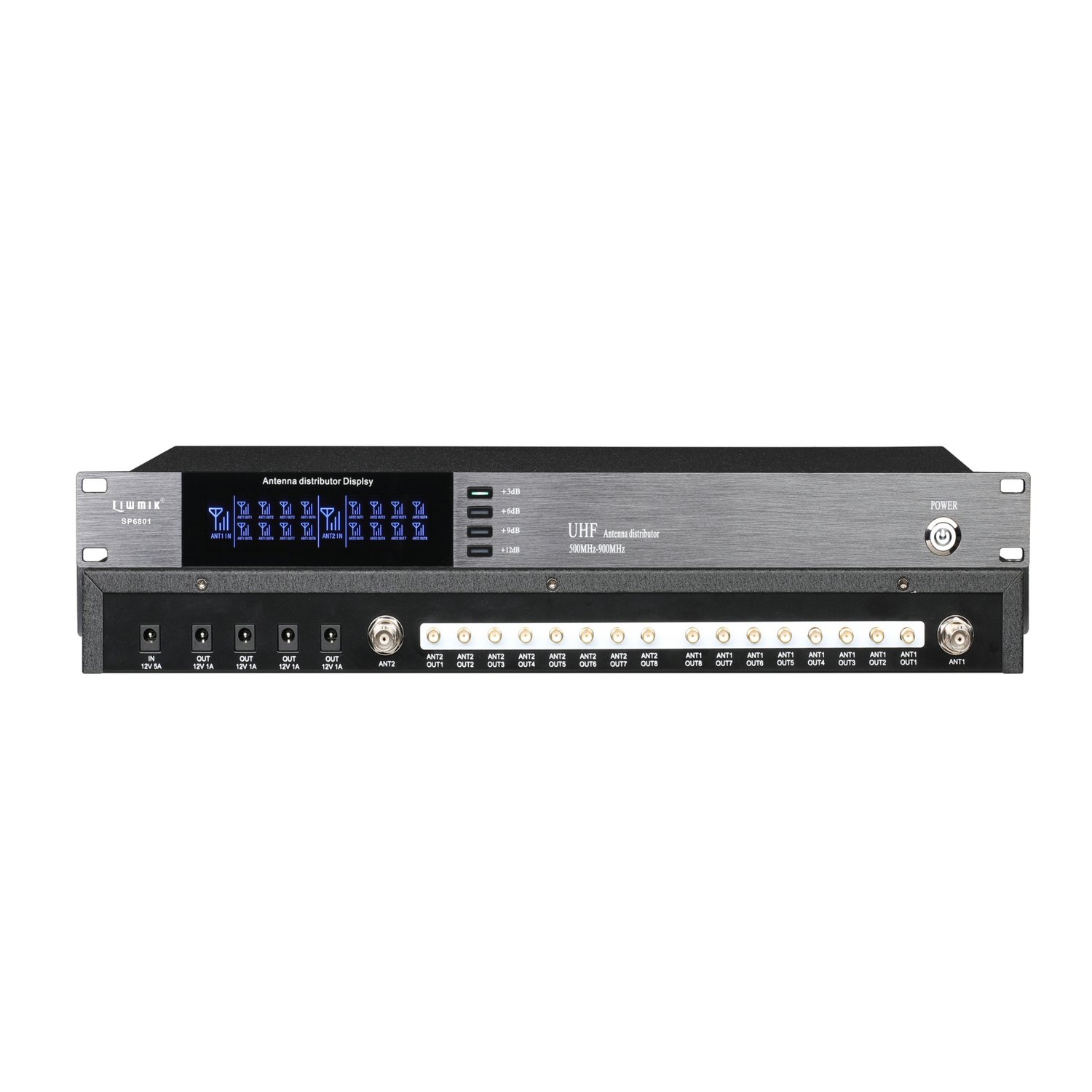

Product Description: 16 Channels Antenna Distributor for wireless microphone systems,

the MOST Channels available in the industry.

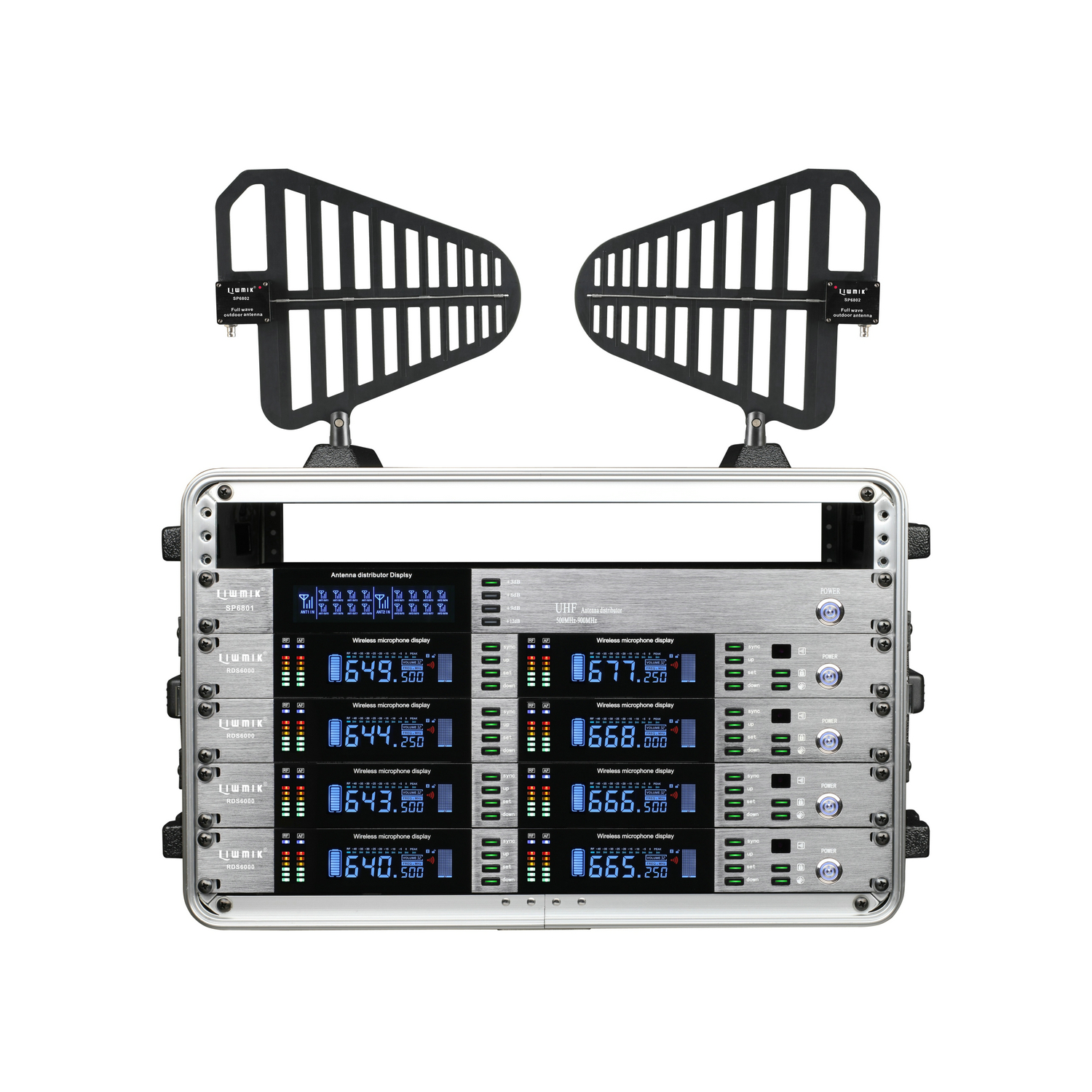

(Each set of the completed packed product to be delivered includes:

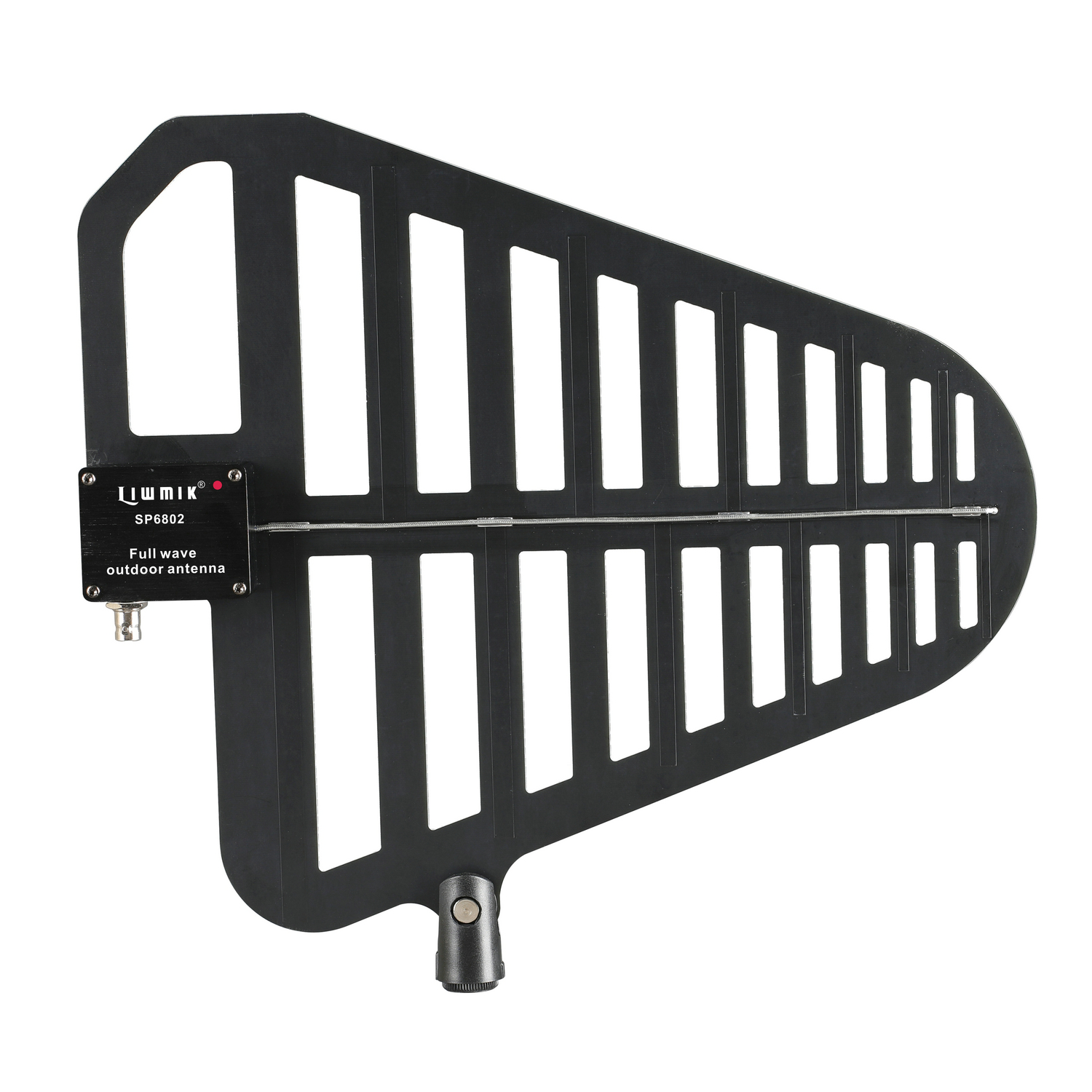

1 antenna distributor+2 all-wave antennas+2 antenna extension cables

+16 dividing cables+1 A/C adapter+Package case made of Aluminum)

Input Antennas: 2;

Output Channels: 16 (8 output channels for each input antenna);

Power supply: AC100-240V,50/60Hz , AC/DC Adapter in line with international standards:

(Input:AC100-240V,50/60Hz

Output:safety voltage DC12V, 5000mA.

Safety certificates such as CE, UL, etc. & plugs suitable to different nations are available)

Input power：12V/5A

Output power supply：12V/1A

Display：VA  LCD

Receivable Frequency Range：500 -1000 MHz

In-band ripple：±3dB

Amplification gain：amplification adjustable by steps 3dB,6dB,9dB,12dB

Working temperature：-10°C -- +40°

Signals input jacks：BNC/50Ω×2

Signals output jacks：SMA/50Ω×16

Power input jacks：DC005×1

Power-supply-output jacks：DC005×4

Power-supply-output control: single chip relay control

FEATURES OF THE PRODUCTS

1. Liwmik Total 16 Output Channels Antenna Distributor, the MOST Channels available in the industry.

2. Wide-frequency FEAs (Field Effect Amplifiers) are adopted, whose in-band ripple is much

3.The relay controlling the output power can easily cut off power supply of all receivers at one time if necessary.

4.Adjustable step-by-step amplification allows the amplification gain being selected according to the length of the RF extension, so that the amplification gain is not too large to cause the receiver’s frequencies-channeling and interference.

5.Automatically detect open and short circuit of the input and output RF cables, thus avoid effectively the receiver’s signal to be unstable caused by the cut-off connection cables.

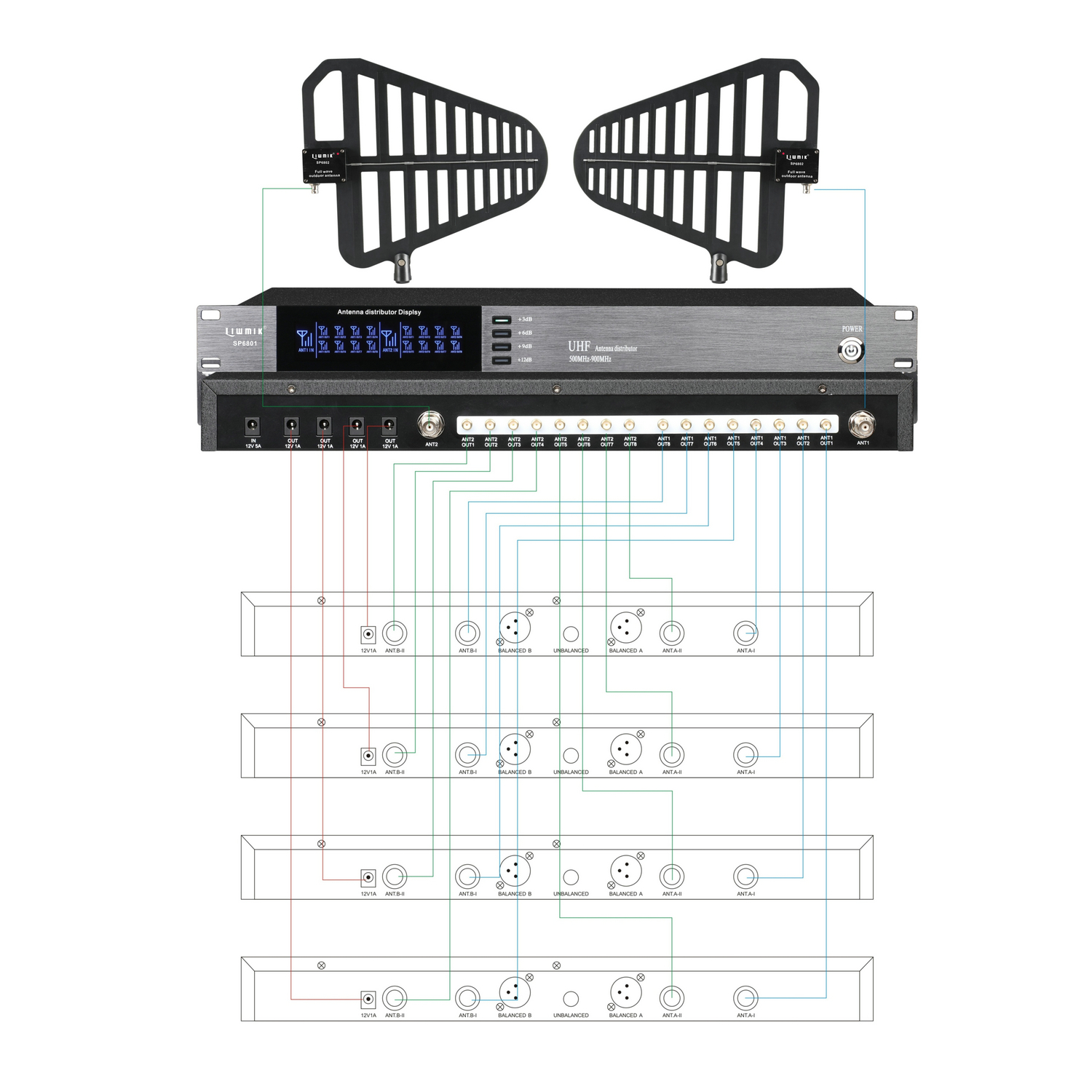

6.Two RF signal input jacks output respectively the signals to two groups of 8-way signal output jacks, totally 16 ways.

7. Advanced CPU and exclusive designed software are used to make the whole system run accurately, efficiently and professionally.
8. The panel is carefully designed and reasonably arranged, easy to setup and operate.

9. Years of experience, professional design, quality materials and components, plus meticulous manufacturing process, create together the excellent product w/ high quality, outstanding performance and pretty appearance.
