Battery Front Terminal AGM GEL VRLA Battery 12V 55AH 100AH 150AH 200AH
Specification
| NORMINAL VOLTAGE :12V |
| NORMINAL CAPACITY(10hr) :55Ah |
| DIMENSIONS TOTAL HEIGHT :222mm(8.74inches) CONTAINER HEIGHT :222mm(8.74inches) LENGTH :277mm(10.9inches) WIDTH :106mm(4.17inches) |
| WEIGHT :APPRO×17.6Kg(38.8lbs) |
| CONTAINER MATERIAL :UL94HB ABS :UL94V-0ABS |
| INTERNAL RESISTANCE(25°C, 77°F):-9m |
| DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES 40°C :-102% 25°C :-100% 0°C :-85% |
Characteristics
| CAPACITY 25°C/77°F 20hr at 28.6A :57.2Ah 10hr at5.5A :55Ah 3hr at 14.8A :44.4Ah 1hr at 36A :36Ah |
| CHARGING VOLTAGE(25°C, 77°F) STANDBY USE :13.65V±0.15V CYCLE USE :14.7V±0.3V |
| MAX DISCHARGE CURRENT :500A(5 sec) |
| MAX CHARGING CURRENT :20A SELF-DISCHARGE RESIDUAL CAPACITY(25°C, 77°F) AFTER 3 MONTHS :-90% AFTER 6 MONTHS :-82% AFTER 12MONTHS :-70% |
| Cycle Life (25°C, 77°F) 30%DOD :>1800TIMES 50%DOD :>800TIMES 100%DOD :>350TIMES |
Odering Guide
| Series | Capacity | Opinions | Terminal Type |
| 12FT | 55AH | FR(Flame Retardant) | RT-02 |
| ~(Non Flame Retardant) |
Features and Benefits:
10 Year Design Life
*Flame Retardant Poly Propylene Case and Cover
Impact resistance, self-extinguishing material with standard Underwriters Laboratories(UL) 94V rating
*Tank Formed Plate Construction
100% capacity on shipment
Plate consistency and matching dependable performance
* Copper Threaded Insert Post
High conductivity
Retains required torque values and allows for easy installation
*Epoxy Post Seal
Elimination of acid egress for trouble-free service life
* Ceramic Disc Flame Arrestor
Prevent any errant spark or flames from entering the battery
*Transportation
Non-hazardous for air/sea/rail/road transportation
*Applicable Standards
UL Recognized
UL 1778 4th edition -UPS equipment certification
IEC 60896 Part 21-VRLA methods of testing
IEC 60896 Part 22-VRLA requirements
BS 6290 Part 4-Specifications for VRLA classification
*VCELL Manufacturing
ISO 9001 Quality Management System
ISO 14001Environmental Management System
OHSAS 18001 Workplace Safety & Health
| Constant Power Discharge Rating - Watts per Cell @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell | 1.0 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 180.0 | 300.0 | 600.0 | 1200.0 |
| 1.60 | 475.0 | 350.0 | 285.0 | 231.0 | 170.0 | 108.0 | 64.3 | 27.1 | 18.1 | 10.5 | 5.8 |
| 1.65 | 445.0 | 330.0 | 270.0 | 220.0 | 169.0 | 107.0 | 64.3 | 27.0 | 18.0 | 10.4 | 5.7 |
| 1.70 | 425.0 | 315.0 | 258.0 | 207.0 | 168.0 | 106.0 | 64.2 | 26.9 | 17.9 | 10.3 | 5.7 |
| 1.75 | 400.0 | 300.0 | 248.0 | 198.0 | 164.0 | 104.0 | 64.2 | 26.8 | 17.8 | 10.2 | 5.6 |
| 1.80 | 385.0 | 290.0 | 240.0 | 192.0 | 165.0 | 102.0 | 64.2 | 26.6 | 17.6 | 10.1 | 5.6 |
| Constant Current Discharge Rating - Amperes @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell | 1.0 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 180.0 | 300.0 | 600.0 | 1200.0 |
| 1.60 | 275.0 | 198.0 | 158.0 | 125.0 | 91.0 | 58.1 | 34.0 | 13.9 | 9.2 | 5.2 | 2.8 |
| 1.65 | 253.0 | 184.0 | 148.0 | 118.0 | 88.6 | 57.5 | 33.5 | 13.8 | 9.1 | 5.1 | 2.7 |
| 1.70 | 235.0 | 173.0 | 140.0 | 111.0 | 86.0 | 56.9 | 33.5 | 13.7 | 9.0 | 5.1 | 2.7 |
| 1.75 | 221.0 | 164.0 | 133.0 | 106.0 | 83.5 | 56.3 | 33.0 | 13.6 | 9.0 | 5.1 | 2.7 |
| 1.80 | 209.0 | 156.0 | 128.0 | 101.0 | 81.0 | 55.7 | 33.0 | 13.5 | 8.9 | 5.1 | 2.7 |

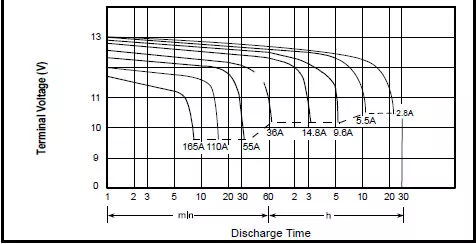

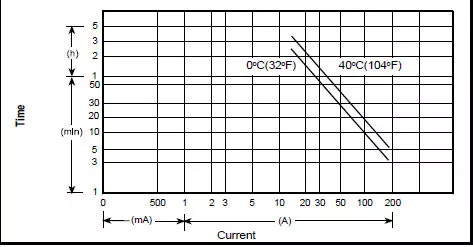

Charge Characteristics&Discharge Characterics
Packing Details:1pc/ carton box packing, can pack on client's demand
Delivert Details: 30~45days upon receipt of the offical order.
Minimum Order Quantity : 200Piece/Pieces for Flame Retartant. If for normal case, there's no minimum order quantity.
Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, Car batteries, Primary lithium batteries and Lithium-ion batteries, which are widely used in telecom, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
