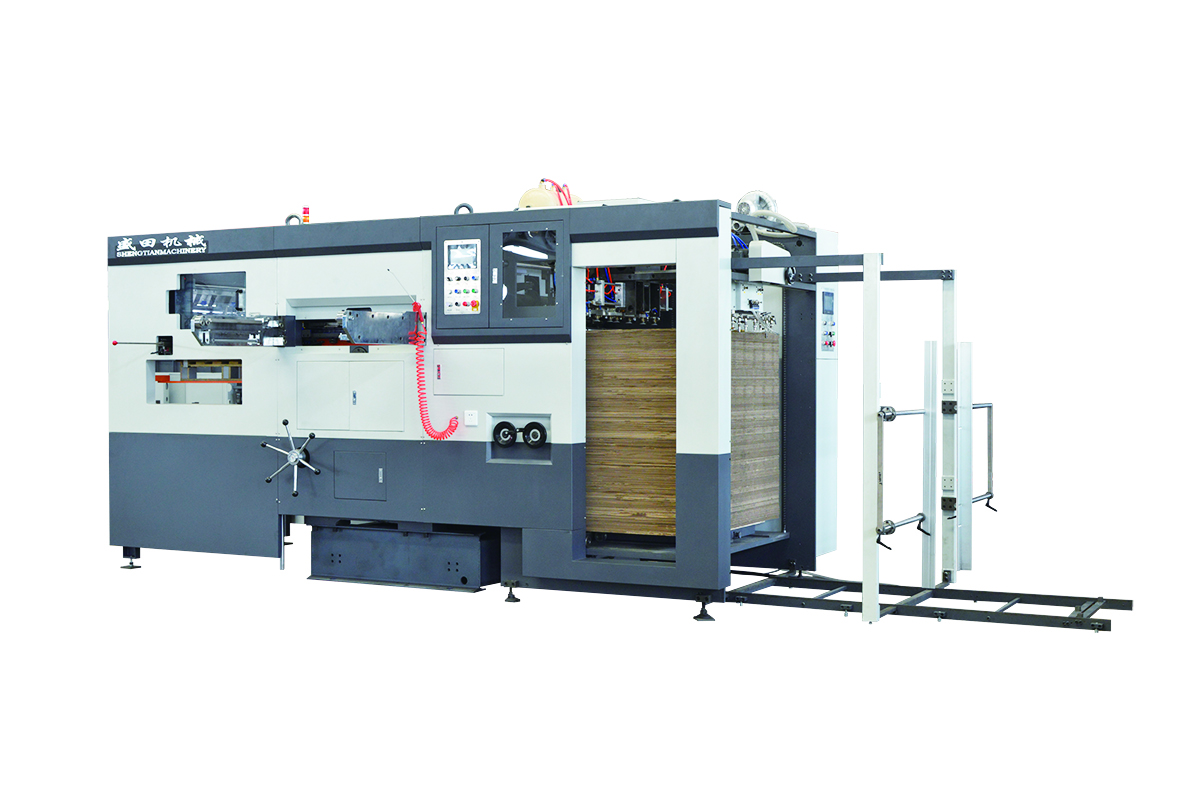

MS Series

Intelligent Feeding Automatic Die-cutting and Creasing Machine

Specifications:

Performances:

01. High technology enables sheets to be fed intelligently and automatically, so that the curved and deformed sheets, irregularly or bad laminated sheets can be transferred smoothly, which can prevent the film-laminated sheets or varnished sheets from being scratched during feeding and keep the strength of the the corrugated board as well. Sheets will not get thin. This machine is a patented product with the patent number ZL2014 2 0149319.6 ZL2015 2 1007036.9

02. High-strength gripper bar and advanced gripper opening mechanism is suitable for all kinds of corrugated board. Front, back and side registration mechanism can accurately ensure the diecutting precision.

03. The main transmission uses worm gear pair and special designed crank shaft connection rod mechanism. The bearing bush connection can reduce moving clearance, avoid impact between worm and worm gear, ensuring smooth running, large die-cutting pressure and high point pressure keeping. Worm gear is made of aluminum bronze with long service life.

04. This machine adopts advanced ternary cam indexing mechanism, pressure adjusting device, pneumatic chase-locking, pneumatic sampling and overload protecting device as well as imported high-precision transmission chain.

05. The pneumatic locking mechanism can make the plate changing and pad plate more flexible and convenient.

06. Pneumatic clutch with stable engaging and disengaging and small braking angle can enable large torque to be transferred.

07. PLC and touch screen can indicate working speed, the number of processing sheets, the total processing time and all troubles code that might appear in the processing dynamically, which can facilitate the troubleshooting and carry out the total automation from feeding, to die cutting, to delivering. It cooperates with safety devices can ensure easy operation.

08. The die-cutting pressure can be adjusted individually in front and back part and the manual handling is easy and labor saving.

09. Automatic delivery and stacking device makes the delivery easy.

10. The suspension function of the steel plate enables it easy to be pushed in and drawn out.

Company Introduction:

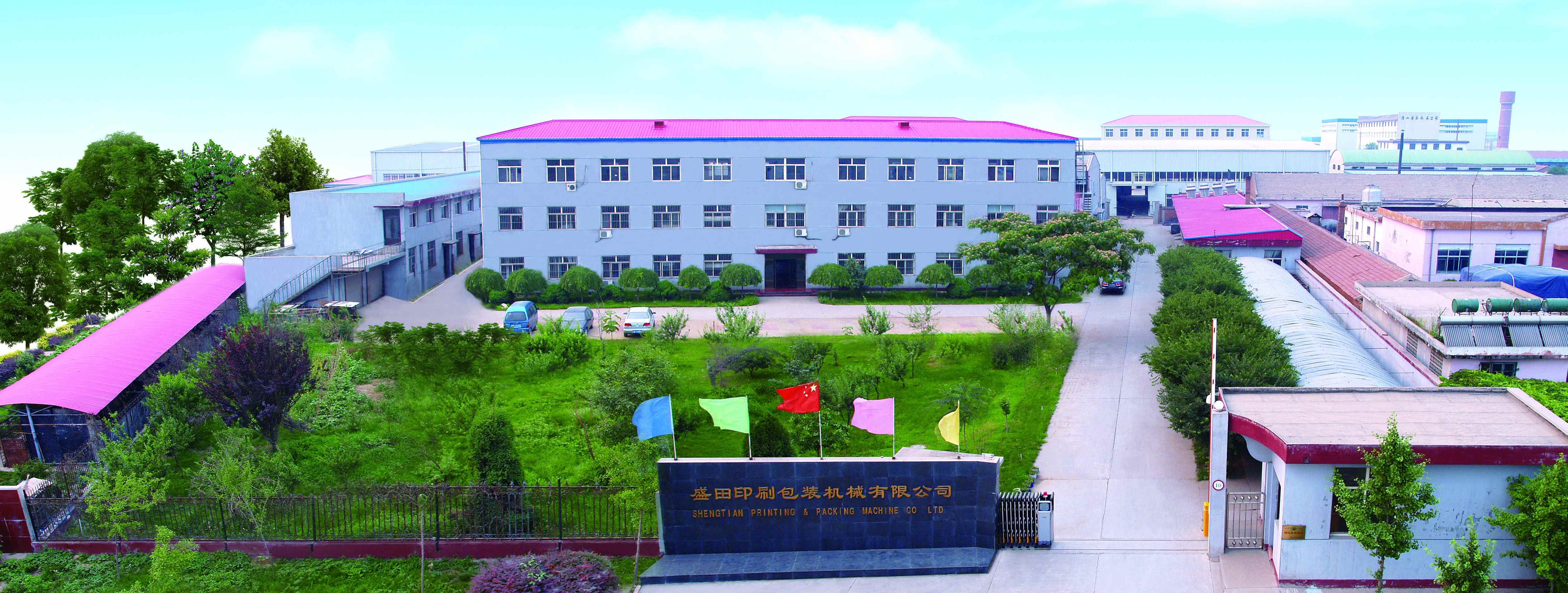

      Yutian Shengtian Printing and Packing Machinery Co., Ltd. was founded in 1996, which is a colligated enterprise including design, manufacture and sales. It is a technological enterprise, and professionally produces flute laminator, film laminator and die-cutter of three series more than 20 types.

      The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians. The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system. It passed ISO9001:2015 International Quality Management System Certification in January, 2012 and CE in 2006.

      Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, multi-types and good service. The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc.

      While holding shengtian's hand, we are friends forever.
