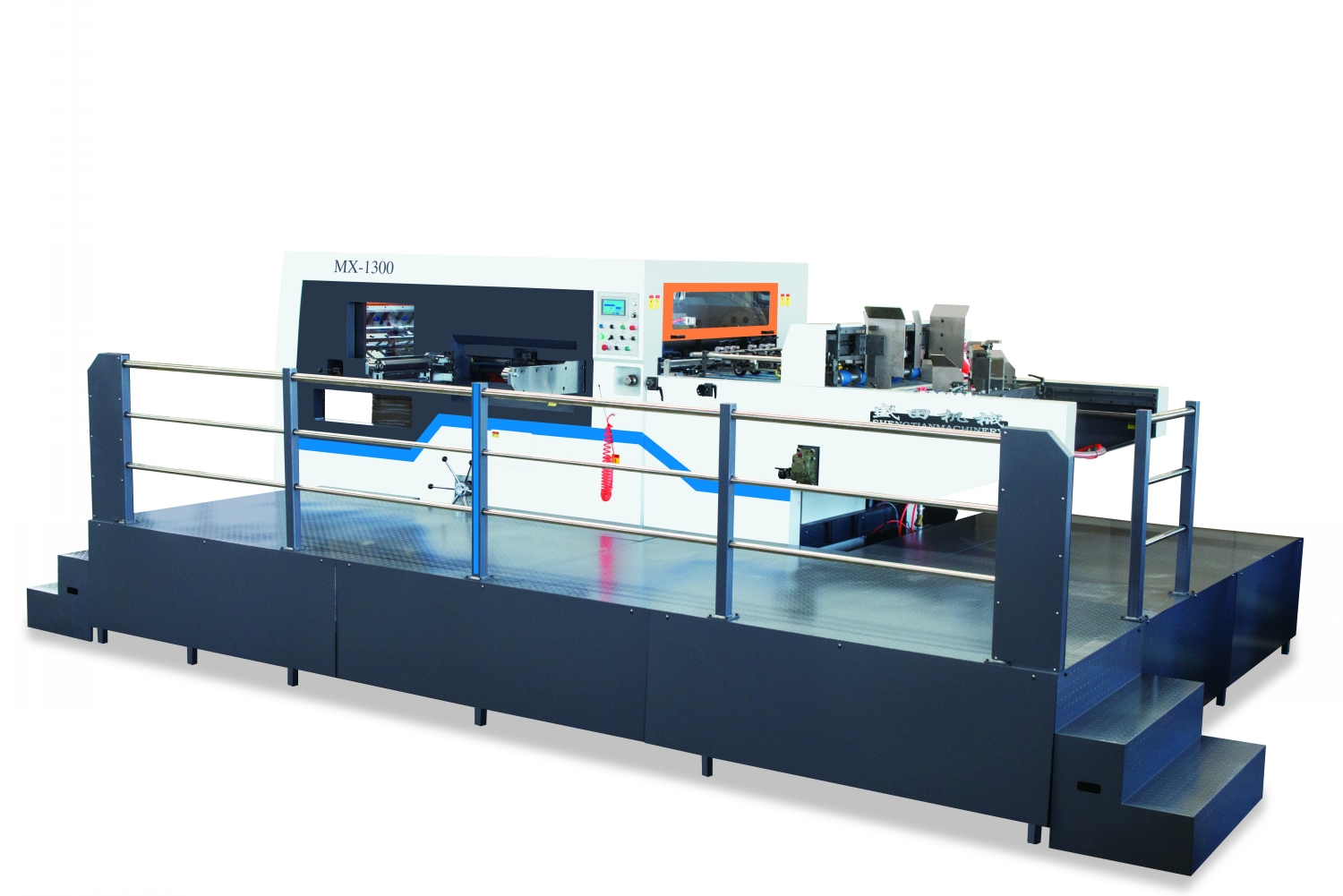

MX Series

Bottom Feeding Die-cutting and Creasing Machine

Specifications:

Performances:

01. The paper feeding transmission adopts the mechanical transmission of the main machine, which is stable in operation; the paper feeding efficiency is very high without stopping; the unique anti scratch mechanism is adopted and the scratches of paper surface can be reduced effectively ; the paper feeding is controlled by the servo motor, which is stable in paper feeding and precision in positioning.

02. The key parts of the machine, such as the bottom platform, moving platform, upper platform and wall panel are made of high-strength nodular cast iron, which are not easy to deform when working under high pressure. It is processed by a large imported five sided machining center at one time，which can ensure the accuracy and durability of the components.

03. The machine adopts precise worm and crankshaft connecting rod mechanism to make the transmission stable. All of them are made of high-grade alloy material. Large imported machine tools are used for confidential grinding and processing with stable operation, large die-cutting pressure and high point pressure maintaining function.

04. High resolution touch screen is adopted for human-computer interaction; PLC program control and fault monitoring system cooperate with LCD screen, which is convenient for staff to monitor machine operation and solve problems in time.

05. The tooth row body is made of special super hard aluminum alloy profile with anodized surface, strong rigidity, light weight and small inertia, which can complete accurate die cutting and control in high speed movement. The chain adopts imported ones，which can ensure the machine operation accuracy.

06. High quality pneumatic clutch with long service life, low noise, stable braking, quick clutch and large transmission power, which can make the performance of machine more stable and durable.

07. Adopt the paper receiving platform to receive paper, the paper pile will automatically descend and when the paper full, it will alarm and decelerate automatically. Compared with automatic paper cleaning device, it can ensure the stable operation, simple adjustment and tidy paper receiving. Anti-paper back photoelectric detection switch can prevent the paper pile too high and paper roll up in the paper receiving platform.

Company Introduction:

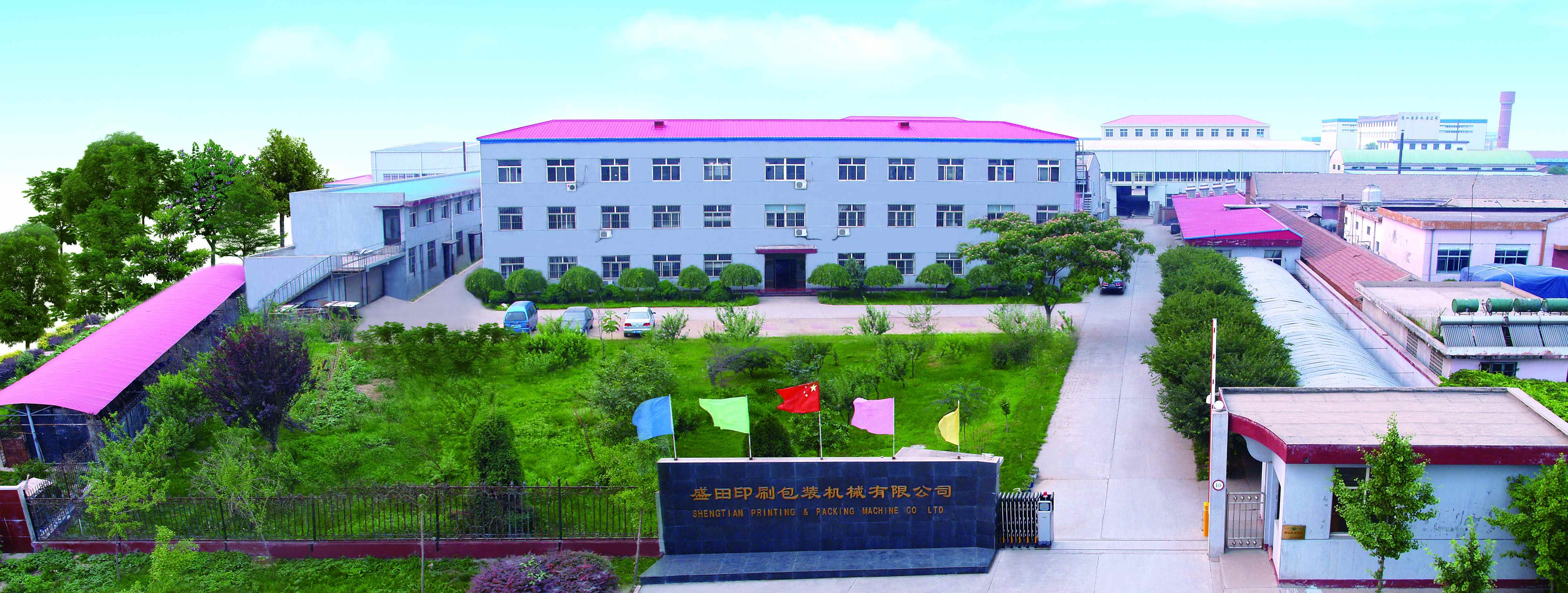

      Yutian Shengtian Printing and Packing Machinery Co., Ltd. was founded in 1996, which is a colligated enterprise including design, manufacture and sales. It is a technological enterprise, and professionally produces flute laminator, film laminator and die-cutter of three series more than 20 types.

      The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians. The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system. It passed ISO9001:2015 International Quality Management System Certification in January, 2012 and CE in 2006.

      Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, multi-types and good service. The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc.

      While holding shengtian's hand, we are friends forever.
