E-TPU Shoe Sole Machine Shoe Sole Molding Machine E-TPU Sole Molding Machine E-TPU Molding Machine Shoe Sole Machine
L/CT/T

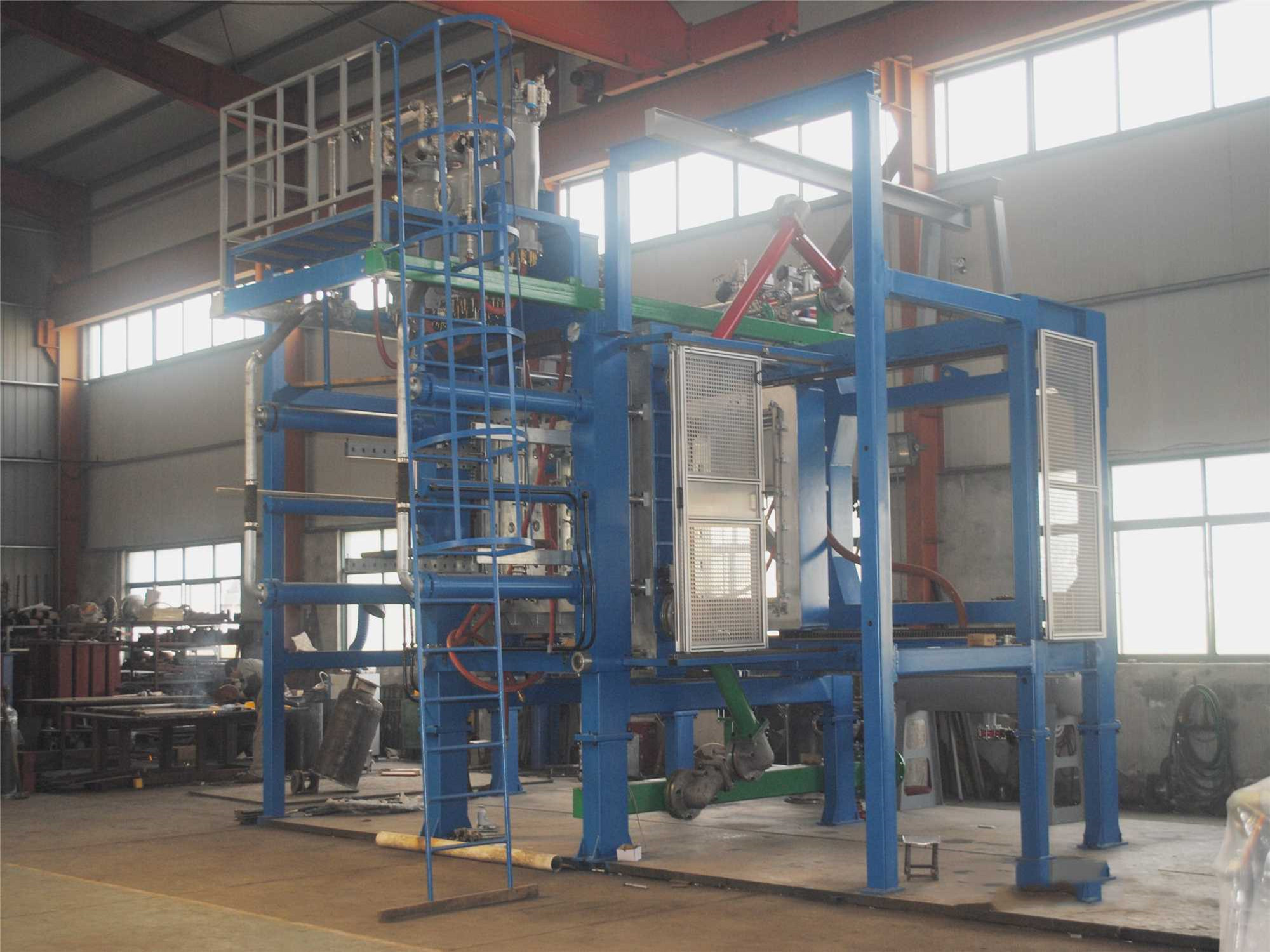

EPS SHAPE MOLDING MACHINE ESPP-1012
Size of mould: 1000*1200mm
Max. product size: 960*1160mm
Max. product height: 350mm
Max. mould distance: 1200mm
Guide post: Φ95*2615 mm*4
Oil cylinder: Φ80*1250 mm * 2
Φ110*1150 mm * 4
Travel speed max (approx.)
Oil tank capacity: > 250L + return tank
Bucket capacity: 160L × 2
Total power: 13.5KW
Dimensioin: 5000mm×2600mm×3800mm
Weight: about 11500kg
Main characters
-Omron PLC, touch screen and encoder
-Quick pressurized filling & interval filling (2-3 seconds)
-Large steam inlet & outlet to shorten molding cycle
-Revolving steam conveying instead of rubber pipe make it more reliable
-Quick connector design, fast mould change (around5 minutes)
-Moveable and fixed mould plate with water tank
-Ball blast descaling, mould cavity coated with aluminium
-Fully automatic electronic, hydraulic and pneumatic control
