Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1.00 Piece(s)
stitching machinesemi-auto stitchernail stitcher
L/CT/T

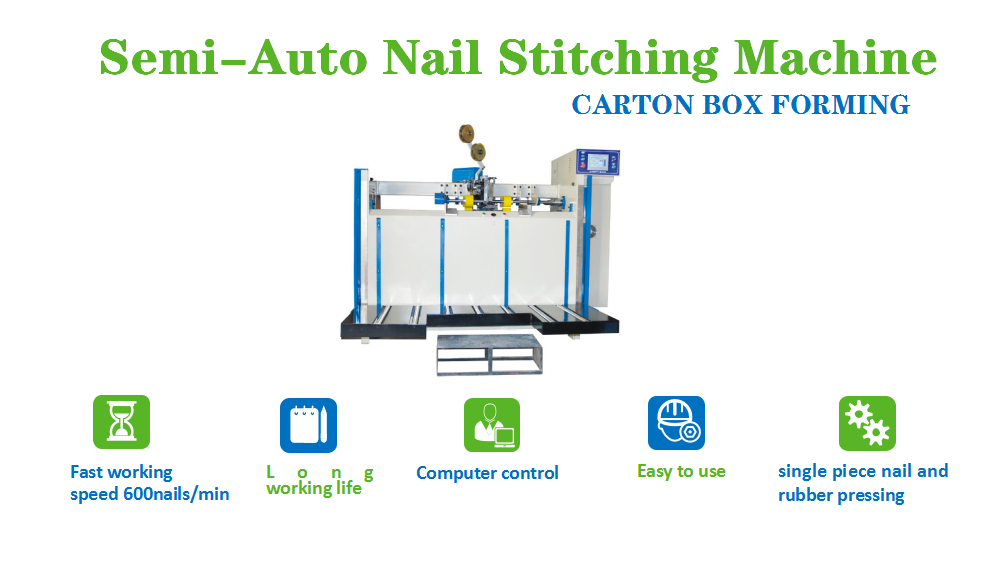

1. Imported dual servo motors, high precision, decreased the mechanical driving parts and malfunction.
2. Touch screen control the parameters (nails distance, nails qty/type, back baffles), changing fast and convenient.
3. Back electrical baffle adopt stepper motor, accurate and fast.
4. The complete stitching head adopts special steel with precise processing.
5. Carton sizes and nails distance changing time need 1 minute, save more time.
6. Can stitch intensive nails, single nail, double rows nail, finish in one time.
7. Front paper feeding part is automatic counting, settled with photoelectric sensor, can lift up automatically when feed paper.
8. Last section has automatic counting function, finished cartons can be piled as per the pre-set qty (1~99) and convey out for easy packing.
9. Will warn automatically when the brass wires finished.
10. Max. speed:600 nails/min.

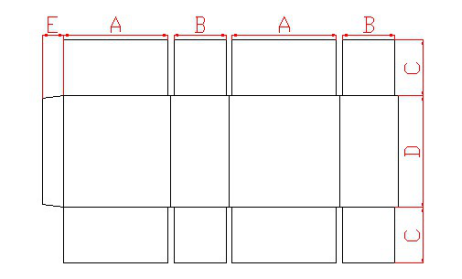

Max.Size（A+B）X2 | 3800mm | Min. Length A | 250 mm |
Min. size（A+B）X2 | 1600mm | Max. Height D | 2000 mm |
Max. size （C+D+C） | 3000mm | Min. Height D | 200mm |
Min. size （C+D+C） | 250mm | Max. Width of nail tongue E | 40 mm |
Min. Cover C | 50mm | Max. Stacking height | 350mm |
Max. Cover C | 290mm | Width of machine | 2850x1030x2000mm |
Max. Width B | 650 mm | Weight of machine（T） | 1.5 |
Min. Width B | 200mm | Max. speed (nails/min) | 600 |
Max. Length A | 850mm | Nails | 1-99 |

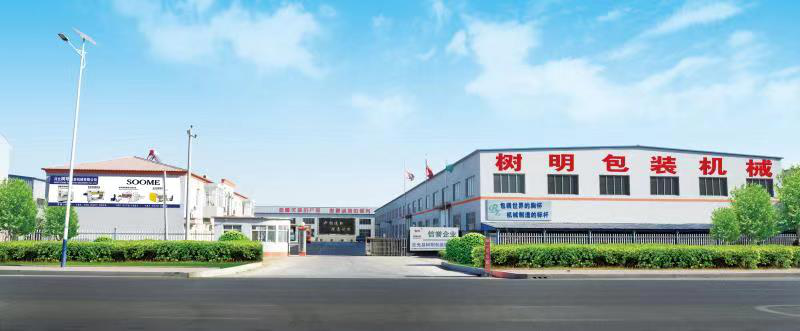

Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .
Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to
Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Turkey,Spain and so on.
Wish we unite in a concerted effort for the beautiful future!
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in South of Dongguang county, Cangzhou city,Hebei province,China.Warmly welcome to visit our company.
2. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
