Product Category
Electronics and Communications > communication device
Trademark
LX brand or OEM
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:Electrical CablePower CableNetwork CableCoaxial Cableother cables
ID:20111236767
Electronics and Communications communication device
MOQ:152500.00 Meter(s)
Network cableLan Cablecat6 sftpCat6 sftp cablesftp cable
L/CT/TD/PWestern UnionOthers

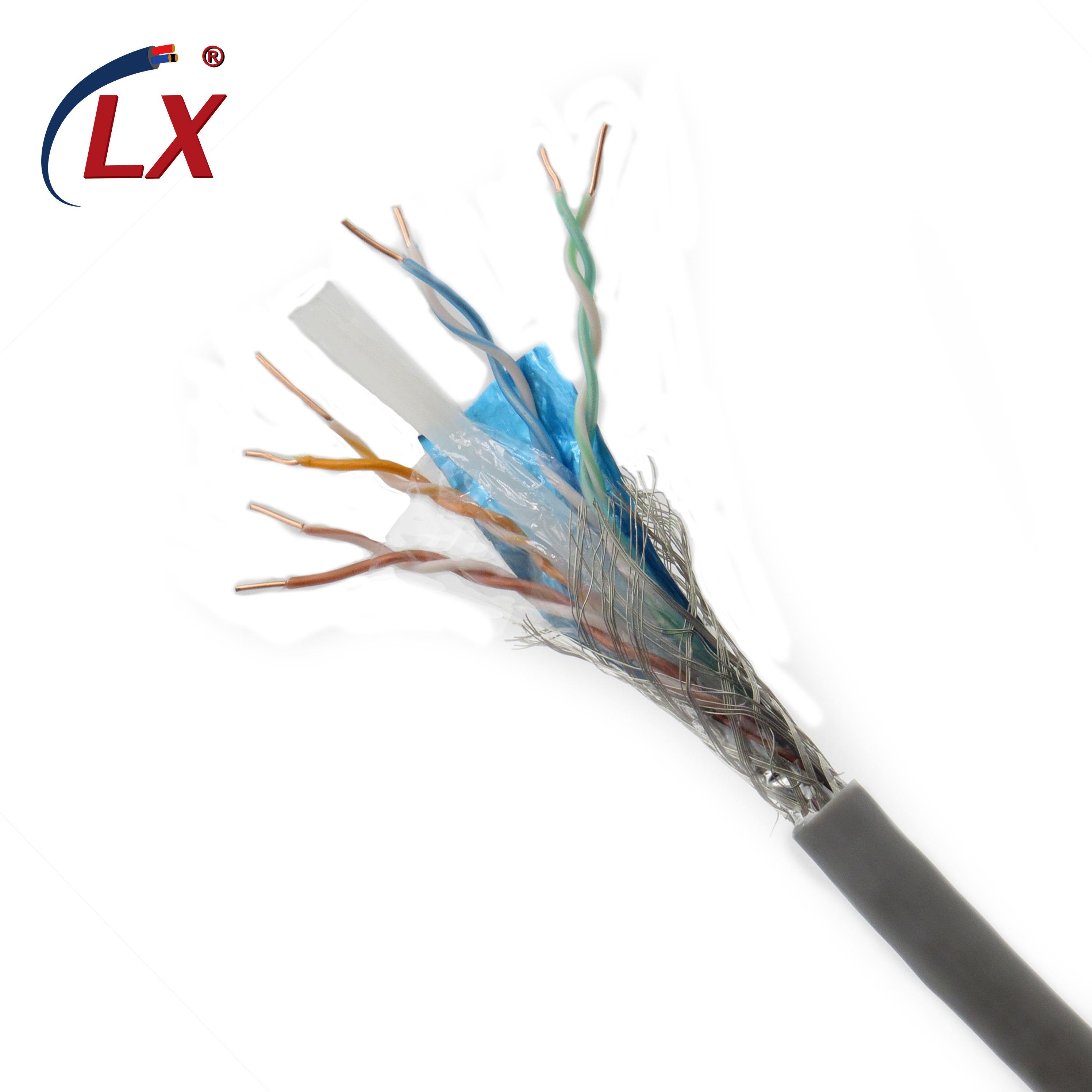

Cat6 SFTP CCA 23AWG 305m Network cable
Standard
* ISO/IEC 11801
* ANSI/TIA/EIA-568-B.2

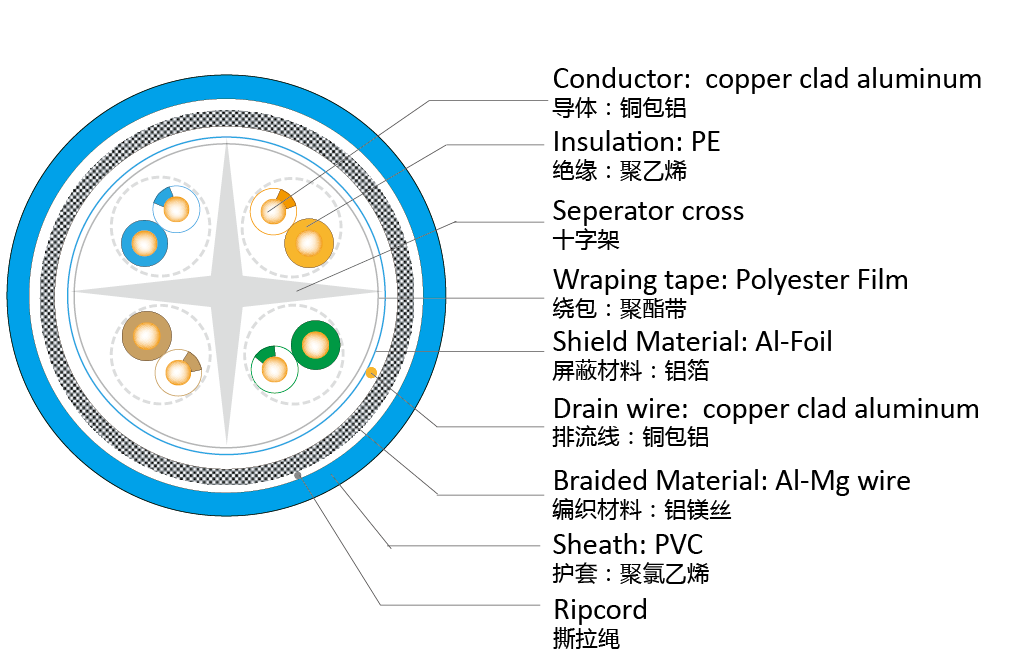

Specification
Product Type: | Network cable Cat6 SFTP CCA 305m Lan cable |
Conductor Material: | 23AWG Copper Clad Aluminum |
Number of Pairs: | 4 Pairs |
Conductor Dimension : | 0.57mm±0.01mm |
Insulation material: | PE |
Insulation Dimension: | 0.91 |

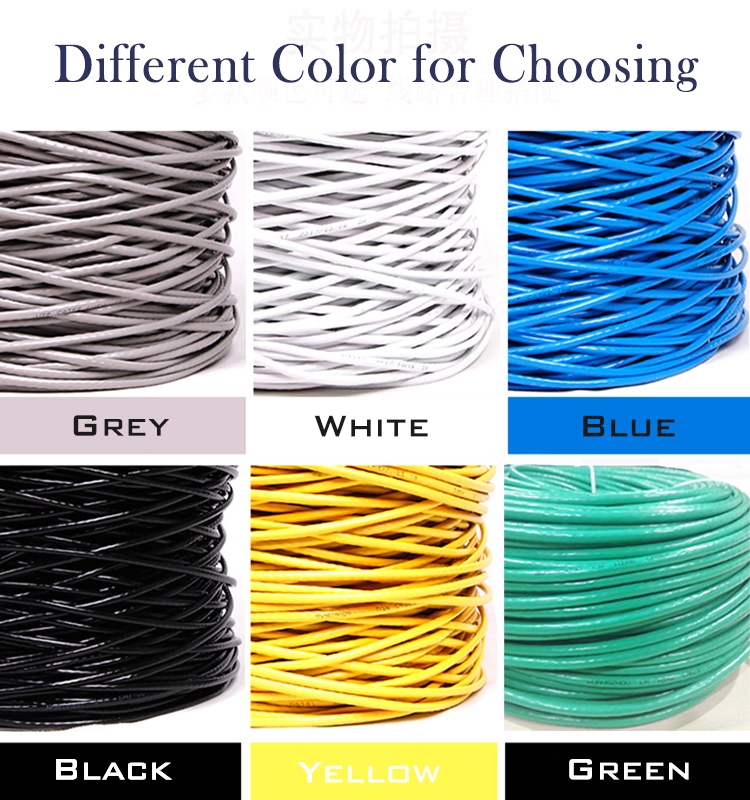

Insulation Color: | 1.White/Blue &Blue 2.White/0range &Oange 3.White/Green &Green4.White/Brown &Blue |
Cross Filler: | Yes |
Screening: | Aluminum foil |
Braiding: | 64x0.12mm |
| Braiding material: | Al-Mg wire |
Outer Jacket Material: | PVC |
| Outer Jacket Ripcord: | Based On Customer Requirements |
| Overall Nominal Diameter: | 6.3±0.3mm |
Meet 100MHz while used in the building correspondence synthesis wiring system.
Before Tensile strength (Mpa) ≥13.8
Aging Elongation (%) ≥100
Aging condition (C xhrs) 100x240
After Tensile strength (Mpa) ≥85% of unaged
Aging Elongation(%) ≥50% of unaged
cold Bend (-20±2℃x4 hrs) No crock
One Year Warranty
An extended One-year warranty is now included, at no extra charge, on all new purchases of LX full standard cable.
Here are the details of this exclusive warranty:
? Complete coverage against defects in material and workmanship for LX cables.
? When goods distribute to customer certified manufactured by LX, any technical requirement at the goods not match specification book mentioned we allow the purchaser to exchange goods.
Raw Material Selection & Inspection
All raw material offered from enterprise registered China quality centification center. When the raw material enter raw material department should enclose the third part Inspection Report and check in our strictly test system before widely usage.
Strictly Quantity Control under QC System
Product Consistency: Manufactured in ISO 9001 certified manufacturing facilities to the industry’s highest standards of quality, using the most advanced equipment, systems, controls
and processes available.
Affortable Price & Flexible Payment Term
OEM is acceptable and price could be negotiated determined on customer’s requirements like package and specification details ect. Various payment terms as T/T, L/C, D/P, O/A are opional.
LX cable sale team is well deal with different countries's import matter.
One years guarantee for all full standard cable.
Any time send us inquiry will get qucik respone.
We have a professional desing team free help you to design outer package.

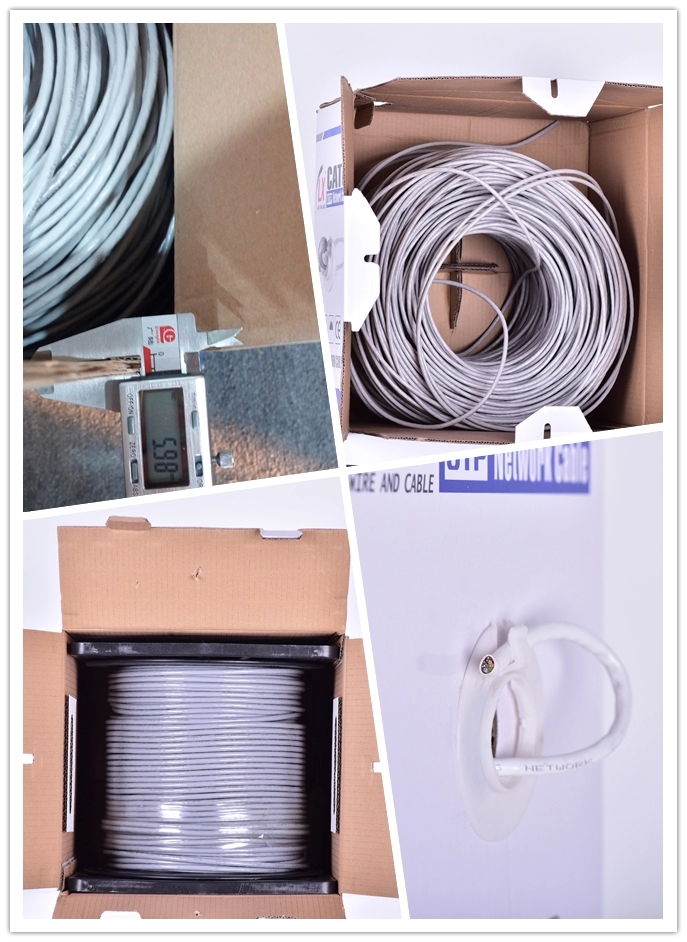

100m/roll, 305m/box,500m/wooden drum,1000m/ wooden drum. If you need plastic reel is ok.
17-25 working days could arrange deliver.
