Automatic paper bag machine with rope &flat handles series

Introduction

This machine is specially designed to make paper shopping bags with twisted rope or flat handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors (Mitsubishi brand, imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Twisted round rope and flat handle can be switched very easily, one machine for double function. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Specification

Twisted rope handle

Handle rope height:           110/120/130 mm

Handle rope distance:         95mm

Handle rope diameter:        φ4-6 mm

Handle patch length:         190 mm

Handle patch width:          40-50 mm

Paper patch roll dia:          φ1200 mm

Paper patch roll width:        80-100 mm

Paper patch gram:            100-250g/m2

Flat handle

Flat handle height:          100 mm

Flat rope distance:           95 mm

Paper gram for handle:      90-150g/m2

Flat rope width:            φ12(15) mm

Handle patch length:         190 mm

Handle patch width:         40-50 mm

Paper patch roll dia:         φ1200 mm

Paper patch gram:          100-200g/m2

Main machine

Roll paper width:              690-1330 mm

Max. dia of roll paper:         φ1500 mm

Inside diameter of paper:        76mm

Paper gram:                  65-150g/m2

Finished bag width:            240-450 mm

Paper tube length:             280-630 mm

Bag bottom width:             90—200mm

Whole machine

Max production speed:       130 PC/min

Total powe:                       46 KW

Weight:                            22000 KG

Overall dimensions:          15500 * 9500 * 2500 mm

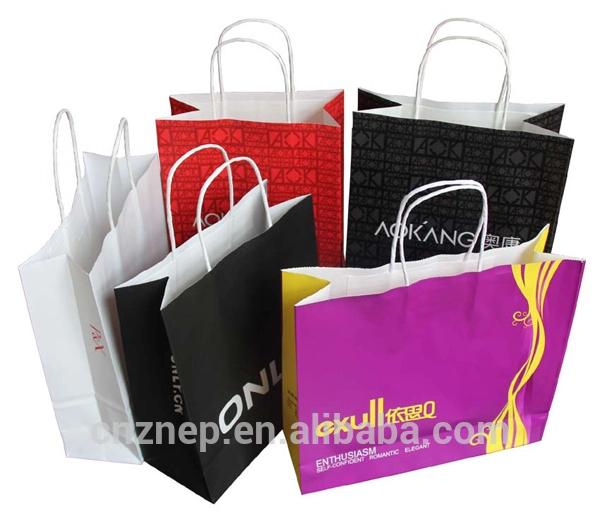

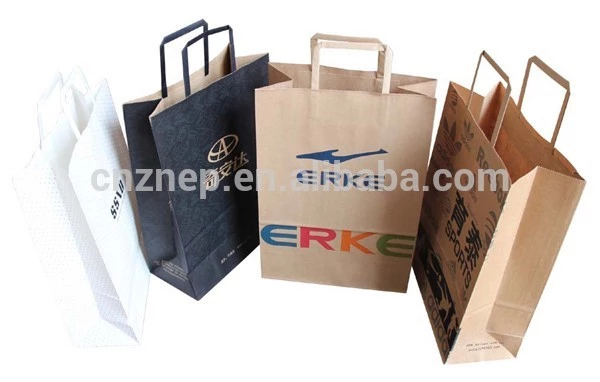

Samples

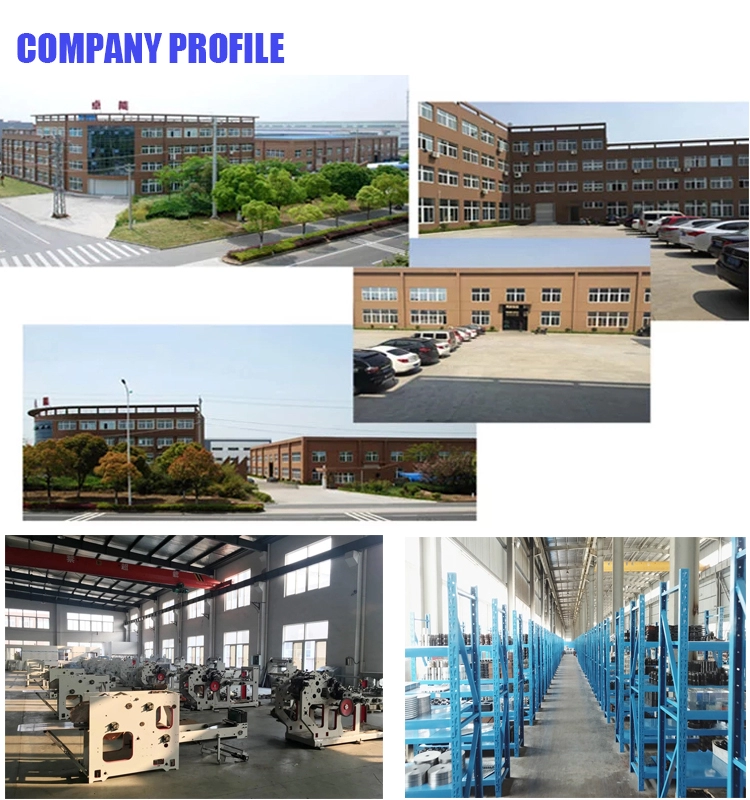

1.Our Nanjing ZONO Machine Equipment Co.,Ltd specializes in manufacturing high
quality paper bag making machines for almost 20 years,and now has become the
leader of this field.

2.We have a R&D team with 8 experienced engineers to design self-developed
products.our engineers are able to manage problems appearing in machine
running process.

3.Sound service system can guarantee a 3-year warranty for the whole machine,
and in free change of ordinary wearing parts (damage caused by man-made
sabotage and human errors are excluded)



Our Service

 ? 3 Year Warranty

 ? 24 Hours Online Service

 ? Customize packaging solutions according to your needs

 ? Providing Quick-wear Parts

 ? Overseas after-sales service available

 ? Professional Packaging Line

 ? Product Certificated By CE
