Specification

Model                                               ZD-F450NB

Roll paper width:                               650-1670mm

Paper roll dia:                                    φ1500 mm

Roll core dia:                                      φ76 mm

Paper gram:                                             70/80-150 g/m2

Paper bag width:                                230-450 mm

Cut off length:                                    280-630 mm(include handle height)

Gusset width:                                      80-220mm

Paper gram for flat handle:                 80-110m2

Width of reel paper  for flat handle:    100mm

Flat rope width:                                    16mm

Flat handle height:                                100mm

Flat rope distance:                                109mm

Max dia of reel paper for handle:         φ1200 mm

Paper patch gram for handle:               80-100 mm

Roll paper (patch) dia:                          φ1200 mm

Handle patch gram:                                  160mm

Handle patch width:                             52mm

Max. speed:                                          130 bags/min

Total power:                                         28 KW

Machine weight:                                   23000 KG

Overal dimension:                               16000*5000*2800 mm

Main Features

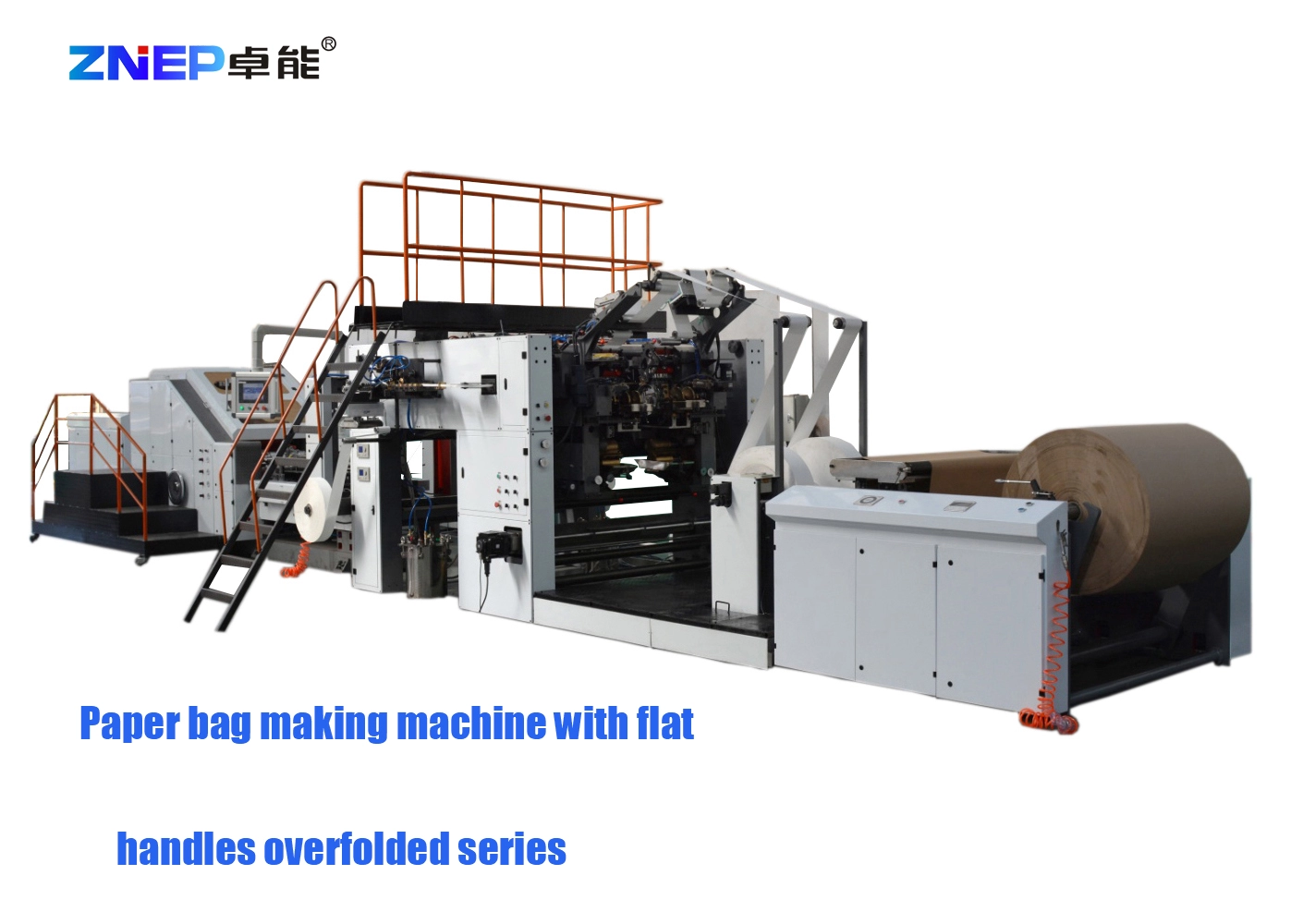

Specially designed for making square bottom paper bags with flat handles in one step.By directly making flat-rope handles on paper web, customers can not only no longer rely on the traditional external hand making machine, but also be able to save 50% patch paper. What’s more, this design brings more efficient packaging and shipping for the finished paper bags.

Advanced configuration

1. Automatic feeding system with oil cylinder;

2. American Techmach automatic deviation-rectifying system;

3. Feeding system of handle making machine is equiped with automatic deviation-rectifying system;

4. Handle machine adopts Mitsubishi servo motor;

5. Handle attachment device including jogging, gluing, handle delivery and traction is controled by Mitsubishi servo motor imported from Japan;

6. Main machine traction adopts Mitsubish servo motor from Japan;

7. Main motor adopts Mitsubishi servo motor from Japan;

8. Automatic collection system;

9. Automatic counting system;

10. Automatic refueling system;

11. Man-machine touch screen interface on which the user can adjust the parameters.


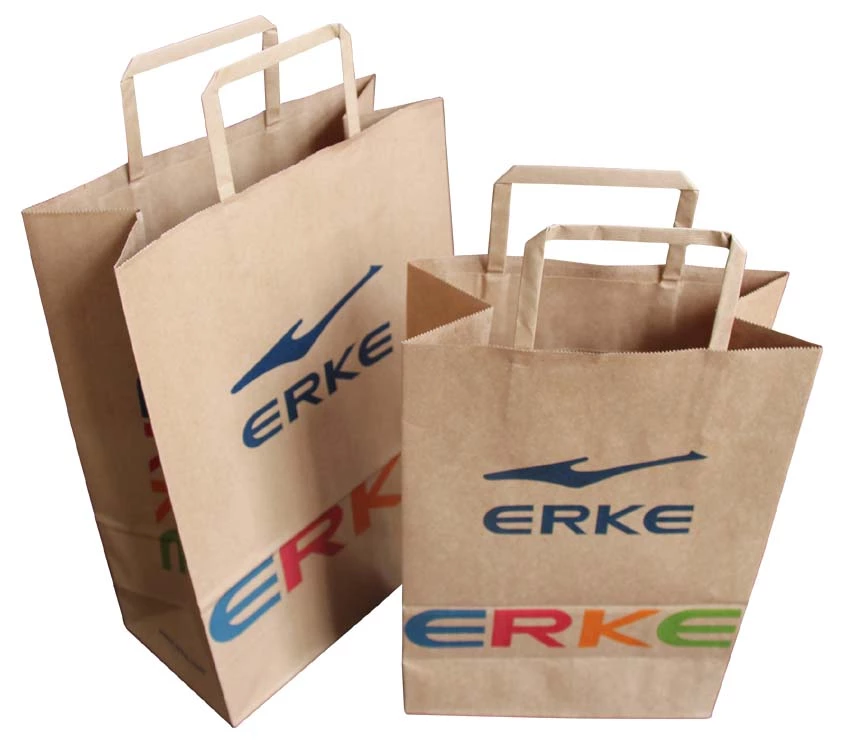

Sample



1.Our Nanjing ZONO Machine Equipment Co.,Ltd specializes in manufacturing high
quality paper bag making machines for almost 20 years,and now has become the
leader of this field.

2.We have a R&D team with 23 experienced engineers to design self-developed
products.our engineers are able to manage problems appearing in machine
running process.

3.Sound service system can guarantee a 3-year warranty for the whole machine,
and in free change of ordinary wearing parts (damage caused by man-made
sabotage and human errors are excluded)
