Oil & Gas Piping and valves
MOQ:1.00 Ton(s)
pipestainless steel pipe304 pipetp316 pipe
Standard:
Place of Origin:
Type:
Steel Grade:
Application:
Certification:
Welding Line Type:
Thickness:
Outer Diameter:
Material:
Supply Ability:
2000 Ton/Tons per Year

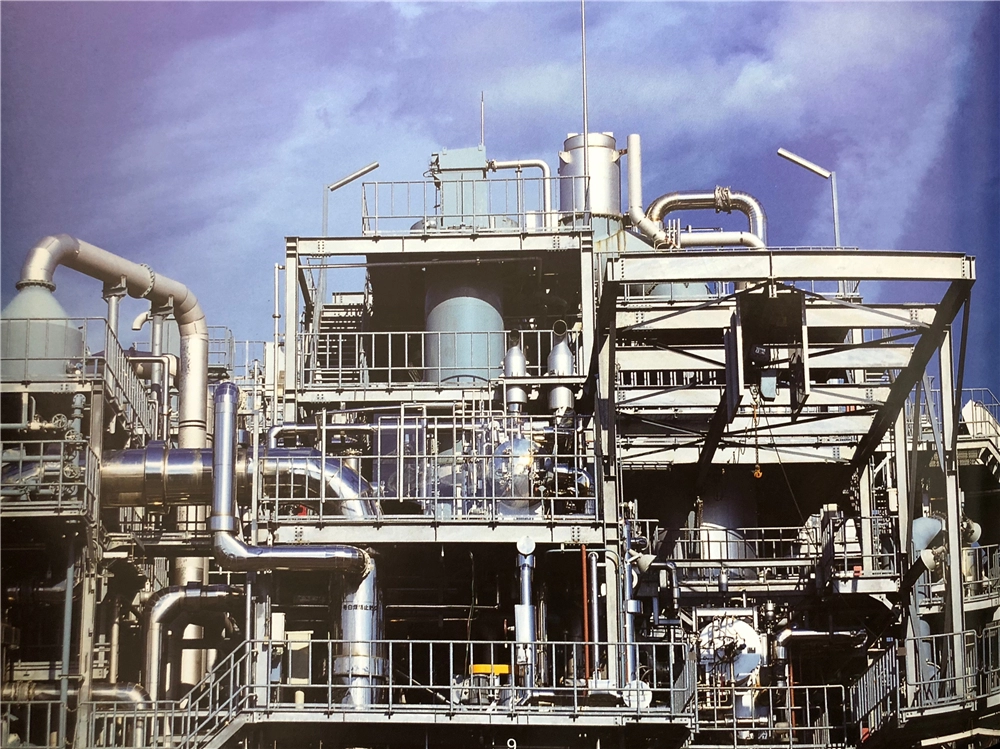

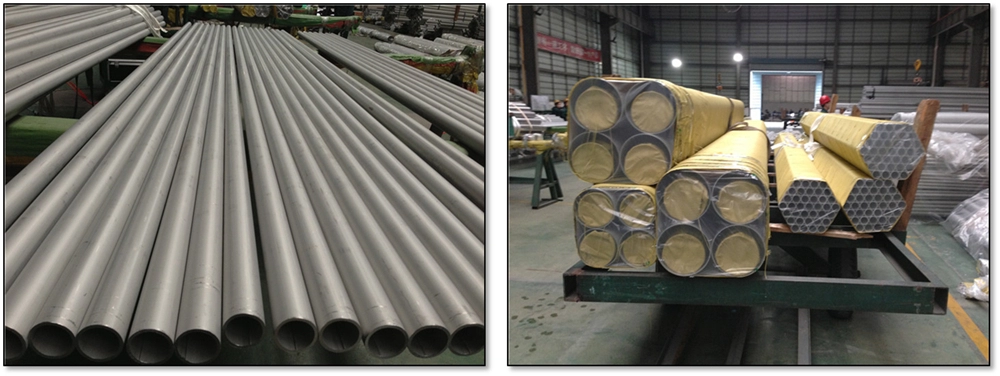

petrochemical industria / control , bio-pharmaceutical industry , pipe , tube food and beverage indust try , aerospace industry with a pipe boiler heat exchangtube , automation and other industria tubes
A) Size: ?12.00-?273.05
B) Wall thickness: 0.8mm-12m
C) Material: Stainless Steel AISI 304,316, 304L, 316L
D) Standard: ASTM A554,JIS G3448,GBT/T 12771
F) Surface: polished, acid-washing
Sanitary welded pipe reference table ASTM A554,JIS G3448,GBT/T 12771
| Thinckness | 0.8 | 1 | 1.2 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Size | ||||||||||||||
| ?12.00 | 0.22 | 0.27 | 0.32 | Calculation formula of theoretical weight | ||||||||||
| ?14.00 | 0.26 | 0.32 | 0.38 | 0.47 | 304 W=0.02491t(D-t) | |||||||||
| ?16.00 | 0.3 | 0.37 | 0.44 | 0.54 | 316L W=0.2507t (D-t) | |||||||||
| ?20.00 | 0.26 | 0.32 | 0.38 | 0.47 | ||||||||||
| ?25.00 | 0.48 | 0.6 | 0.71 | 0.88 | 1.15 | |||||||||
| ?32.00 | 0.62 | 0.77 | 0.92 | 1.14 | 1.49 | |||||||||
| ?40.00 | 1.16 | 1.44 | 1.89 | |||||||||||
| ?42.00 | 1.22 | 1.51 | 1.99 | |||||||||||
| ?45.00 | 1.31 | 1.63 | 2.14 | |||||||||||
| ?48.3 | 1.41 | 1.75 | 2.31 | |||||||||||
| ?57.00 | 1.67 | 2.07 | 2.74 | |||||||||||
| ?60.3 | 1.77 | 2.22 | 2.91 | |||||||||||
| ?63.50 | 1.86 | 2.3 | 3.06 | |||||||||||
| ?76.10 | 2.79 | 3.7 | 4.59 | |||||||||||
| ?89.00 | 3.27 | 4.33 | 5.37 | 6.43 | ||||||||||
| ?108.00 | 3.98 | 5.28 | 6.57 | 7.85 | ||||||||||
| ?114.30 | 5.58 | 6.94 | 8.3 | |||||||||||
| ?127.00 | 6.23 | 7.75 | 9.27 | |||||||||||
| ?133.00 | 6.5 | 8.13 | 9.71 | 12.85 | 15.94 | 18.98 | ||||||||
| ?139.8 | 6.88 | 8.56 | 10.24 | 13.55 | 16.78 | 19.98 | ||||||||
| ?141.3 | 6.94 | 8.43 | 10.34 | 13.68 | 16.98 | 20.22 | ||||||||
| ?152.4 | 7.49 | 9.34 | 11.16 | |||||||||||
| ?159.00 | 7.82 | 9.75 | 11.66 | 15.44 | 19.18 | 22.87 | 26.5 | 30.09 | ||||||
| ?168.3 | 8.27 | 10.31 | 12.33 | 16.34 | 20.34 | 22.91 | 28.12 | 31.94 | ||||||
| ?219.18 | 10.81 | 13.48 | 16.14 | 21.42 | 26.65 | 31.83 | 36.97 | 42.05 | 52.06 | 61.87 | ||||
| ?273.05 | 16.85 | 20.18 | 26.81 | 33.38 | 39.91 | 46.38 | 52.81 | 65.51 | 78.02 | |||||
Note:According to the actual circumstances of production,10% of wall thickness tolerances can be agreed upon protocol.
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax. If you have other questions, please feel free to contact us.
