Razor barbed wire

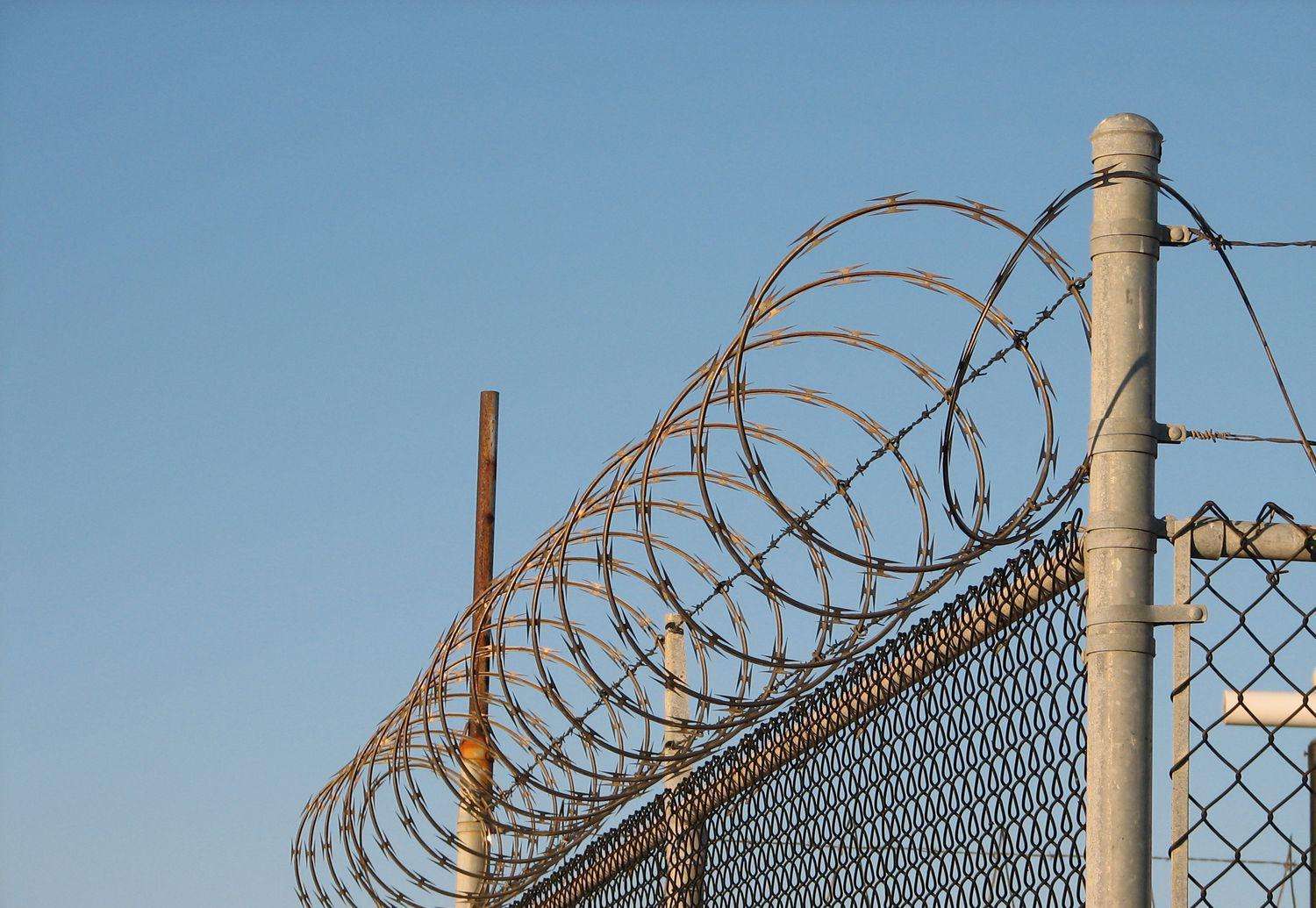

   is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.

Security Fencing System Type One: Anti-Climb Razor Mesh High Security Fence

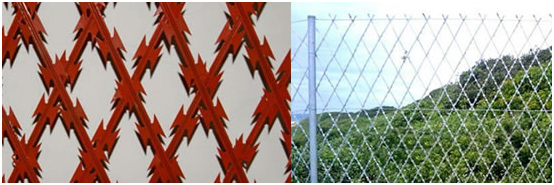

Razor Mesh Security Fence is a multi-functional, high security mesh fencing made of straight-blade netting welded together. Anti-climb fence with flat panel of crossed razor wire welded mesh in diamond or oblong square holes. The razor mesh fencing is virtually impossible to climb or cut without standard tools. The diamond pattern or square pattern combined with vertical opposing barbs act as an entrapment while retaining a neat appearance. The welded blade barrier is designed for commercial, government and military safety uses.

Materials of razor mesh:
Stainless steel, hot dipped galvanized steel or pvc coated steel.

The benefits of Welded Razor Wire Fence:
Anti-climb;
High-strength steel core very difficult to cut off;
Powerful security fence barriers with neat appearance;
Packed in rolls easy for transport;
Extremely simple to install.

Types according to surface treatment:

Stainless Steel High Security Fence Panels

Hot Dipped Galvanised Anti-Climb Fence

Plastic Powder Coated Steel Mesh Security Fencing

Common Sizes:
Welded Diamond Mesh size : 75x150mm, 100x200mm, 150x300mm
Oblique Square mesh size : 150mm, 200mm, 300mm
The rectangular mesh size: 100mmx150mm

Uses:
Razor Mesh is installed as high security fencing throughout the world at airports, military bases, water reservoirs, warehouses, electrical sub-stations, border fences, oil depots, electrical sub-stations and factories.

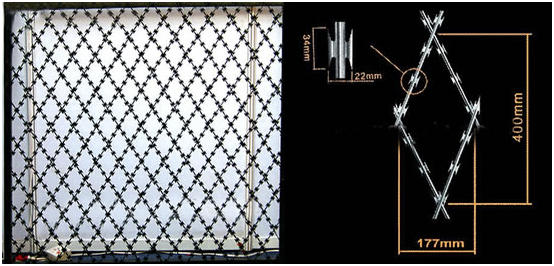

Technical Details of Razor Mesh Welded Panels:

Technical Details of Razor Barbed Wire for Making of Razor Security Mesh:

Security Fencing System Type Two: Welded Wire Mesh and Woven Wire Mesh Based Fencing System

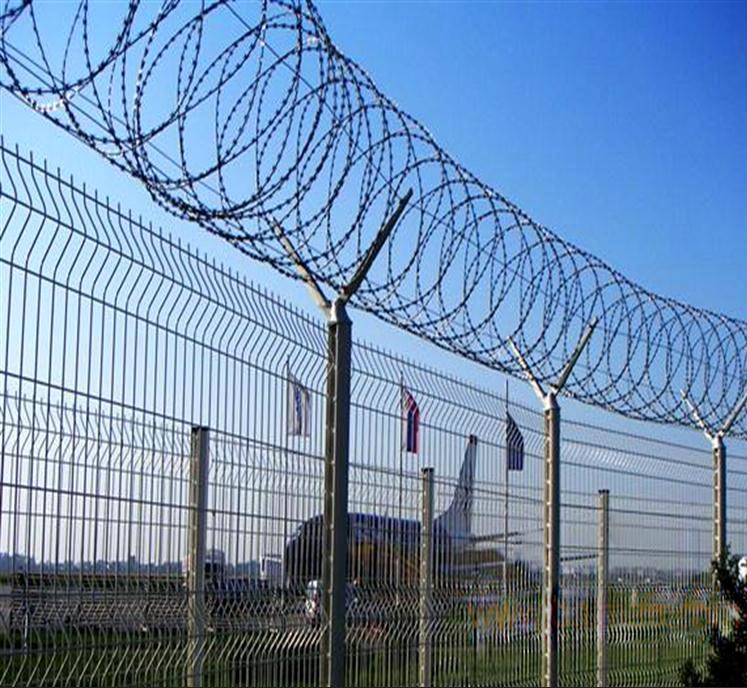

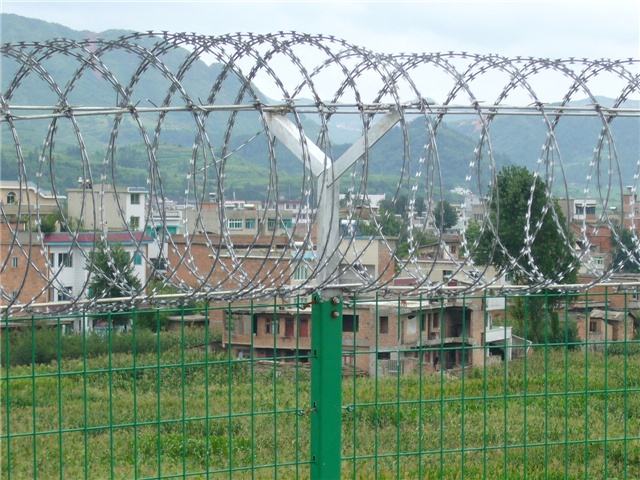

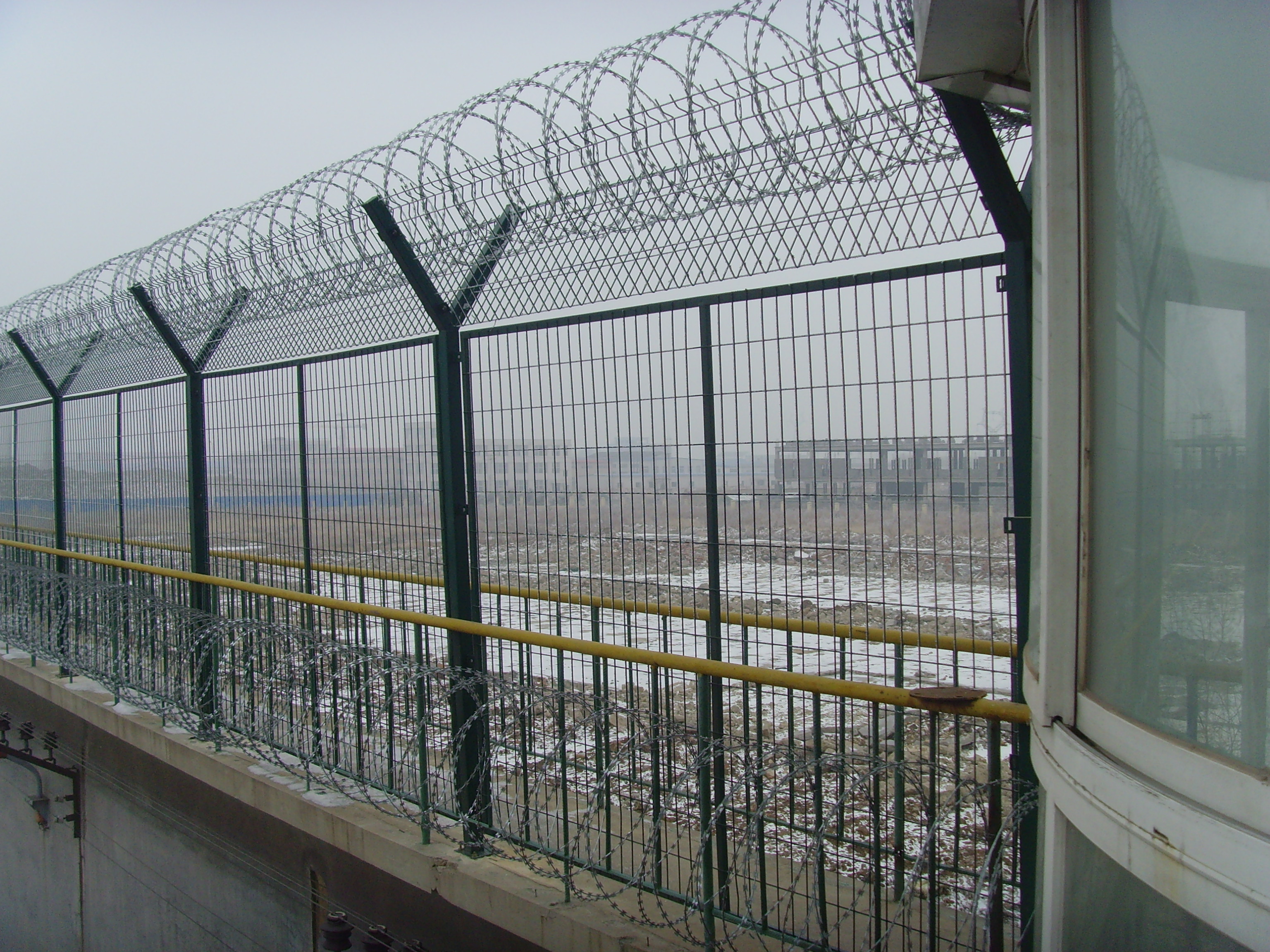

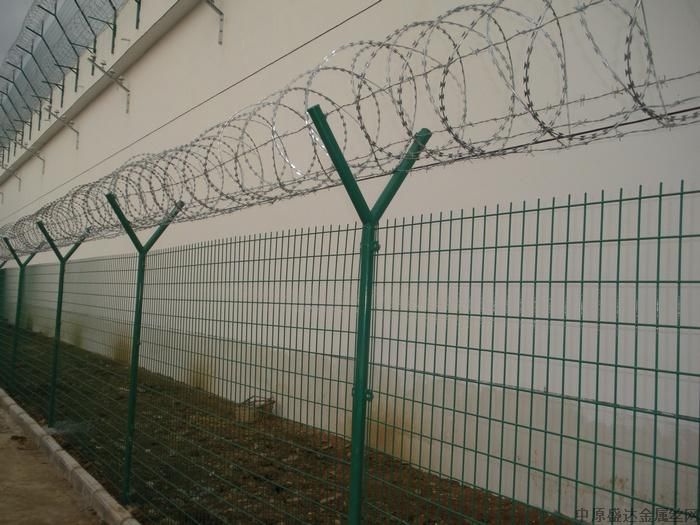

The mesh panels are made of welded mesh or woven mesh (chain link, hexagonal mesh) enhanced with razor wire coils by steel arms support. Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing.

Welded Wire Mesh Panels for Fencing:

Two finishes:
PVC coating, & Powders coating,
Hot dipped Galvanized.

PVC coated welded mesh fence Panel's Specifications:
Wire Dia. 5.0mm, 4.5mm, 4.0mm, 5.5mm, 6.0mm, 3.5mm, 4.8mm and others.
Mesh size: 200x50mm, 100x50mm, 200x55mm, 100x55mm, 150x50mm, 150x55mm, 120x50mm, 120x55mm, and others.
Length: 2500mm, 2255mm, 2000mm, 3000mm
Height: 630mm, 830mm, 1030mm, 1230mm, 1530mm, 1730mm, 1630mm, 1830mm, 1930mm, 2030mm, 2230mm, 2430mm.
Post: Hot dipped Galvanized and powders coating.
Size: 60x60x1.5mm, 60x60x2.0mm, 60x40x1.5mm, 60x40x2.0mm, and others.
Height: 300 - 700mm more than panel's height, or same as the panel and with the bottom base.

PVC coating thickness: 400-500 microns
Powders sprayed coating: 100 - 140 microns

Razor Wire or Barbed Tape Concertina for Enhancing the Security of Welded or Woven Wire Mesh Base Fabric:
Hot dipped galvanized high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire.

Types:
Concertina razor barbed wire(cross, single)
Flat wrap razor wire
Razor mesh
Straight type razor wire

Applications:
In military field, airports fencing, prisons protection, detension houses, government buildings and other national security facilities.

Razor Wire Fencing

We can supply razor wire fences for enhanced security.

Blades for razor wire have three types: Long blades, short blades and medium sized blades.

Razor wire is supplied in electro galvanized, hot-dipped galvanized or stainless steel materials.

Our razor wire is in the form of straight line, crossed razor wire or concertina coils.

Straight type razor wire: Straight from spiral razor barbed wire. It is easy to install while saving the cost .

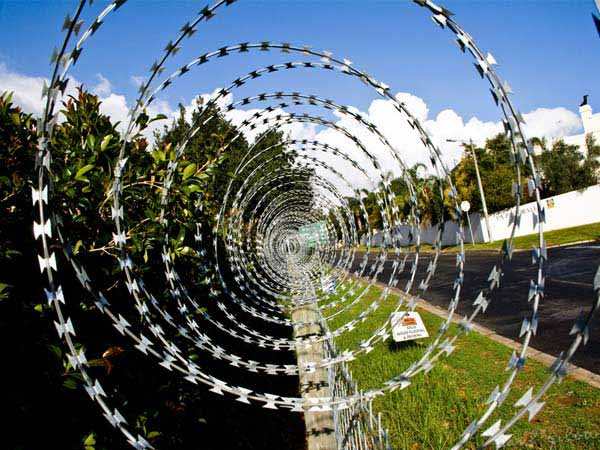

Spiral razor wire is installed without clips, it can be installed in its natural loops on walls, which looks beautiful and practical.

Crossed razor wire is made of two pieces of razor wire, which is buttoned by the heavy clips. It can be made into different crossed type in different diameter and widely used in high wall or bounding wall, it has good effect on insulating and protecting.

Flat razor wire fence is the new application for razor wire. It is practicable and beautiful. It can be used together with the straight type razor barbed wire to form protecting wall. Razor barbed wire in flat wrap type is mainly used in warehouse, stock farm, farm, mine, prison, national defense, etc.

For sizing and pricing of our Razor Wire Fences, please contact us.
