Business Type: Wholesaler
Main Products:steel pipeflangepipe fittingsvalvesstainless steel sheetsbuilding materialhollow section
ID:20111237376
Oil & Gas Piping and valves
MOQ:10.00 Ton(s)

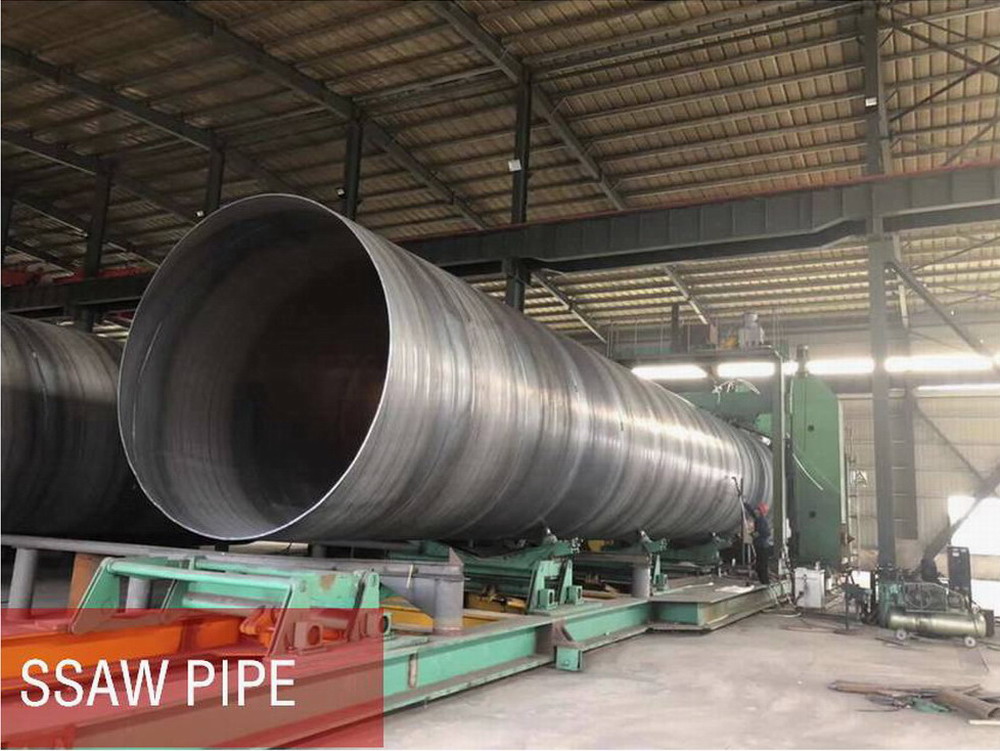

SSAW PIPEspiral steel pipeSpiral Welded Pipe
L/CT/TD/P
Standard:
Grade:
Thickness:
Section Shape:
Outer Diameter:
Place of Origin:
Application:
Technique:
Certification:
Special Pipe:
Alloy Or Not:
Tolerance:
Type:
Secondary Or Not:
Surface:
Key words:
Supply Ability:
10000 Ton/Tons per Year
Product Name | Double-faced Spiral Arc Merged Welded Steel Pipe | ||
Size | OD | 219--2500mm in Theory | |
Thickness | 6--25mm in Theory | ||
Length | Usually 6~12 Meters, 20 Meters Max in Theory | ||
Standard | SY/T5037 SY/T5040 GB/T9711 API5L EN10208 ASTM A252 JISA5525 | ||
Material | Chinese Grade | Q235,Q345,S245,S290,S320,S360,S390,S415,S450 | |
Foreign Grade | ASTM | Grade A,Grade B,X42,X46,X52,X56,X60,X65,X70 | |
EN | S185,S235JR,S235JO,E335,S355JR,S355JO L245,L290,L320,L360,L390,L415,L450 | ||
Usage | Used For Water, Sewage, Gas, Stream, Combustible Fluids(Petroleum and Gas) | ||
Ends | Weld Flanges on the Pipe Ends Plain Ends | ||
Surface | Galvanized,Black,Oiling,Painted | ||
Inspection | With Chemical Composition and Mechanical Properties Testing; Hydrostatic Test, Dimensional and Visual Inspection, Also With Nondestructive Inspection | ||
Technique | Hot Rolled and SSAW or DSAW | ||
Package | Package With Steel Strip When O.D≤273MM, Otherwise In Bulk. | ||
Large Outer Diameter Spiral Steel Pipe For Petroleum And Gas Industry
(The Largest O.D. Can Be 3020MM,Thickest Wall Can Be 25MM)

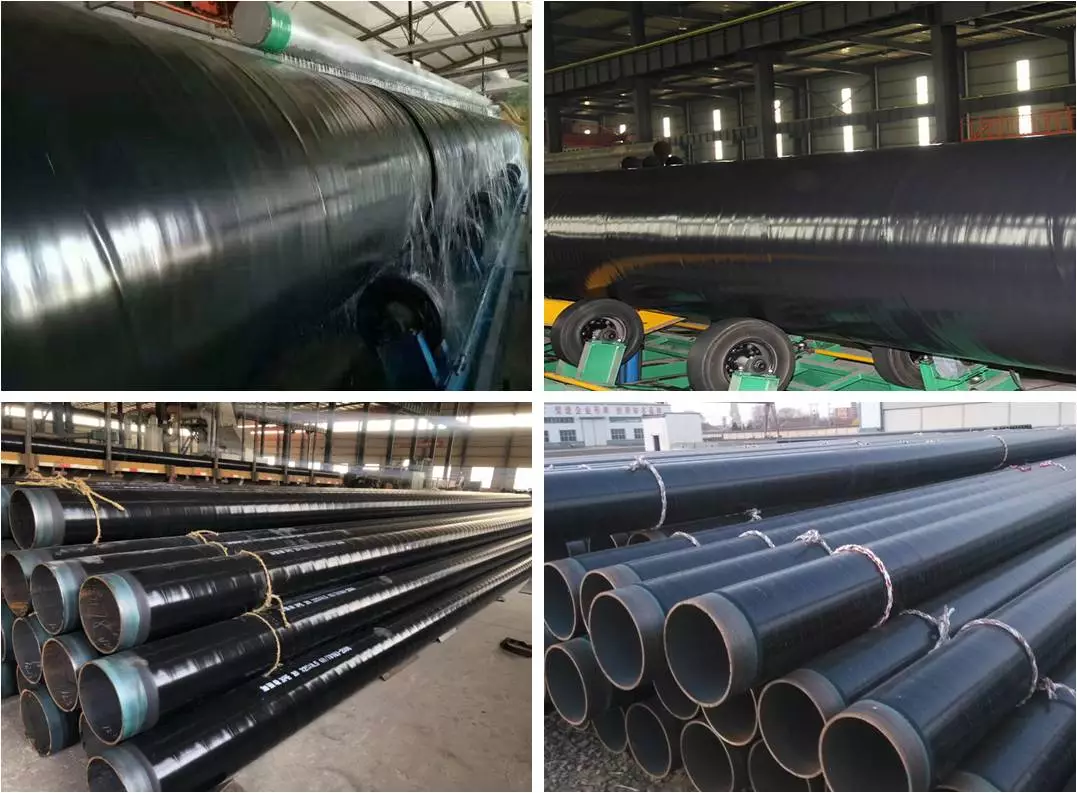

API-5L Spiral Welded Pipe With Anti-corrosive Paint Or Bitumen,Both Ends Are Covered With Plastic Caps To Protect The Beleved Thread(Also We Can Make Spiral Pipe According To GB/T9711.1&GB/T9711.2&SY 5037)
Spiral Steel Pipes For Pipe Piles According To ASTM A252
(One Side Bared,One Side With Bitumen Covering, Or You Can Choose Full Covering)
We Can Also Make Steel Piles According To JIS G2252 And SY/T5040
Spiral Steel Pipe With Epoxy Resin Cover According To AWWA Standard For Drinking Water
Spiral Steel Pipe With Bitumen Cover On The Pipe Surface And Flanges At The Both Ends
Q: Are you trading company or manufature?
A: we are trading company, and factory
Q: How long is your delivery time?
A: Generally it is 10-30dasys to make fresh
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your term of payment
A: payment <=USD10000, 100% in advance. Payment > USD10000, 30% T/T in advance, balance upon receipt of B/L copy by email or fax.
If you have another question, please feel free to contact us as below.
