CAT5e SFTP CCA 305M NETWORK CABLE

ID:20111237505

Electronics and Communications communication device

FOB Price:US$ 0.078 / Meter(s)

MOQ:152500.00 Meter(s)

Product Keywords:

Network cableLan Cablesftp cableCAT5ECAT5E SFTP CABLE

Payment Method:

L/CT/TD/PWestern UnionOthers

Product Category
Electronics and Communications > communication device
Trademark
LX brand or OEM
Product Package
305m/wooden drum
Specification
33x33x23cm
Place of Origin
made in China
Port
Guangzhou

Cat5e SFTP CU 24AWG 305m Network cable


Standard
* ISO/IEC 11801
* ANSI/TIA/EIA-568-B.2



Specification

Product Type:

  Network cable Cat5E SFTP COPPER 305m Lan cable

Conductor Material:
24AWG Copper

Number of Pairs:

4 Pairs

Conductor Dimension :

0.51mm±0.01mm

Insulation material:

PE

Insulation Dimension:

0.91
Insulation Color:

1.White/Blue &Blue 2.White/0range &Oange 3.White/Green &Green4.White/Brown &Blue

Cross Filler:

Yes

Screening:

Aluminum foil

Braiding:

64x0.12mm
   Braiding material:
Al-Mg wire

Outer Jacket Material:

  PVC

  Outer Jacket Ripcord:   Based On Customer Requirements
 Overall Nominal Diameter:   5.8±0.3mm

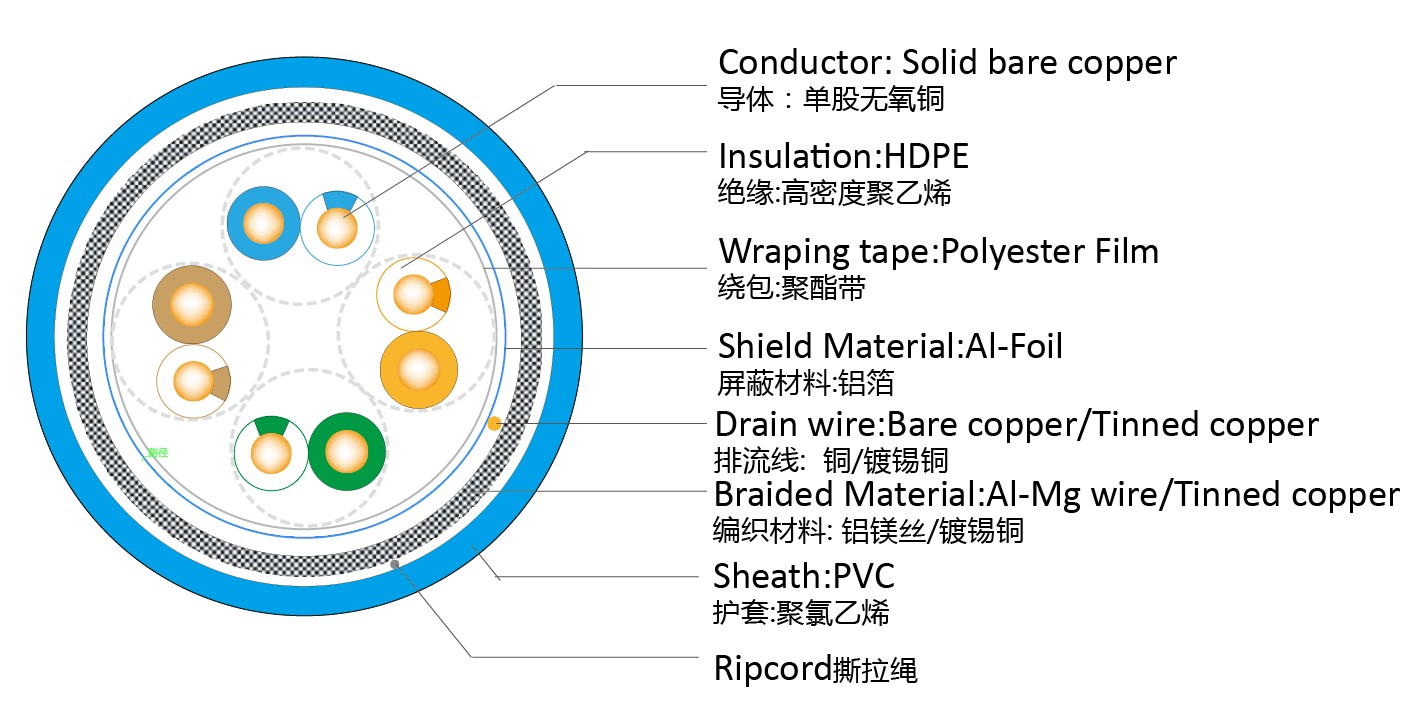

Cat5e SFTP.JPG


excel cat6 utp cable brand ethernet cable coil

Why choose us?

One Year Warranty

An extended One-year warranty is now included, at no extra charge, on all new purchases of LX full standard cable.

Here are the details of this exclusive warranty:

? Complete coverage against defects in material and workmanship for LX cables.

? When goods distribute to customer certified manufactured by LX, any technical requirement at the goods not match specification book mentioned we allow the purchaser to exchange goods.



Raw Material Selection & Inspection

All raw material offered from enterprise registered China quality centification center. When the raw material enter raw material department should enclose the third part Inspection Report and check in our strictly test system before widely usage.



Strictly Quantity Control under QC System

Product Consistency: Manufactured in ISO 9001 certified manufacturing facilities to the industry’s highest standards of quality, using the most advanced equipment, systems, controls

and processes available.





Affortable Price & Flexible Payment Term

OEM is acceptable and price could be negotiated determined on customer’s requirements like package and specification details ect. Various payment terms as T/T, L/C, D/P, O/A are opional.

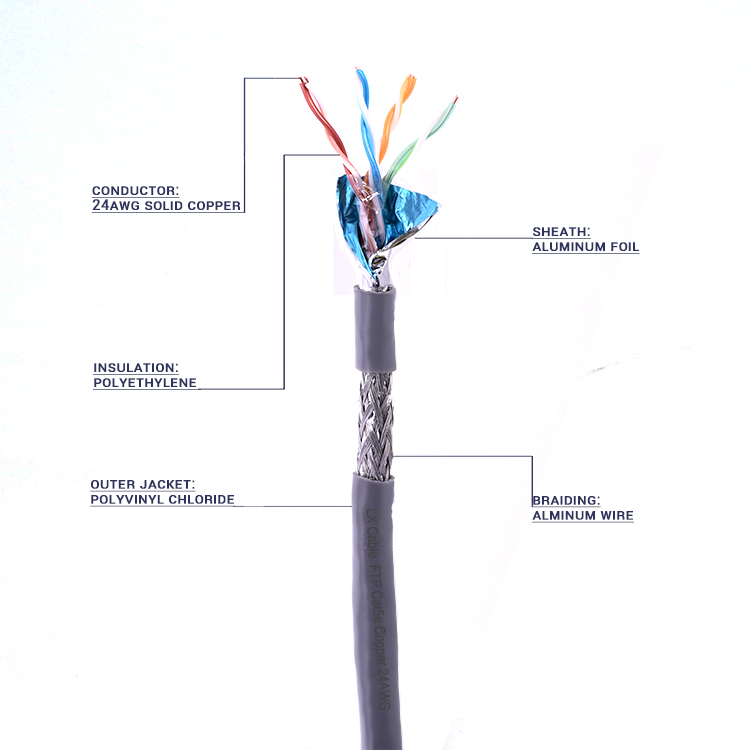

 cat5e sftp struction.jpg

6 years export experience

LX cable sale team is well deal with different countries's import matter.

Quality guarantee

One years guarantee for all full standard cable.

24-hour service

Any time send us inquiry will get qucik respone.



Free Packaging Design

We have a professional desing team free help you to design outer package.

Various Package for Selection

100m/roll, 305m/box,500m/wooden drum,1000m/ wooden drum. If you need plastic reel is ok.

Loading and delivery

17-25 working days could arrange deliver.
