FRP pultrudedprofileGRPbeamsectionshapeBEAM IBEAM H
L/CT/T
Fiberglass Pultruded Structure FRP GRP Beam I/H Pultrusion Section / Profile
Quick Details
| Name | FRP Beam I | Material Composition | Fiberglass roving, mat, resin, filling |
| Technique | Pultrusion Process | Surface Material | Polyester mat, Needled mat, Continuous strand mat, Composite mat |
| Surface Treatment | Smooth or grit or customized | Resin Type | Type V(Vinyl Ester), Type I(Isophthalic), Type O(Orthphalic) |
| Fillings | Aluminum Hydroxide, Calcium Carbonate Powder, Pigment, UV Inhibitor | Color | Yellow, green, grey or customized |
| Certificate | ISO9001 | Package Details | Steel Pallet with packing belt |
Beam I Specification
| Beam I / H | Dimension | Weight(kg/m) |
| HB100 | 100*100*6.35*6.35 | 3.65 |
| HB140 | 140*140*10*10 | 7.6 |
| HB152A | 152*152*6.35*6.35 | 5.2 |
| HB152B | 152*152*9.5*9.5 | 7.82 |
| HB203 | 203*203*12.7*12.7 | 14.6 |
| HB254 | 254*254*10*10 | 13.7 |
Pultrusion Technique
Pultrusion is a continuous process using fiber reinforcements with thermosetting resin matrices. Pre-selected reinforcement materials, such as fiberglass roving, mat, woven fabrics or stitched fabric, are drawn through a resin bath in which all material is thorougly impregnated with a liquid thermosetting resin. Typical resins include polyesters, vinyl esters and phenolics. The wet-out fiber is formed to the desired geometric shape and pulled into a heated steel die. Once inside the die, the resin cure is initiated by controlling precise elevated temperature. The laminate solidifies in the exact cavity shape of the die, as it is continuously pulled by the pultrusion machine. Most any constant cross-section part can be pultruded.

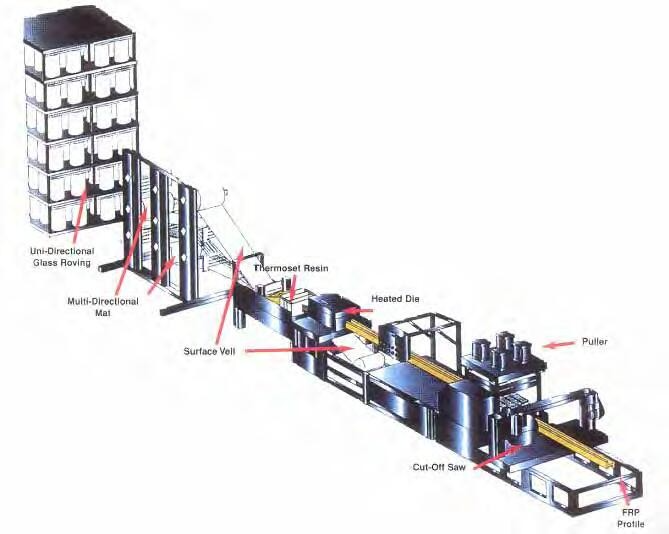

Pultrusion Process
Properties of pultrusion profiles
1. Corrosion resistant
2. Light weight and high strength
3. Anti-ageing
4. Easy maintenance
5. Excellent electromagnetism property
6. Excellent insulation property
Package Details
Fiber Reinfored Plastic Grating Bundled by belt, packed in pallet, carton etc.
Packing can be customized.
Application
Stairs
Walkways and platforms
Mining and industrial platforms
Marine applications - e.g. marinas, jettys and moorings
Architectural Solutions
Water trench covers
Chemical industry platforms and walkways
Water/Wastewater Treatment
Platforms and walkways where non electrical and thermal insulating properties are required
