FUAN LANDTOP POWER CO.,LTD.

Online Supplier

Business Type: Manufacturer

Main Products:alternatorelectric motordiesel generator setbrushless alternatorAC Motordiesel gensetDiesel Generatorsdynamobrushless generatorgenerator

MS series ac induction electrical motor three phase aluminum housing electric motor

ID:20111237597

Category: Electrical & Power Energy Generators

FOB Price:US$ 40.000 / Piece(s)

MOQ:10.00 Piece(s)

Product Keywords:

ac induction motoraluminum housing motorthree phase motorac motorselectric motorelectrical motor

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney Gram

Product Category
Electrical & Power Energy > Generators
Trademark
tops
Product Package
carton box or wooden box
Specification
standard
Place of Origin
fujian, china
Port
Fuzhou
Product Description

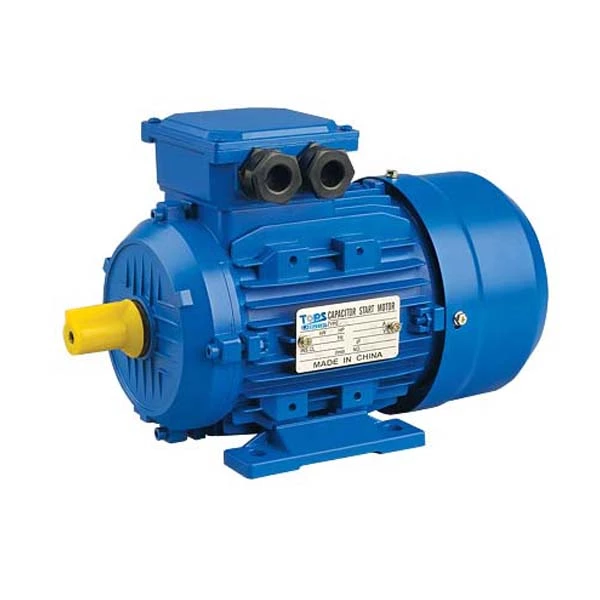

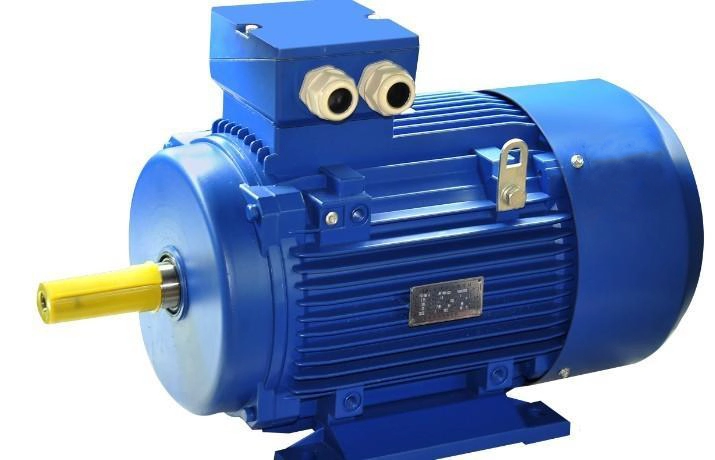

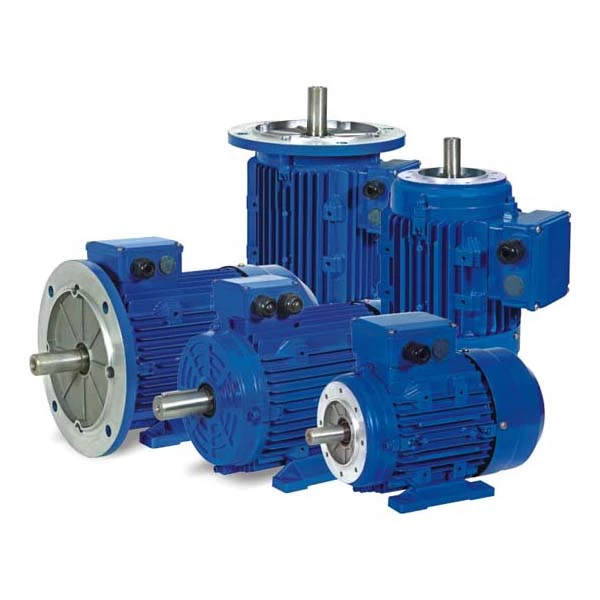

MS Series Three Phase Induction Motor
MS series three phase induction motor is suitable for any places where a larger starting torque and the starting current to be limited are required,and have outstanding performance, such as high efficiency, energy saving, high starting torque, low noise, little
vibration, reliable operation and easy maintenance, etc.There series motors are totally enclosed fan-cooled.The frames are made of cast iron or cast Aluminum according to the requests.The housing is cast aluminum.
Ambient temperature：
－15℃≤x≤40℃
Altitude：
≤1000m
Rated Voltage：
380V,0ther voltage on request
Rated Frequency：
50hz,other frequency on request
Duty/Rating：
Continuous(S1)
Insulation class：
Class B/F
Protection class：
IP44/IP54/IP55
Cooling method：
IC411

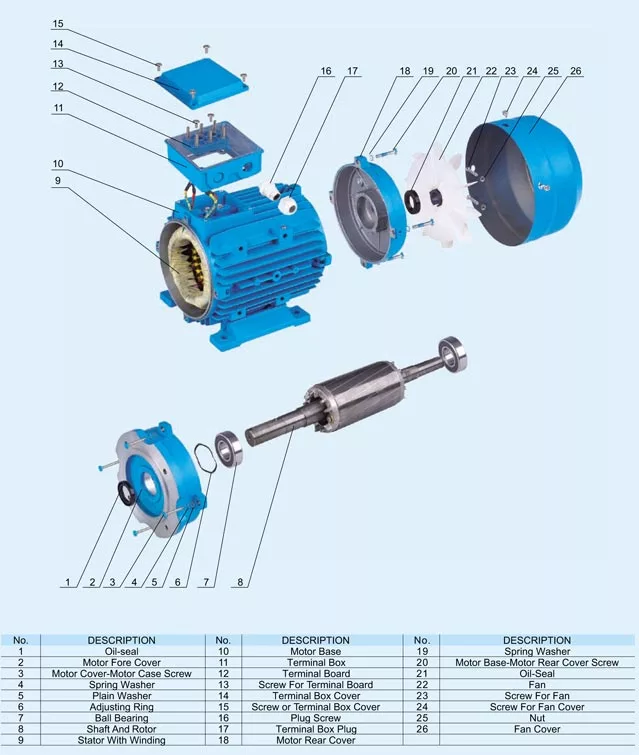

Details of Motor
MS Series Three Phase Induction Motor
Model
Output
Full load



kw
hp
Current(A)
Speed
(r/min)
Eff
(%)
Power
factor
Tst/Tn
Ist/In
Tmax/Tn
380v 50hz Synchronous Speed 3000 r/min (2 poles)
MS-561-2
0.09
0.12
0.30
2800
62
0.68
2.2
5.5
2.2
MS-562-2
0.12
0.16
0.38
2800
67
0.75
2.2
5.5
2.2
MS-631-2
0.18
0.25
0.53
2730
65
0.80
2.2
5.5
2.2
MS-632-2
0.25
0.34
0.69
2725
68
0.81
2.2
5.5
2.2
MS-801-2
0.75
1.00
1.83
2845
75
0.83
2.2
7.0
2.3
MS-802-2
1.10
1.50
2.58
2840
76
0.84
2.2
7.0
2.3
MS-90S-2
1.50
2.00
3.43
2840
78.5
0.84
2.2
7.0
2.3
MS-100L-2
3.00
4.00
6.31
2860
82.6
0.87
2.2
7.5
2.3
MS-132S2-2
7.50
10.0
8.10
2880
84.4
0.88
2.2
7.5
2.3
380v 50hz Synchronous Speed 1500 r/min (4 poles)
MS-561-4
0.08
0.08
0.28
1300
58
0.58
2.1
4.4
2.2
MS-562-4
0.09
0.12
0.35
1300
58
0.61
2.1
4.4
2.2
MS-711-4
0.25
0.34
0.79
1330
65
0.74
2.1
4.4
2.2
MS-801-4
0.55
0.75
1.57
1390
71.0
0.75
2.1
5.2
2.2
MS-90S-4
1.1
1.5
2.89
1390
76.2
0.77
2.3
6.0
2.3
MS-100L2-4
3.0
4
6.78
1410
82.6
0.82
2.3
7.0
2.3
MS-132M-4
7.5
10
15.6
1440
87.0
0.84
2.3
7.0
2.3
380v 50hz Synchronous Speed 1000 r/min (6 poles)
MS-711-6
0.18
0.25
0.74
850
56.0
0.66
1.9
4.0
2.0
MS-802.6
0.55
0.75
1.79
885
65.0
0.72
1.9
4.7
2.0
MS-90L-6
1.1
1.5
3.18
910
72.0
0.73
2.0
5.5
2.1
MS-132S-6
3.0
4
7.40
935
81.0
0.76
2.1
6.5
2.1
MS-132M2-6
5.5
7.5
12.9
960
82.0
0.77
2.1
6.5
2.1
380v 50hz Synchronous Speed 750 r/min (8 poles)
MS-801-8
0.18
0.25
0.88
645
51.0
0.61
1.8
3.3
1.9
MS-90S-8
0.37
0.50
1.49
670
62.0
0.61
1.8
4.0
2.0
MS-100L1-8
0.75
1
2.39
680
71.0
0.67
1.8
5.0
2.0
MS-132M-8
3.0
4
7.90
710
79.0
0.73
1.8
6.0
2.0
Contact me if you want to know more!

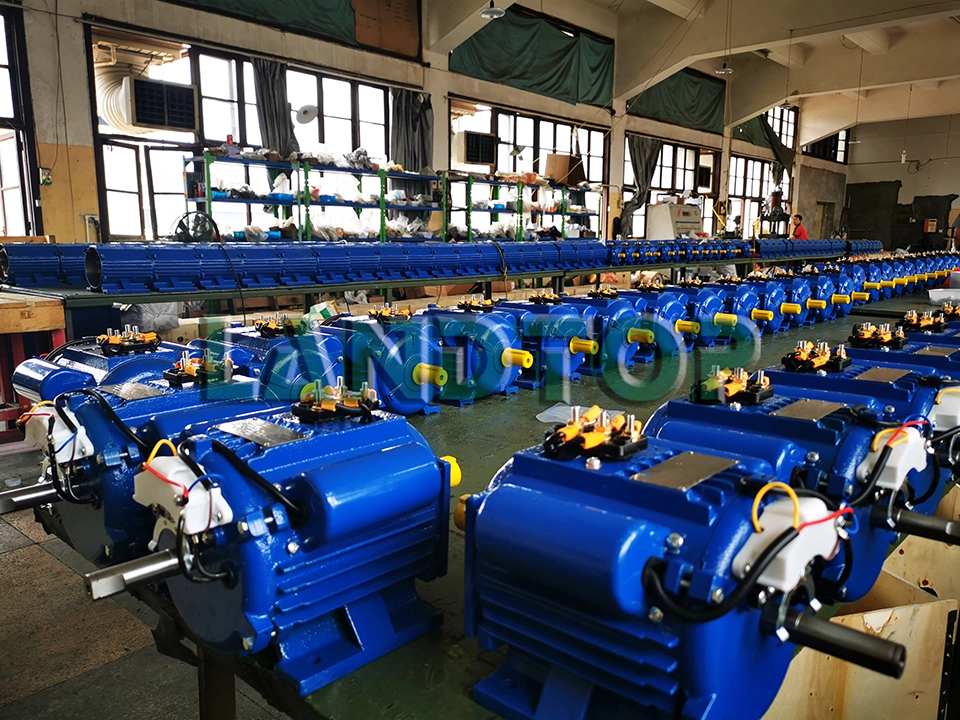

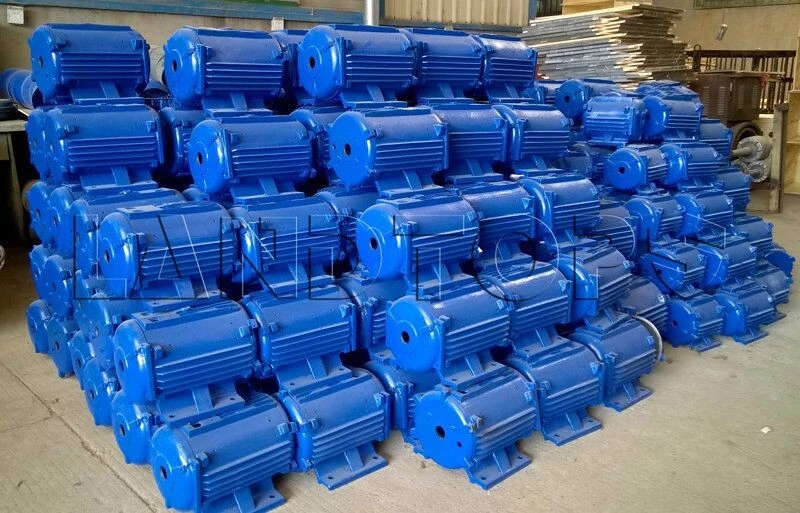

Product Line

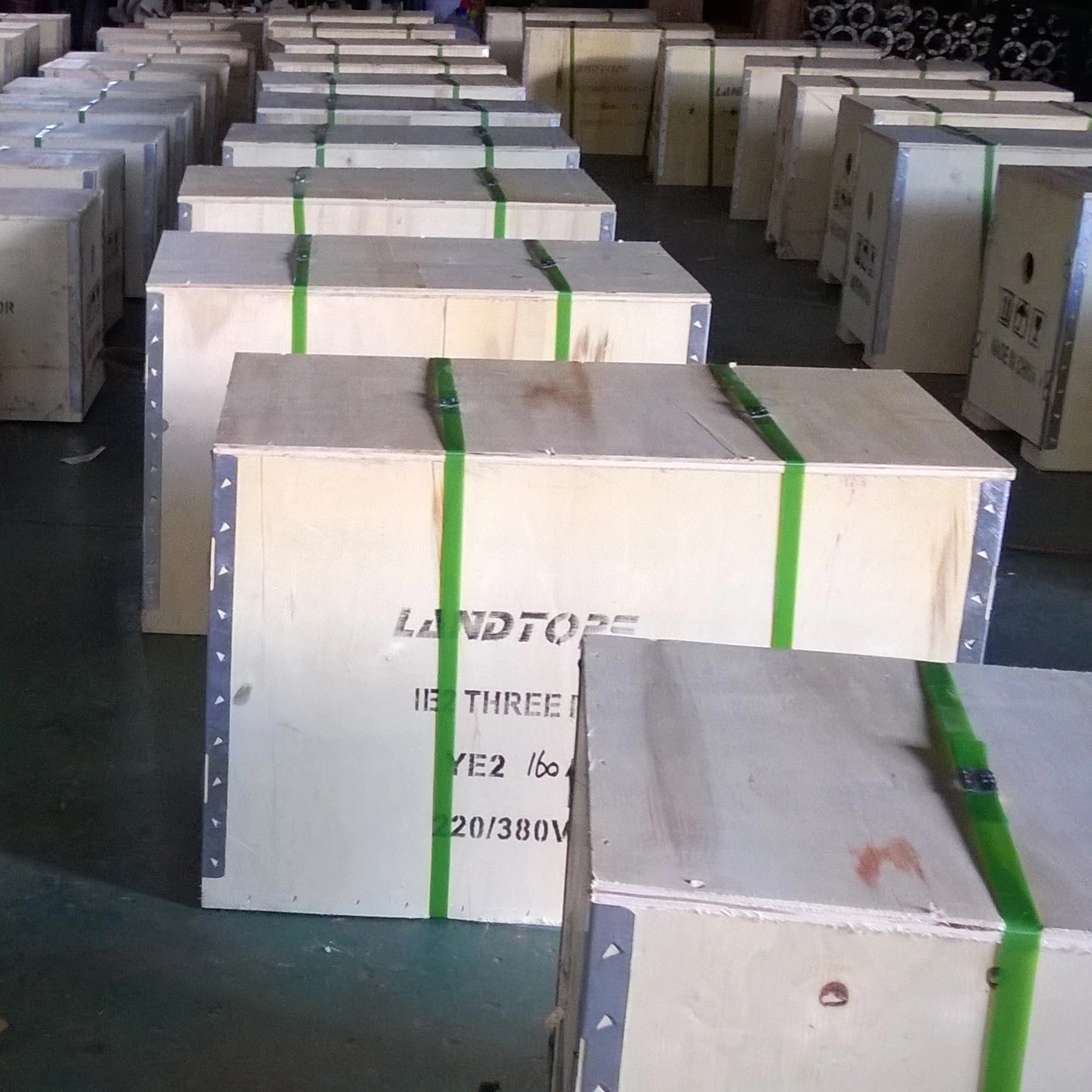

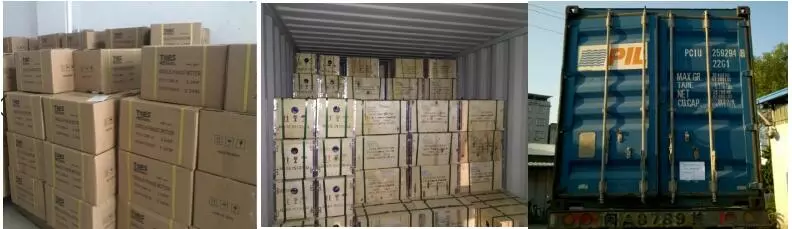

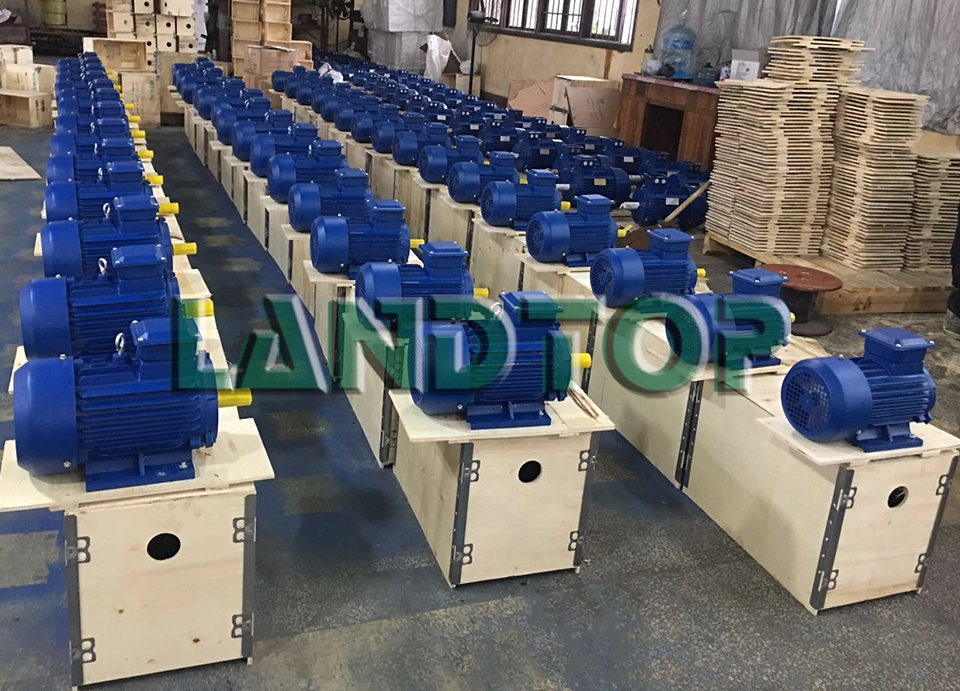

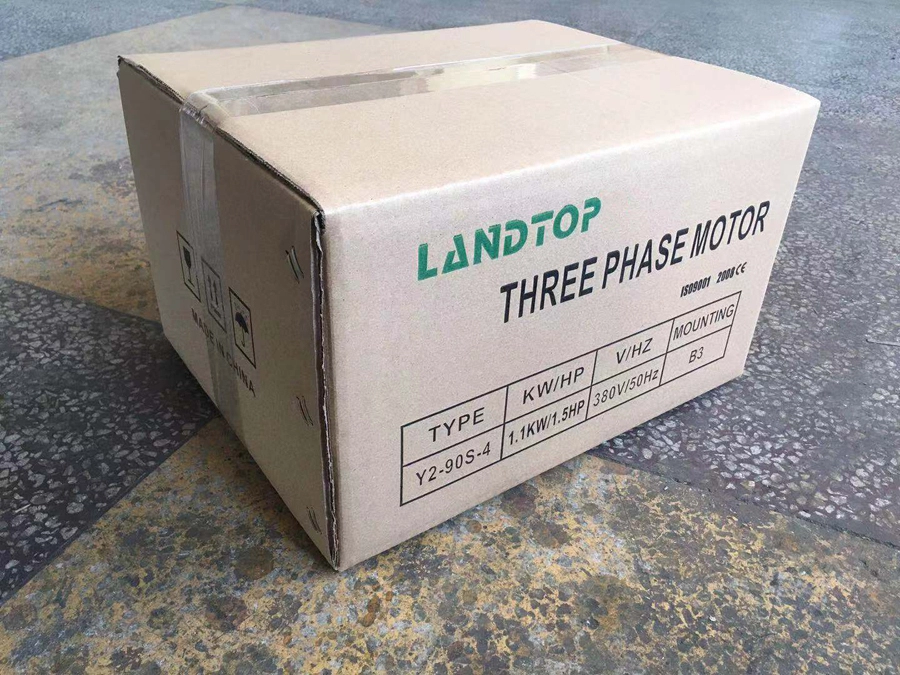

Packing&Shipping
Company Profie
00:00
02:00
FUZHOU LANDTOP CO.,LTD
FUZHOU LANDTOP CO.,LTD is specialized in manufacturing and exporting a wide range of electromechanical products,covering Alternators,Electric Motors,Diesel Generating Sets etc.With years of development,LANDTOP has become into a modern,large-scale and international company.Our sales department is located in fuzhou city.We also have our own factory in fuan city.Our group is continuously making arduous efforts on innovation to better serve our customers.We ensure our cooperation will bring a win-win benefit to both of us.

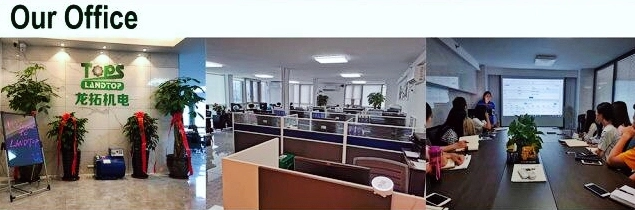

Our Sales Team
Our exhibition
Our Service

FAQ:

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.

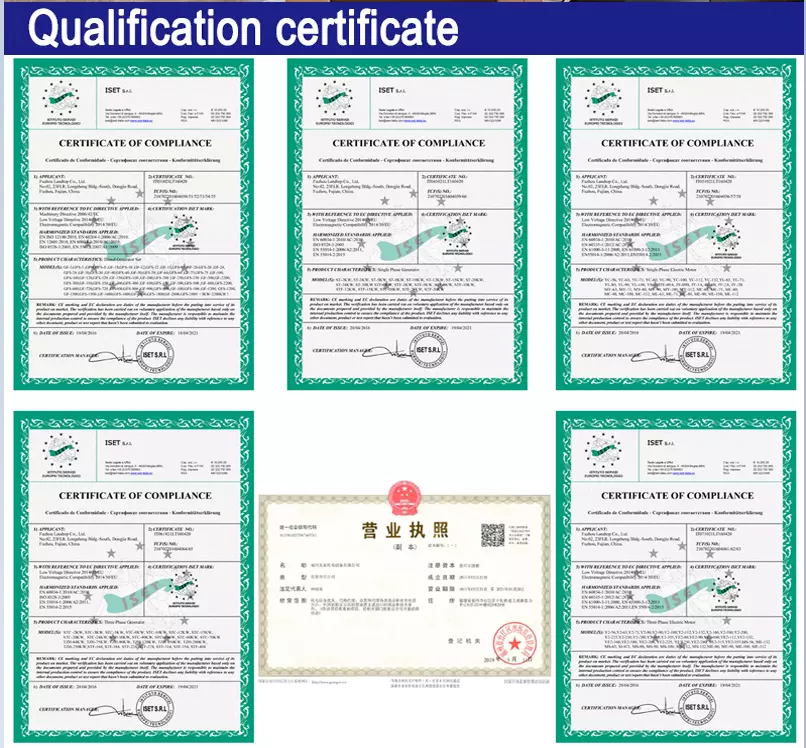

Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

WHAT WE DO:

1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.

Warranty:

1.Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one.
2.We take charge of troubles caused by motor’s fault and repair according to the regulation stipulated by original plants.
3. Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components, wrong operating, lack of maintenance are not including in the quality guarantee.
