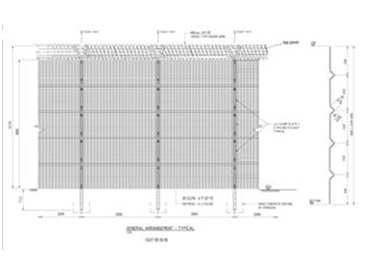

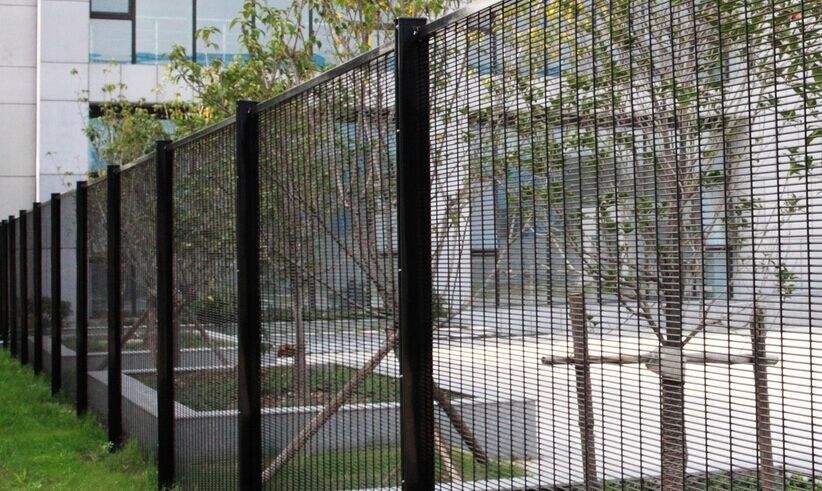

358 fence
1.Instruction

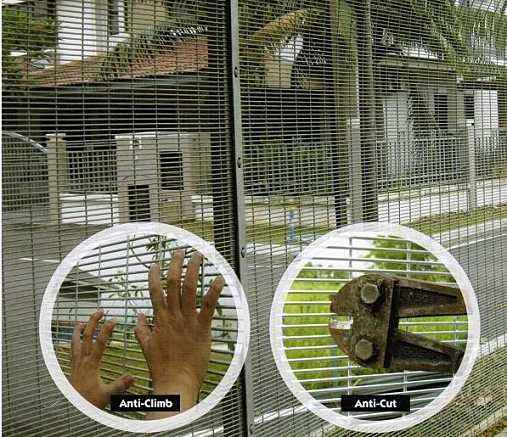

358 fence also known as " PRISON MESH ", this production offers the best value for performance, durability and appearance.'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. This high performance system provides the ultimate protection against anti-climb and cut through.
|
|
2.Specification
Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
76.2mmx12.7mm | wire: 3.0mm or 4.0mm | Glavnized and electrostatic polyester powder coated or hot dipped galvanized | 2.0mor2.5m | 2.0m 2.2m 2.4m 3.0m |

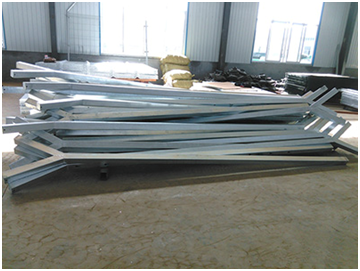

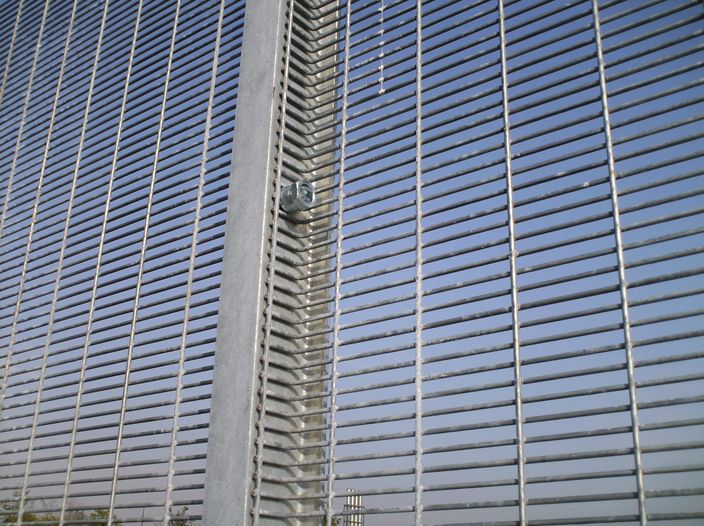

3.Post type of 358 fence/ high security fence
Item | Size | Thickness | Surface Treatment | Length | Height | Rain hat |
Square post | 60mmx60mm 80mmx80mm | 2.0mm, 2.5mm, 3.0mm | Galvanized and electrostatic polyester powder coated or hot dipped galvanized | On the basis of panel height | 2.5m, 2.8m, 3.0m, 3.7m | Plastic or Metal |
Rectangle Post | 60mmx80mm | |||||
C post | 60mmx80mm |
|  |
|

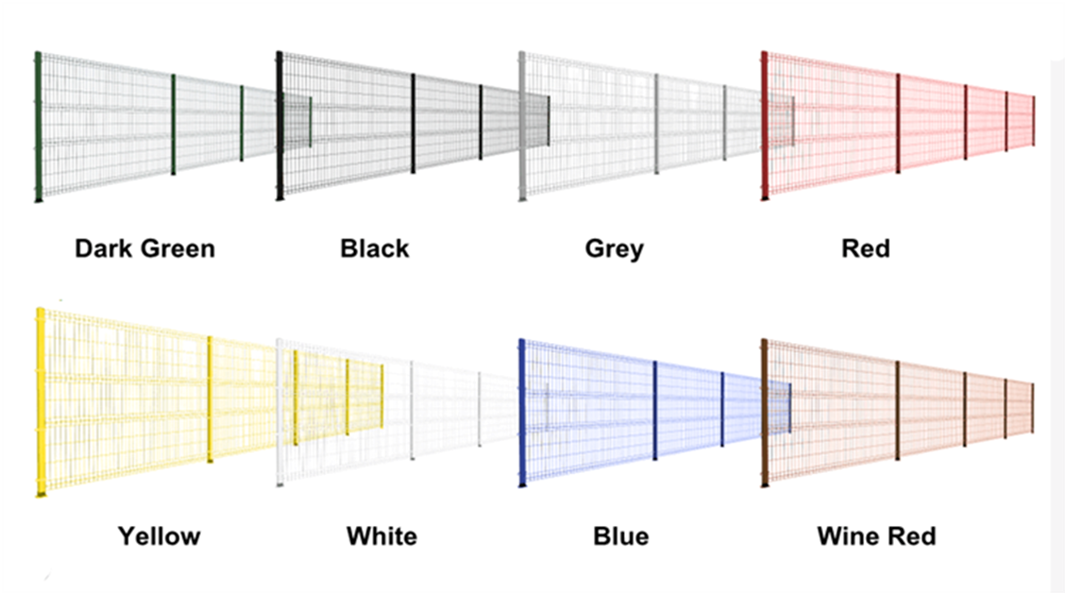

4.Surface treatment
1>hot dipped galvanized wire + pvc painted
2>Electro galvanized wire + pvc painted
3>hot dipped galvanized after welding
4>Electro galvanized after welding
5>Hot dipped galvanized after welding + pvc painted
6>Electro galvanized after welding + pvc painted

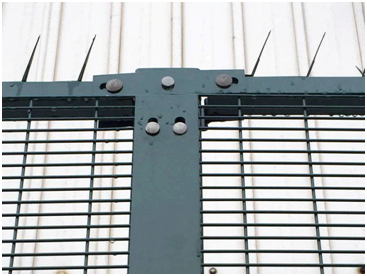

5.Fittings：
|
|
|

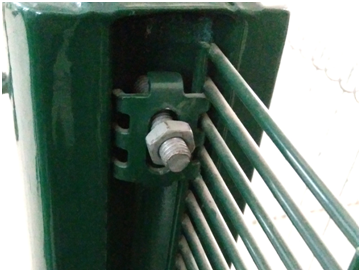

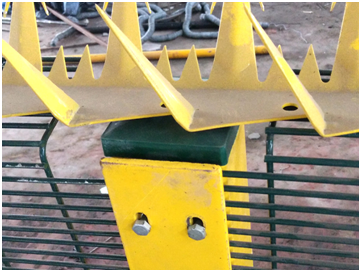

flat bar with horizontal tube | flat bar with top wall spike | Metal clamp |

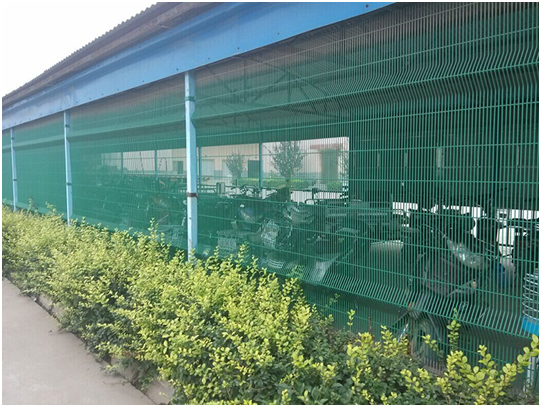

6.Applications:
1>Bridge anti-climb guarding & guard safety screening
2>Psychiatric hospital security fencing
3>Prison security fencing
4>Factory machine guards
5>Walkway security fencing

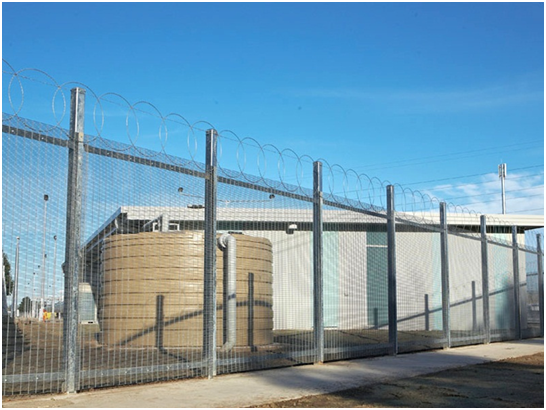

6>Airport security fencing
7>Shipping Port Security fencing
8>Electrical sub-station fencing
9>Gas pipelines security fence
10>High security living area and private field fence
|
|

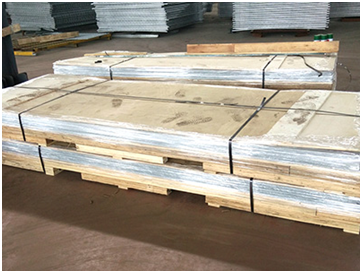

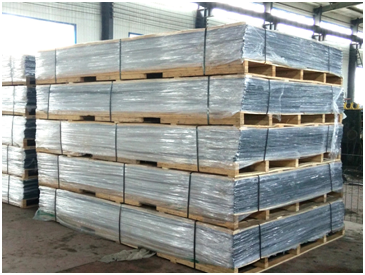

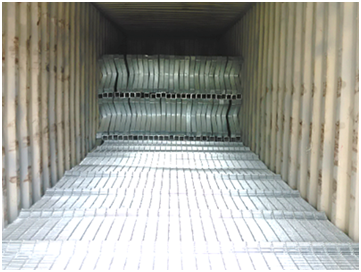

7.Packing and shipment:
1>Packing in bulk
2>packing in wooden pallet
3>packing in iron pallet
4>Clamps packed into carbon box.
Any packing would be available for your require.
|
|
|
